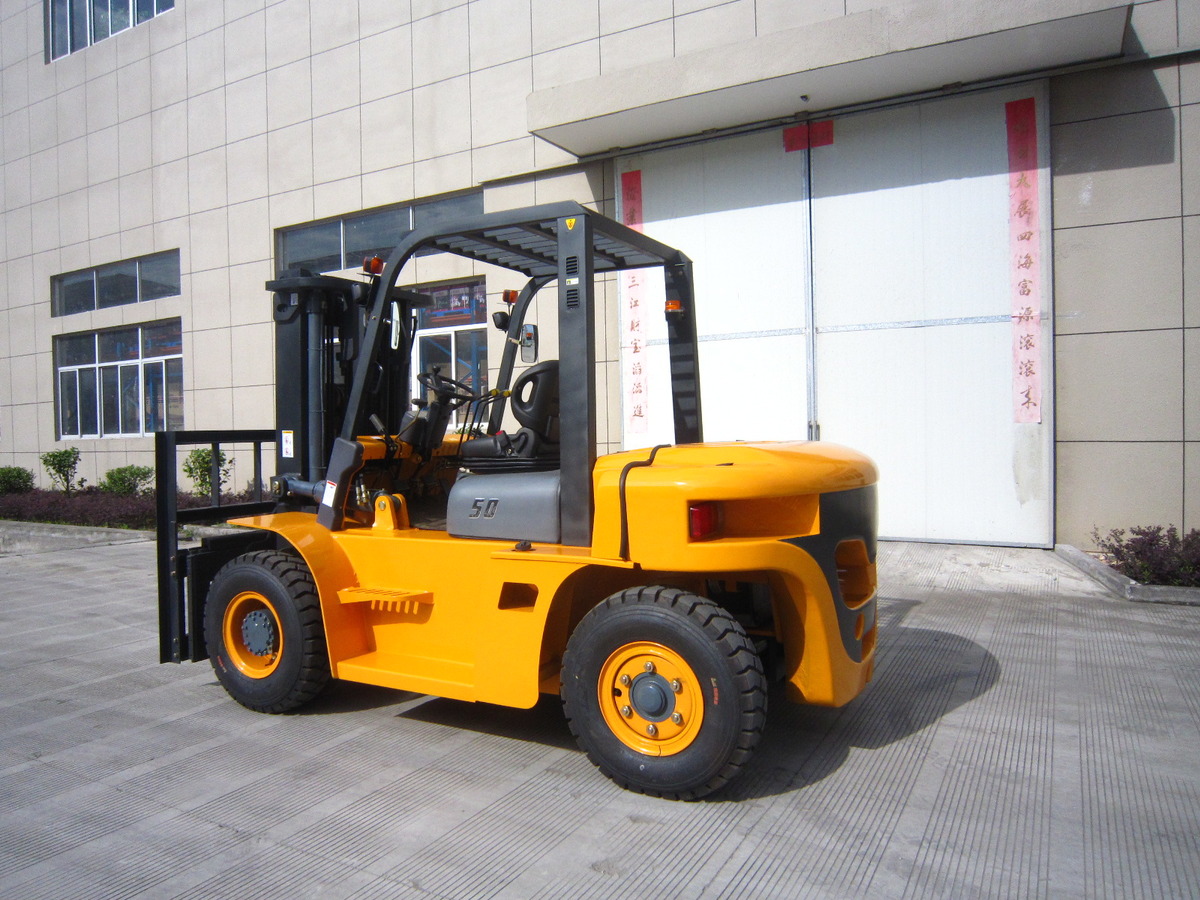

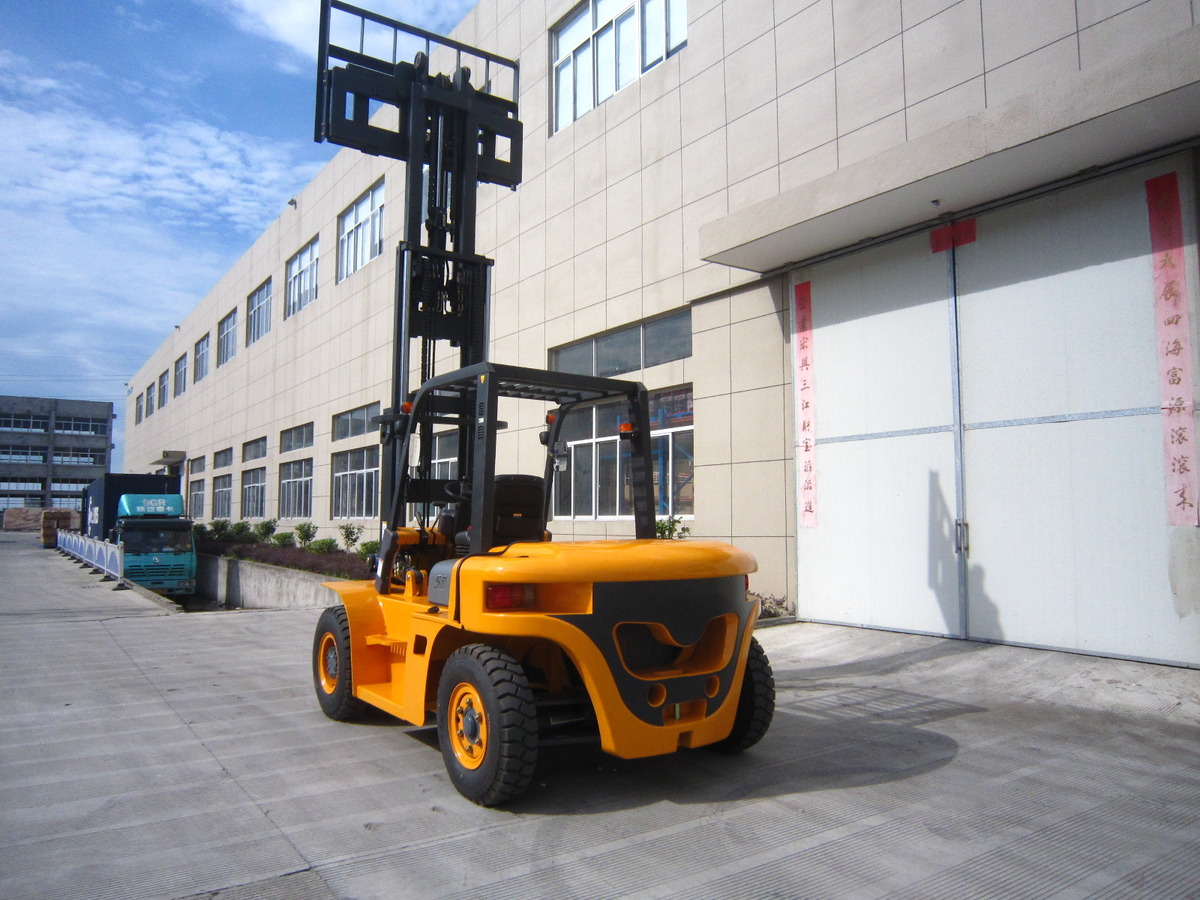

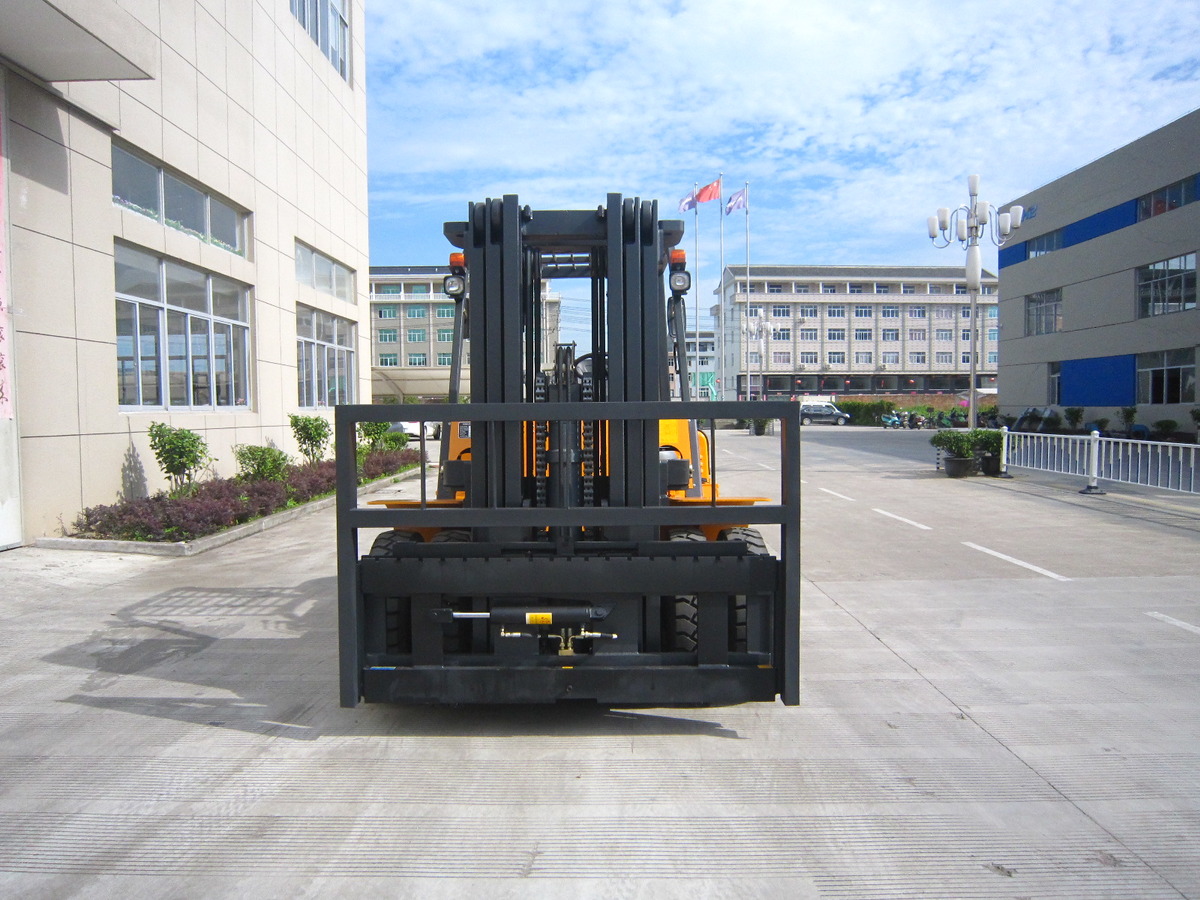

展品型号：5吨柴油叉车
展品尺寸：3440*2000*2520MM
展品材质：钢铁、橡胶、塑料等
发 货 地：中国 浙江
展品颜色：黄色
展品特征：本公司主打产品,绿色环保,自主知识产权
品名：5吨柴油叉车
型号：HH50Z-W6-D
参数：1, 5吨额定载重，载荷中心600MM
2, 配日本五十铃6BG1柴油动力
3，液力变速箱，4.5米3节门架，带侧移
4，双倒车镜，悬浮式座椅，带警示灯
5，朝阳充气胎，1.22米货叉
6，叉车尺寸3340*2000*2520MM,自重8850KGS
| Generals | 1 | Model 型号 | UNIT | HH50Z-W6-D | ||
| 2 | Power type 动力形式 | 柴油/Diesel | ||||
| 3 | Rated capacity 额定载荷 | kg | 5000 | |||
| 4 | Load center 载荷中心距 | mm | 600 | |||
| Dimensions | 5 | Lift height 起升高度 | mm | 4500 | ||
| 6 | Free lift height 自由起升高度 | mm | 190 | |||
| 7 | Fork size(L*W*T)货叉尺寸 | mm | 1220×150×70 | |||
| 8 | Fork outside spread(Min./Max.)货叉间距（外侧） | mm | 300/1830 | |||
| 9 | Mast tilt range(F/R)门架倾角（前/后） | deg | 6/6 | |||
| 10 | Front overhang 前悬距 | mm | 590 | |||
| 11 | Overall dimensions | Length to face of fork 总长 | Without of fork 不带货叉 | mm | 3440 | |
| 12 | With fork 带货叉 | mm | 3500 | |||
| 13 | Wheel width 车轮宽 | mm | 2000 | |||
| 14 | Mast lowered height 门架不起升高度 | mm | 2520 | |||
| 15 | Mast extended height 门架起升高度 | mm | 5860 | |||
| 16 | Overhead guard height 安全架高度 | mm | 2490 | |||
| 17 | Turning radius 最小转弯半径 | mm | 3370 | |||
| Performance | 18 | Travel speed (unload/full load) 行驶速度（空载/满载） | km/h | 30/28 | ||
| 19 | Lift speed (unload/ full load) 起升速度（空载/满载） | mm/s | 600/400 | |||
| 20 | Max. gradeability 最大爬坡度 | % | 20 | |||
| Wheel & Tires Drive units | 21 | Tires 轮胎 | Front 前轮 | 8.25-15-14PR | ||
| 22 | Rear 后轮 | 8.25-15-14PR | ||||
| 23 | Tread 轮距 | Front 前轮 | mm | 1470 | ||
| 24 | Rear 后轮 | mm | 1700 | |||
| 25 | Wheelbase 轴距 | mm | 2250 | |||
| 26 | Min. ground clearance 最小离地间隙 （unload/ full load）（空载/满载） | Mast 门架 | mm | 190/160 | ||
| 27 | Frame 车架 | mm | 260/250 | |||
| 28 | Battery 蓄电池 | v/ah | 2×12/90 | |||
| 29 | Engine 发动机 | Model 型号 | 6BG1 | |||
| 30 | Rated output 额定功率 | kw/r.p.m | 82/2000 | |||
| 31 | Rated torque 额定扭矩 | n.m/r.p.m | 411/1600 | |||
| 32 | Displacement 排量 | cc | 6494 | |||
| 33 | No. of cylinder 缸数 | 6 | ||||
| 34 | Bore×stroke 缸径×行程 | mm | 105×125 | |||
| 35 | Transmission 双变 | Model 型号 | Hydraulic | |||
| 36 | Shift (FWD/RVS) 档位（前/后） | 2/1 | ||||
| 37 | Operating pressure 工作压力 | mpa | 18 | |||
