展品型号：MIG-175
展品尺寸：435*204*290
展品材质：线路板
展品颜色：蓝色（可定制）
展品特征：本公司主打产品
INVERTER MIG/MMA WELDING MACHINE
Model | MIG-100 | MIG-135 | MIG-175 | MIG-195 |
| Power voltage(V) | 1 phase AC 220V | 1 phase AC 220V | 1 phase AC 220V | 1 phase AC 220V |
| Rated input capacity(KVA) | 3.25 | 4.79 | 6.55 | 7.6 |
| Rated input current(A) | 19 | 20.75 | 22.5 | 23.5 |
| Actual output current (A) | 100 | 135 | 170 | 190 |
| No-load voltage(V) | 55 | 55 | 55 | 55 |
| Duty cycle(%) | 60 | 60 | 30 | 30 |
| Efficiency(%) | 80 | 80 | 80 | 80 |
| Power factor | 0.73 | 0.73 | 0.73 | 0.73 |
| Insolation class | F | F | F | F |
| Protect class | IP21S | IP21S | IP21S | IP21S |
| Usable wire(mm) | 0.6-0.8 | 0.6-0.8 | 0.6-1.0 | 0.6-1.0 |
| N.W.(KG) | 11.44 | 11.51 | 15.8 | 15.9 |
| Dimension(mm) | 480*220*340 | 480*220*340 | 480*240*370 | 480*240*370 |

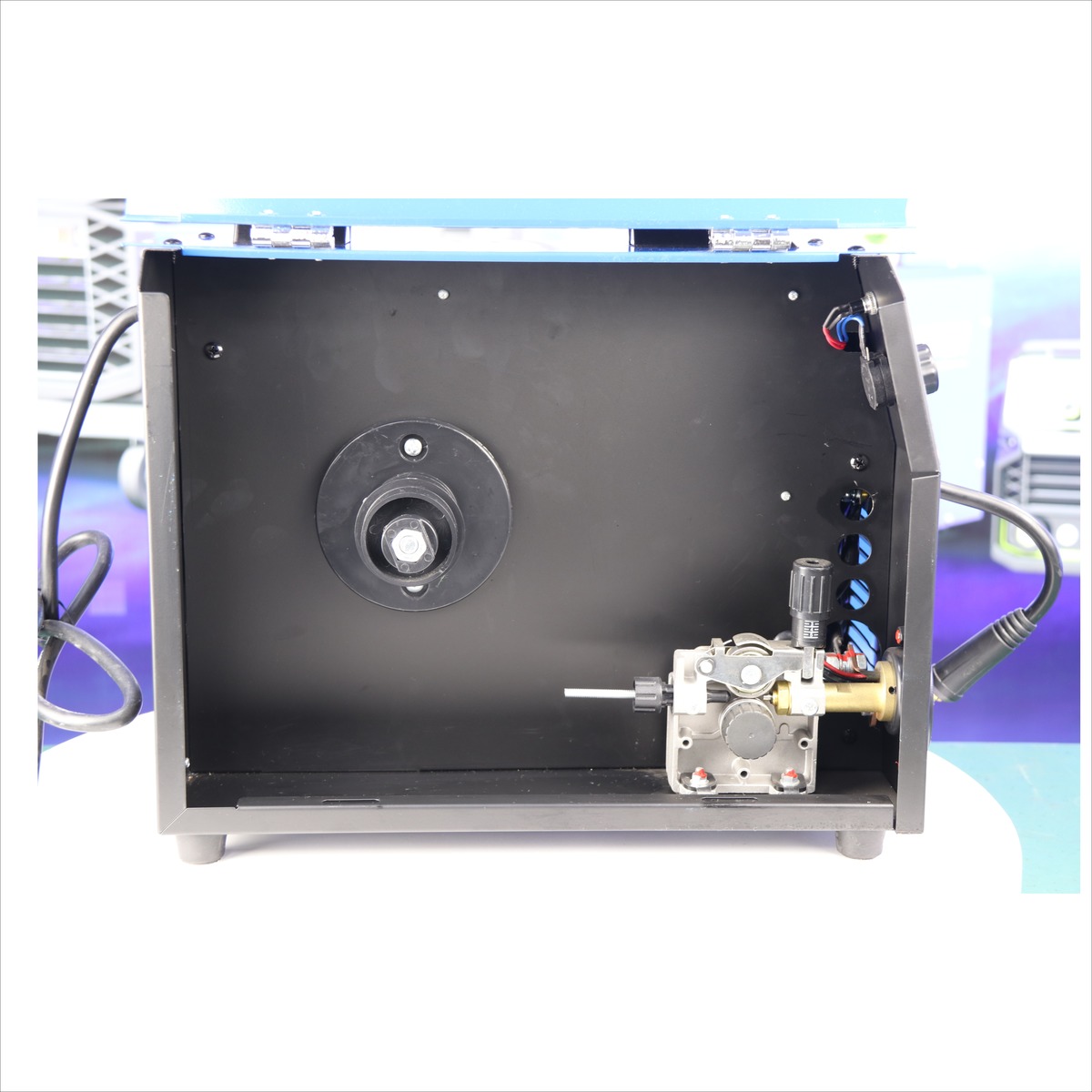

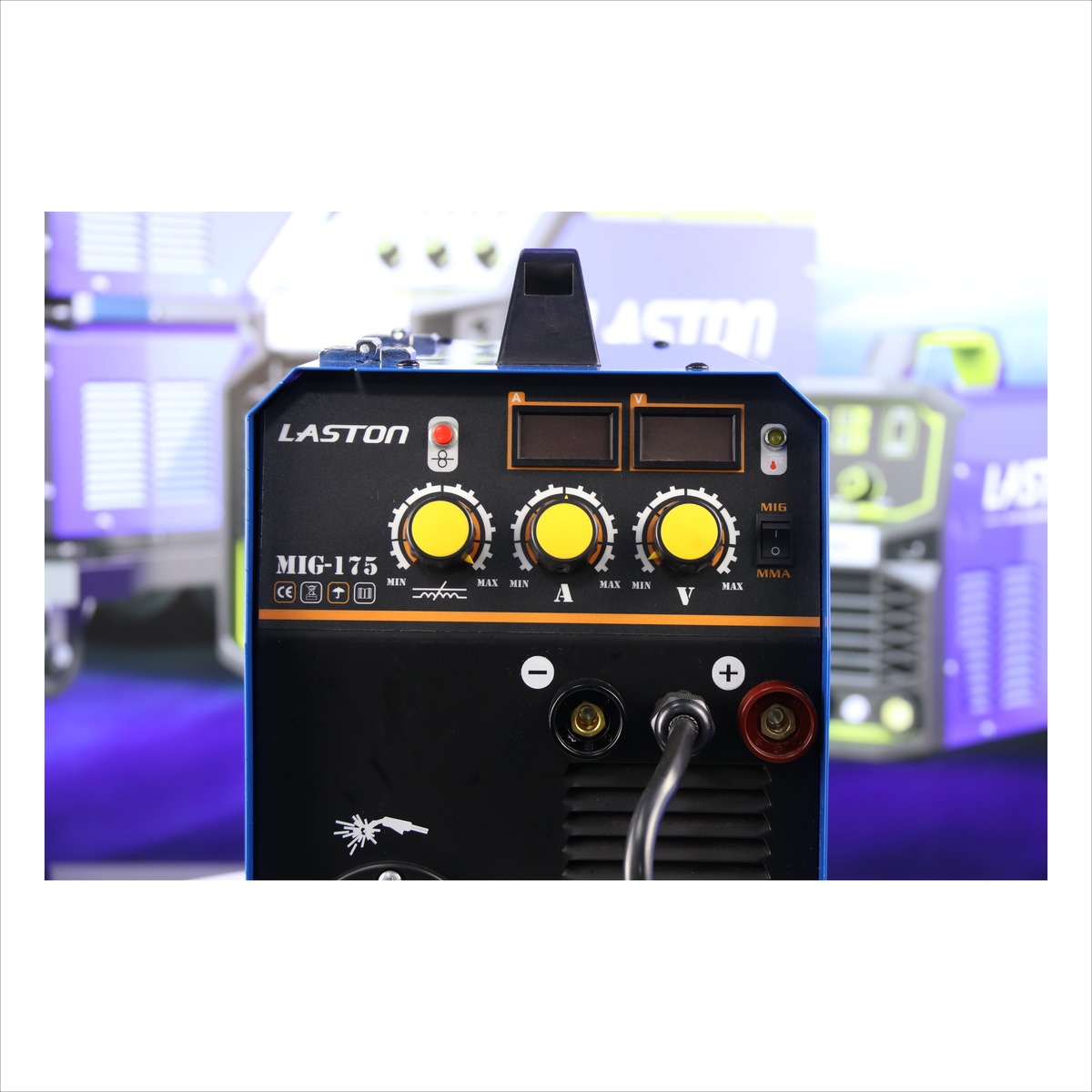

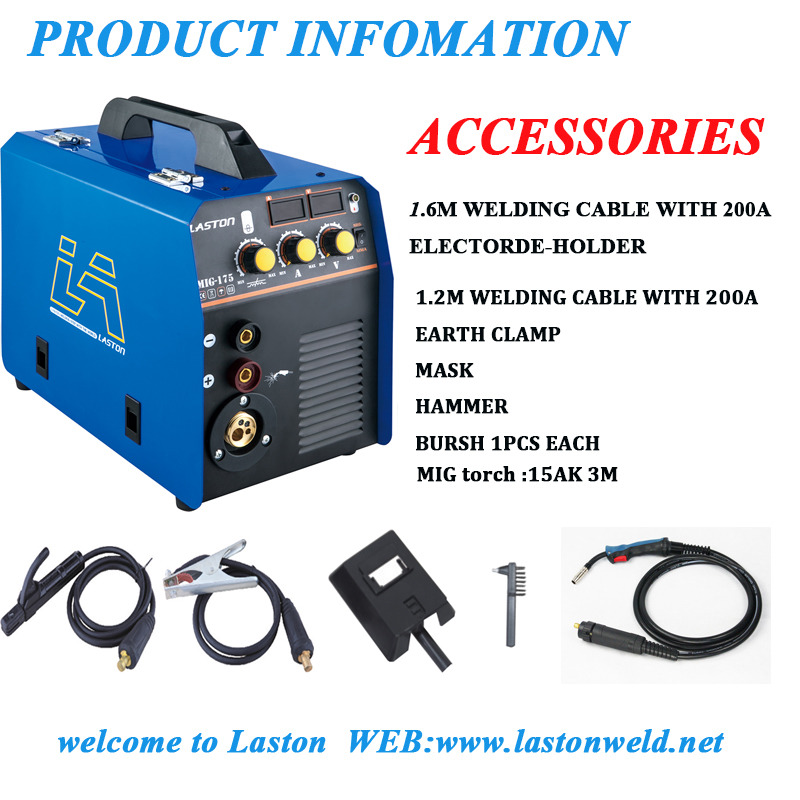

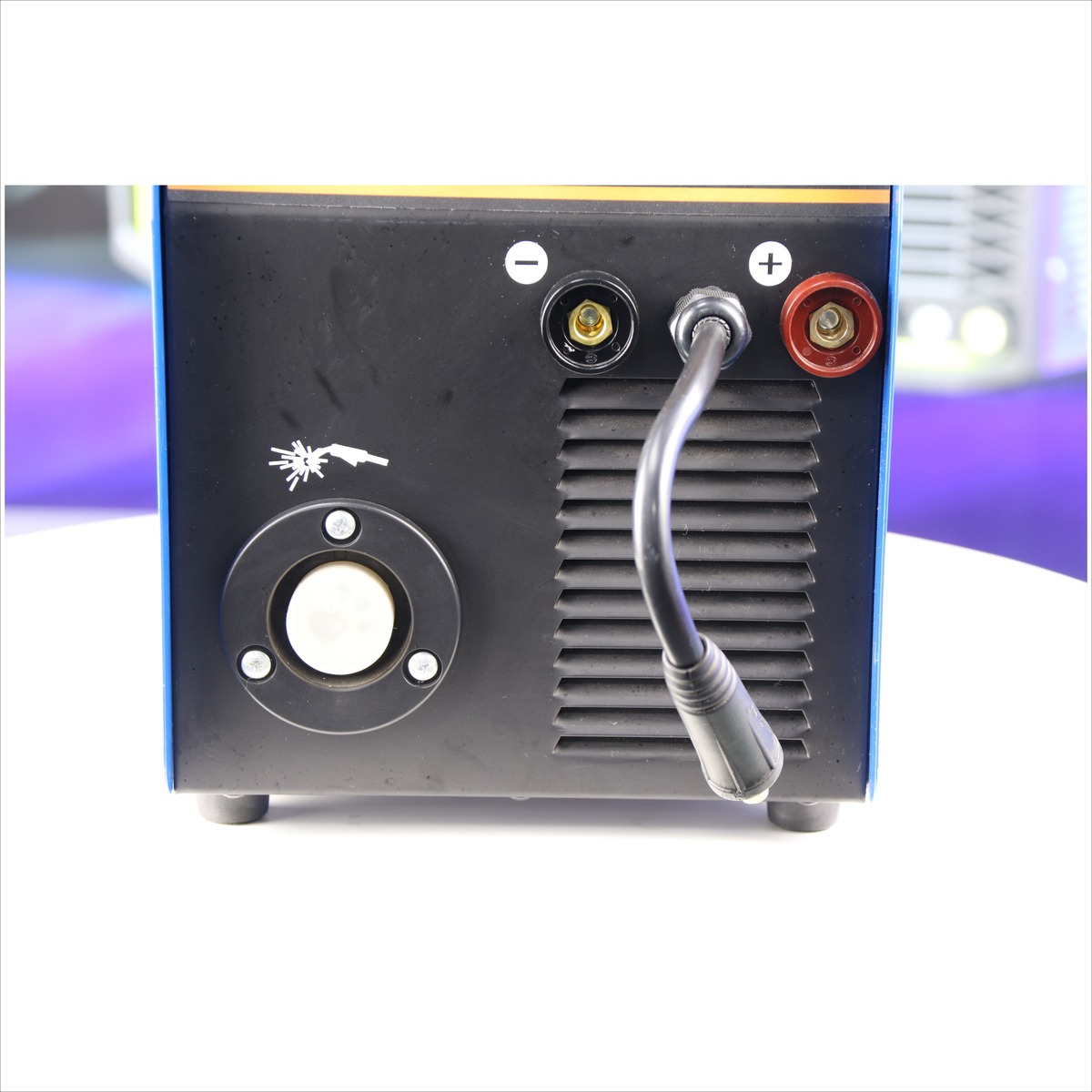

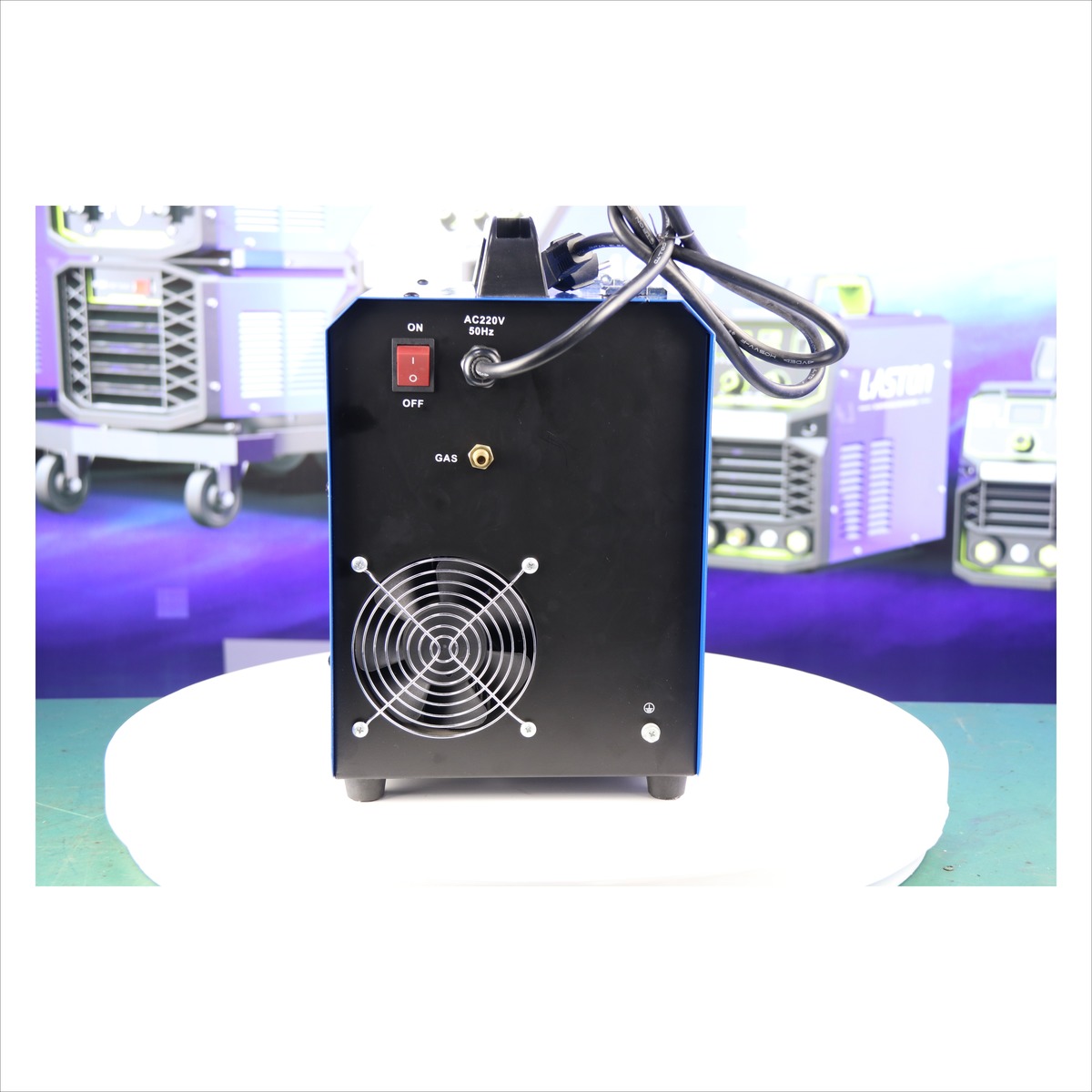

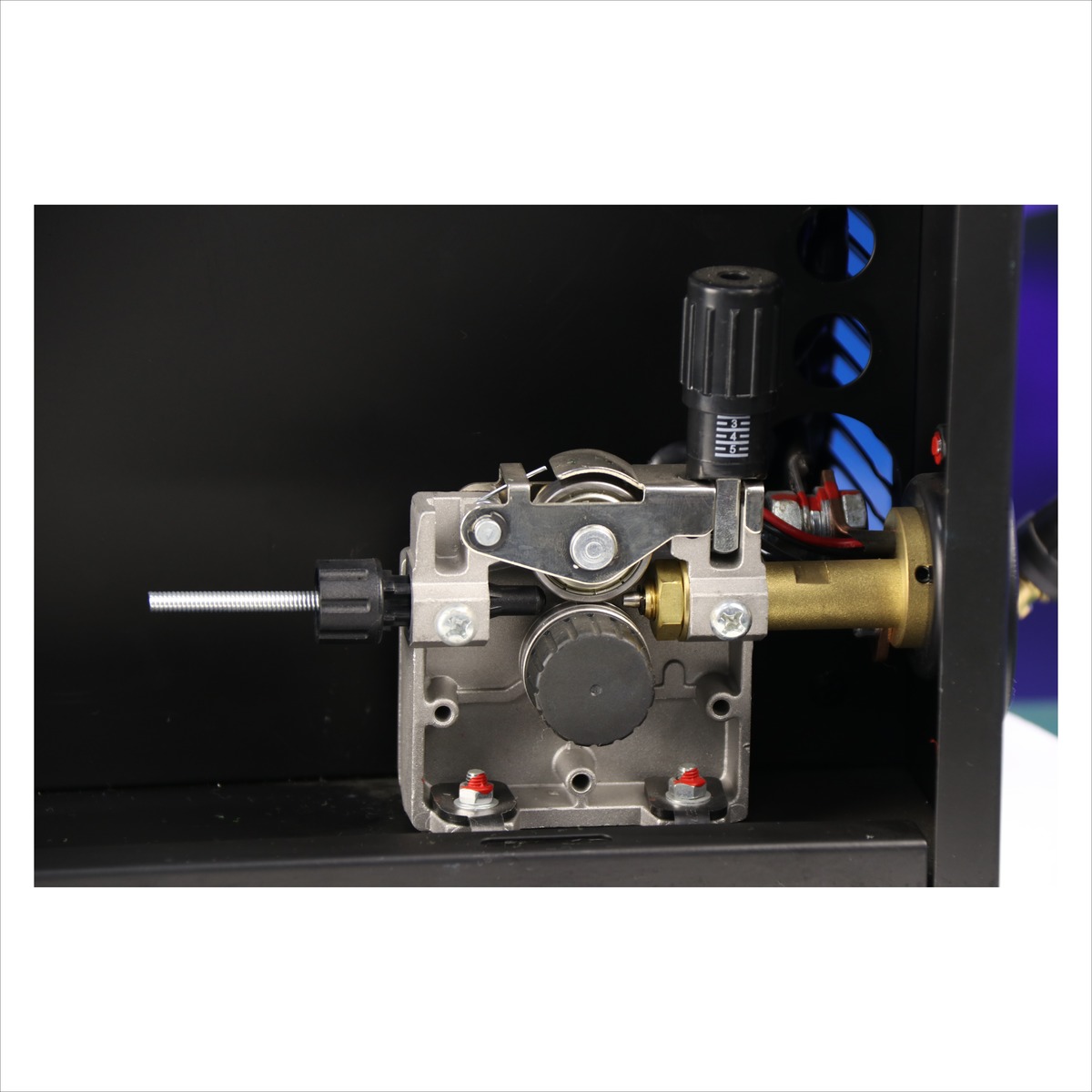

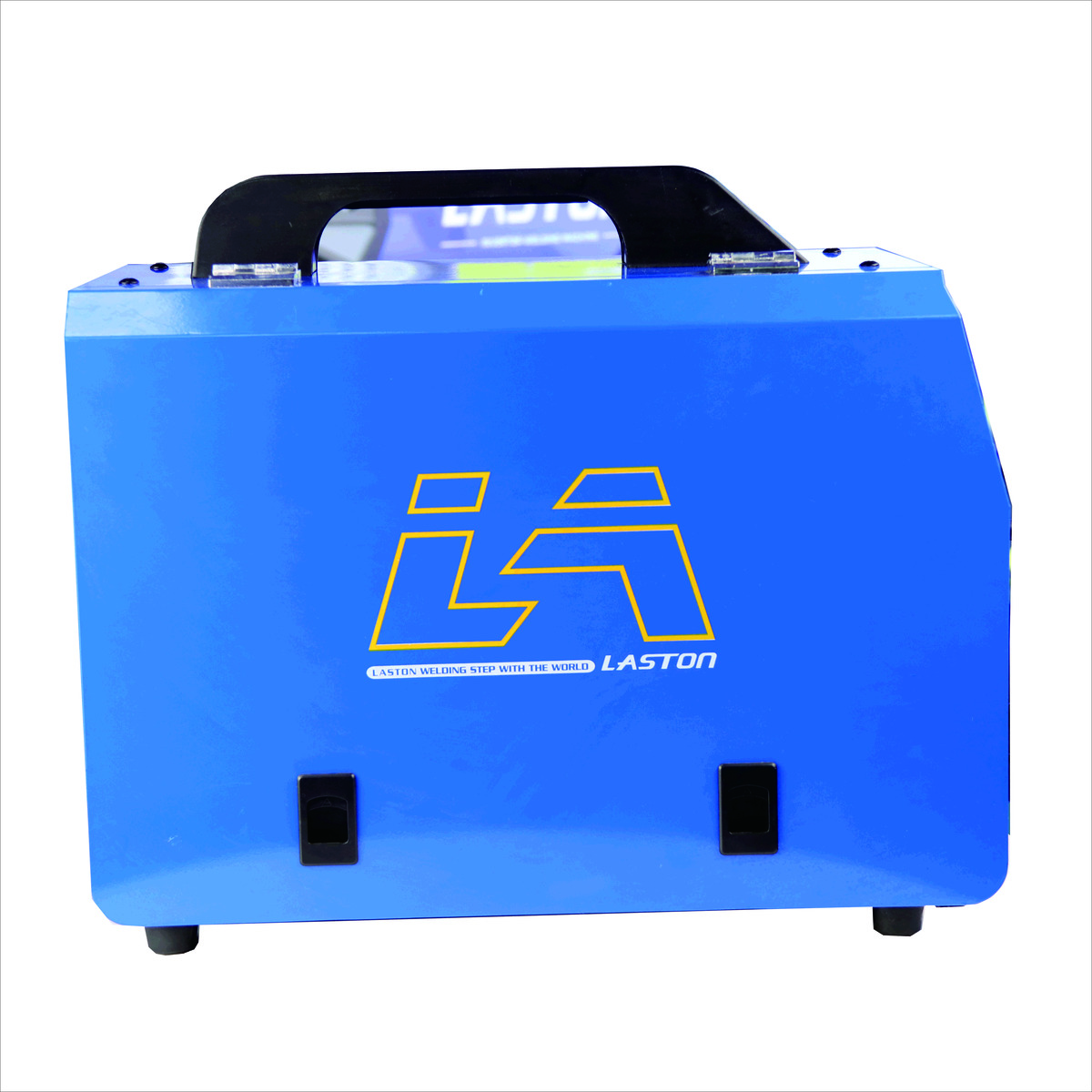

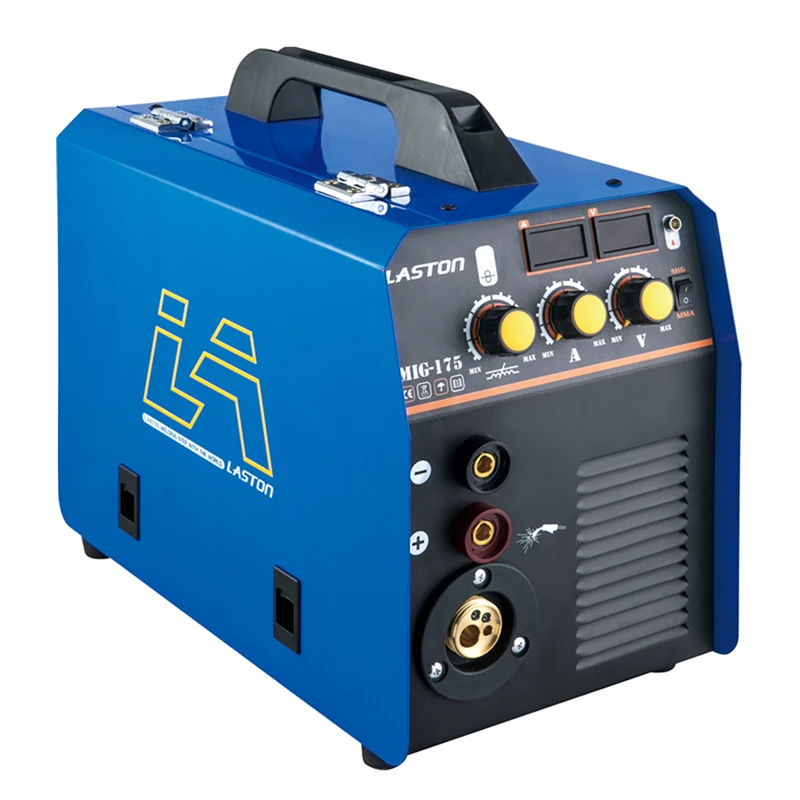

Product Picture
Packing
Company introduction
FAQ
