Model

JOG I

Dimension

1700*655*1055(mm)

Wheel Base

1185mm

Cross Weight

97KGS

Dry Weight

82KGS

Front Tire

3.5-10

Rear Tire

3.5-10

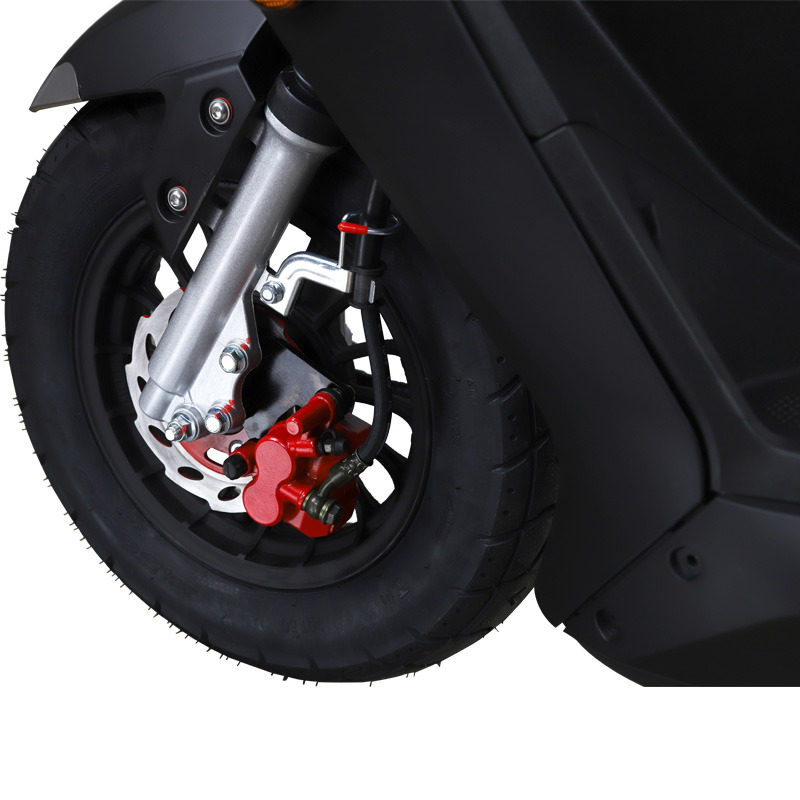

Brake Style

Front/Rear:Disk/Drum

Displacement

50(ml)

Engine Model

JJ1P39QMB

Engine Style

Single Cylinder,   Air-cooled,4-stroke

Ignition

C.D.I

Max.Power

2.5Kw/7500min^-1

Max.Torque

3.0N.m/6000min^-1

Impression Ration

10.5:1

Starting Type

Electric/Kick

Max.Speed

78（km/h）

Transmission

Automatic

Fuel Gasoline

 (93# up)

Consumption

≤400(g/KW.H)

Packing Vol

1630*470*870mm

Container Capacity

105SETS/40HQ
