MIG-135M INVERTER WELIDNG MACHINE MIG WELDER

起订量:100 台
展品参数

联系我们获取更多资料

Product Introduction

MIG-135M MMA/TIG/MIG portable inverter aluminium pulse mig welder


IGBT inverter technoloy,energy saving.
PWM pulse width control technology,special performance,accurate current control,stable arc passing.
Slow wire feeding,arc end with small balls clean,electronic and inductance regulating,shielding gas post
flow functions:well spatter control,good depth of fusion,good welding effect.
Over current,over heat,over load,over voltage protection.Special appearance wire feeder integrated,
porable.Suitable for welding mild steel,low alloy steel metal sheet.

Product Parameters
MODEL
MIG-135H
MIG-175
MIG-195
Power voltage (V)
AC220V
AC220V
AC220V
Rated input capacity(KVA)
4.1
 6.8
7.6
Rated intput current(A)
18.7
31
35
Actual output current(A)
120
170
190
no-load voltage (V)
44
55
55
Duty cycle(%)
60
30
30
Efficiency(%)
80
80
80
power factor
0.73
0.73
0.73
Insolation class
 F
 F
 F
Protect class
 IP21S
 IP21S
 IP21S
Usable wire(mm)
0.6-0.8
0.6-1.0
0.6-1.0
N.W.(KG)
10
 11.4
11.5
Dimension(mm)
480*220*340
480*240*370
480*240*370

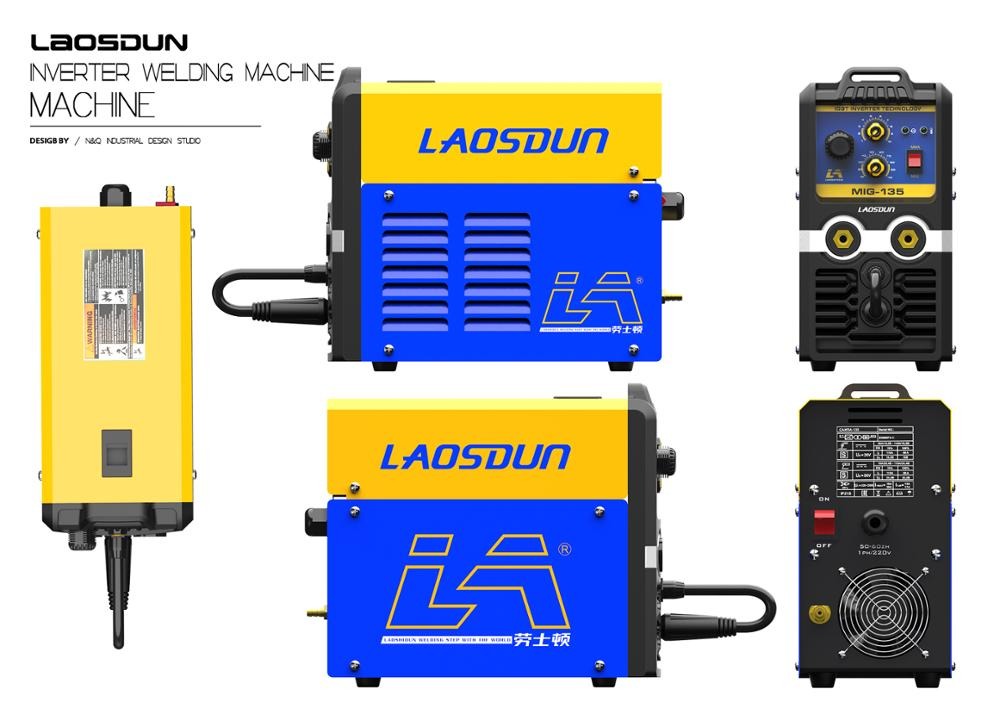

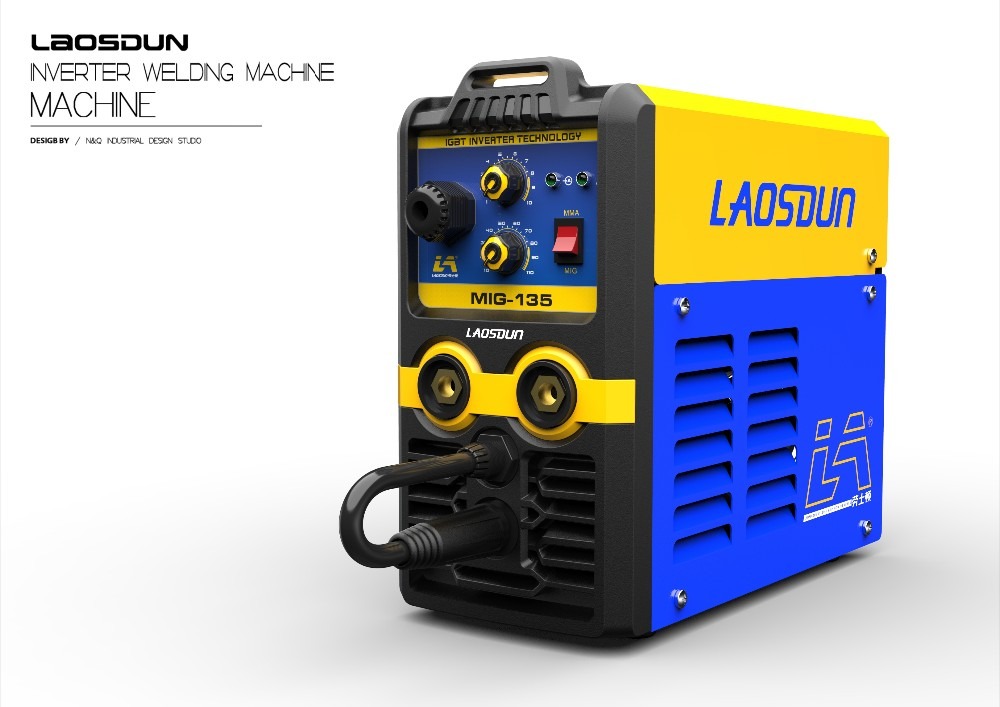

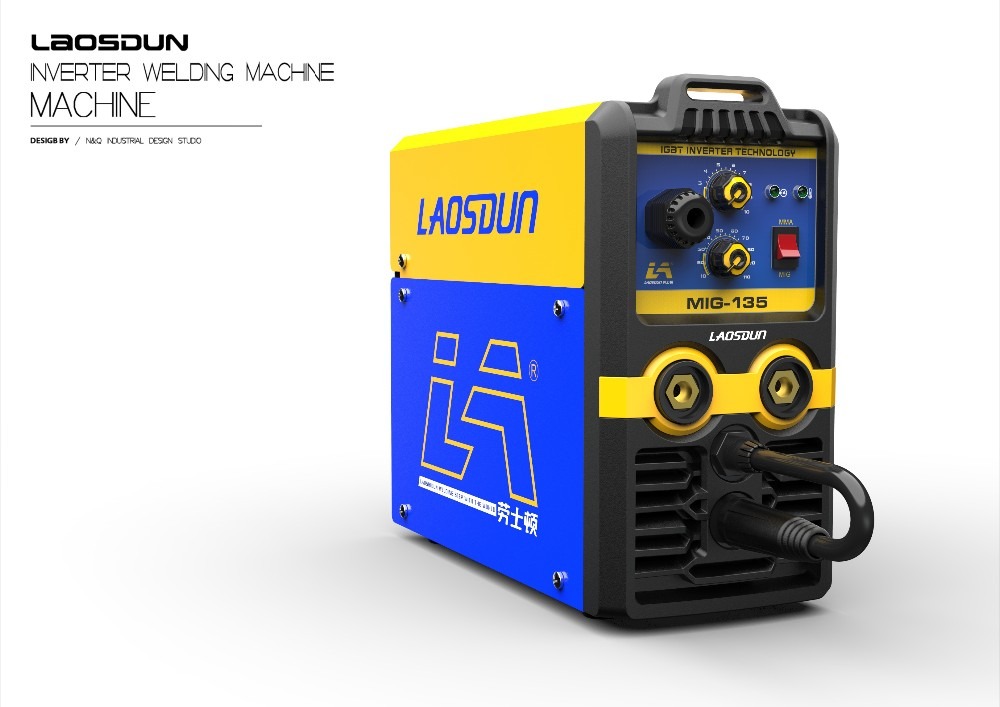

Product Details Show
Product Packing

you can choice the kraft box,the kraft box will be with the left and right foams.

you can choice the colour box,and also this box will  with the left and right foams.

you can choice the honeycomb,this package is very strong so this honeycomb without the foams.

Payment&Deilvery

Payment

1.Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
2.LC AT SIGHT

Delivery time
Generally it is 25-30days after confirm the design and deposit.and also it's according to the quantity.

About LASTON
FAQ

Q: Are you trading company or manufacturer ?
A: We are factory.

Q:How many people in your factory?
A:About 300 people.

Q:Where is your factory located?
A: Our factory is located in Xiacheng Mechaical Industrial Area,Wugen Town,Wenling City, Zhejiang Province, China.

Q: How can i visit your company?
A:You can fly to Taizhou airport, Ningbo airport or Shanghai air port. Or you can take train to Wenling Station. Then inform us, we’ll come to pick you up!

Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q:How do you control the quality?
A:Before we produce the machine,we have the IQC to check the materials first and when we produce,the QC will check the machine which in the product line,and when we finished the QC will check it again and also before we send the goods to you,you can come to our factory checking.


<
