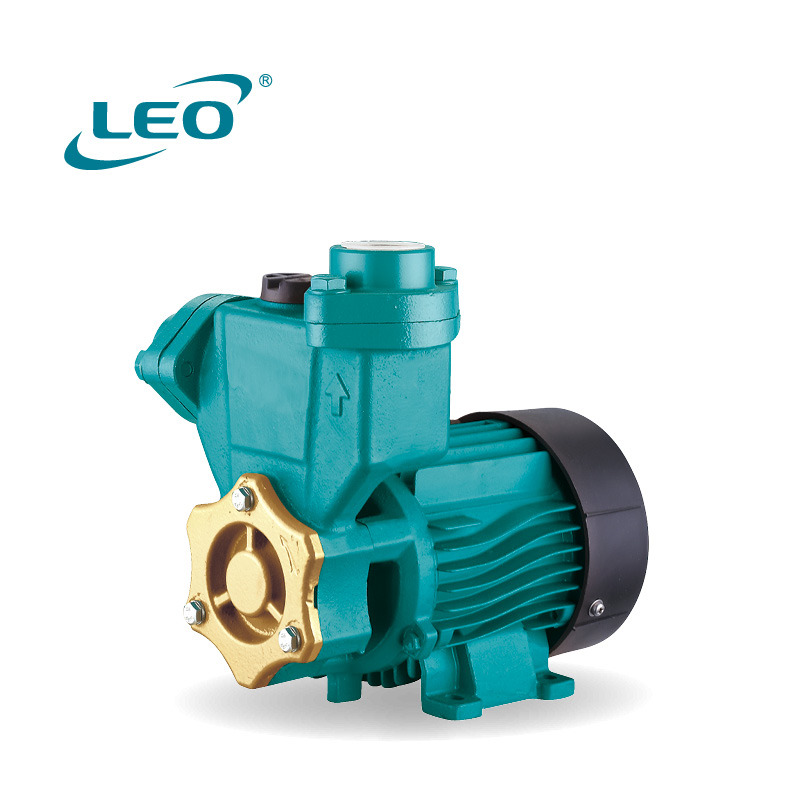

自吸漩涡泵

Applications:
1.Can be used to transfer clean water or other liquids similar to water in physical and chemical properties

2.Suitable for small living water supply, automatic water sprinkler system, small air conditioner system or supporting equipment etc.

Pump:

1.Special anti-rust treatment impeller for cast iron pump body and support

2.Brass impeller

3.AISI 304 shaft

4.Max. liquid temperature: +60°C

5.Max. suction: +8 m

Motor:

1.C&U bearing

2.Motor with copper winding

3.Built-in thermal protector

4.Insulation class: F

5.Protection class: IPX4

6.Max. ambient temperature: +40°C
