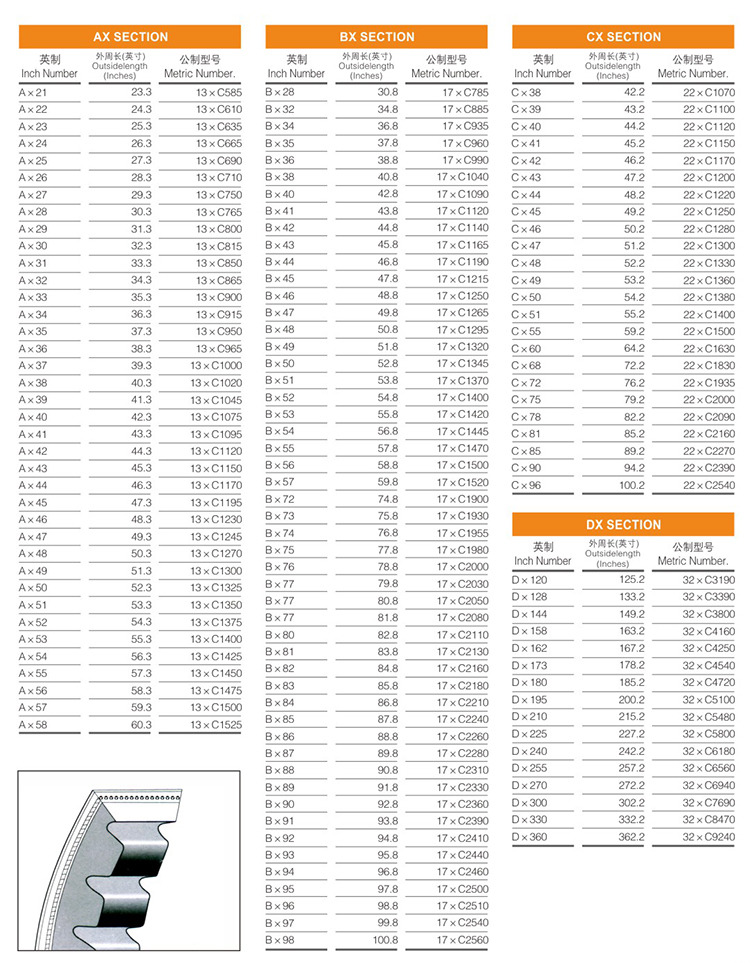

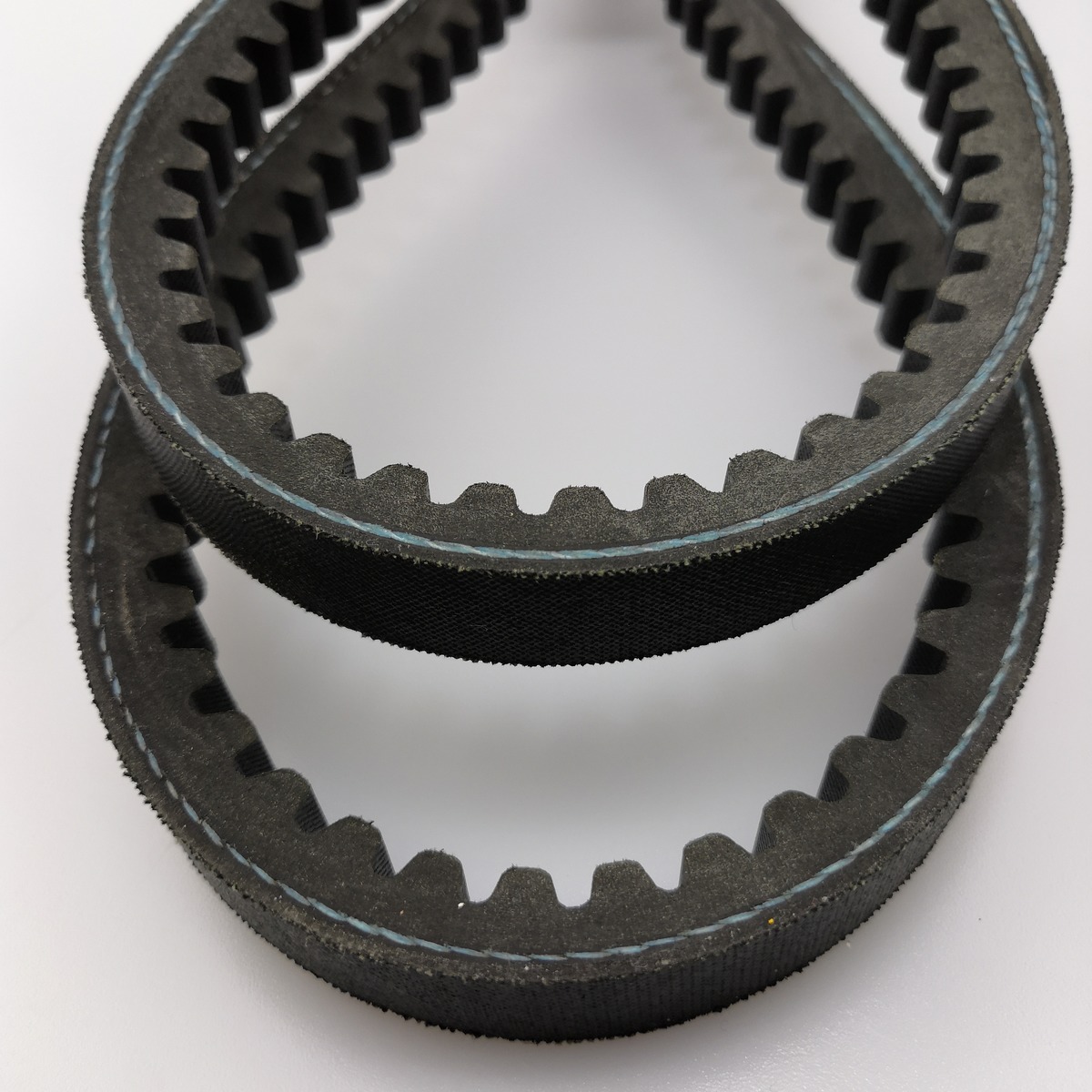

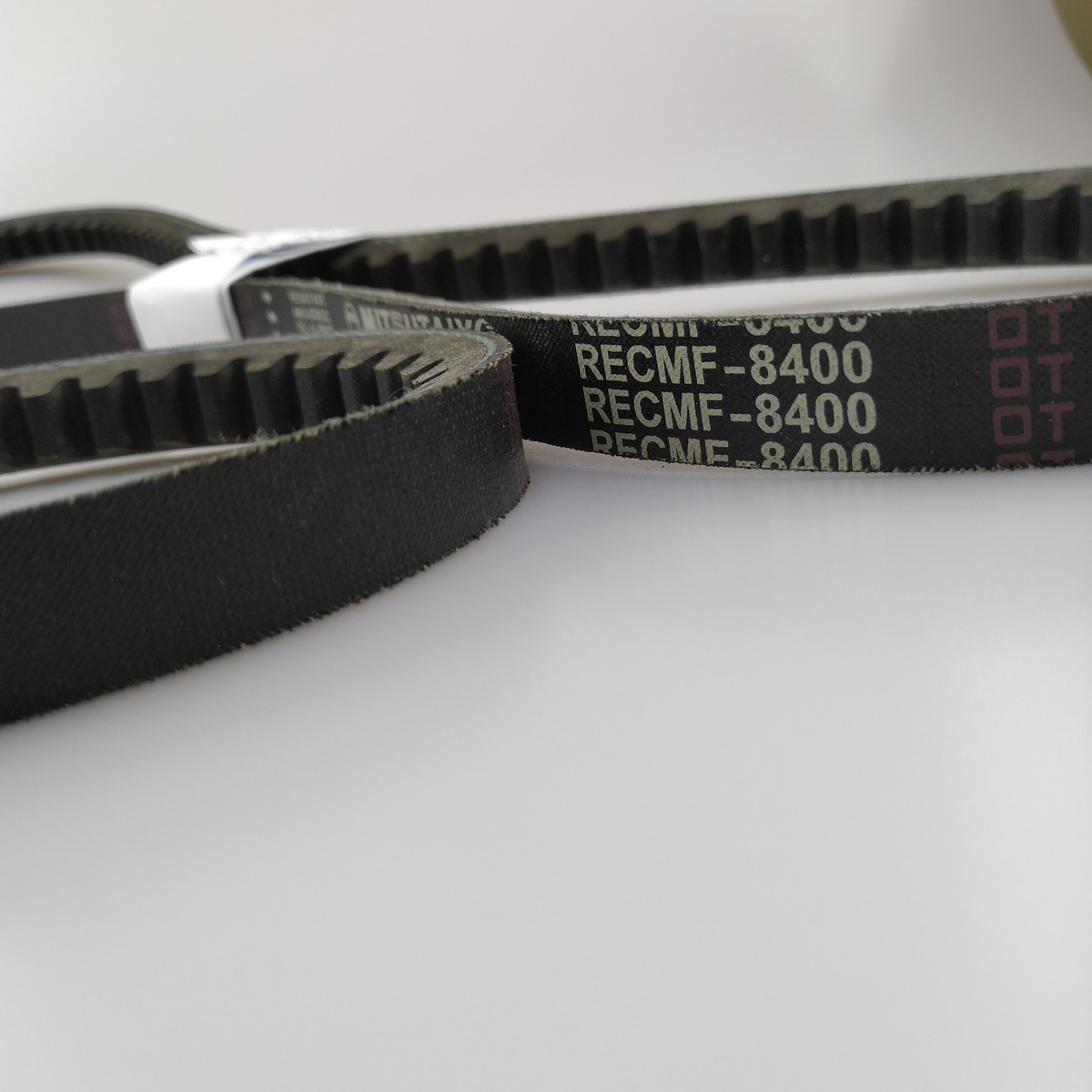

展品型号：AX BX CX 9.5X
展品尺寸：450-3000
展品材质：橡胶
发 货 地：中国 浙江
原料生产地：中国,浙江
展品颜色：黑色
展品特征：本公司主打产品
Size:
| Production Type | Top Width | Pitch Width | Height | Angle |
| O(Z) | 10 | 8.5 | 6 | 40° |
| A | 13 | 11.0 | 8 | 40° |
| B | 17 | 14.0 | 11 | 40° |
| C | 22 | 19.0 | 14 | 40° |
| D | 32 | 27.0 | 19 | 40° |
| E | 38 | 32.0 | 23 | 40° |
| Production Type | Top Width | Height | Angle |
| HAA | 13 | 6 | 40° |
| HBB | 17 | 8 | 40° |
| HCC | 22 | 11 | 40° |
| Production Type | Top Width | Height | Angle |
| AJ | 13.6 | 10 | 40° |
| BJ | 17.0 | 13 | 40° |
| CJ | 22.4 | 16 | 40° |
| DJ | 32.8 | 21.5 | 40° |
Physcial Characters Of Common V-belt (wrapped)GB/T1171-2006
| Type | Tensile-Strength KN ≥ | Reference Force Extension %≤ | Adhesive Strength Of The Cord (KN/m)≥ | Adhesive Strength Between Cloth And Top Rubber(KN/m)≥ |
| Z | 2.0 | 13.0 | - | |
| A | 3.0 | 17.0 | ||
| B | 5.0 | 21.0 | 2.0 | |
| C | 9.0 | 31.0 | ||
| D | 15.0 | 31.0 | ||
| E | 20.0 | 31.0 | ||
