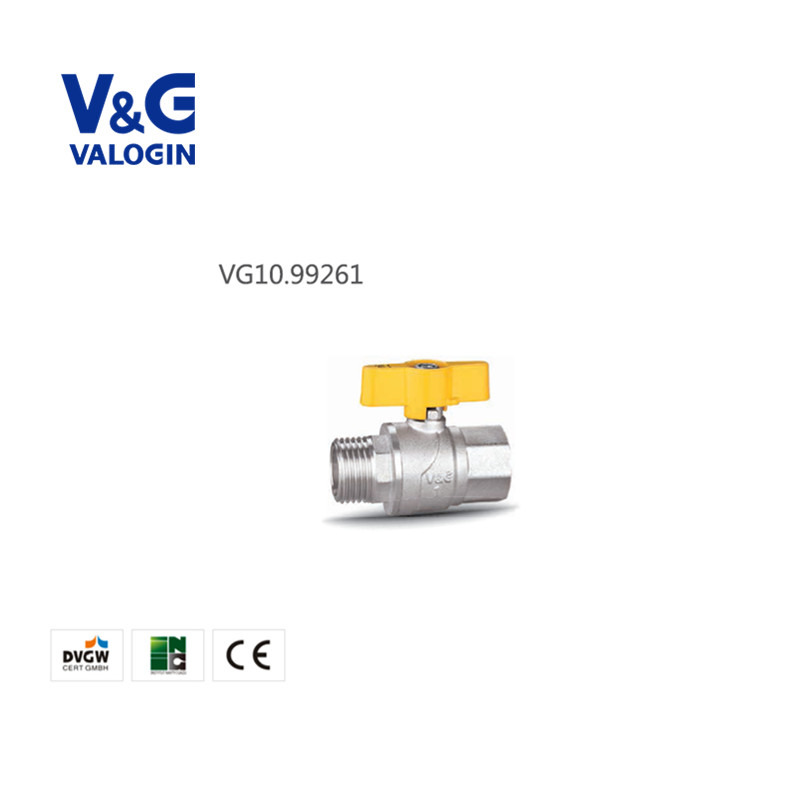

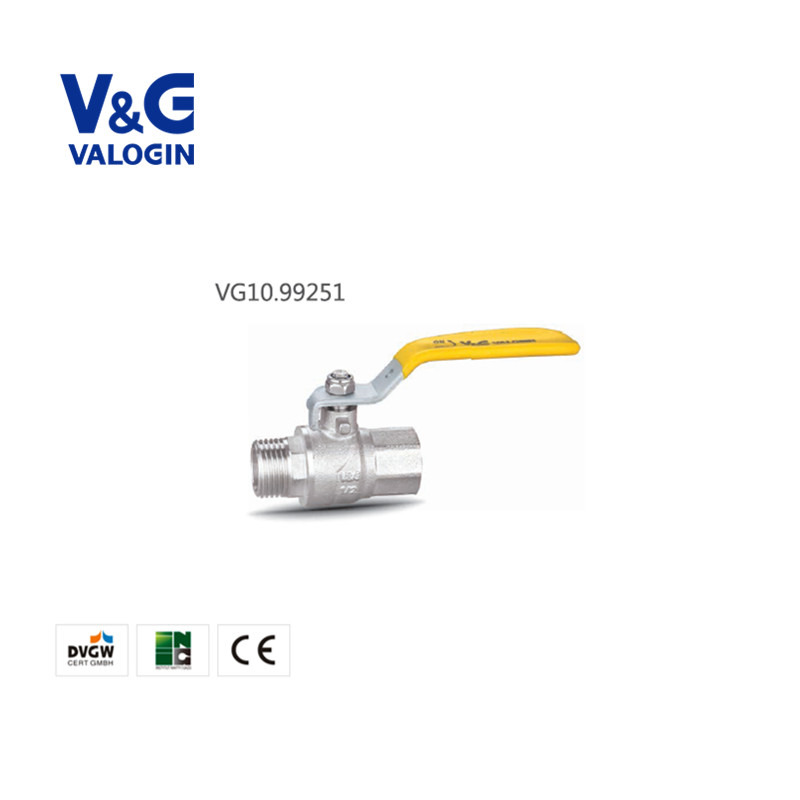

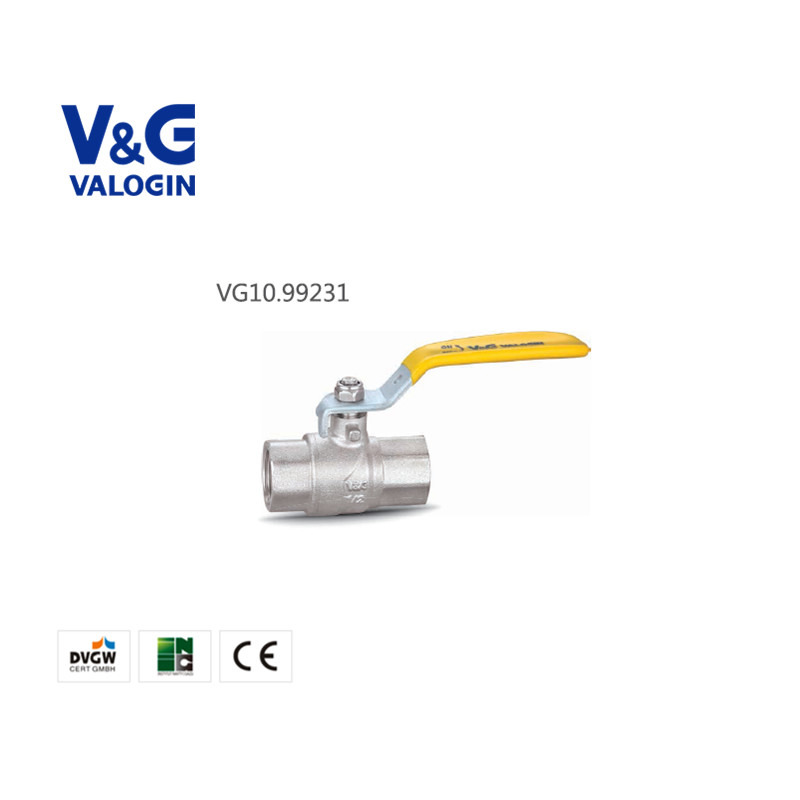

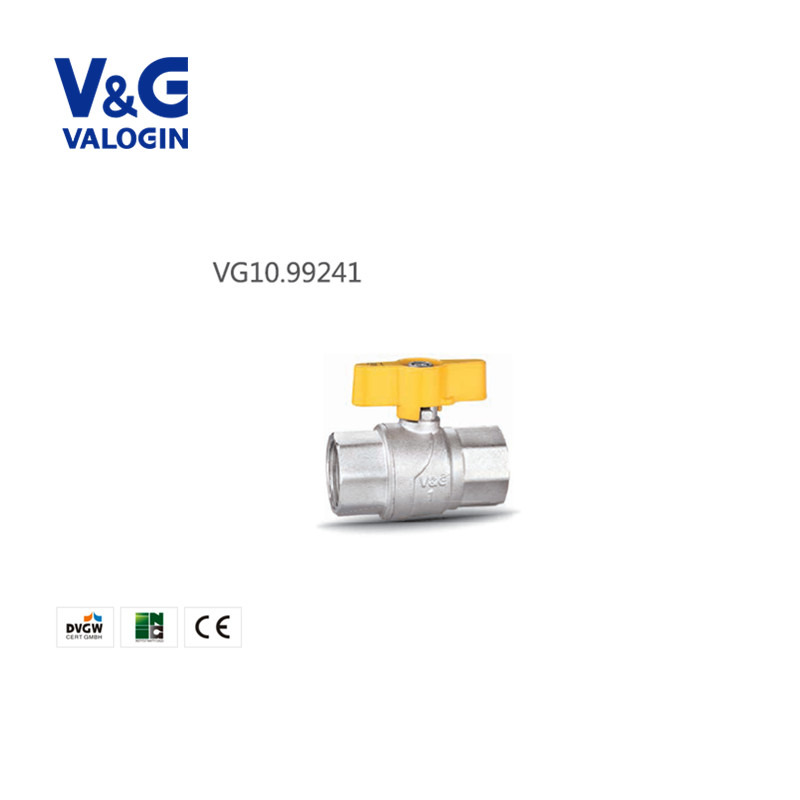

展品型号：VG10.99231 VG10.99241 VG10.99251 VG10.99261
展品尺寸：1/4"~2"
展品材质：CW617N
发 货 地：中国 浙江
展品颜色：Sandblasting with nickle plated
展品特征：本公司主打产品,本公司新产品（近一年内研发产品）
 | Size: 1/4"-2" |
| CE Approved, DVGW approved, EN331 |
| Female,Male threads |
| Lever handle in steel, butterfly handle in Aluminum. |
| Body in nickel-plated brass |
| Minimum and maximum working temperatures: -20℃ to 60℃ |
| Working pressaure MOP5 |
| Female Threads |
| -ISO 228 (equivalent to DIN EN ISO 228 and BS EN 228) |
| -ISO7/1 RP pARALLEL (equivakent to DIN EN 10226-1 and BS EN 10226-1) |
| Male Threads |
| - ISO 7/1 R taper (equivalent to DIN EN 10226-1 and BS EN 10226-1) |
- ISO 228 (equivalent to DIN EN ISO 228 and BS EN ISO 228) |
| Certifcate | |||
|
 |
| |||||||||||||||||||||||||||
 |
|
|

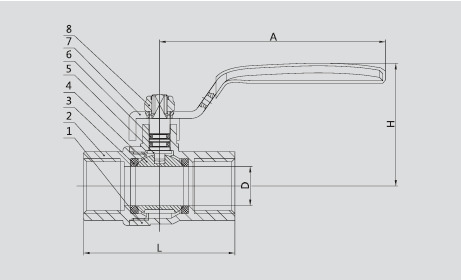

| Spec(10.99251) | D | A | H | L |
|---|---|---|---|---|
| 1/2" | 15 | 84 | 47 | 62 |
| 3/4" | 20 | 84 | 51 | 71 |
| 1" | 25 | 112 | 70 | 84 |

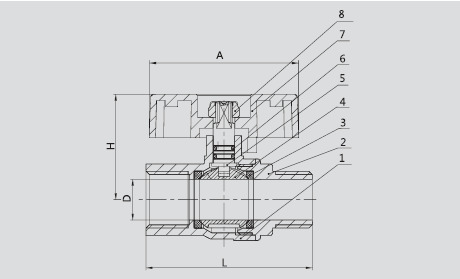

| Spec(10.99241) | D | A | H | L |
|---|---|---|---|---|
| 1/4" | 10 | 55 | 35 | 46 |
| 3/8" | 12 | 55 | 36 | 56 |
| 1/2" | 15 | 55 | 39 | 58 |
| 3/4" | 20 | 55 | 43 | 67 |
| 1" | 25 | 65 | 52 | 81 |
| Spec(10.99261) | D | A | H | L |
|---|---|---|---|---|
| 1/2" | 15 | 55 | 39 | 62 |
| 3/4" | 20 | 55 | 43 | 71 |
| 1" | 25 | 65 | 52 | 84 |
| Q: How to control quality? |
1. Each batch of raw materials has a material test report.If the test results is qualified, it will be stored in the warehouse, and if not, it will be returned directly. 2. First inspection &Self inspection&Cycling Inspection &Finally inspection 3.100% pressure test 4. CNAS testing center can test according to the EN and CE standard without relying on third parties 5.15 professional engineers design products 6. Defective display rack 7. Product assembly manual ……… |
| Q: How to develop new projects？ |
1.Professional Team Service-Divide teams by market. 2. We have professional sample team and sample work shop. 3. The mold is self-produced (except plastic mold) 4. Engineers can directly communicate with customers in English,/ …… |
| Q: How about the delivery date? |
About 50 days for the first order and about 40 days for the follow-up order. |
| Q: What is our warantys? |
1.36 Months Guarantee from VALOGIN. 2.International insurance policy for all products of VALOGIN,a And it works in all countries, including U.S. and Canada |
|
