铁拳

Model

Address 150

Dimension

1910*670*1195mm

Wheelbase

1310mm

Minimum Ground clearance

140mm

Unladen weight

118 kg

Load capacity

150 kg

Usable tank volume

6±0.5L

Packing dimensions

1780*580*870mm

Container capacity

78PCS/40HQ

Front suspension

hydraulic shock

Rear suspension

Dual shock

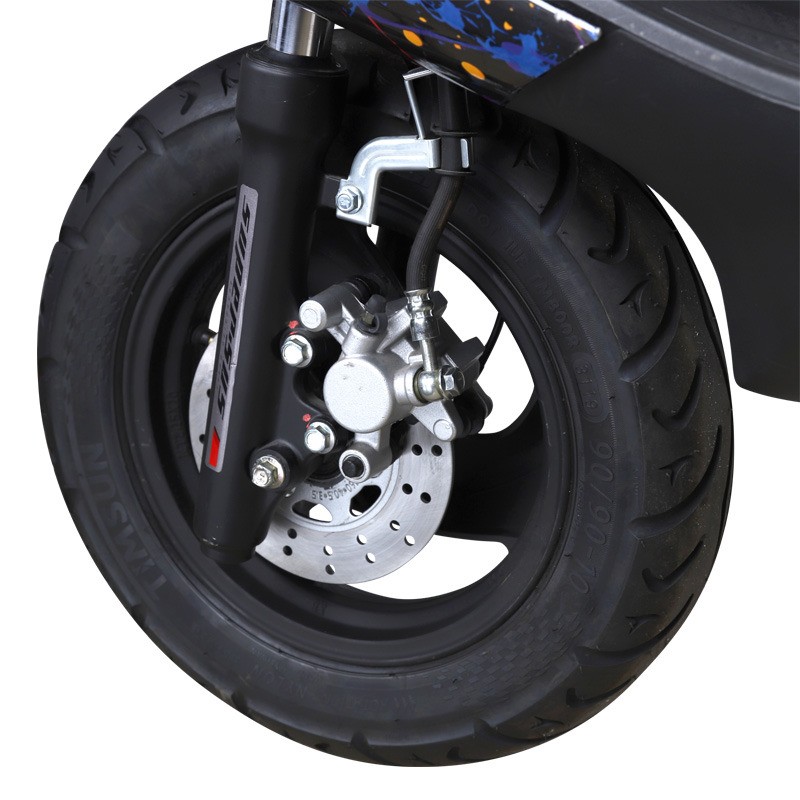

Front brake

Disk

Front rim type

aluminum alloy

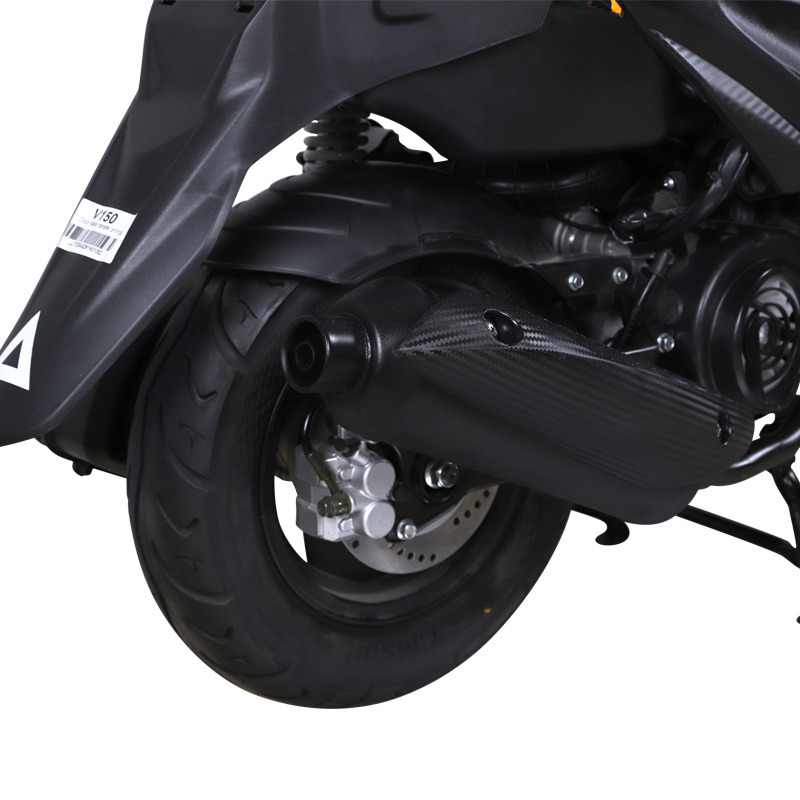

Rear brake

Disk

Rear rim type

aluminum alloy

Front tyre

120/70-12

Rear tyre

120/70-12

49CC GY6 EFI Engine

Engine model

JJ1P39QMB

Engine type

single cylinder, 4 stroke, forced air cooling

Displacement

49ml

Bore x stroke

39x41.5 mm

Compression ratio

10.5:1

Max power

2.4kW/7500rpm

Max torque

3.0N.m/5500rpm

Idle Speed

1600 r/min

Economical oil consumption(L/100km)

2.3L

Fuel supply

EFI

Ignition

ECU

Starting

electric/kick

Drive system

Belt drive
