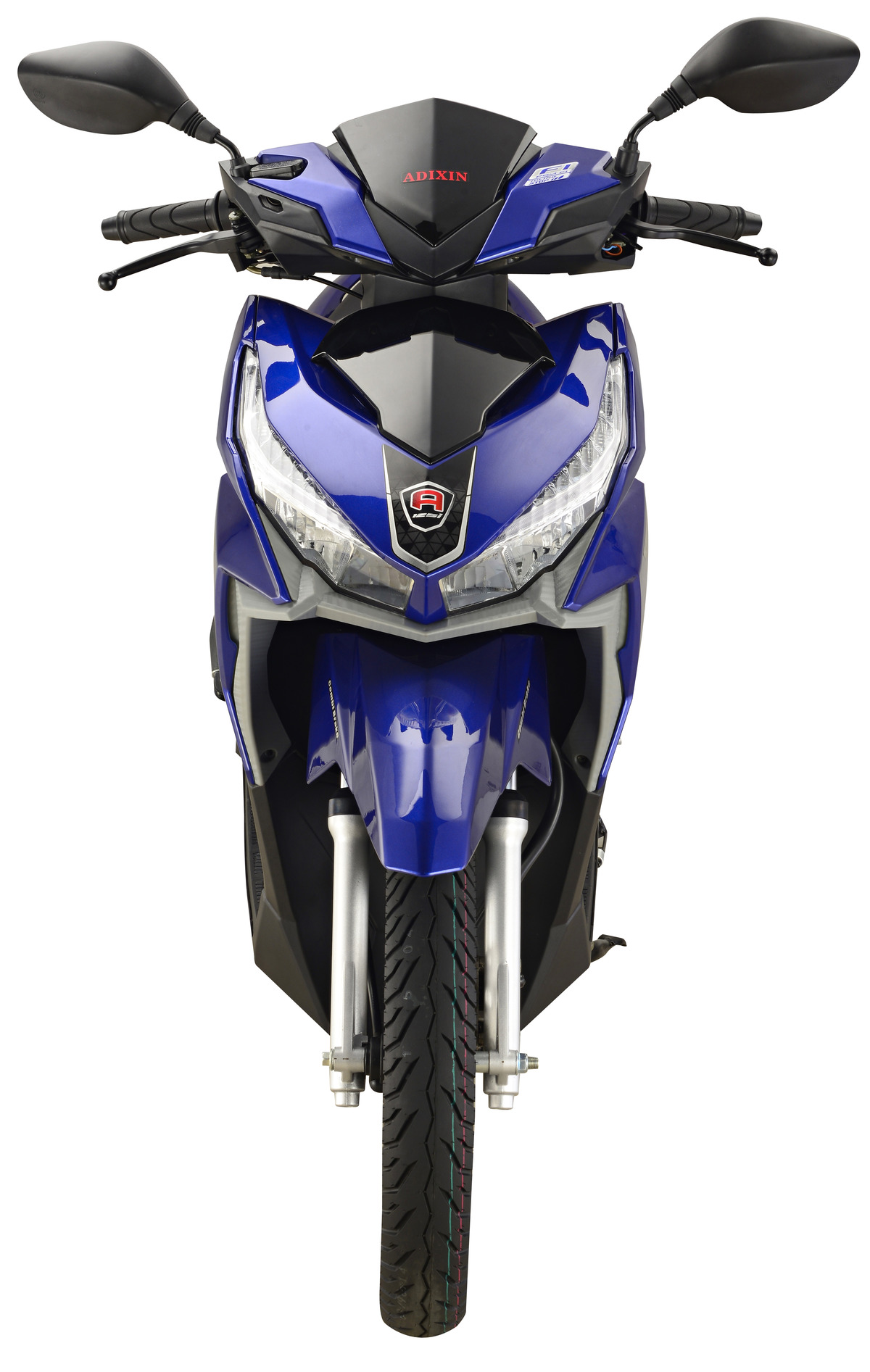

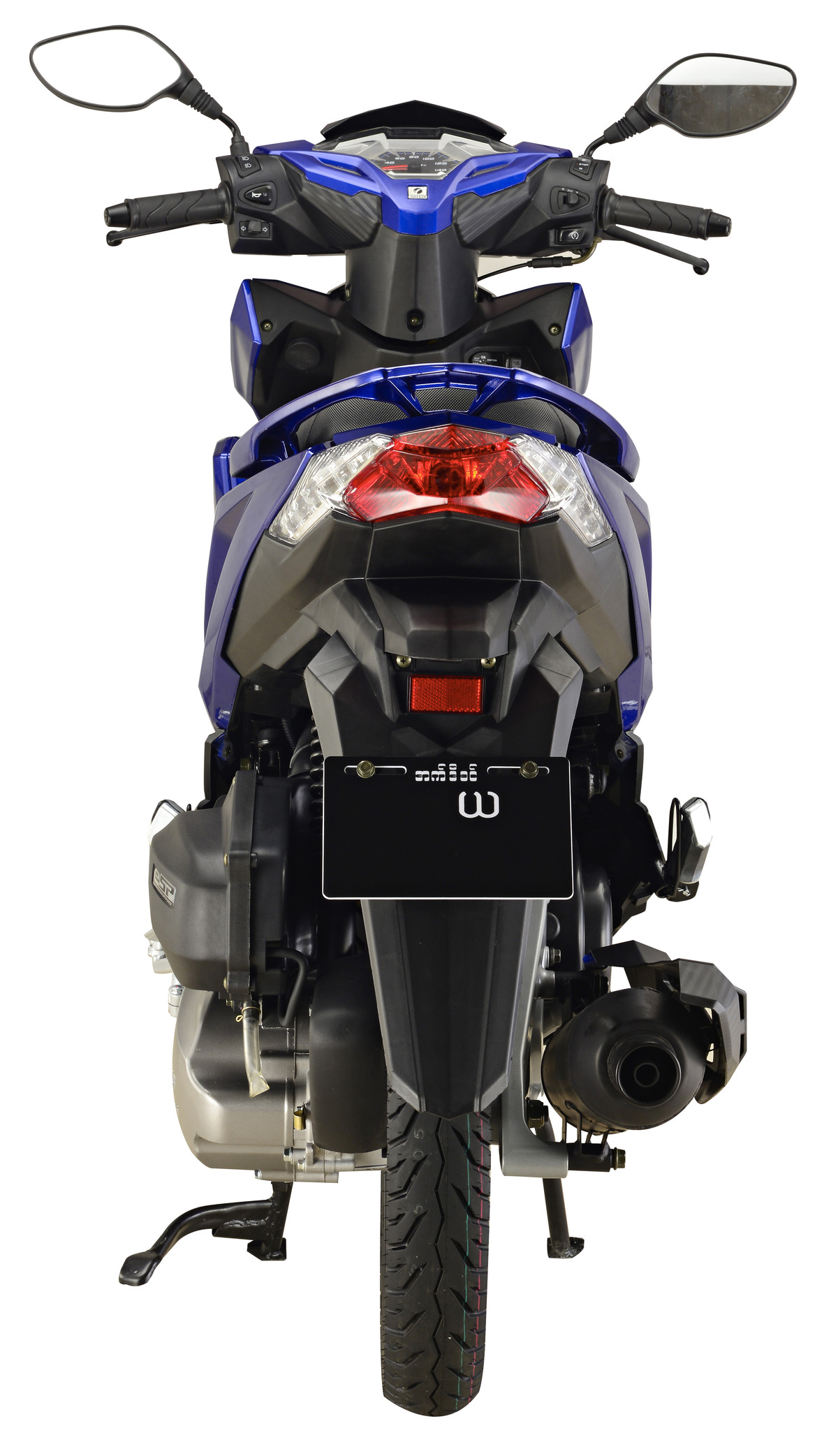

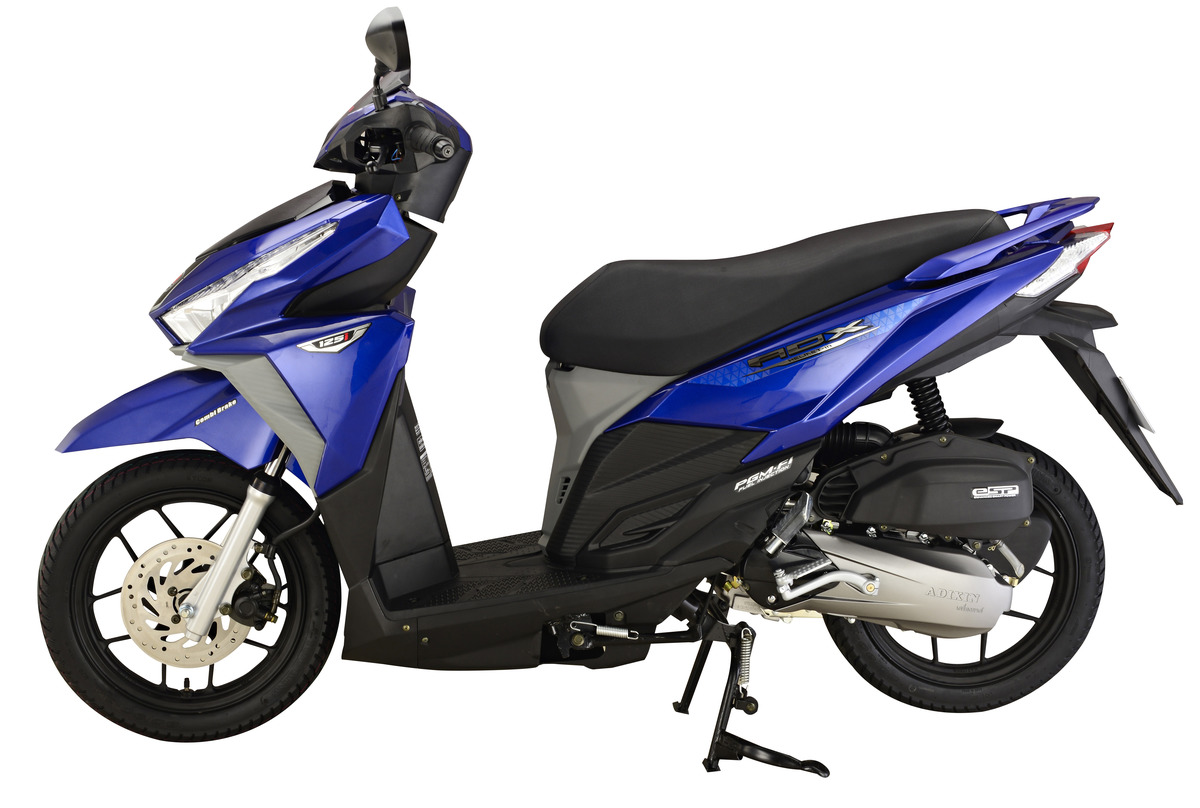

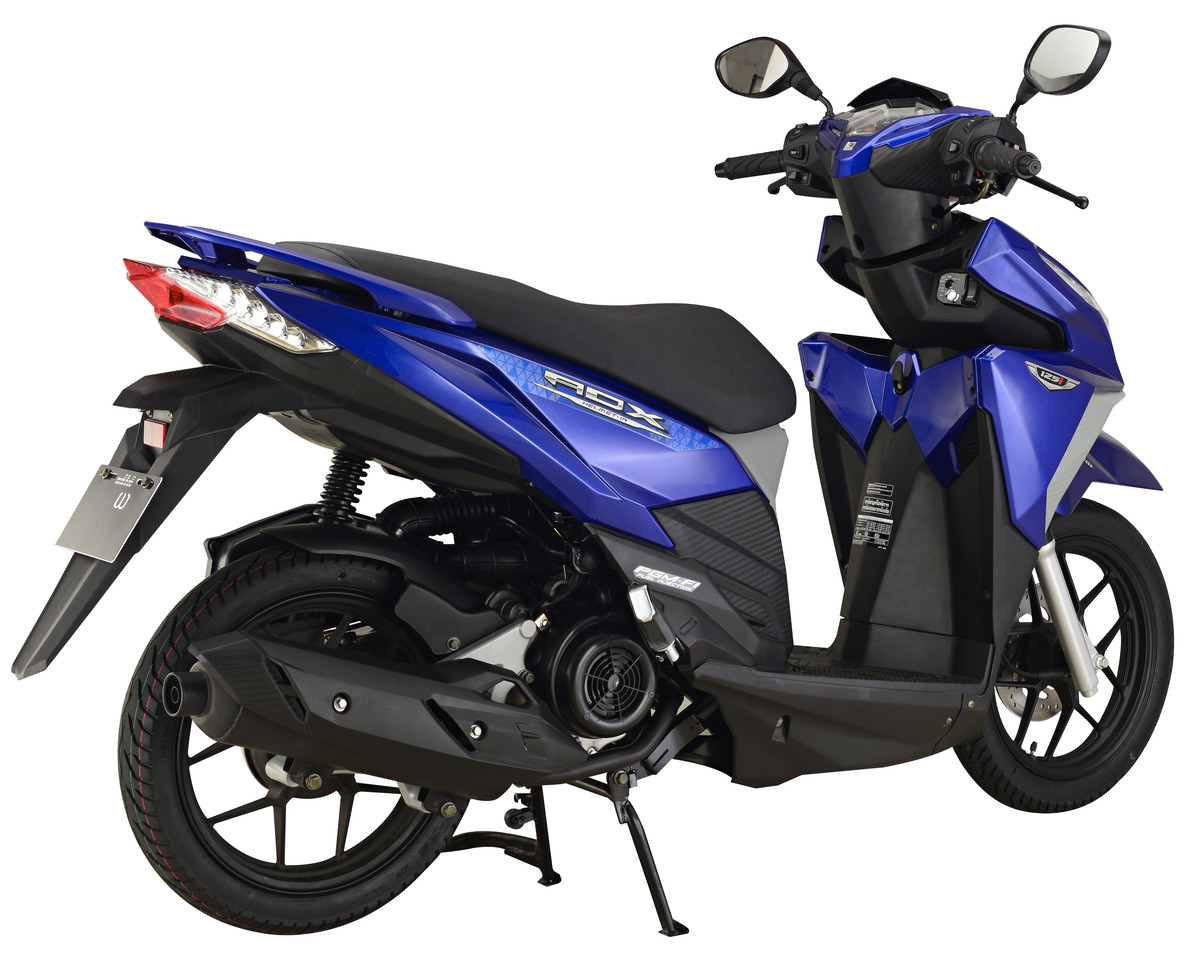

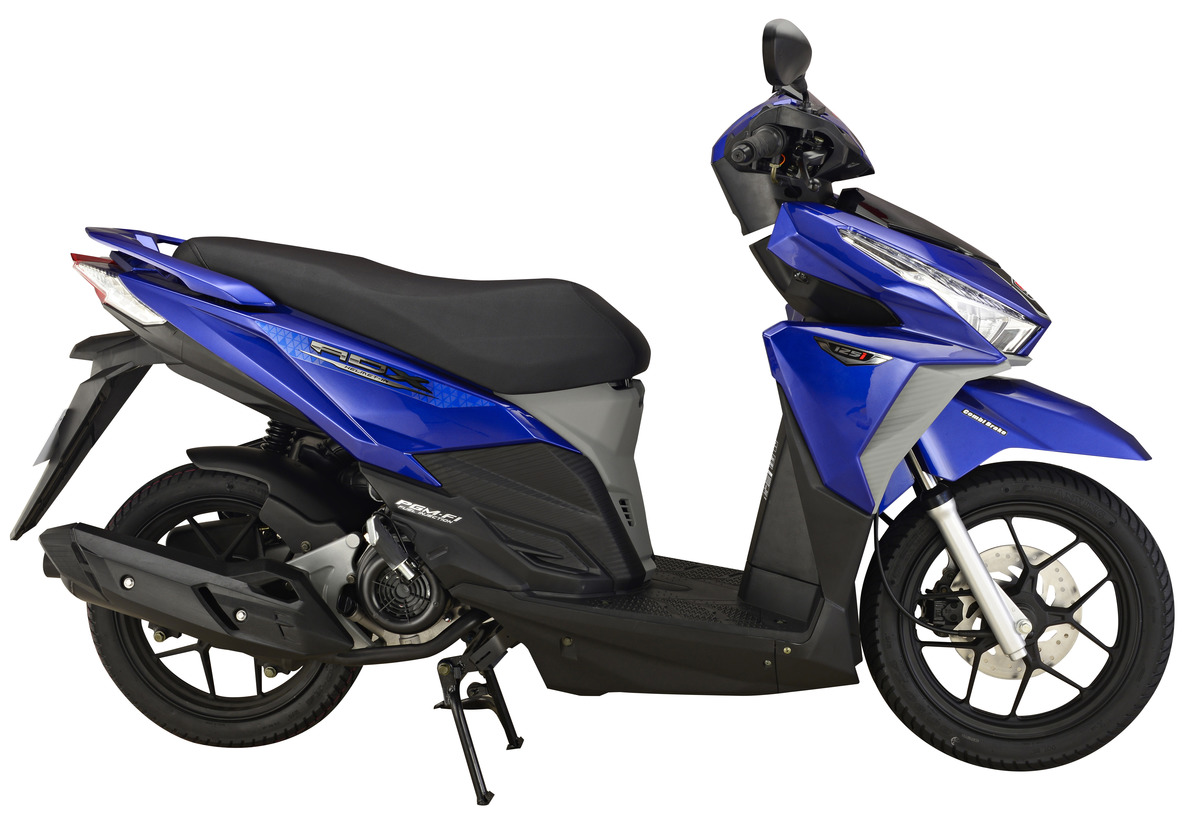

展品型号:JL125T-31D
展品尺寸:1910×680×1100
发 货 地:中国 浙江
展品颜色:蓝,黑,白,红,黄灯
展品特征:本公司主打产品
SPECIFICATION | 125CC | 110CC |
Dimension(L×W×H)(mm) | 1910×680×1100 | 1910×680×1100 |
Wheel Base(mm) | 1270 | 1270 |
Net Weight(Kg) | 105 | 105 |
Engine Model | JL152QMI | JL152QMI-2 |
Bore×Stroke(mm) | 52.4×57.8 | 52.4×49.5 |
Engine Type | laying, single cylinder, 4 stroke | laying, single cylinder, 4 stroke |
Displacement(ml) | 124.6 | 107 |
Maximum Speed(Km/h) | ≥80 | 80 |
Maximum power KW/(r/min) | 5.6/7500 | 5.2/7500 |
Max. Torque (NM(kg-m)/rpm) | 7.2 (6000±500) | 7.2 (5000±500) |
Front Brake | disc by handle | disc by handle |
Rear Brake | drum by handle | drum by handle |
Front Tire Size | 80/90-14 | 80/90-14 |
Rear Tire Size | 90/90-14 | 90/90-14 |
Front/Rear Wheel Hub | aluminium | aluminium |
Starting Mode | electric and kick start | electric and kick start |
Idling Speed (r/min) | 1700 | 1700 |
Fuel Tank Capancity (L) | 5.9 | 5.9 |
Fuel consumption (L/100km) | 2.8 | 2.8 |
Lubrication System | pressure, spray | pressure, spray |
Battery | 12V7AH | 12V7AH |
Package Size | 1780*570*1100mm(remove front wheel) 1780*570*870mm(remove front wheel and Handle bar) | |
Quantity in 20FT/40HQ | 24 units(remove front wheel) in 20FT. 48 units(remove front wheel) in 40GP. 78units(remove front wheel and Handle bar)in 40HQ | |
PRICE (EXW) in CBU | $475 | $590 |
保障级别:A级
