首页 > 参展商品 > 化工产品 > 橡胶及其制品 > 橡胶制品

橡胶输送带

起订量：协议
展品参数

展品型号：NN/EP80-500

展品尺寸：300-1600

展品材质：橡胶

发 货 地：中国 浙江

展品颜色：黑色

展品特征：本公司主打产品

Overview

Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
HUJIA, OEM
Model Number:
EP100,EP150,EP200,EP250,EP300,EP350.EP400,EP450.
Fabric:
Polyster (EP)
Belt Tensile Strength:
200-3000N/MM
Material Feature:
Heat/ Cold/ High Temperature/ Oil/ Chemical Resistant
Ply Thickness(mm/p):
0.8-1 mm
Top Cover Thickness(mm):
1.5-12 mm
Lower Cover Thichness(mm):
0-4.5 mm
Width Range:
300-2500mm
Quality Standards:
GB/T7984-2001, DIN22102 ,RMA,AS1332, JISK6322
Certificate:
ISO9001:2008
Edge:
Cut / Mould
Supply Ability
Supply Ability:
3000 Meter/Meters per Day DIN 22102 Conveyor Belt
Packaging & Delivery
Packaging Details
DIN 22102 conveyor belt are packing with one ply ultraviolet radiation resistant cloth or according to the customers' need.
Port
Ningbo Port/ Shanghai Port
Lead Time :
Shipped in 15 days after payment

first figure

EP400/4 Conveyor Belt Width 650mm DIN22102 COnveyor Belt EP400/4 Conveyor Belt Width 650mm DIN22102 COnveyor Belt

Product information

Specification and Technical Parameter of Polyester Multi-layer Fabric Core Conveyor Belt



Fabric TypeFabric TextureFabric Model

Rubber Fabric Thickness

(mm/p)

Strength Series(N/mm)Thickness of Cover Rubber (mm)Width Range (mm)Belt Length (m)
WarpWelt2 Layer3 Layer4 Layer5 Layer6 LayerUpper Cover RubberLower Cover Rubber
Polyester (EP)Polyester (EP)Polyamide (EP)EP-800.61602403204004802.0~80~4.5400~1800≤300
EP-1000.75200300400600600
EP-15013004506007500900
EP-2001.1400600800010001200400~1800
EP-2501.25500750100012501500
EP-3001.35600900120015001800
EP-3501.45 1025160017502100800~1800
EP-4001.55  2000200024001000~1800
EP-5001.7   25003000

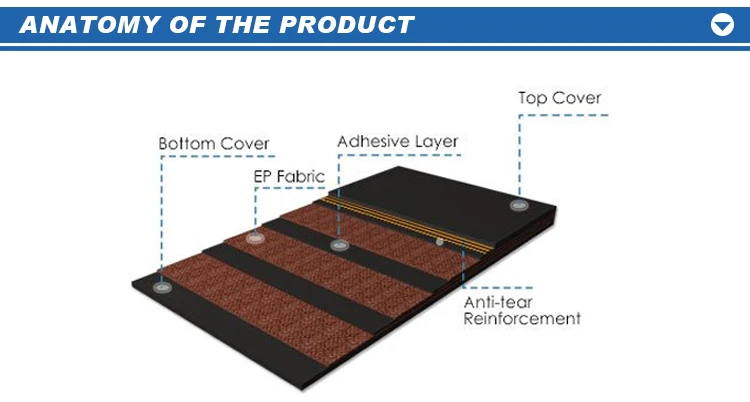

ANATOMY OF THE PRODU

EP400/4 Conveyor Belt Width 650mm DIN22102 COnveyor Belt

Feature: Traditional conveyor belts, suitable for medium and short distance transportation of materials physical property of fabric.

Advantages

EP400/4 Conveyor Belt Width 650mm DIN22102 COnveyor Belt

Product Information
Rubber Grade

Tensile

Strength

ElongationAbrasionAdhesion
  MPAKGF%MM3Cover to Ply(N/MM)Cover to Ply(N/MM)Ply to Ply(N/MM)
DIN 22102- 1991W18180400903.54.5 5.0
X252504501203.54.5 5.0
M252504501503.54.5 5.0
Y202004001503.54.5 5.0
N202004002003.54.55.0
Z151503502503.54.55.0
D151503502503.54.55.0
O101003003003.04.04.5

 AS 1332-

1991

A17 170 40070 4.0 4.8 6.0
M 24 240 450125 4.0 4.8 6.0
N 17 170 400200 4.0 4.8 6.0
S 14 140 300 250 3.0 4.0 5.0

JIS

K6322-1

   988

S 18 180 450 200 3.5 3.2 4.5
G(1) 14 140 400 2503.5 3.2 4.5
L(2) 8 80 300 4003.5 3.2 4.5
A 14 140 400 150 3.5 3.2 4.5

ISO

10247

H25 250 450 120 3.5 3.2 4.5
D 20 200 400 100 3.5 3.2 4.5
L(2) 15 150 350 200 3.5 3.2 4.5

BS

490-1990

M(24)L24 240 450 150 4.0 4.5 5.0
N17(N) 17 170 400 220 4.0 4.5 5.0

RMA

-1989

1 17 170 400 220 3 4.4 4.0
2 14 140 300 250 3 4.4 4.0
product application

EP400/4 Conveyor Belt Width 650mm DIN22102 COnveyor Belt

This product is applicable to the following scenario:

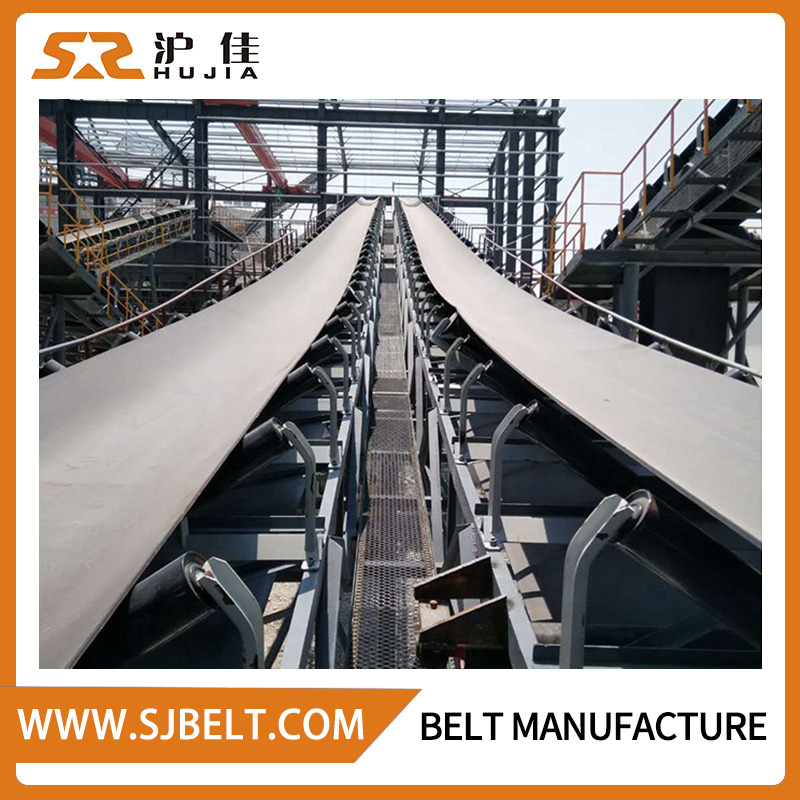

Used in mine, cement plant, steel and Iron factory, metallurgy, construction, ports and etc.

packing & shipping

EP400/4 Conveyor Belt Width 650mm DIN22102 COnveyor Belt
