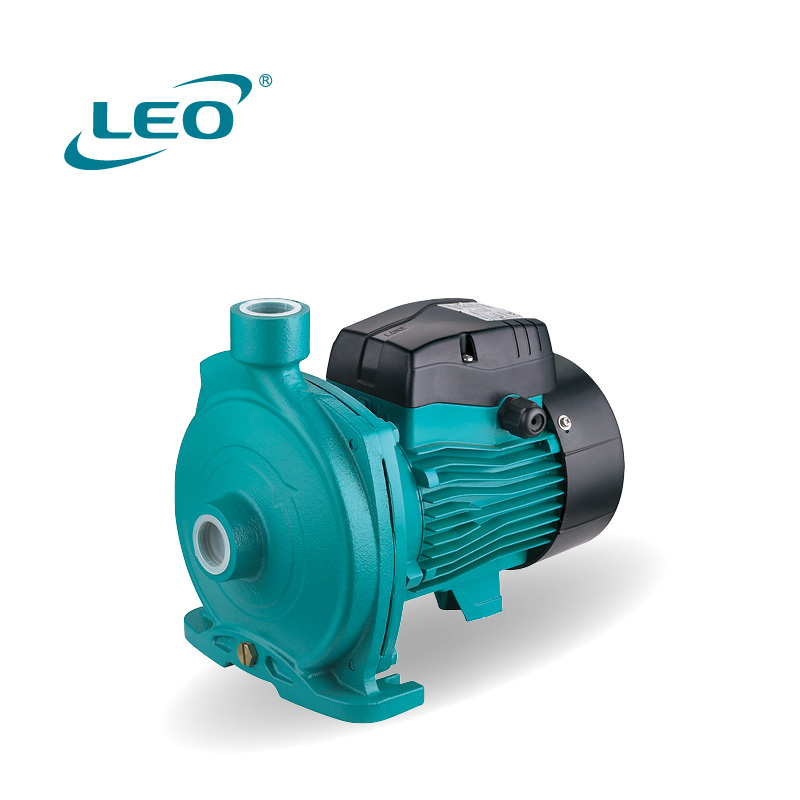

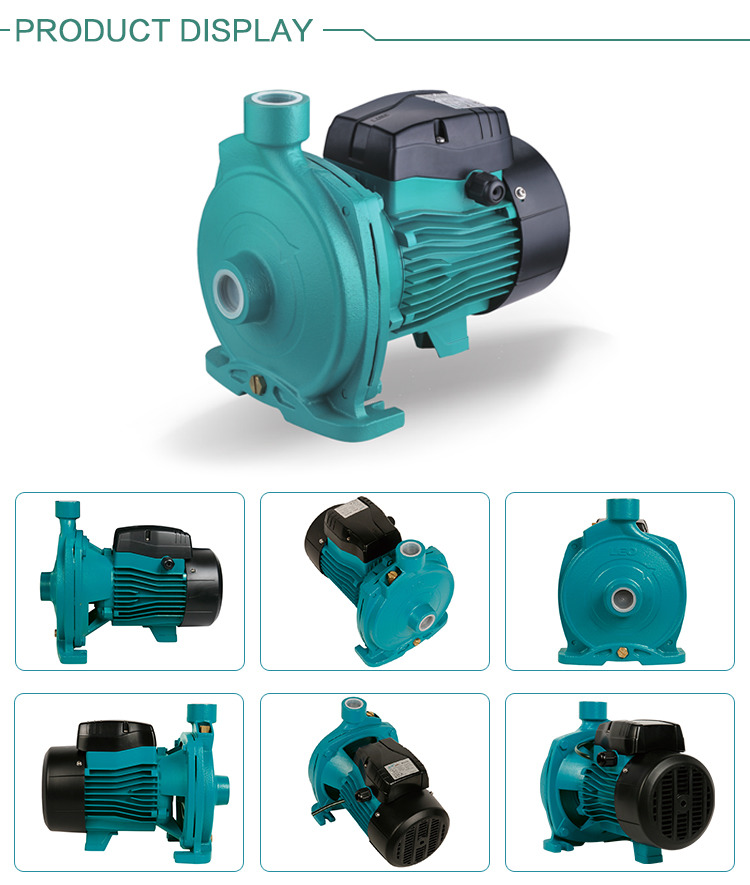

离心泵

Applications:

1.Can be used to transfer clean water or other liquids similar to water in physical and chemical

properties

2.Suitable for industrial use and urban water supply, pressure boosting for high buildings and

fire fighting , garden irrigation, long-distance water transfer, heating ventilation and air controlling,

circulation and pressure boosting for cold and hot water, and supporting equipment etc

Pump:

1.Cast iron pump body and support under special anti-rust treatment

2.AISI 304 shaft

3.Max. liquid temperature: +60°C

4.Max. suction: +8 m

Motor:

1.C&U bearing

2.Motor with copper winding

3.Built-in thermal protector for single phase motor

4.Insulation class: F

5.Protection class: IPX4

6.Max. ambient temperature: +40°C

7.IE 2 motor (Three phase, powe≤0.75kW)
