展品型号：VG-K31402
展品尺寸：1/2"，3/4"
展品材质：Normal Brass Hpb59-3
发 货 地：中国 浙江
展品颜色：Natural Brass
展品特征：本公司新产品（近一年内研发产品）

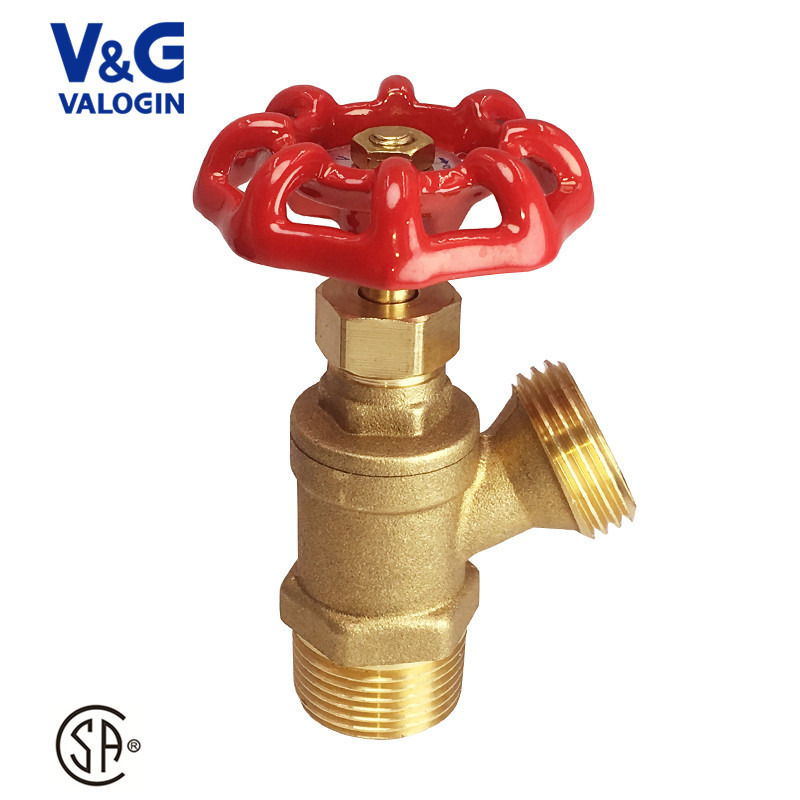

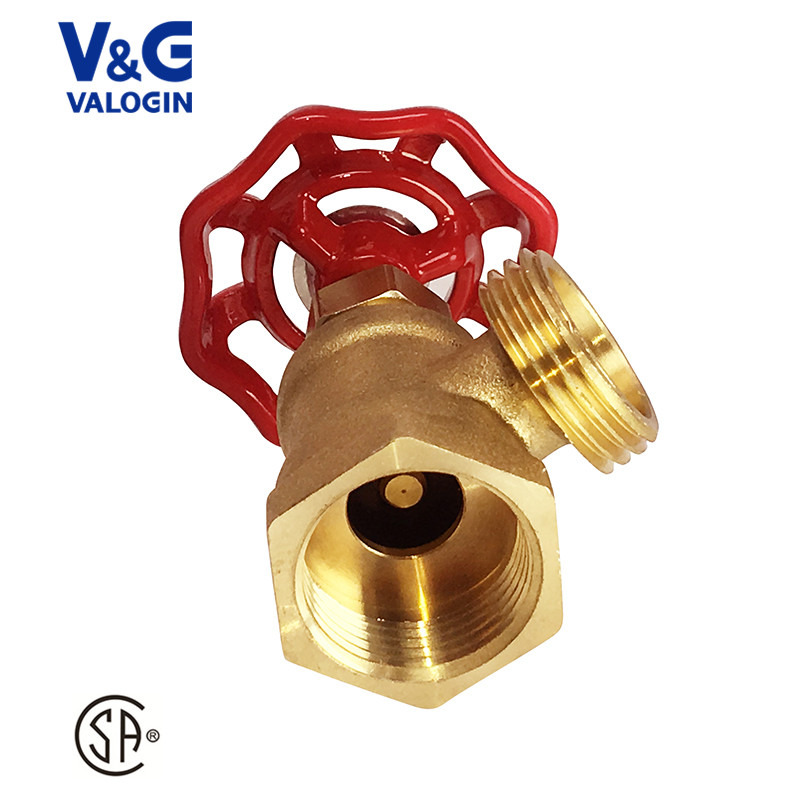

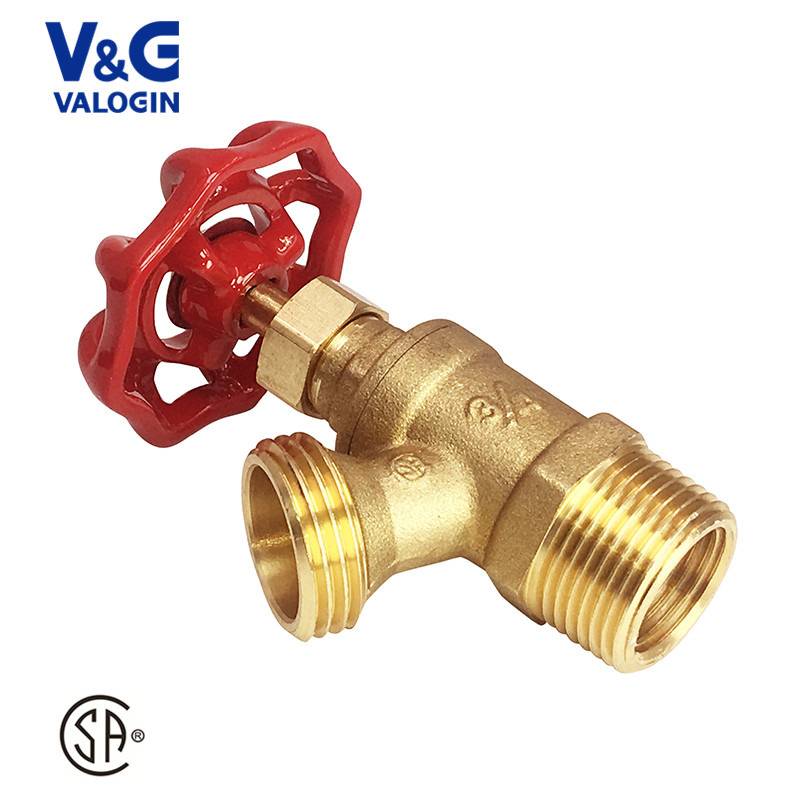

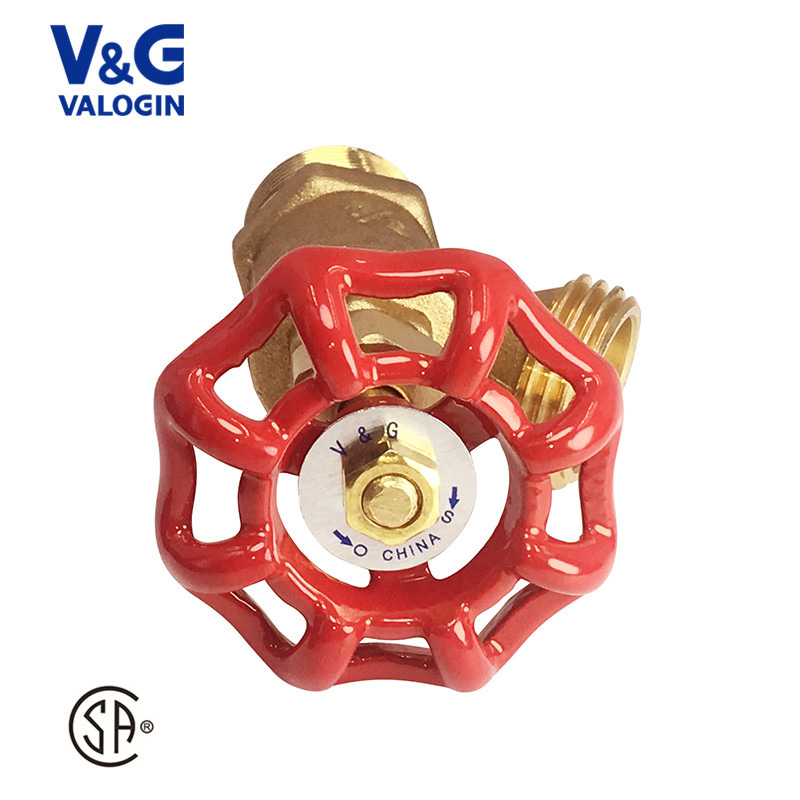

Low pressure boiler drains are in compliance with the North American regulation suitable for boiler system. They are designed under the USA standards and used to drain water or release sediment from a boiler. It also has multi-purpose use as a hose connection outlet for external water service.
 | Size: 1/2", 3/4" |
| Approved with CSA B125.1 standard |
| Inlet: 1/2" MIP and Solder for 1/2" size; 3/4"MIP and 1/2"FIP for 3/4" size |
| Outlet: 3/4” MHT |
| Multi Turn Iron Handwheel |
| Working pressure: 125 PSI |
| Threads |
| -ASME B1.20.1 for the inlet thread |
-ASME B1.20.7 for the outlet thread |
| Certifcate | |
|
| Q: How to control quality? |
1. Each batch of raw materials has a material test report.If the test results is qualified, it will be stored in the warehouse, and if not, it will be returned directly. 2. First inspection &Self inspection&Cycling Inspection &Finally inspection 3.100% pressure test 4. CNAS testing center can test according to the EN and CE standard without relying on third parties 5.15 professional engineers design products 6. Defective display rack 7. Product assembly manual ……… |
| Q: How to develop new projects？ |
1.Professional Team Service-Divide teams by market. 2. We have professional sample team and sample work shop. 3. The mold is self-produced (except plastic mold) 4. Engineers can directly communicate with customers in English,/ …… |
| Q: How about the delivery date? |
About 50 days for the first order and about 40 days for the follow-up order. |
| Q: What is our warantys? |
1.36 Months Guarantee from VALOGIN. 2.International insurance policy for all products of VALOGIN,a And it works in all countries, including U.S. and Canada |
|
