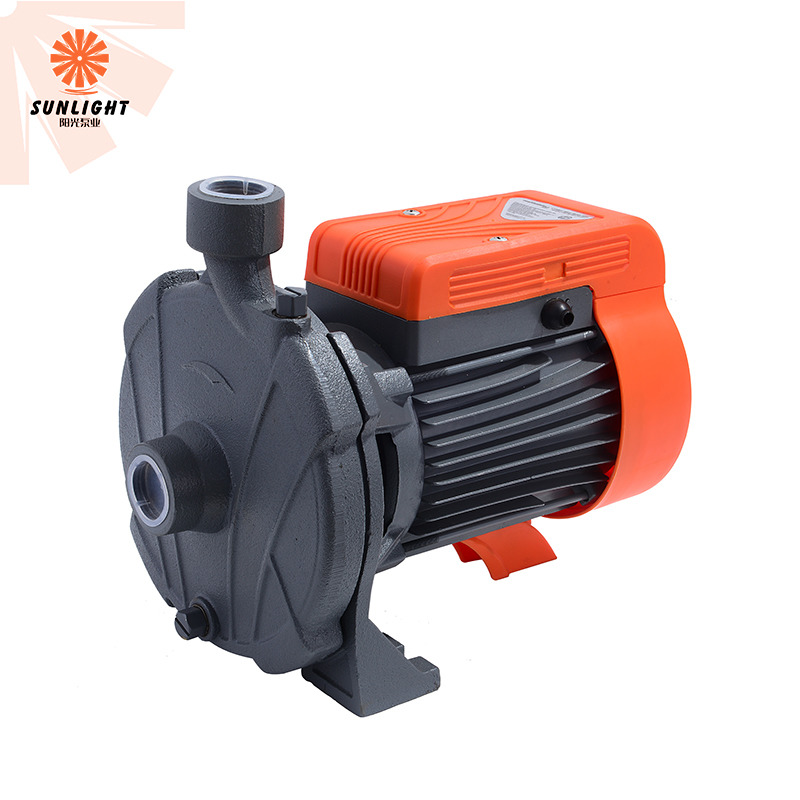

水泵电泵离心泵

Applications:

1. Transfer clean water or other liquids similar to water in physical and chemical properties

2. Garden irrigation,long-distance water transfer industrial use and urban water supply

   Pressure boosting for high buildings and fire fighting

   Pressure boosting for cold and hot water

   Heating ventilation and air controlling,circulation

   And supporting equipment etc.

Pump:

1. Cast Iron pump body and support
2. AISI 304,201 or 45# shaft
3. Max. liquid temperature:+40℃
4. Max. Suction:+8m

Motor:
1,C&U or other brand bearing
2,Motor with copper winding or alu winding
3,Buit-in thermal protector for single phase motor

4,Insulation class:F
5,Protection class:IP44
6,Max. Ambient temperature:+40℃
