展品型号：7吨柴油叉车
展品尺寸：3520*2000*2520MM
展品材质：钢铁、橡胶、塑料等
发 货 地：中国 浙江
展品颜色：黄色
展品特征：本公司主打产品,绿色环保,自主知识产权,智能产品

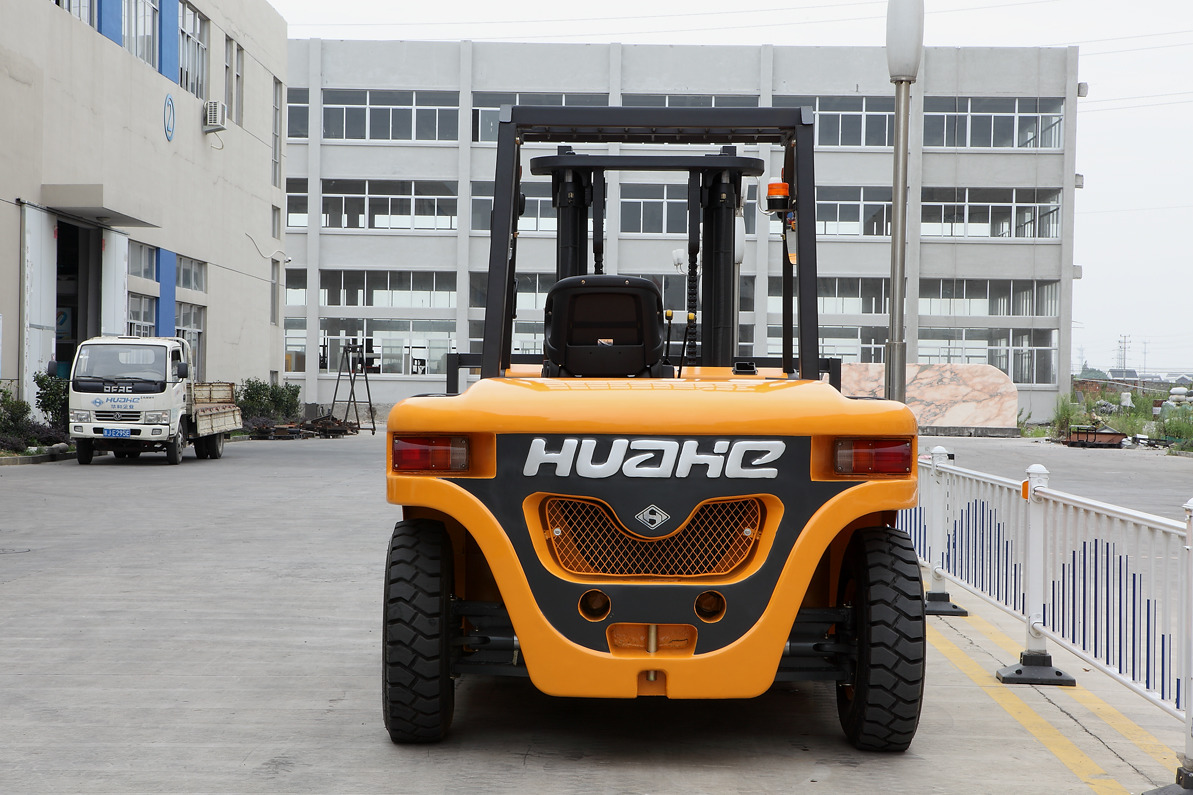

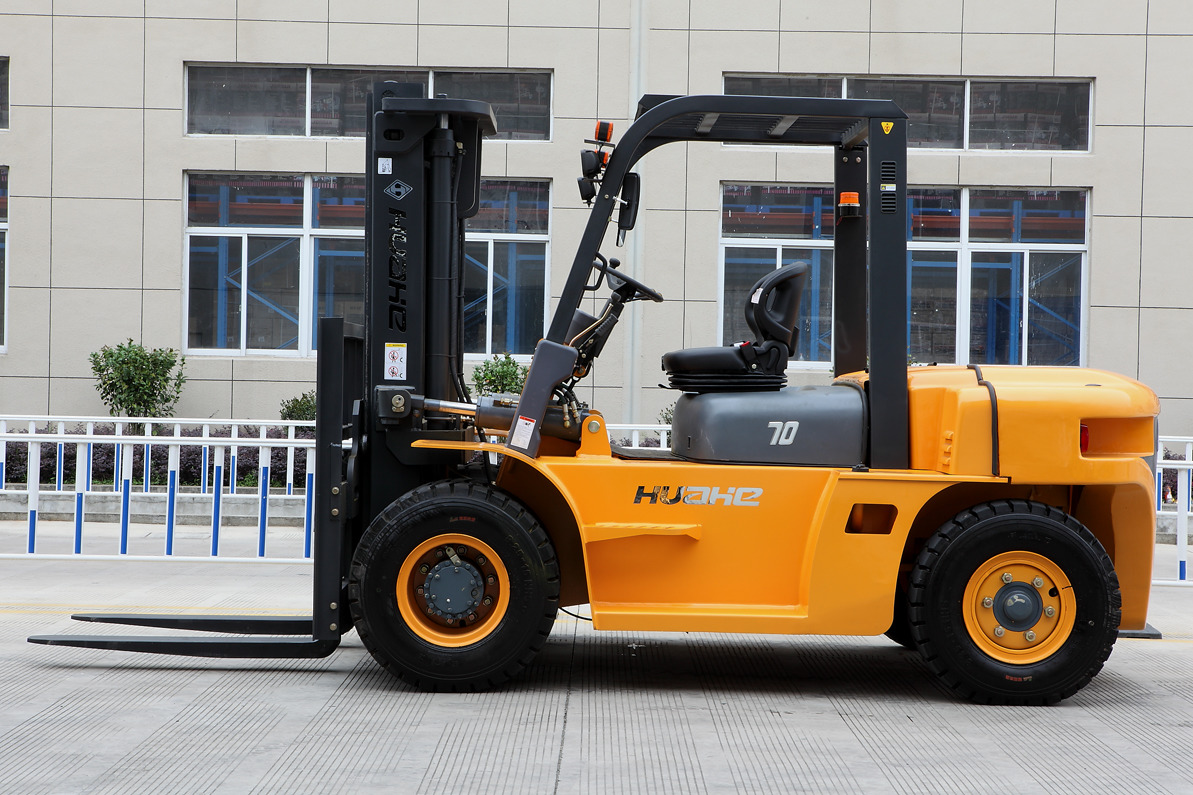

品名：7吨柴油叉车
型号：HH70Z-N6-D
详细参数：1，7吨额定载重，载荷中心600MM
2，配朝阳柴油发动机,选配日本五十铃6BG1动力、三菱S6S动力
3，配国产液力自动挡， 3米2节门架，带侧移
4， 双倒车镜，悬浮式座椅，带警示灯
5，朝阳充气胎，前轮双胎，1.22米货叉
6, 叉车尺寸长*宽*高3520*2000*2520MM，自重9350KGS
Specification | 1 | Model |
| HH70Z-N6-D | |
| 2 | Rated capacity | kg | 7000 | |
| 3 | Load center | mm | 600 | |
| 4 | Lift height | mm | 3000 | |
| 5 | Fork size | L×W×T | mm | 1220×150×70 |
| 6 | Mast inclination | front/back(α°/β°) | Deg | 6/12 |
| 7 | With hydraulic moving side shifter | |||
Size | 8 | Overall Dimension | Length(to fork face) | mm | 3520 |
| 9 |
| Overall Width | mm | 2000 |
| 10 |
| Mast lowered height | mm | 2520 |
| 11 |
| Height When Mast Lifting | mm | 4360 |
| 12 |
| Safeguard Height | mm | 2490 |
| 13 | Turning Radius min | mm | 3450 | |
| 14 | Front Overhang | mm | 590 | |
| 15 | Tread | front/back | mm | 1470/1700 |
| 16 | Ground Clearance min(no load/full load) mast/frame | mm | 190/160 260/250 | |
| 17 | Wheelbase | mm | 2250 | |
| 18 | Fork Spread | min/max | mm | 300/1830 |
Performance | 19 | Speed | Travel (Laden) | 13/12km/h | |
| 20 |
| Lifting (Laden) | mm/s | 400 |
| 21 | Grade ability | Laden | % | 20 |
| 22 | Service Weight(include battery) | kg | 9150 | |
| 23 | Pneumatic tires | Front |
| 8.25-15-14PR |
| 24 |
| rear |
| 8.25-15-14PR |
Diesel Engine | 25 | Chinese Chaoyang 6BG332 diesel engine | Rated Output | Kw/rpm | 81/2500 |
| 26 |
| Rated Torque | N.m/rpm | 411/1600 |
| 27 |
| Displacement | cc | 5785 |
| 28 |
| No.of Cylinder |
| 6 |
| 29 | Operating Pressure for Attachment | Mpa | 18 | |
