Miniature circuit breakerMSC8X

Min. Order: 240 pcs

Product Parameters

Serial No. : MSC8X Miniature circuit breaker

Size（mm）：83mm*18mm*75mm

Material:plastic, copper, iron, silver

Place of origin:Zhejiang China

Color:灰色

Add to Favorites

Schedule an Appointment

POPP ELECTRIC CO.,LTD

Support level: A

NO.8 DANXIA ROAD,YONGAN INDUSTRIAL AREA,XIANJU,TAIZHOU CITY, ZHEJIANG PROVINCE,CHINA

Registered capital:5000

Founded:2010

Number of companies:50-200人

Export scale:

Contact: 黄**

E-Mail：Sign In

Tel:Sign In

The detailed information

Product Description

Function

● Short circuit protection

● Overload protection

● Switch

● Isolation

● Contact position indicator

● Advanced current-limit technology

MSC8 circuit breaker is suitable for low-voltage terminal distribution in the fields of civil residence, building, etc.

Technical Parameter

[UE]Rated operational voltage 230/400V 240/415V

[UI]Rated insulation voltage 415V AC 50/60HZ

Breaking capacity 6000A

Rated current 6A , 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A

[UIMP]Rated impulse withstand voltage 4KV

Poles description 1P , 2P , 3P , 4P

Isolation function

Quick closure

Mechanical durability 20000 cycles

Environmental

Ambient air temperature for operating -25℃-60℃

Ambient air temperature for operating -40℃-80℃

Overvoltage categoly Ⅲ

Connection

Tunnel terminal

Standards and certifications

EN/IEC 60898

CB , CE

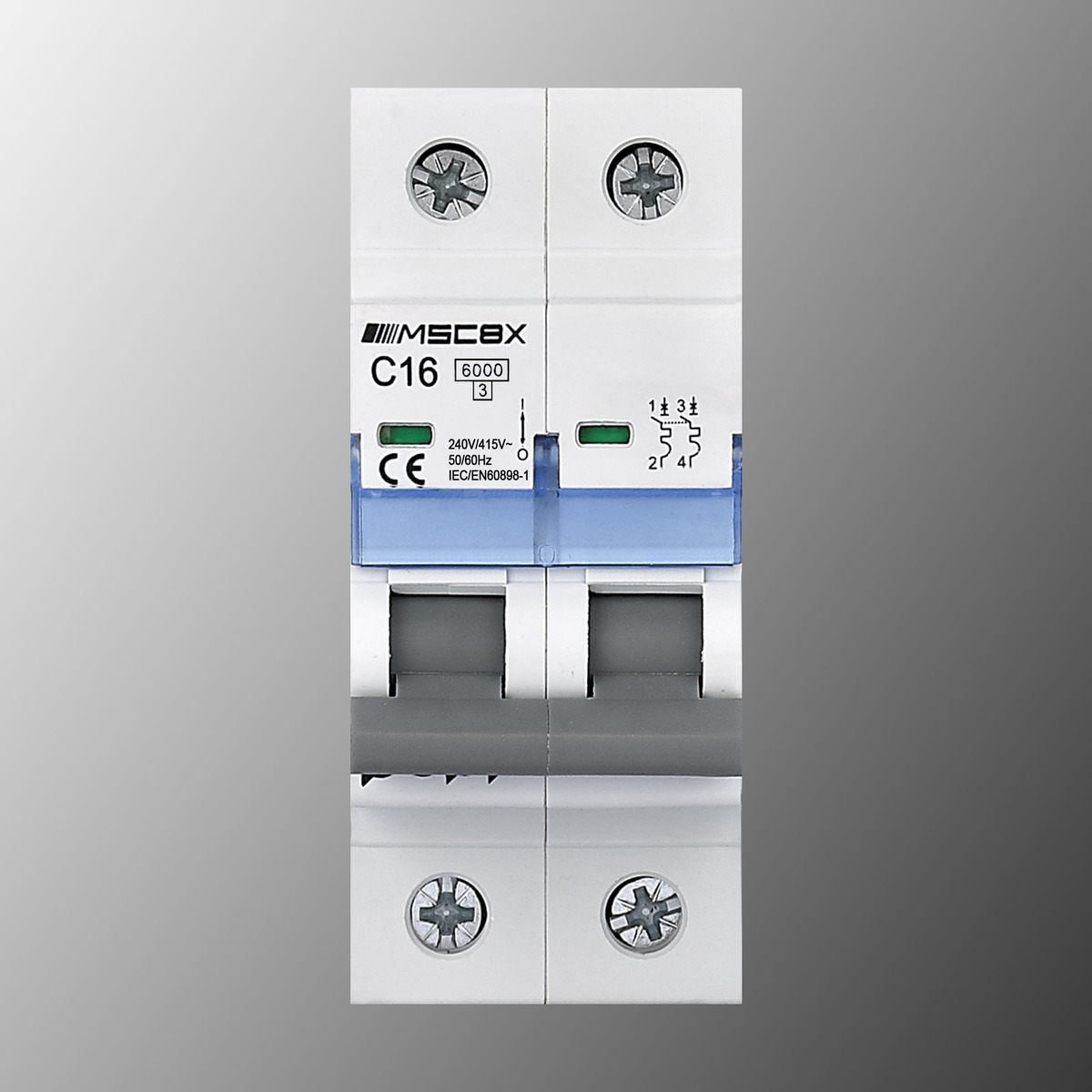

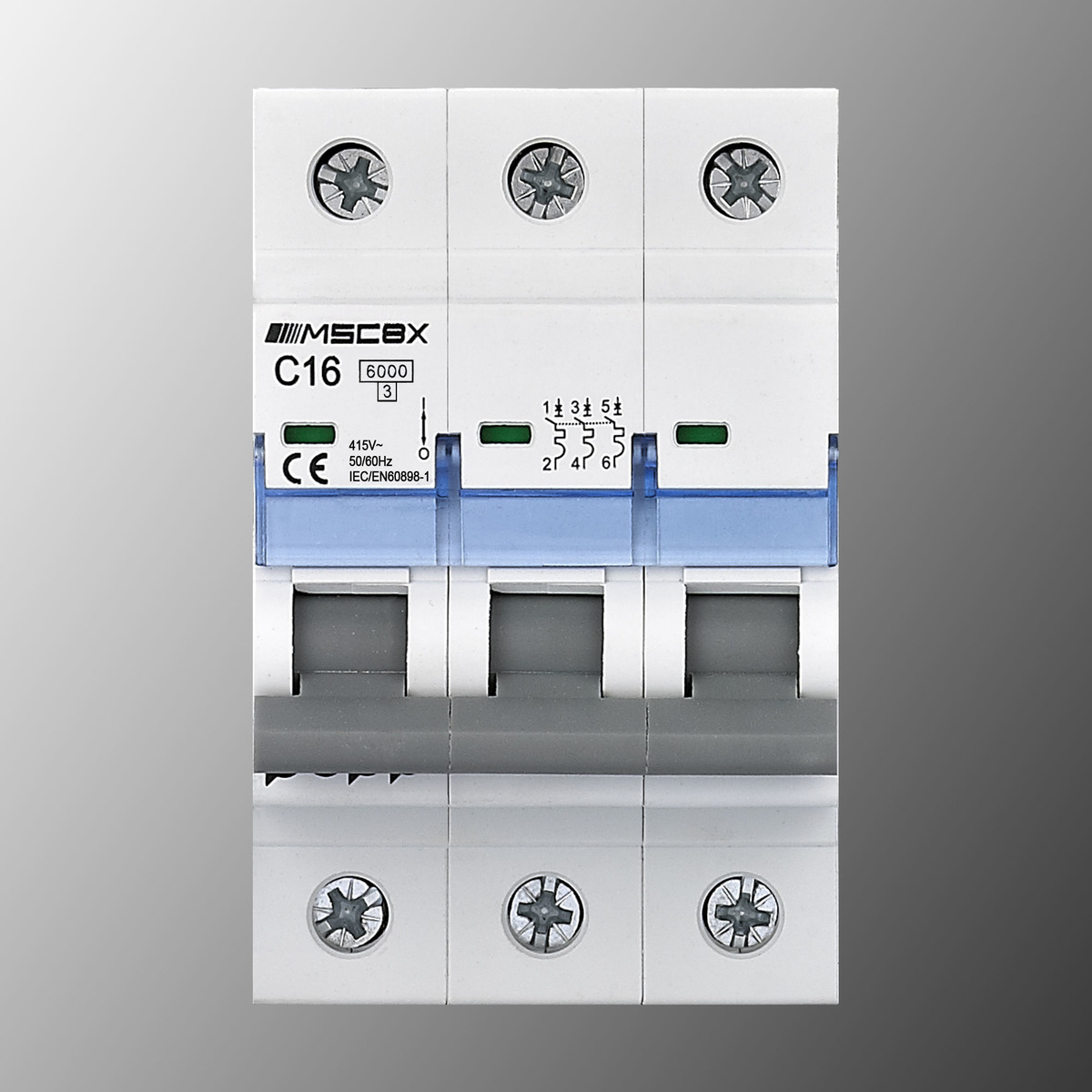

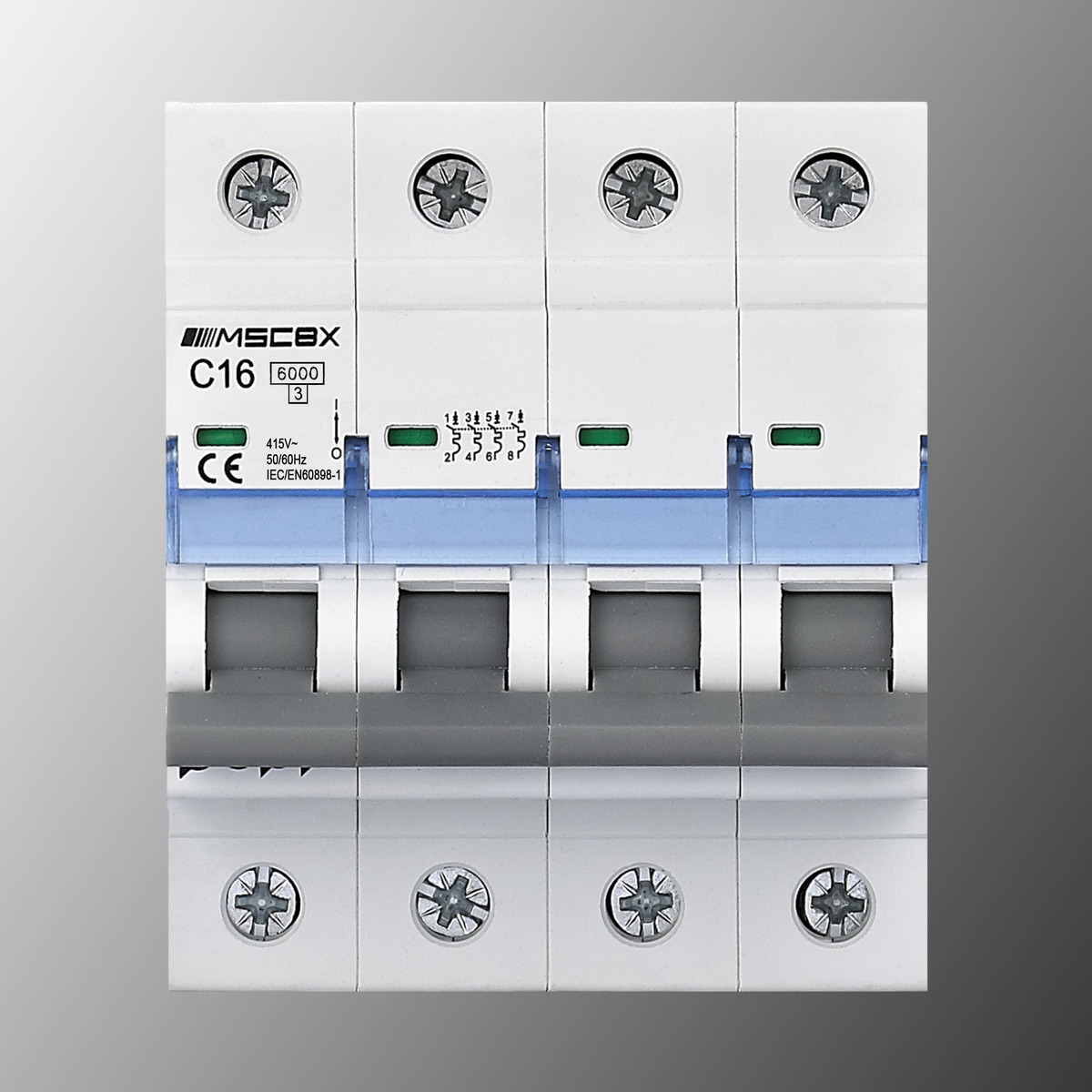

Product exhibition plan
