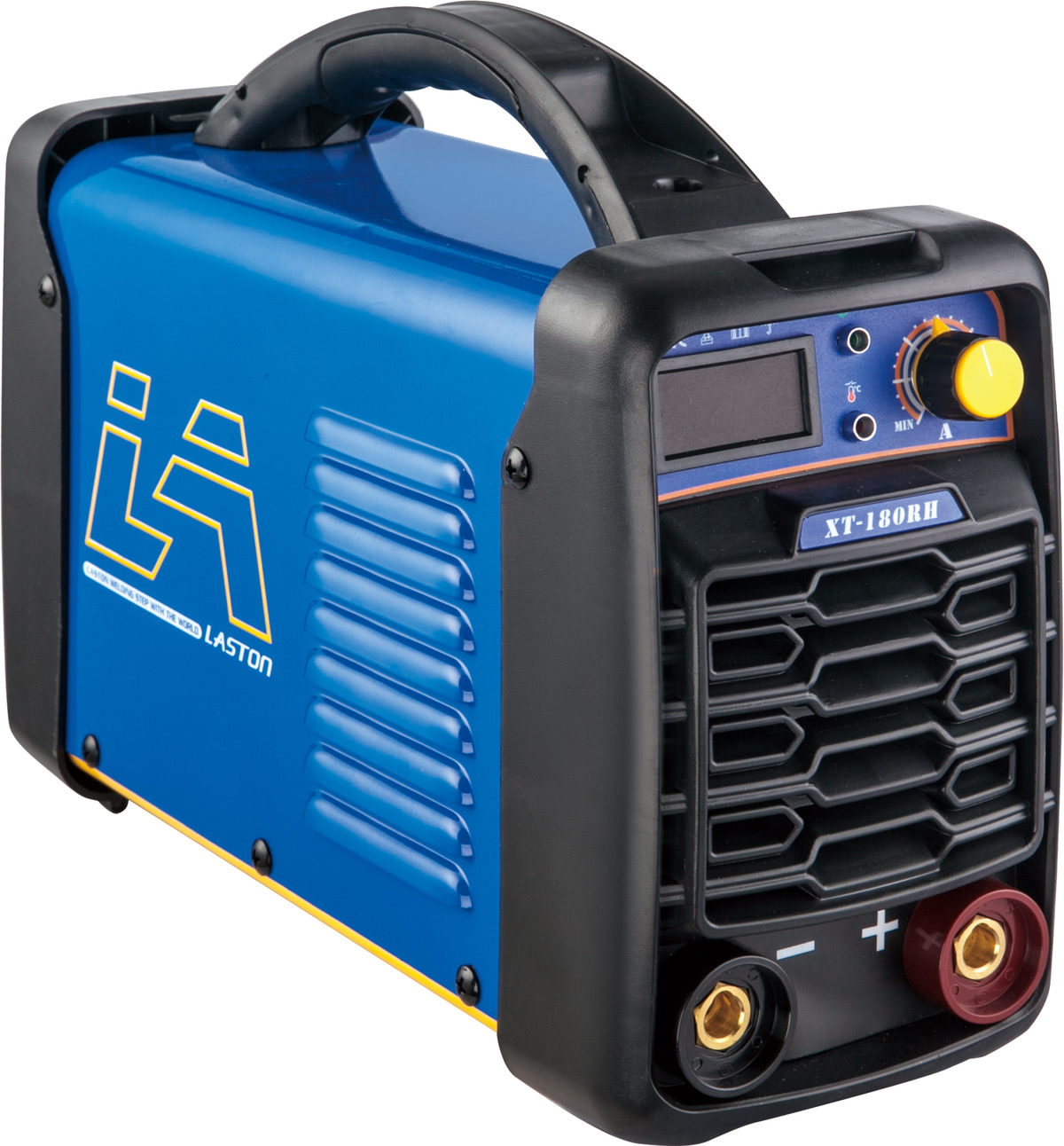

sigle board IGBT inverter welding machine welder XT-180R

Min. Order: 100
Product Parameters

Serial No. : sigle board IGBT inverter welding machine welder XT-180R

Size(mm):375*200*275

Material:PCB BOARD.IRON.PLASTIC

Place of origin:Zhejiang China

Color:blue( can be customize)

ZHEJIANG LAOSHIDUN TECHNOLOGY CO.,LTD

Support level: A

XIACHENG MECHANICAL INDUSTRIAL AREA, WUGEN TOWN, WENLING CITY, ZHEJIANG PROVINCE, CHINA

Registered capital:1000

Founded:2005

Number of companies:200-500人

Export scale:

Contact: 张**

E-Mail:Sign In

Tel:Sign In

The detailed information
troduction

What is the MMA welding machine?

MMA welding machine is the oldest and still the most commonly arc welding process,although the proportion of MMA use is decreasing as gas-shielded welding processes are becoming more popular,and MMA wleding (metal arc)does not require shielding gas,protection for weld pool comes form the electrode cober wheich melts during welding,and forms a protective laer of slag on the weld pool,when the welding is completed and the layer of slag is removed,the finished weld will be discovered underneath.

Where is the MMA welding machine can be use?

The MMA welding machine can be use for many different industry area,such as pipeline welding,shipbuilding industry,buliding industry and also can make the DIY welding.

This MMA welding machine can be use for pipeline welding.

This MMA welding machine can be use for shipbuilding industry.

This MMA welding machine can be use for the building industry.

Product Description

Single Board IGBT Inverter DC ARC Welding Machine



 Single Board IGBT Inverter DC ARC Welding Machine XP-200

Feature:

1.Use powerful IGBT switches and advanced inverter control technology.

2.Excellent arc characteristics and good welding performance.

3.With anti-stick,hot start,arc force,strong compensation capability.

4.With Auto protection functions of overcurrent and overheat.

5.Single phase,portable,fan-cooled,IGBT inverter welder,in this welding process,an electric arc is created between a coated consumable electrode and the work piece to be welded,causing the parent material to be fued together and the electrode to be melt.





ITEM
XT-140RH
XT-160RH
XT-180RH
XT-200RH
Power voltage(V)
220V
220V
220V
220V
Rated input capacity(KVA)
5.3
6.2
7.2
8.2
Rated input current(A)
24
28
33
37
Output current rang(A)
30-140
30-160
30-180
30-200
No-load voltage(V)
67
67
67
67
Duty cycle(%)
40
40/60
40/60
40/60
Efficency(%)
80
80
80
80
Power factor
0.73
0.73
0.73
0.73
Insulation class
F
F
F
F
Protect calss
IP21S
IP21S
IP21S
IP21S
Usable electrode(mm)
1.6-3.2
1.6-4.0
1.6-4.0
1.6-5.0
Dimension(mm)
395*200*275
485*235*330
485*235*330
485*235*330
Weight(kg)
6.3
7.4
7.5
8.1


Certifications
About Laston
Exhibition Show
Packing & Delivery
Packaging
Size
0.43*0.375*0.505
Weight
18Kg



Packaging Details
The normal package is kraft box and color box 4 in 1. If the customer has a request,we can mask according to the customer's requirements.
FAQ

Q: Are you trading company or manufacturer ?
A: We are factory.

Q:How many people in your factory?
A:About 300 people.

Q:Where is your factory located?
A: Our factory is located in Xiacheng Mechaical Industrial Area,Wugen Town,Wenling City, Zhejiang Province, China.

Q: How can i visit your company?
A:You can fly to Taizhou airport, Ningbo airport or Shanghai air port. Or you can take train to Wenling Station. Then inform us, we'll come to pick you up!

Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q:How do you control the quality?
A:Before we produce the machine,we have the IQC to check the materials first and when we produce,the QC will check the machine which in the product line,and when we finished the QC will check it again and also before we send the goods to you,you can come to our factory checking.
