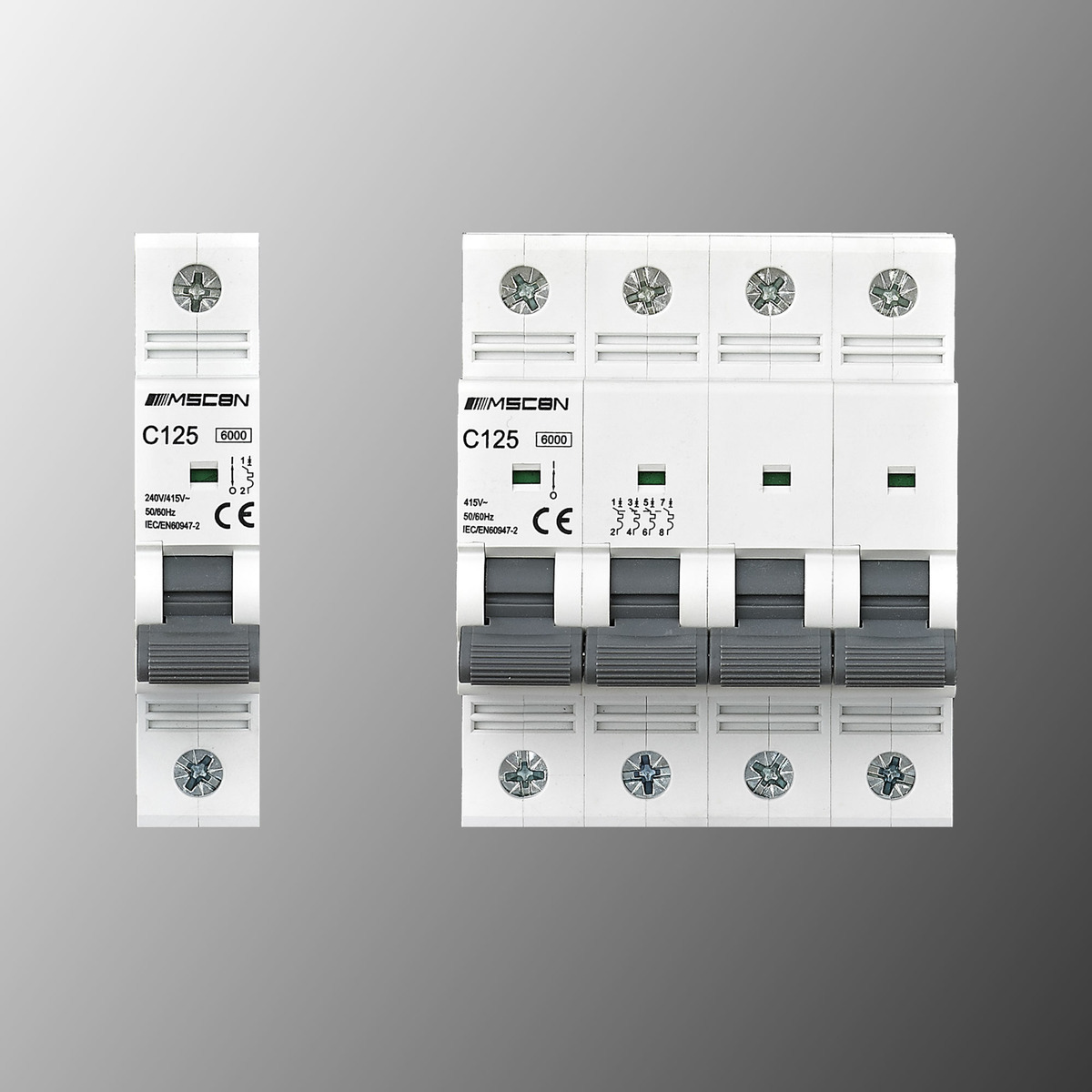

Miniature circuit breakerMSC8N

Function
● Short circuit protection
● Overload protection
● Contact position indicator
● Advanced current-limit technology
MSC8 circuit breaker is suitable for low-voltage terminal distribution in the fields of civil residence, building, etc.

Technical Parameter
● Rated operational voltage 230/400V 240/415V
● Rated insulation voltage 415V AC 50HZ
● Network frequency ：50/60HZ
● Breaking capacity 6000A
● Rated current 80A; 100A; 125A
● Rated impulse withstand voltage：4KV
● Number of poles ：1P , 2P , 3P , 4P
● protection degree：IP20
● Type of trip: Thermal-magnetic
● Mechanical durability   20000 cycles

Environmental
● Ambient air temperature for operating -25℃-60℃
● Overvoltage categoly      Ⅲ

Standards and certifications
● EN/IEC 60898
● CB , CE, ROHS

Warranty：
● 24 months
