REBAR TIER XDL-25A

Min. Order: 10 SET

Product Parameters

Serial No. : XDL-25A

Size（mm）：281*109*300

Material:NYLON, PLASTIC, CAST STEEL

Place of origin:Zhejiang China

Color:RED & BLACK

Schedule an Appointment

Support level: A

#167, NANHUAN ROAD, WENLING, ZHEJIANG, CHINA

Registered capital:180

Founded:2008

Number of companies:51-100人

Export scale:

Contact: 郑**

E-Mail：Sign In

The detailed information

XDL-25A

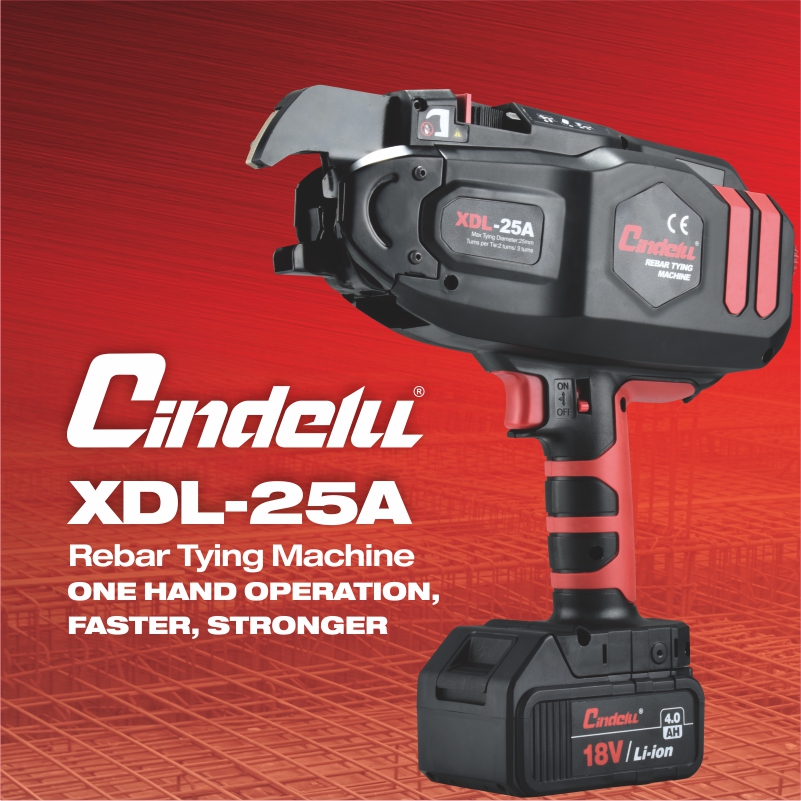

l Rebar tying machine XDL-25A one hand operation, faster, stronger

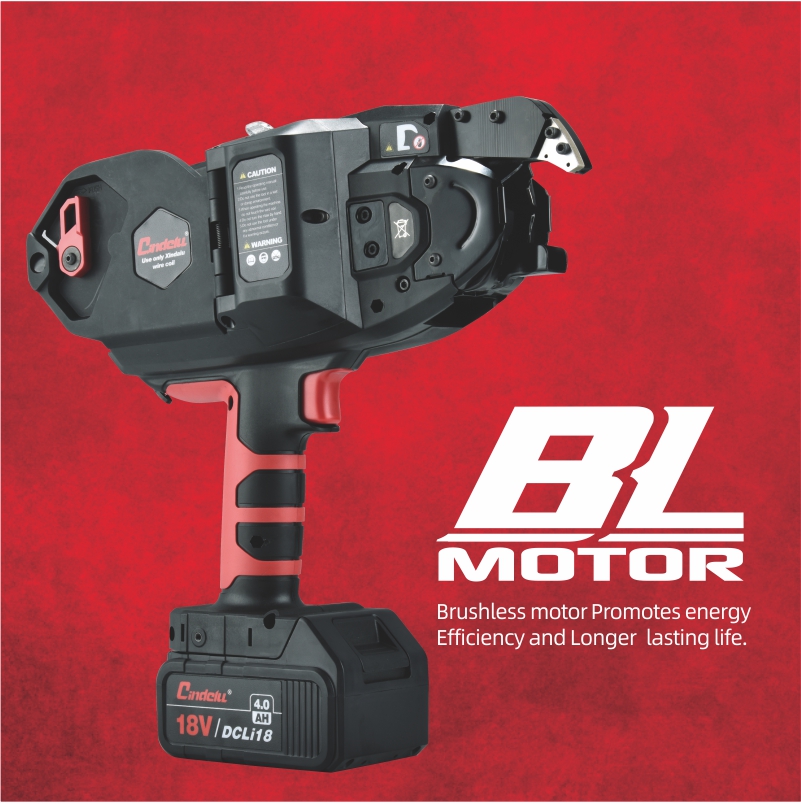

l Brushless motor promotes energy efficiency and longer lasting life.

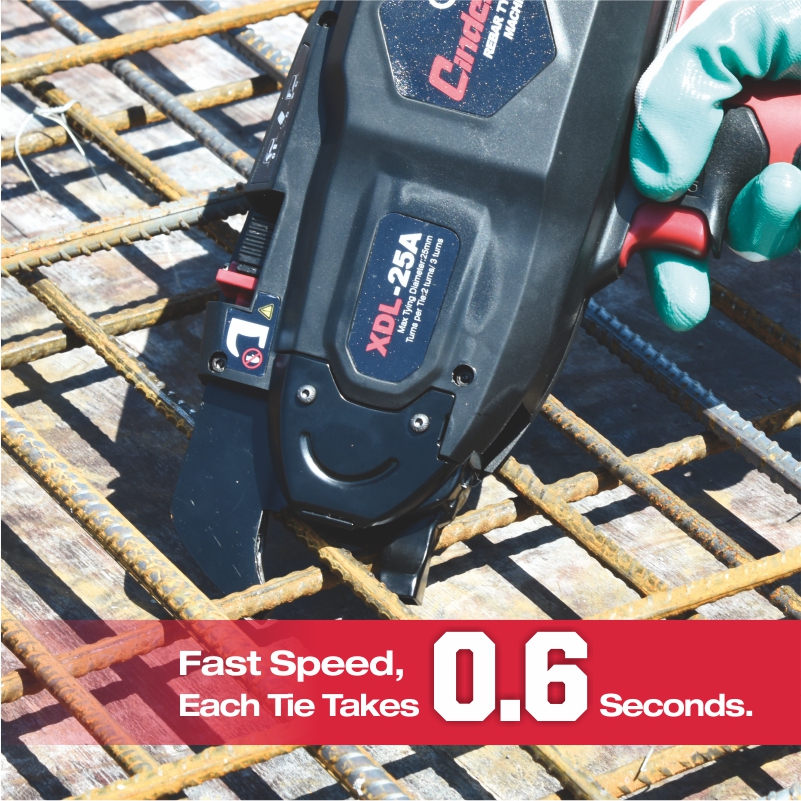

l Fast speed, each tie only takes 0.6 seconds.

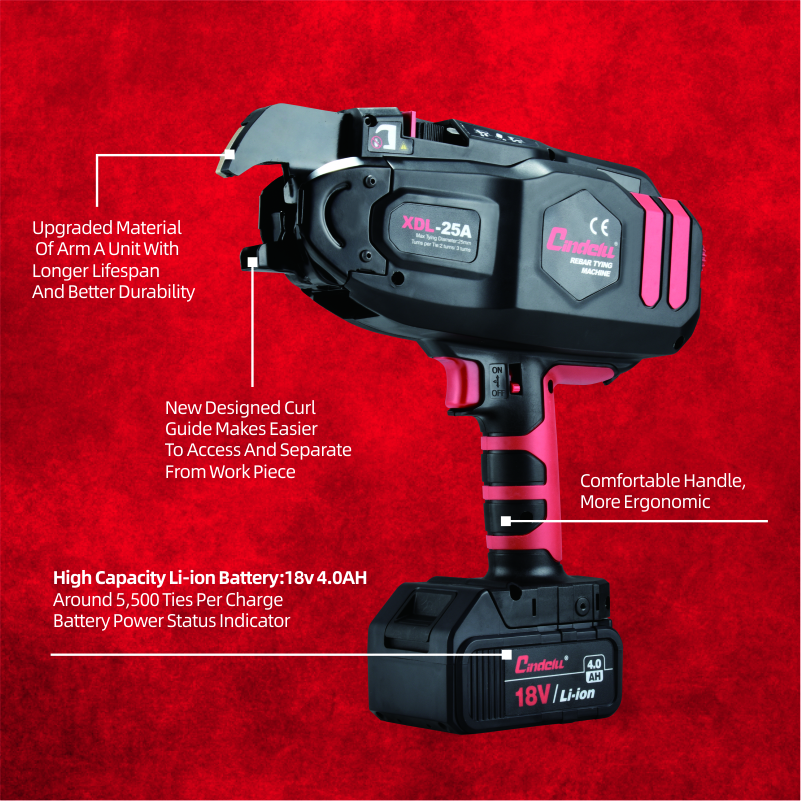

l Upgraded material of arm a unit with longer lifespan and better durability.
l New designed curl guide makes easier to access and separate from work piece.
l Comfortable handle, more ergonomic

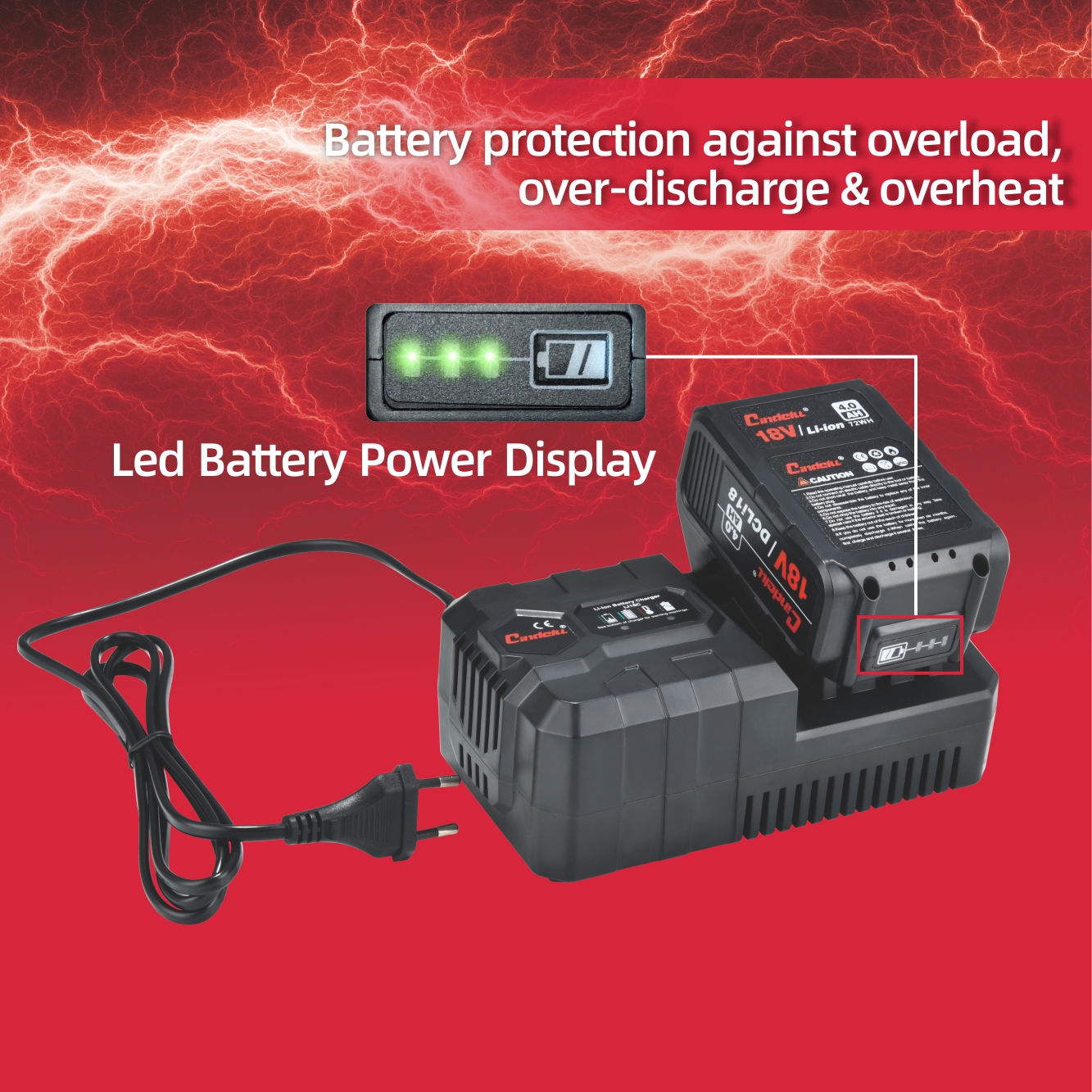

l 18v 4.0Ah high capacity Li-ion battery:
l Around 5,500 ties per charge(2 wraps)

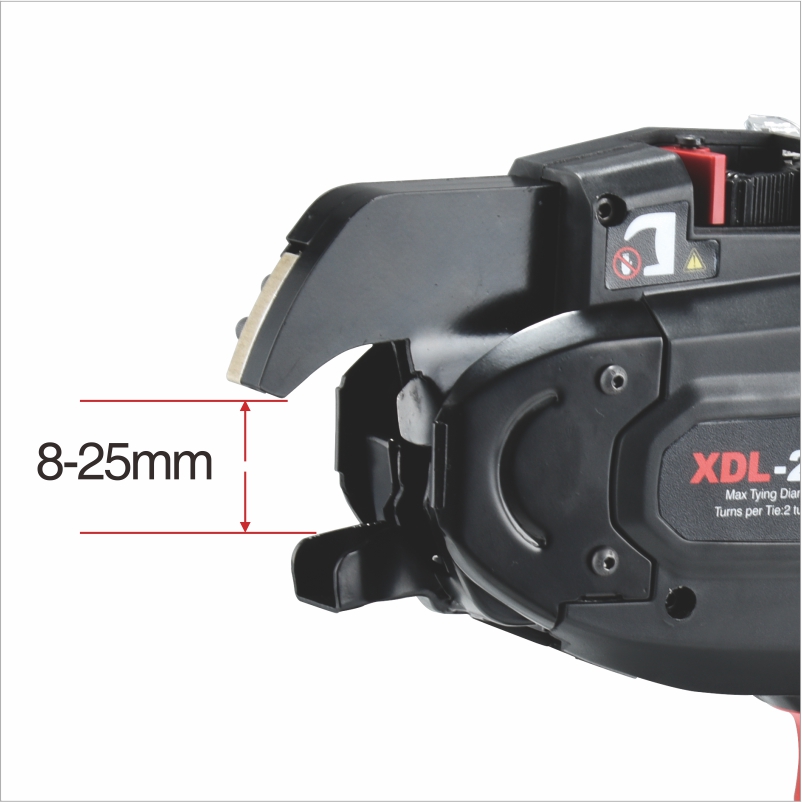

l Tying capacity: 8-25mm

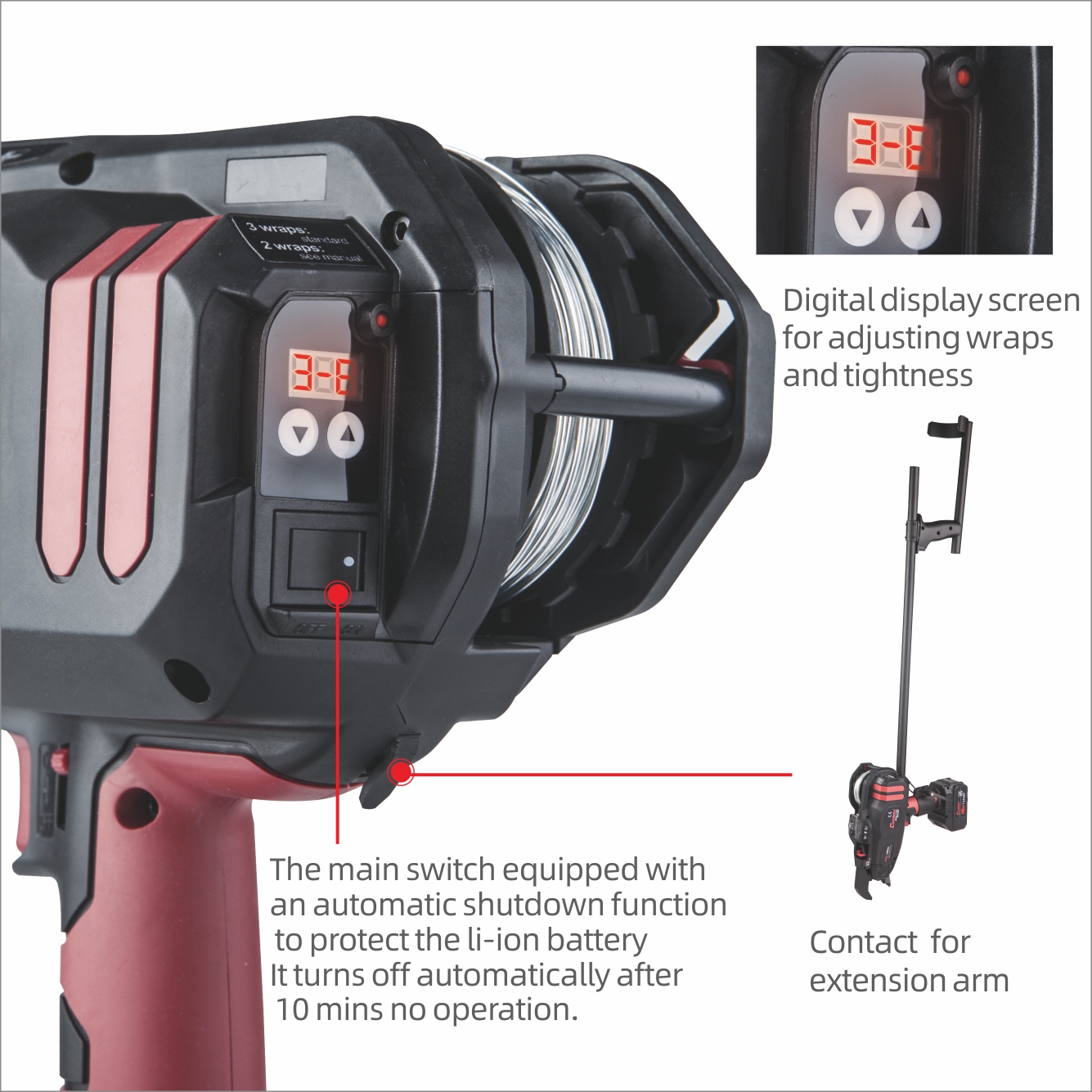

l The main switch equipped with an automatic shutdown function to protect the Li-ion battery

It turns off automatically after 10 mins no operation.

DATA
Weight(incl.battery)	2.5kg
Dimension(LxWxH)	281x109x300mm
Rebar Size	8-25mm
Tying Speed	0. 6 seconds
Wraps per tie	2 or 3 wraps
Ties per coil	Approx.220 ties (2 wraps) Approx 160 ties (3 wraps)
Ties Per Charge	Over 5500 ties/2 wraps Over 5000 ties/3 wraps
Battery	18V 4Ah Li-ion
Charging Time	90 minutes

Product exhibition plan
