Portable ARC WELDER MACHINE
Three boards IGBT Inverter DC ARC Welding Machine
Feature
Minimizing,lightness,high quality and energy-saving
Asopting domestic advanced high frequency IGBT inverter technology
improve the realiability of whole welding machine.
Good arc-starting and arc force,it can be resist disturb.
Stable arc and little splash.
High welding quality,deep bath and strong strength.
Auto protection of over-voltage and over-current.
Be able to work continuously,it can balance automatic when volatge is waving.
Suit for welding all kind of basic welding rod.
Versatillity characteristic:Aloft,internal decoration,field workers.
Model | ZX7-120IV | ZX7-140IV | ZX7-160IV | ZX7-180IV | ZX7-200IV | ZX7-220IV |
| Power voltage(V) | 1 phase AC 220V | 1 phase AC 220V | 1 phase AC 220V | 1 phase AC 220V | 1 phase AC 220V | 1 phase AC 220V |
| Rated input capacity(KVA) | 3.5 | 5.3 | 7.2 | 8.3 | 9.6 | 10.8 |
| Rated output(A) | 120A/24 | 140A/25.6V | 160A/26.4V | 180A/27.2V | 200A/28V | 220A/28.8V |
| Output current range(A) | 30-120 | 30-140 | 30-160 | 30-180 | 30-200 | 30-220 |
| No-load voltage(V) | 60 | 60 | 60 | 60 | 60 | 60 |
| Duty cycle(%) | 60 | 60 | 60 | 60 | 60 | 60 |
| Efficiency(%) | 80 | 80 | 80 | 80 | 80 | 80 |
| Power factor | 0.73 | 0.73 | 0.73 | 0.73 | 0.73 | 0.73 |
| Insolation class | F | F | F | F | F | F |
| Protect class | IP21S | IP21S | IP21S | IP21S | IP21S | IP21S |
| Usable electrode(mm) | 1.6-2.5 | 1.6-3.0 | 1.6-4.0 | 1.6-4.0 | 1.6-5.0 | 1.6-5.0 |
| N.W.(KG) | 4.5 | 5.06 | 5.28 | 5.66 | 7.46 | 8.26 |
| Dimension(mm) | 460*270*335 | 460*270*335 | 460*270*335 | 460*270*335 | 460*270*335 | 460*270*335 |

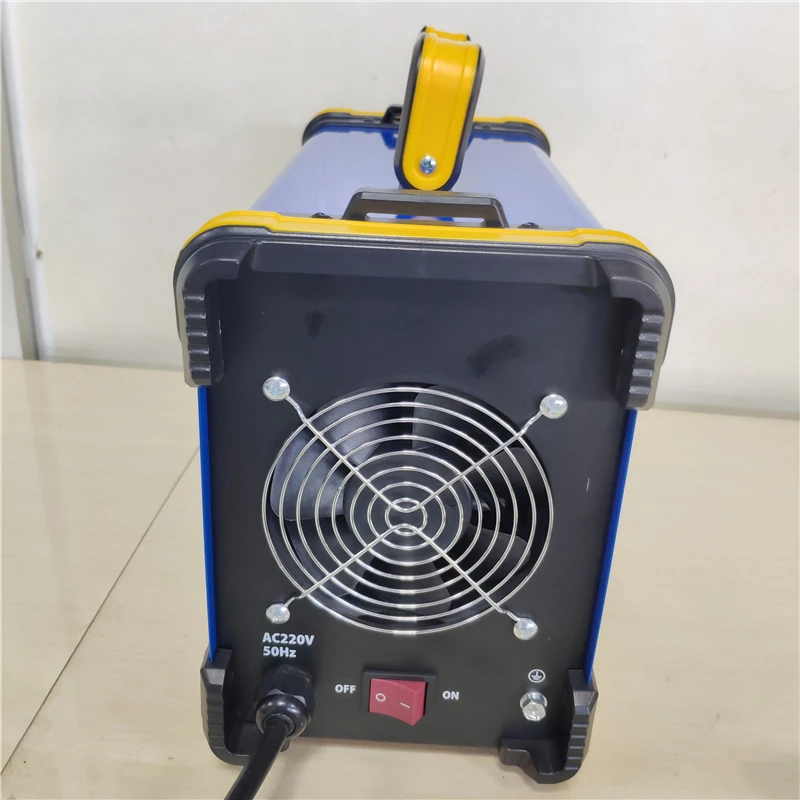

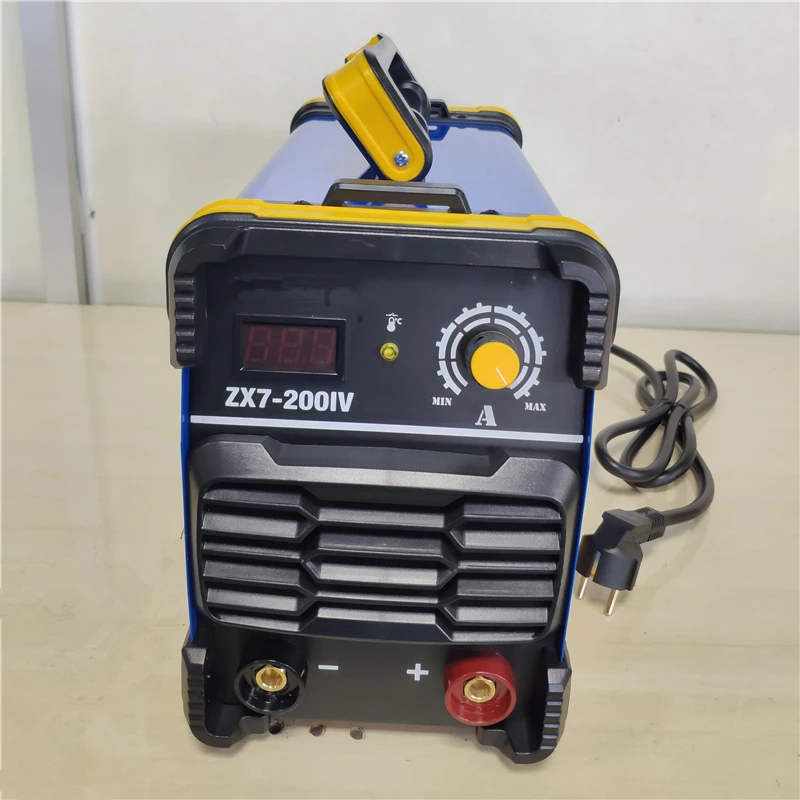

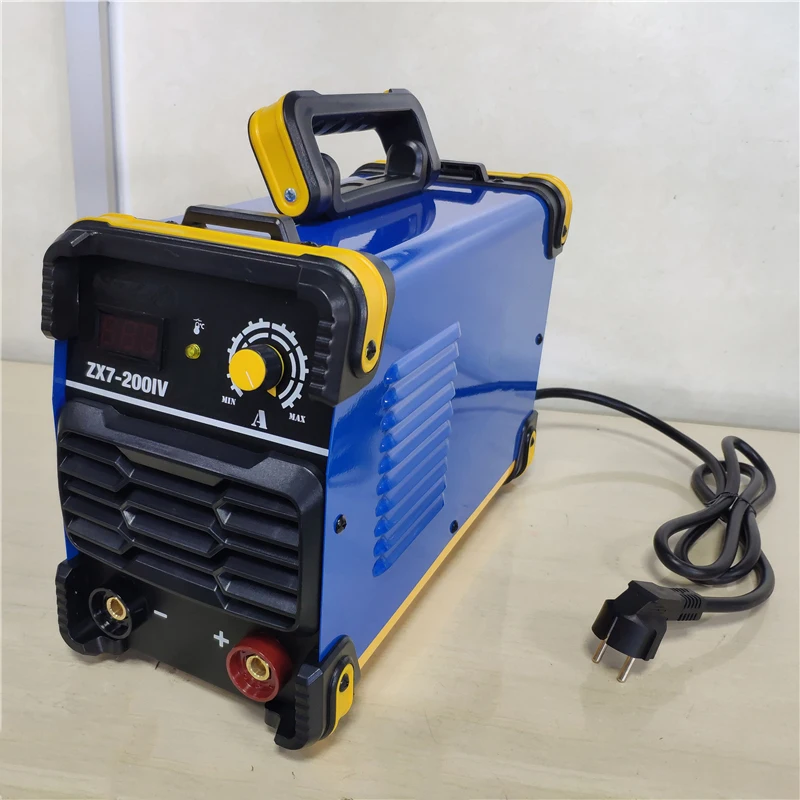

Product Picture
