Home > Priducts > New Energy Resources > Solar Photovoltaic Products > Solar Cell and Module

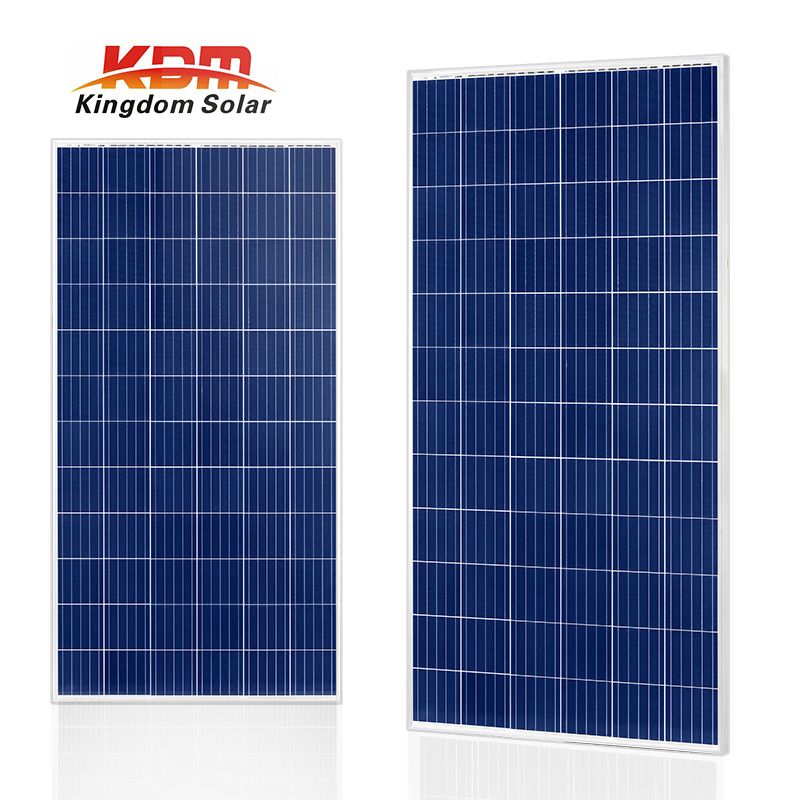

SOLAR PANELS

Min. Order: 67 pc

Product Parameters

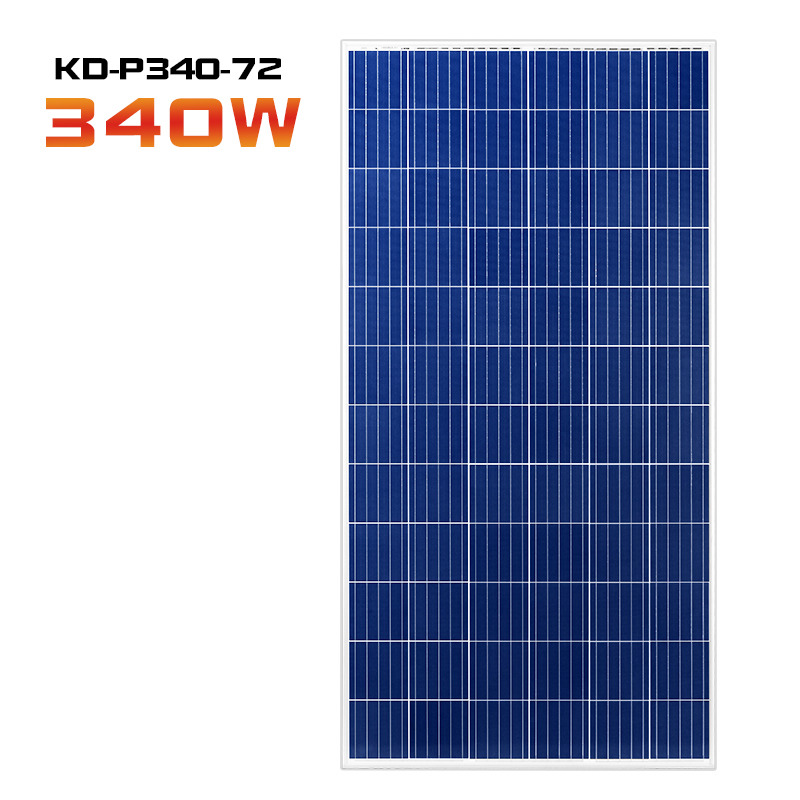

Serial No. : KDM-POLY340-72

Size（mm）：1640X992X35

Material:Polycrystalline

Place of origin:Zhejiang China

Color:BLUE

Schedule an Appointment

Support level: A

NO.1199 HUIFENG SOUTH ROAD, JIANGNAN DEVELOPMENT AREA,LINHAI, ZHEJIANG,CHINA

Registered capital:51198000

Founded:2009

Number of companies:101-500人

Export scale:

Contact: 林**

E-Mail：Sign In

The detailed information

High-quality solar panel system home for home

Product Description

Model	KD-P310	KD-P315	KD-P320	KD-P325	KD-P330	KD-M335	KD-M340
Wattage	310W	315W	320W	325W	330W	335W	340W
Open circuit voltage (Voc)	46.46	45.4	45.6	46	46.1	46.3	46.5
Maximum Power Voltage(Vmp/V)	37.25	36.9	37	37.5	37.7	37.8	38.2
Short Circuit Current(Isc/A)	9.3	9.1	9.16	9.2	9.3	9.4	9.45
Maximum Power Current(Imp/A)	8.46	8.55	8.65	8.67	8.76	8.87	8.9
Module Efficiency	16.23%	16.23	16.48%	16.74%	17.0%	17.26%	17.51%
Standard Test Condition(STC)	Irradiance 1000w/m2, Cell Temperature 25 Centigrade, Air Mass 1.5

Product Details

Hot Products

Workshop&packing

Project

Payment

Certification

Product exhibition plan
