5.5HP Gasoline Engine

Min. Order: 630 Unit

Product Parameters

Serial No. : HH168

Size（mm）：380mmx325mmx340mm

Material:Aluminum, Iron, Plastic

Place of origin:Zhejiang China

Color:Red, Yellow, Black, Orange, Blue

Schedule an Appointment

Support level: A

LIBEI VILLAGE,LUQIAO DISTRICT,TAIZHOU CITY,ZHEJIANG PROVINCE

Registered capital:5056

Founded:2005

Number of companies:101-500人

Export scale:

Contact: 施**

E-Mail：Sign In

The detailed information

Model	HH168
Engine type	Air-cooled 4 stroke OHV single cylinder
Bore×Stroke	68mm×45mm
Displacement	163cc
Compression ratio	8.5:1
Max power output	5.5HP/3600rpm
Max torque	10.8N.m/2500rpm
Ignition system	Non-contact transistorized ignition (TCI)
Start mode	Recoil start/Electric start
Air cleaner	Semi-dry, oil bath, dual, double silent and cyclone type
Fuel tank capacity	3.6L
Fuel consumption	290g/HP-hour
Engine oil capacity	0.6L
Dimension (LxWxH)	380×325×340mm
Gross weight	14.5kg
Quantity for container	630/1498pcs

○Dura-bore cast iron cylinder sleeve for extended life
○ Maintenance-free Magnetron electronic ignition for quick, dependable starts
○ Overhead valve design (OHV) for cooler operation and longer valve life
○ Dual ball bearing
○ Dual-clean air cleaner pleated paper filter with a foam pre-cleaner ensures maximum protection for extended engine life

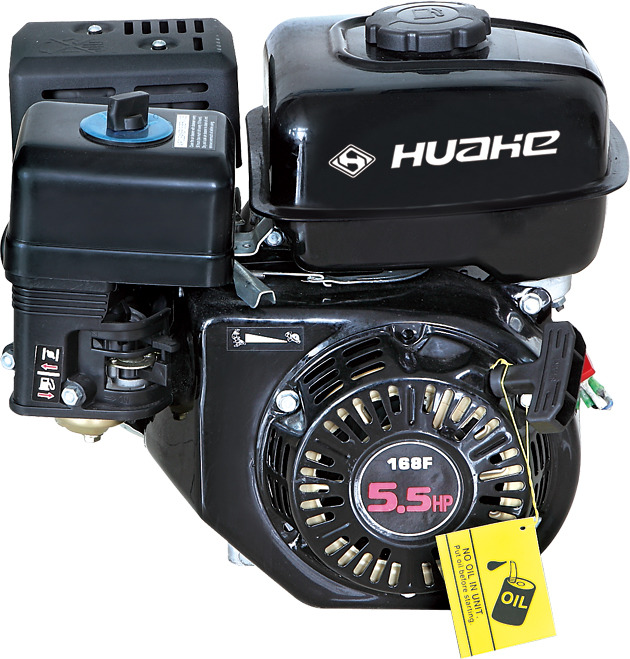

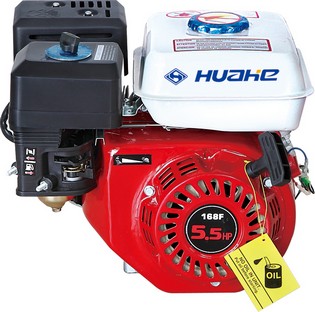

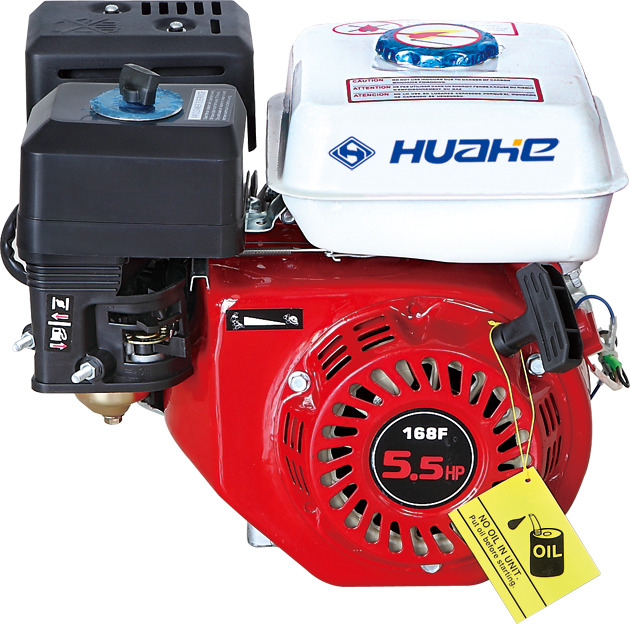

Product exhibition plan
