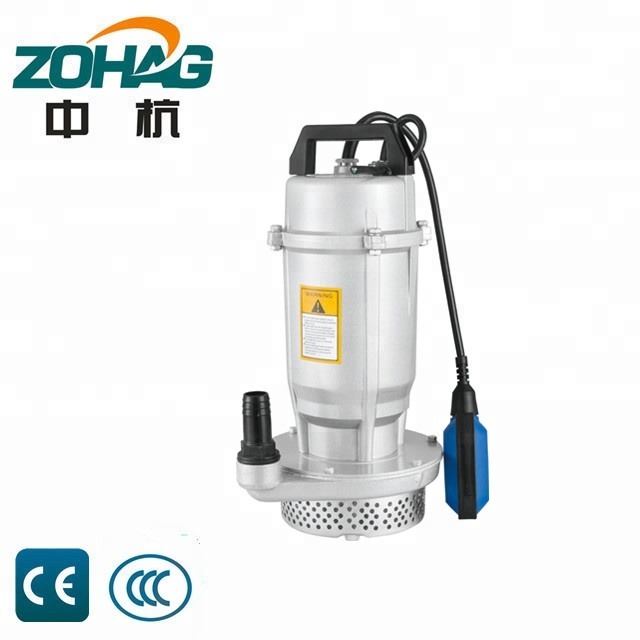

Serial No. : QDX1.5-17-0.37
Size（mm）：420*225*190
Material:aluminum
Place of origin:Zhejiang China
Color:Green、Sliver
Support level: A
Registered capital:1000
Founded:2014
Number of companies:101-500人
Export scale:
Contact: ***
E-Mail：Sign In
Tel:Sign In
 |  |
1. Performance Data
| Model | P2 | Outlet (inch) | Capacity (m³/h) | Head (m) | N.W (kg) | Packing dimension (mm) | ||
1~ 220V/240V | 3~ 380V/415V | KW | HP | |||||
| QDX1.5-17-037 | - | 0.37 | 0.5 | 1” | 1.5 | 17 | 9.5 | 420×225×190 |
| QDX1.5-33-0.75 | QX1.5-33-0.75 | 0.75 | 1.0 | 1” | 1.5 | 33 | 14.5 | 460×300×240 |
| QDX3-20-0.55 | - | 0.55 | 0.75 | 1” | 3 | 20 | 12.5 | 460×300×240 |
| QDX3-30-1.1 | QX3-30-1.1 | 1.1 | 1.5 | 1” | 3 | 30 | 17.3 | 500×300×240 |
| QDX6-20-0.75 | QX6-20-.75 | 0.75 | 1.0 | 1.5” | 6 | 20 | 14.5 | 460×300×240 |
| QDX6-26-1.1 | QX6-26-1.1 | 1.1 | 1.5 | 1.5” | 6 | 26 | 17.3 | 500×300×240 |
| QDX-10-12-0.55 | - | 0.55 | 0.75 | 1.5” | 10 | 12 | 13.2 | 460×300×240 |
| QDX-10-18-0.75 | QX10-18-0.75 | 0.75 | 1.0 | 2” | 10 | 18 | 14.5 | 460×300×240 |
| QDX15-7-0.55 | - | 0.55 | 0.75 | 2” | 15 | 7 | 13.2 | 460×300×240 |
| QDX15-15-1.1 | QX15-10-0.75 | 0.75 | 1.0 | 2” | 15 | 10 | 14.5 | 460×300×240 |
| QDX15-18-1.5 | QX15-15-1.1 | 1.1 | 1.5 | 2” | 15 | 15 | 16.7 | 500×300×240 |
| QDX25-10-101 | QX-18-1.5 | 1.5 | 2.0 | 2” | 15 | 18 | 18 | 500×300×240 |
| QDX25-12-1.5 | QX-10-1.1 | 1.1 | 1.5 | 2.5” | 25 | 10 | 19 | 545×315×270 |
| QDX25-15-1.5 | QX25-12-1.5 | 1.5 | 2.0 | 2.5” | 25 | 12 | 21.6 | 545×315×270 |
| QDX30-6-0.75 | QX30-6-0.75 | 0.75 | 1.0 | 3” | 30 | 6 | 15.7 | 460×300×240 |
| QDX40-6-1.1 | QX40-6-1.1 | 1.1 | 1.5 | 3” | 40 | 6 | 19 | 545×315×270 |
| 2QDX40-9-1.5 | QX40-9-1.5 | 1.1 | 1.5 | 3” | 40 | 9 | 21.6 | 545×315×270 |
ApplicationsFor water supply from wells or reservoirs. For domestic use,for civil and industrial applications. For garden use and irrigation. |
Performance Chart
|
Operating ConditionsMaximum fluid temperature up to +40℃. Maximum sand content:0.25%. | |
Motor and PumpRewindable motor Three-phase:380V-415V/50Hz Single-phase:220V-240V/50Hz | |
Options on requestSpecial mechanical seal Other voltages or frequency 60 Hz | |
Warranty:1 Year (according to our general sales conditions). |
