3Ton Diesel Forklift with Windshield

Min. Order: 1 UNIT

Product Parameters

Serial No. : HH30Z-M1-D

Size（mm）：2680*1210*2650MM

Material:steel,iron, rubber, plastic and etc.

Place of origin:Zhejiang China

Color:orange

Add to Favorites

Schedule an Appointment

HUAHE HEAVY INDUSTRIES CO.,LTD

Support level: A

LIBEI VILLAGE,LUQIAO DISTRICT,TAIZHOU CITY,ZHEJIANG PROVINCE

Registered capital:5056

Founded:2005

Number of companies:101-500人

Export scale:

Contact: 施**

E-Mail：Sign In

Tel:Sign In

The detailed information

Product Description

DESCRIPTION: 3.0Ton Diesel Forklift with Windshield

HS CODE: 8427209000

Model: HH30Z-M1-D

SPECIFICATION: 1, 3.0Ton rated capacity, Load center 500MM
2, with Japanese MITSUBISHI S4S diesel engine
3,with Chinese Zhongchai hydraulic transmission, 4meter lift height, duplex mast, with Front Windshield
4, 2pcs rear mirror, Suspension seat, with strobe light
5, Zhengxin brand pneumatic tires(can choose solid tires), 1.82meter length forks
6, Dimension length*width*height 2680*1210*2650MM, Self-weight 4200KGS

Generals	1	Model 型号			UNIT	HH30Z-M1-D
	2	Power type 动力形式				Diesel
	3	Rated capacity 额定载荷			kg	3000
	4	Load center 载荷中心距			mm	500
Dimensions	5	Lift height 起升高度			mm	4000
	6	Free lift height 自由起升高度			mm	110
	7	Fork size(LWT)货叉尺寸			mm	1820×125×45
	8	Fork outside spread(Min./Max.)货叉间距（外侧）			mm	255/1200
	9	Mast tilt range(F/R)门架倾角（前/后）			deg	6/6
	10	Front overhang 前悬距			mm	500
	11	Overall dimensions	Length to face of fork 总长	Without of fork 不带货叉	mm	2680
	12			With fork 带货叉	mm	2855
	13			Wheel width 车轮宽	mm	1210
	14		Mast lowered height 门架不起升高度		mm	2650
	15		Mast extended height 门架起升高度		mm	5110
	16		Overhead guard height 安全架高度		mm	2150
	17	Turning radius 最小转弯半径			mm	2460
Performance	18	Travel speed (unload/full load) 行驶速度（空载/满载）			km/h	20/18.5
	19	Lift speed (unload/ full load) 起升速度（空载/满载）			mm/s	510/450
	20	Max. gradeability 最大爬坡度			%	20
Wheel & Tires Drive units	21	Tires 轮胎		Front 前轮		28×9-15-12PR
	22	Tires 轮胎		Rear 后轮		6.50-10-10PR
	23	Tread 轮距		Front 前轮	mm	1000
	24	Tread 轮距		Rear 后轮	mm	980
	25	Wheelbase 轴距			mm	1700
	26	Min. ground clearance 最小离地间隙（unload/ full load）（空载/满载）		Mast 门架	mm	160/140
	27	Min. ground clearance 最小离地间隙（unload/ full load）（空载/满载）		Frame 车架	mm	145/125
	28	Battery 蓄电池			v/ah	12/90
	29	Engine 发动机		Model 型号		Mitsubishi S4S
	30			Rated output 额定功率	kw/r.p.m	35.4/2500
	31			Rated torque 额定扭矩	n.m/r.p.m	139/1800
	32			Displacement 排量	cc	2369
	33			No. of cylinder 缸数		4
	34			Borestroke 缸径×行程	mm	90×100
	35	Transmission 双变		Model 型号		Hydraulic
	36	Transmission 双变		Shift (FWD/RVS) 档位（前/后）		1/1
	37	Operating pressure 工作压力			mpa	17.5

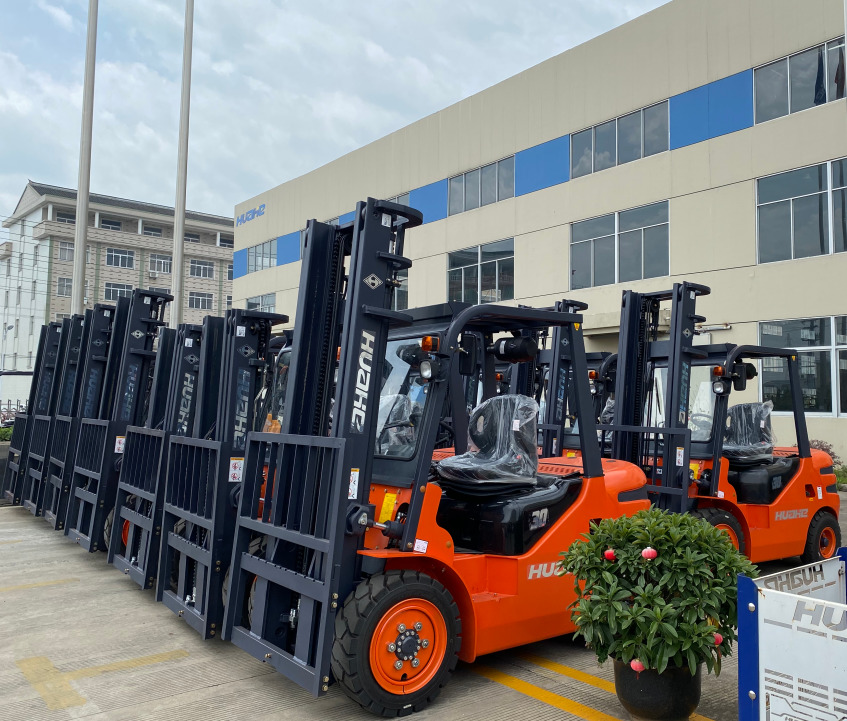

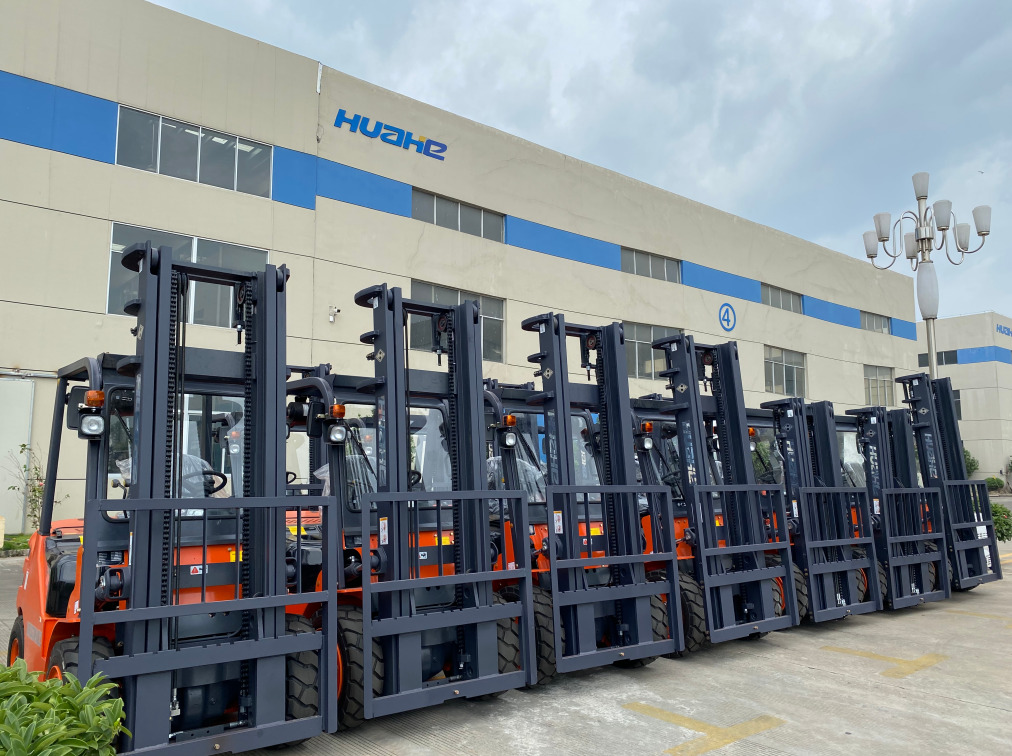

Product exhibition plan
