DELIVEY

1~

220V/240V

3~

380V/415V

Q

m³/h

1.5

1.8

2.1

2.4

2.7

Applications

For water supply from wells or reservoirs.

For domestic use,for civil and industrial applications.

For garden use and irrigation.

Delivery casing Cast-Cu ASTM280 Suction Lantern Casing Cast-Cu ASTM280 ASISI202 SS

 Diffuser Cast-Cu ASTM280 AISI 202 SS Imppller Impller Cast-Cu ASTM280 Strainer/Motor external casing AISI 304 SS

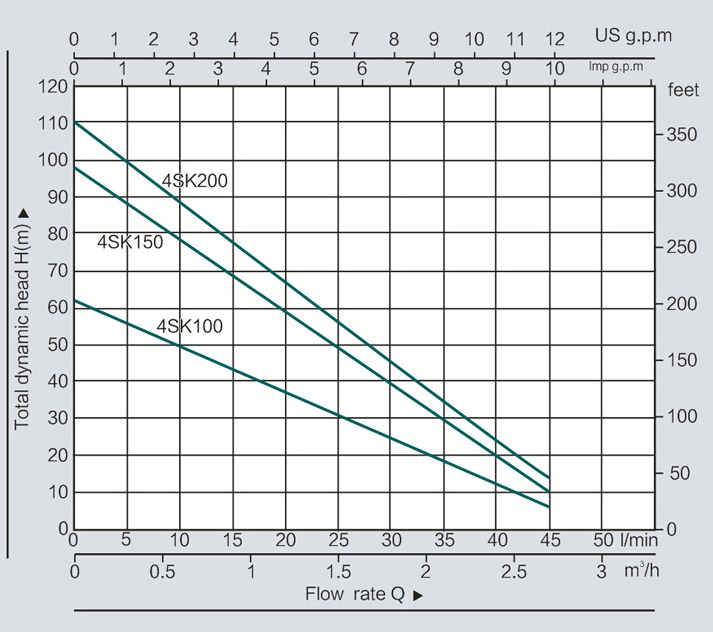

Performance Chart

Top chock Cast-Cu ASTM280 Cast-iron G20 UNI5007 Botton support AISI 304SS Mechanical seal Special seal for deep well(carbon-sic/tc)

Operating conditions

Maximum fluid temperature up to +40℃.

Maximum sand content:0.15%.

Maximum immersion:50m.

Minimum well diameter:4".

Motor and Pump

Rewindable motor

Three-phase:380V-415V/50Hz

Single-phase:220V-240V/50Hz

Equip with start control box or digital auto-control box

Curve tolerance according to ISO 2548

Motor and Pump

Rewindable motor

Three-phase:380V-415V/50Hz

Single-phase:220V-240V/50Hz

Options on request

Special mechanical seal

Other voltages or frequency 60 Hz

Warranty:1 year

(according to our general sales conditions).
