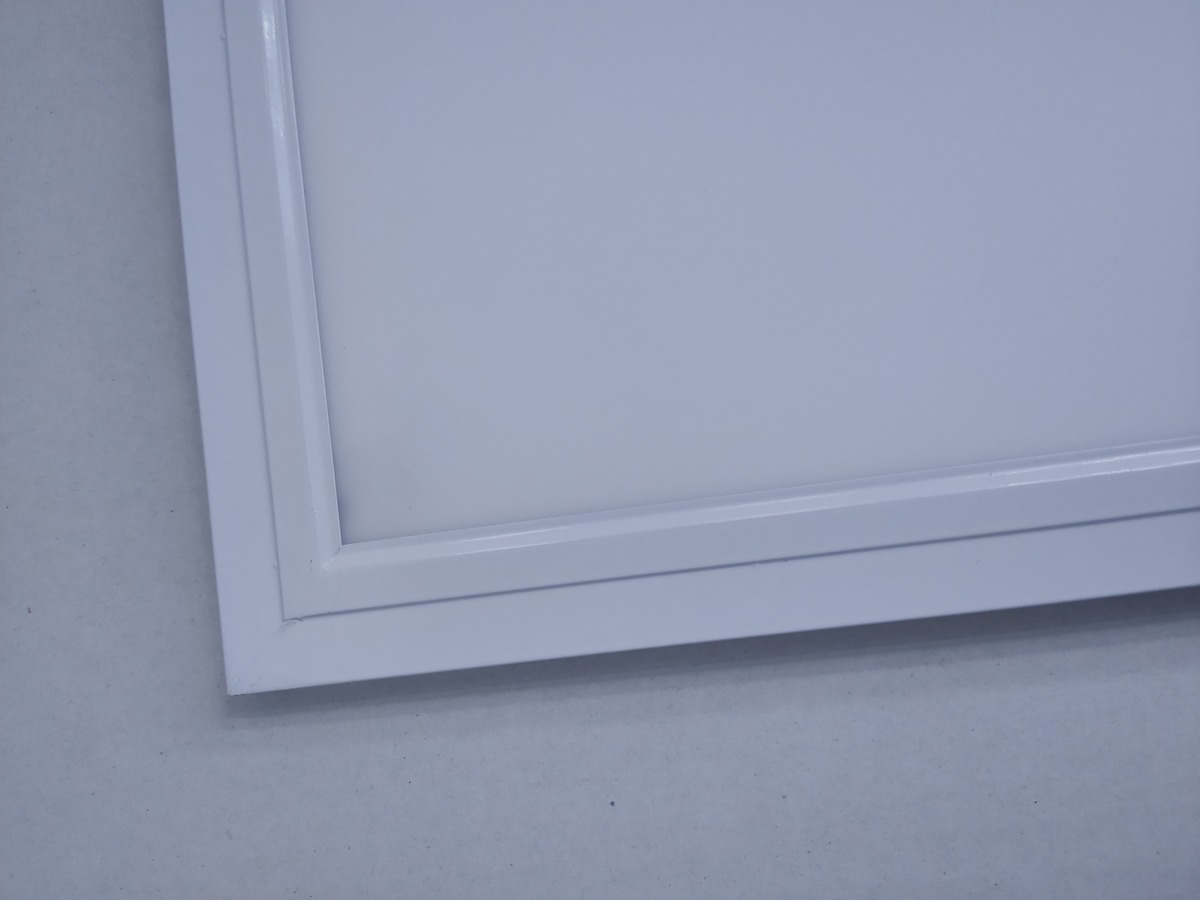

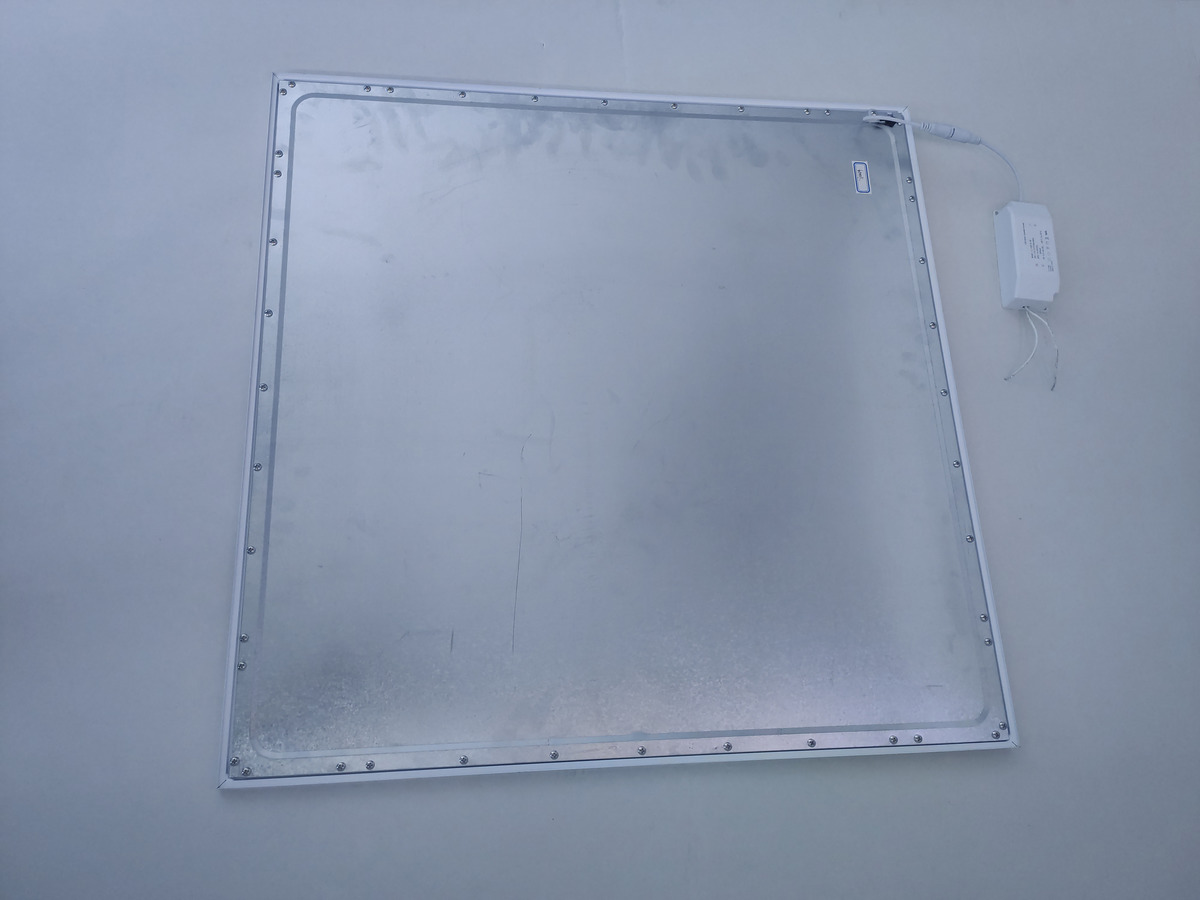

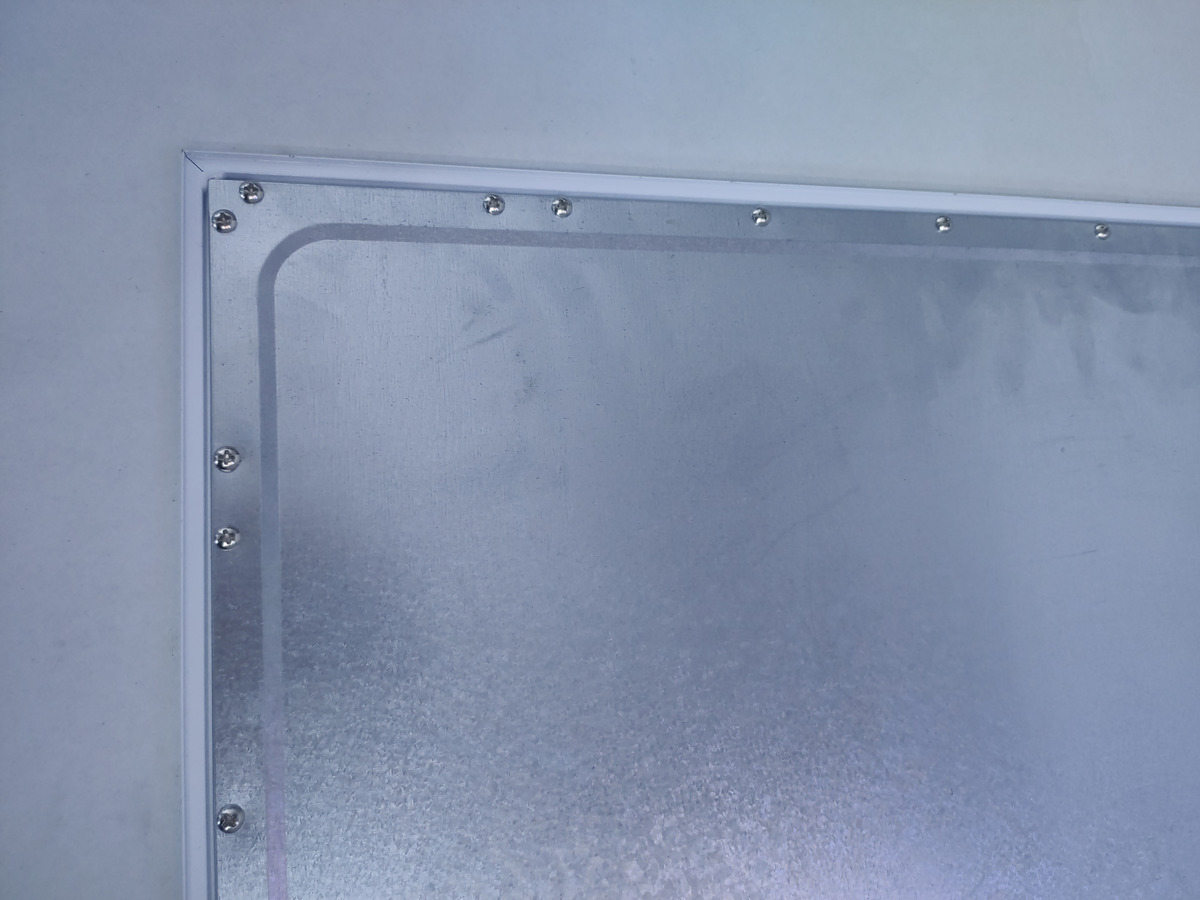

LED side light Panel

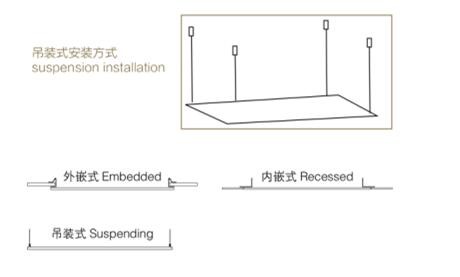

LED PANEL LIGHT（Embedded/Recessed/Suspending）

• 1、 Product has lighter design,easy installation.The lamp body is made by high thermal conductivity,which has good heat resistance,the panel is made of high quality and high efficiency of high guide siffuser.Though advanced optical design,good light yield,creat a better.more comfortable light environment.
• 2、 Light Source：LED
• 3、 Drive：Diming/Standard(External type constant curent power supply)
• 4、 Voltage：AC185-265V，50/60Hz
• 5、 Working life：50,000h
• 6、 Application：Office,Library,school,hospital,supermarket,hotel,shopping mall,and also suit for home lighting.
•


  Item NO.

  Power(W)

  Item Size(mm)

  Output Lumens

  Color Temperature

  CRI

• YLA428P-M	60W	1195*595*9	80~100lumens/W	3000-6500K	≥80
  YLA228P-M	40W	1195*295*9	80~100lumens/W	3000-6500K	≥80
  YLA414P-M	40W	595*595*9	80~100lumens/W	3000-6500K	≥80
  YLA214P-M	24W	595*295*9	80~100lumens/W	3000-6500K	≥80
  YLA209P-M	12W	295*295*9	80~100lumens/W	3000-6500K	≥80

•
