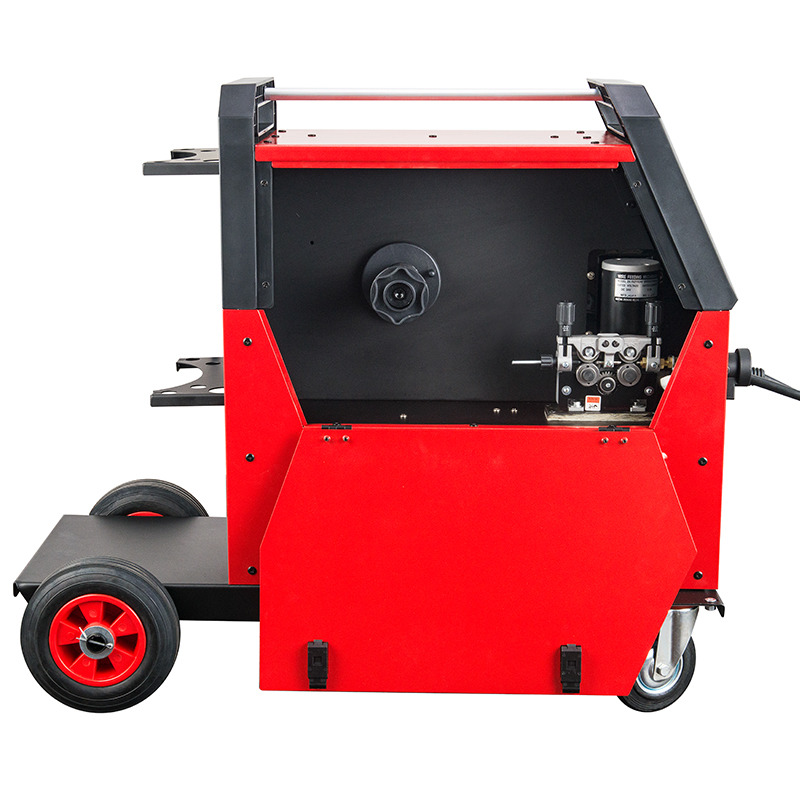

MIG350GDS MIG PULSE WELDING MACHINE

Introduction: working voltage 400V, IGBT inverter, output current range 20-350A, output current 350A temporary load rate 60%; MIG / PMIG / DPMIG is suitable for 0.8 / 1.0mm / 1.2 / 1.6 welding wire (solid core wire, flux cored wire, Aluminum welding wire), can be installed with a diameter of 300mm and a weight of 15KG and a diameter of 200mm and a weight of 5KG. The welding thickness is 1-9mm. It can weld various metals such as carbon steel, stainless steel, aluminum, etc .; it is designed with a wheel welding torch interface and can be equipped separately; TIG is suitable φ1.6 ~ 3.2mm tungsten needle, welding thickness 0.5-10mm, can weld carbon steel, stainless steel and other metals; MMA applicable electrode φ1.6-5.0mm (acid electrode, alkaline electrode), welding thickness 1.5-16mm, Can weld carbon steel, stainless steel and other metals; suitable for hardware, decoration, car modification, equipment installation and maintenance, factory maintenance and other operations.

Advantages: digital panel design, accurate and simple parameter adjustment; including MIG / PMIG / DPMIG / MMA / LIFT TIG multi-function, high cost performance, gas shielded welding adopts slow arc starting wire feed, and small balls are cut after welding to ensure the success rate of arc starting , Electronic reactor control, stable welding process, pulse gas shielded welding to achieve ultra-low spatter, beautiful weld formation, high strength, suitable for all-position welding, 2T / 4T functional design, reduce labor intensity, very practical, built-in optional Welding process parameters are recommended for customers' convenience, and the adjustment parameters are simpler to operate. 10 groups of user-defined welding parameter storage / recall functions make the operation more handy; manual welding with thermal arc ignition and thrust adjustment, easy arc starting, no Sticky welding rod, soft arc, small splash, VRD anti-shock protection function, pay more attention to personal safety; with over-current, over-heat protection function to ensure safe and reliable welding machine work.

Accessories:MIG torch, TIG torch, ground clamp, electrode holder, gas hose, Ar / CO2 gas regulator
