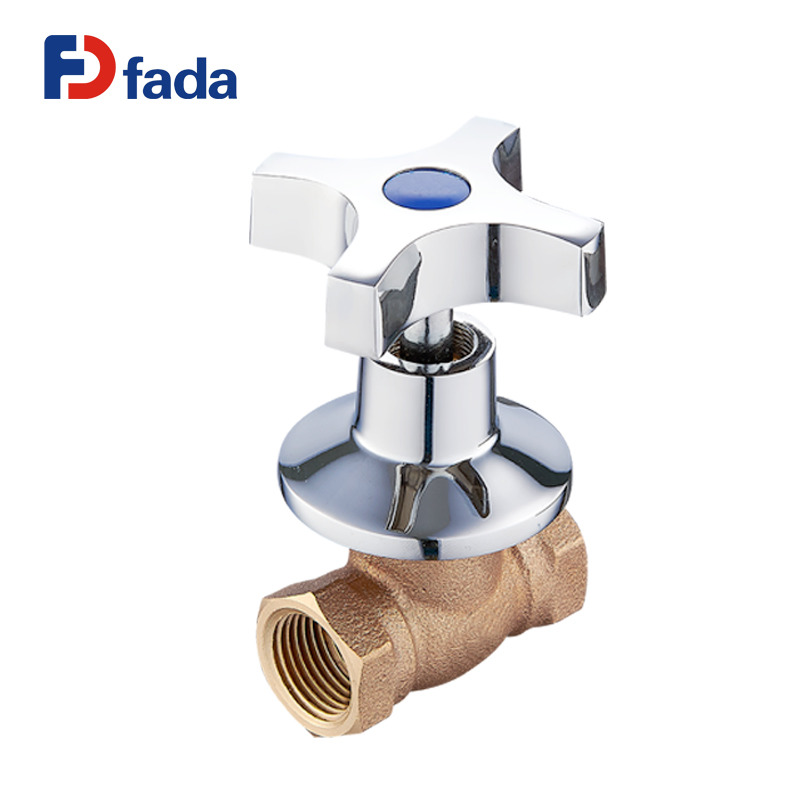

Bronze Globe Valve, Stop Valve -with Zinc Handle, Threaded Connection

● Durable Bronze Construction

● Threaded Connection

● Regulating the flow in the pipeline

● Beauty Chrome finish Handle

Globe valves are named for their spherical body shape with the two halves of the body being separated by an internal baffle. This has an opening that forms a seat onto which a movable plug can be screwed in to close (or shut) the valve. The plug is also called a disc or disk. In globe valves, the plug is connected to a stem which is operated by screw action using a handwheel in manual valves.

• Specification:
• 1）Cross Metal Handle:

  ● Chrome finish

  ● Material: Zinc



  • 2) Cartridge:

• ● Compressed Operation

  ● Material : Bronze

  ● Exposed part: Chrome finish



• 3）Flange:

• ●Chrome finish

● Material: Zinc

4)  Valve Body:

● Cast Bronze construction

● Connecting method: Soldering

• Recommendation:
• 1) Globe valves are unidirectional whereby they are only designed to take the flow in one direction, under the disc. There is an arrow of direction cast into the valve body but can easily be checked by looking into one end of the valve and see whether you are looking at the under side of the seat or above the seat.
• 2) It is recommended that the valve be mounted vertically only whereby the handwheel operation will be at the top of the valve. This ensures that no premature wear or damage will occur to the valve.
• 3) Ensure you have room to operate the valve before the installation.
•


Maintenance:

● A regular maintenance and inspection schedule will ensure you get the best life and operation out of your globe valve.

● Regular inspection of the valve. Pay particular attention to the gland to ensure there is no obvious wear or the valve is leaking.

● If the valve is not operated regularly it is a good idea to cycle the valve to ensure the disc is not bedding itself in the seat

Frequently Asked Questions:

Q: What’s the difference between Globe valve and Ball valve?

A: A ball valve is a form of quarter-turn valve with a hollow and pivoting ball to control flow through it. A globe valve, consisting of a movable disk-type element and a stationary ring seat in a generally spherical body.
