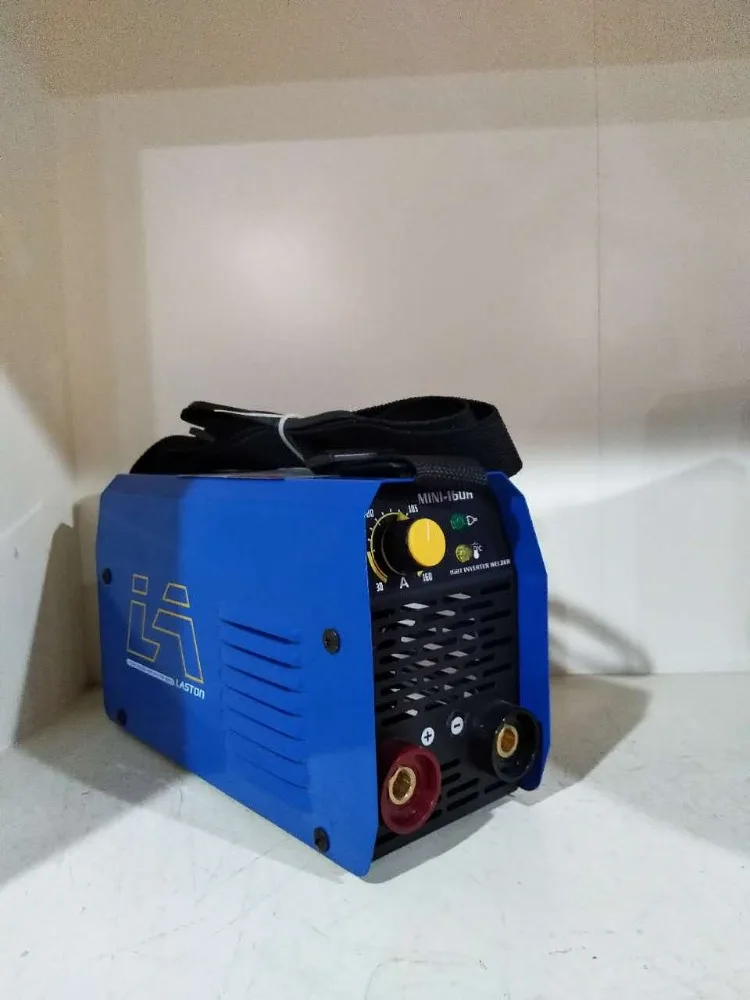

Portable ARC WELDER MACHINE
Model | MINI-120H | MINI-140H | MINI-160H | MINI-180H | MINI-200H | MINI-220H |
| Power voltage(V) | 1 phase AC 220V | 1 phase AC 220V | 1 phase AC 220V | 1 phase AC 220V | 1 phase AC 220V | 1 phase AC 220V |
| Rated input capacity(KVA) | 5.1 | 6.1 | 7.2 | 8.3 | 9.6 | 10.8 |
| Rated input current(A) | 24 | 27.8 | 32.8 | 38.1 | 43.5 | 49.3 |
| Rated output(A) | 120A/24.8 | 140A/25.6V | 160A/26.4V | 180A/27.2V | 200A/28V | 220A/28.8V |
| Output current range(A) | 30-120 | 30-140 | 30-160 | 30-180 | 30-200 | 30-220 |
| No-load voltage(V) | 56 | 56 | 56 | 56 | 56 | 56 |
| Duty cycle(%) | 60 | 60 | 60 | 60 | 60 | 60 |
| Efficiency(%) | 80 | 80 | 80 | 80 | 80 | 80 |
| Power factor | 0.73 | 0.73 | 0.73 | 0.73 | 0.73 | 0.73 |
| Insolation class | F | F | F | F | F | F |
| Protect class | IP21S | IP21S | IP21S | IP21S | IP21S | IP21S |
| Usable electrode(mm) | 1.6-2.5 | 1.6-3.0 | 1.6-4.0 | 1.6-4.0 | 1.6-5.0 | 1.6-5.0 |
| N.W.(KG) | 3.75 | 3.95 | 4.1 | 4.2 | 4.3 | 4.45 |
| Dimension(mm) | 290*180*185 | 290*180*185 | 290*180*185 | 290*180*185 | 290*180*185 | 290*180*185 |

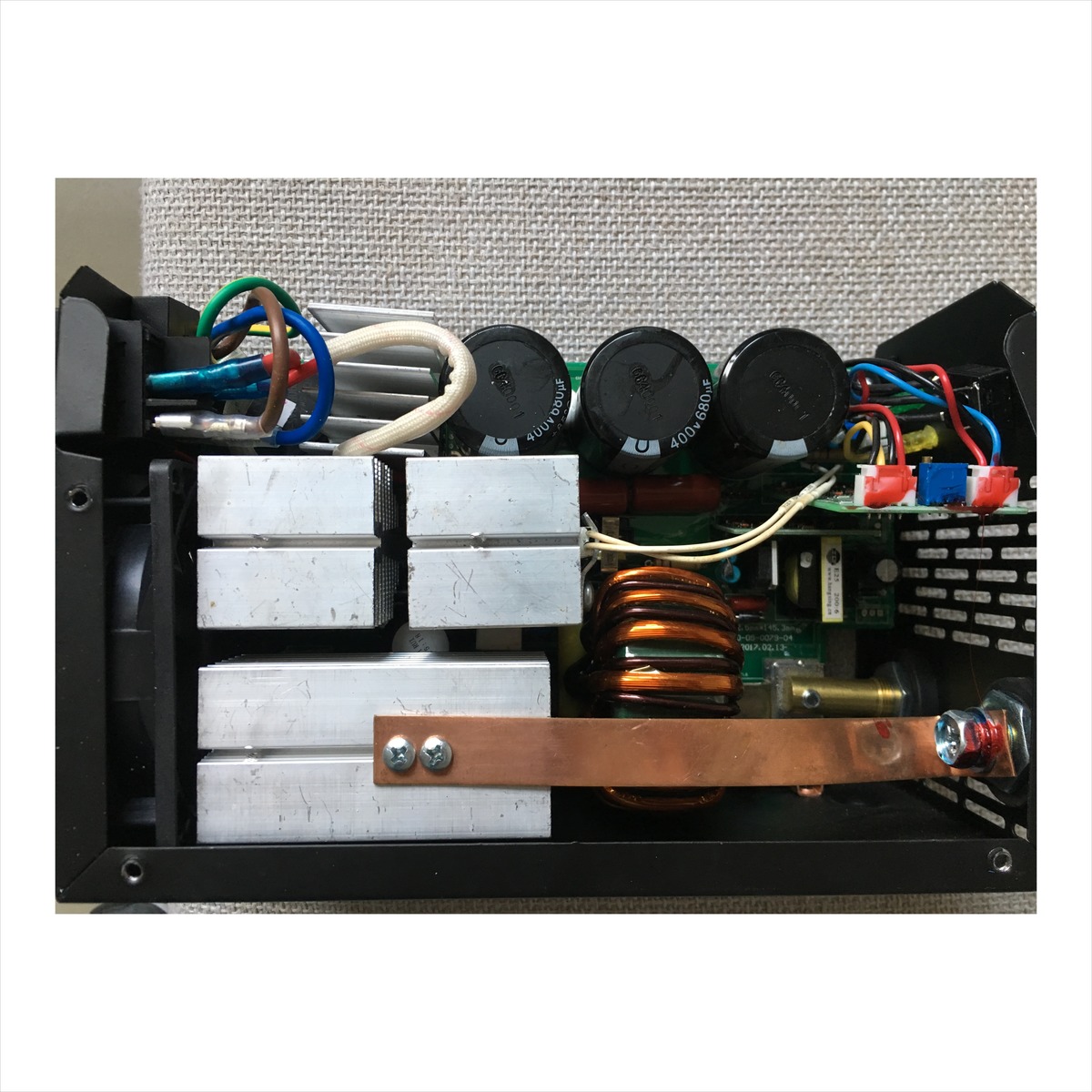

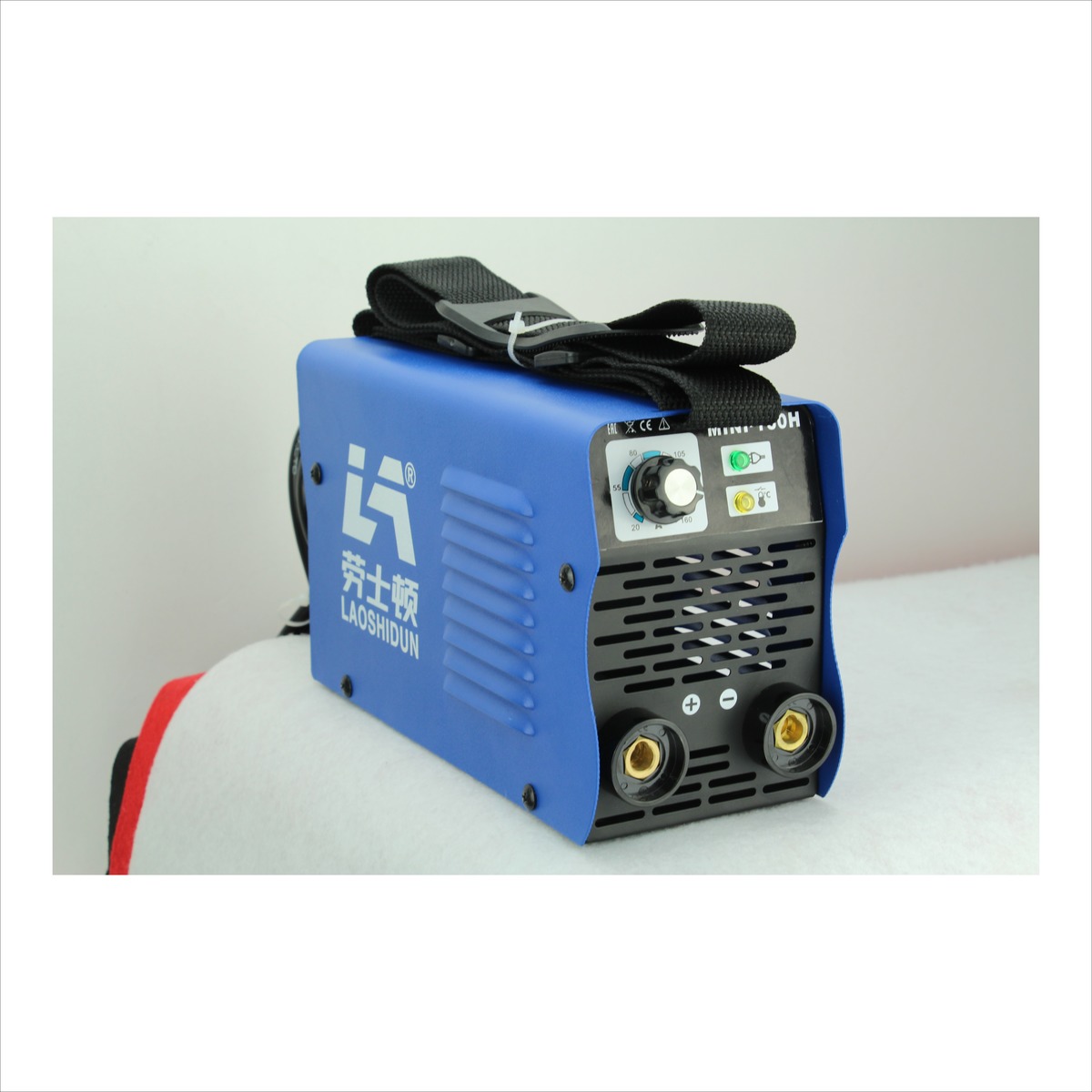

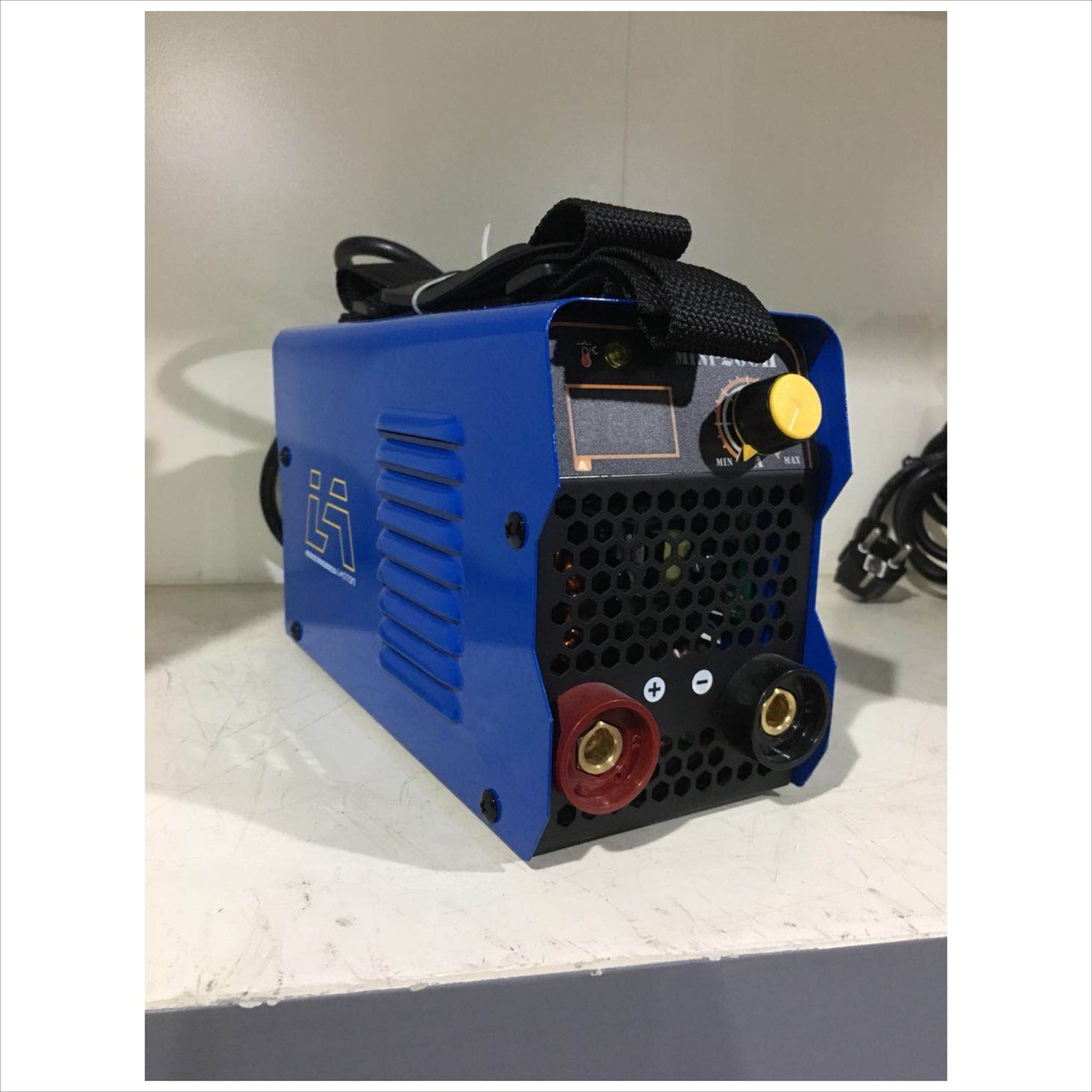

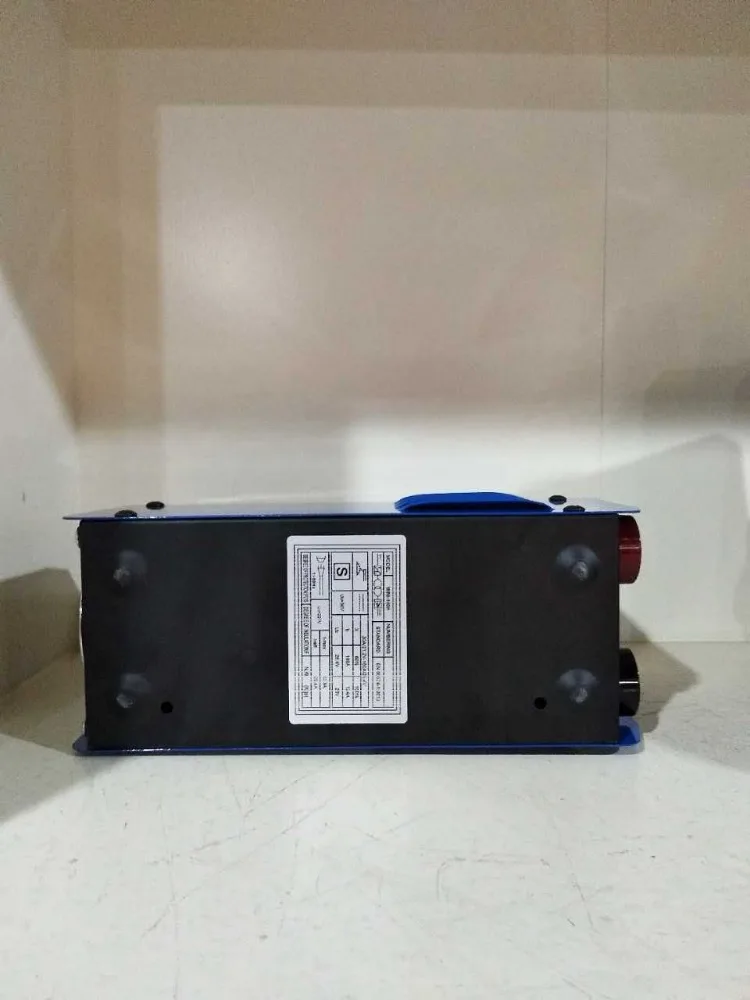

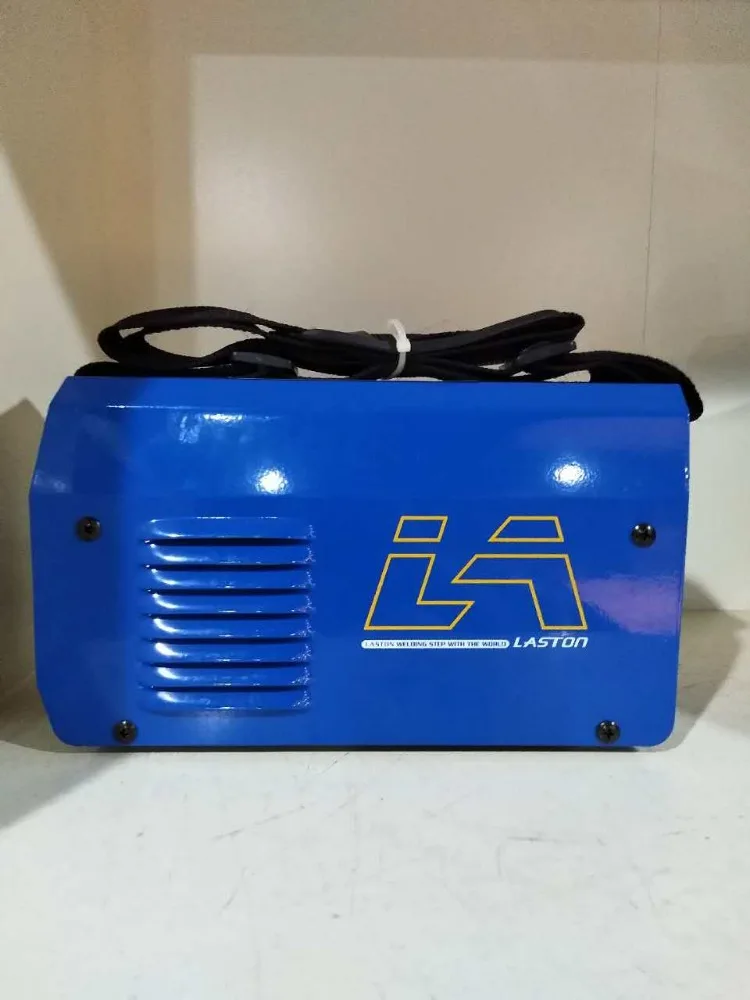

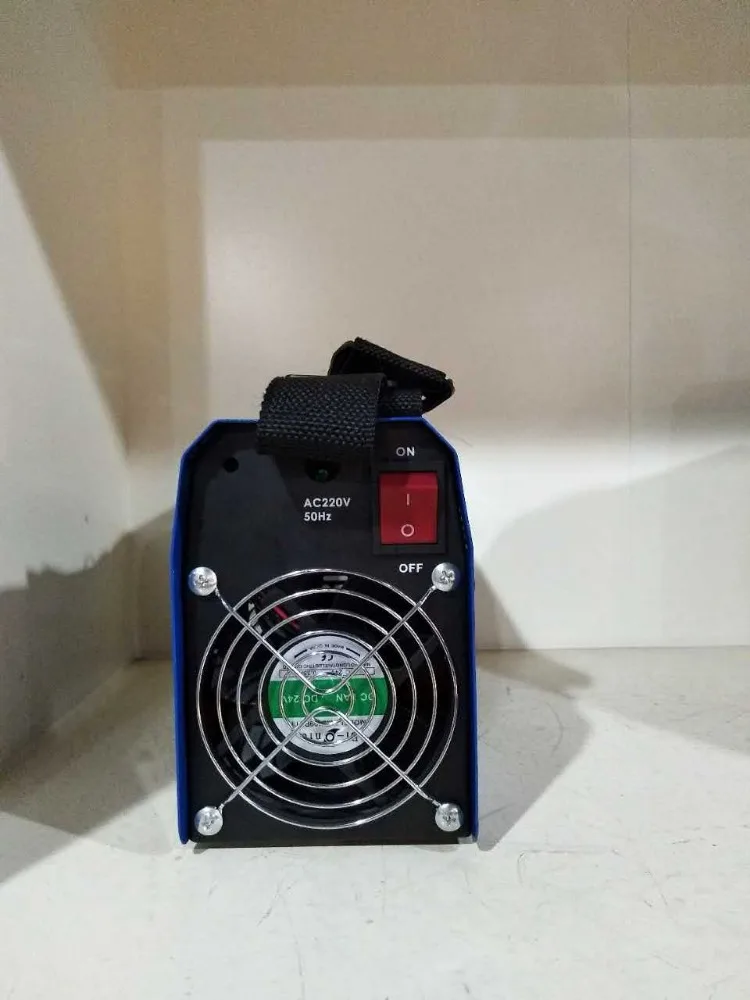

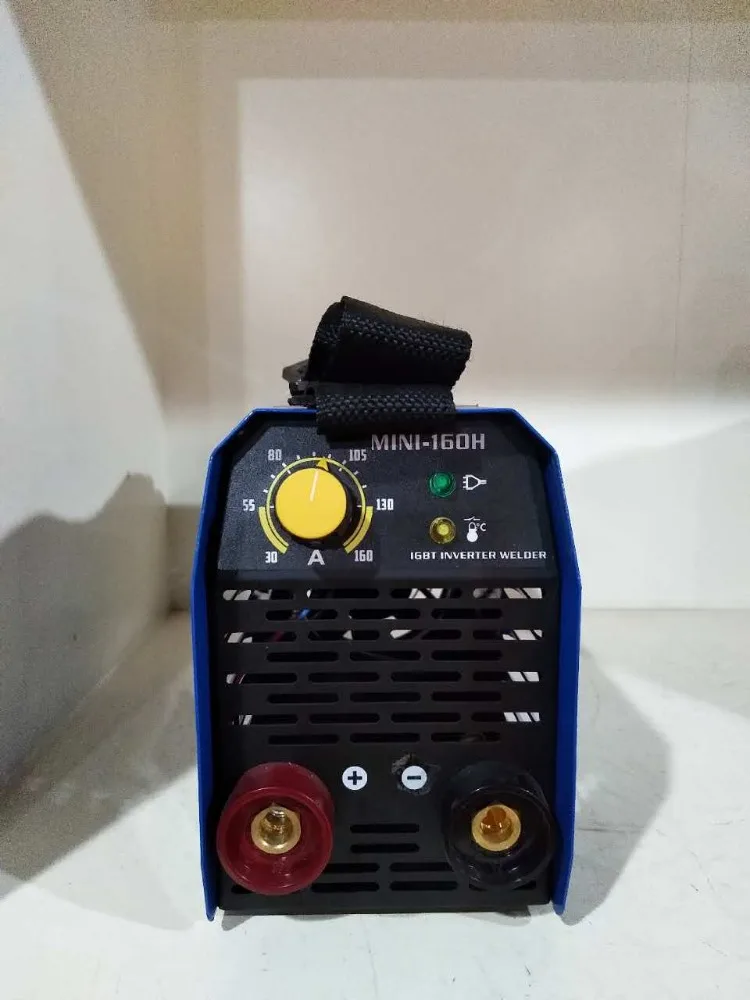

Product Picture
