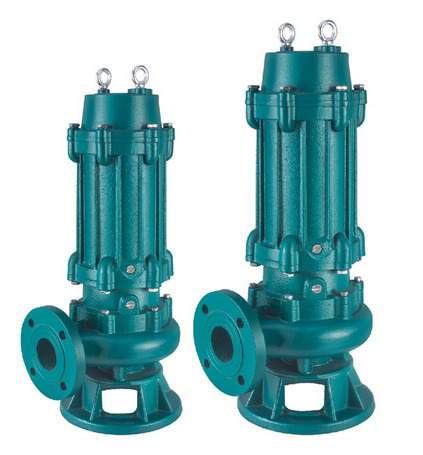

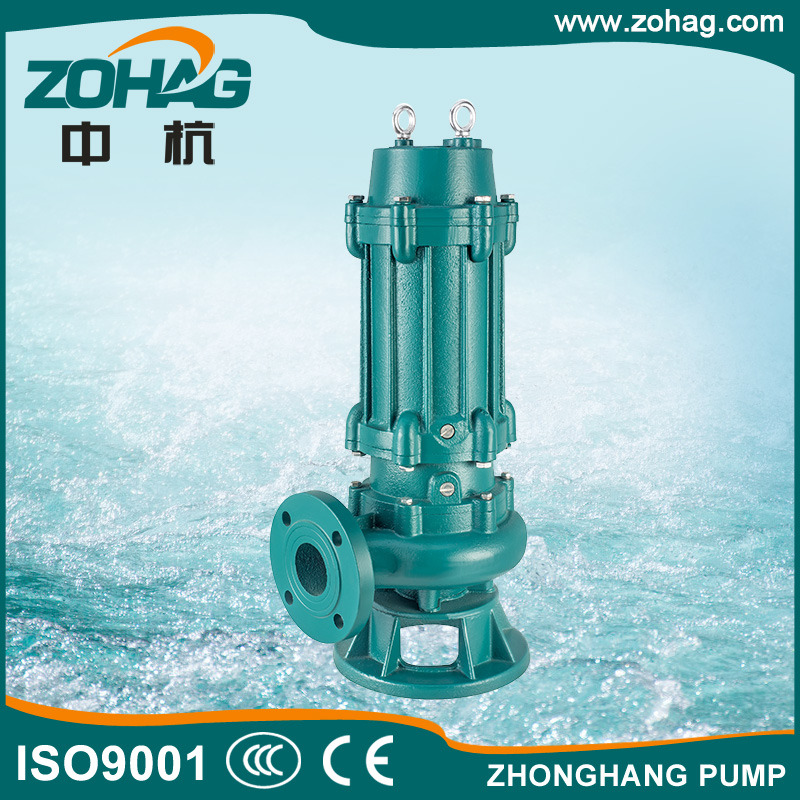

WQD/WQ Submersible Sewage Pump

Min. Order: 50 PICS

Product Parameters

Serial No. : WQD/WQ25-24-3

Material:Iron Cast

Place of origin:Zhejiang China

Color:Green

Add to Favorites

Schedule an Appointment

ZHEJIANG ZHONGHANG PUMP CO.,LTD

Support level: A

SHANSHI INDUSTRIAL AREA,DAXI TOWN,WENLING CITY,ZHEJIANG PROVINCE,CHINA

Registered capital:1000

Founded:2014

Number of companies:101-500人

Export scale:

Contact: ***

E-Mail：Sign In

Tel:Sign In

The detailed information

Product Description

FAQ

Applications

For water supply from wells or reservoirs.

For domestic use,for civil and industrial applications.

For garden use and irrigation.

Operating conditions

Maximum fluid temperature up to +35℃.

Maximum sand content:0.25%.

Maximum immersion:80m.

Minimum well diameter:4".

Motor and Pump

Rewindable motor or Full obturated screen motor

Three-phase:380V-415V/50Hz

Single-phase:220V-240V/50Hz

Pumps are designed by casing stressed

NEMA dimension standrads

Curve tolerance according to ISO 2548

Options on request

Special mechanical seal

Other voltages or frequency 60 Hz

Warranty:1 year

(according to our general sales conditions).

Compomemts Material Pump external casing AISI 304 SS Delivery casing 1.Cast-Cu ASTM280 2.AISI 304 SS Suction latern 1.Cast-Cu ASTM280 2.ISI 304 SS Diffuser Plastic.PC Impeller Plastic.POM Shaft 1.AISI 304 SS 2.AISI 304 SS Shaft coupling 1.AISI 304 SS 304 SS Top chock

1.Cast-Cu ASTM280 2.Cast-iron G20 UNI5007 Bottom support AISI 304 SS Mechanical seal Special seal for deep well (carbon-SIC/TC) Shaft AISI 304 SS-C1045 Bearing NSK Seal lubricant oil Oil for food machinery and pharmaceutic use.

technical-specification

1. Performance Data

Model	Flow (m3/h)	Head (m)	Power (W)	Voltage (V)	Rotary velocity (r/min)	Caliber (mm)	Efficiency (%)	Automatic coupler
WQ10-10-0.75	10	10	0.75	220/380	2850	50	45	GAK-50
WQ10-15-1.1	10	15	1.1	220/380	2850	50	48
WQ15-15-1.5	15	15	1.5	380	2850	50	50
WQ15-20-2.2	15	20	2.2	380	2850	50	54
QW15-30-3.0	15	30	3.0	380	2850	50	58
WQ15-35-4.0	15	35	4.0	380	2850	50	60
QW15-40-5.5	15	40	5.5	380	2850	50	63
WQ25-40-7.5	25	40	7.5	380	2850	50	65
WQ15-10-1.1	15	10	1.1	220/380	2850	65	48	GAK-65
WQ25-10-1.5	25	10	1.5	380	2850	65	50
WQ25-18-2.2	25	18	2.2	380	2850	65	54
WQ25-24-3.0	25	24	3.0	380	2850	65	58
WQ25-30-4.0	25	30	4.0	380	2850	65	60
WQ25-35-5.5	25	35	5.5	380	2850	65	63
WQ30-35-7.5	30	35	7.5	380	2850	65	65
WQ30-7-0.75	30	7	0.75	220/380	2850	80	45	GAK-80
WQ45-9-2.2	45	9	2.2	380	2850	80	54
WQ45-12-3.0	45	12	3.0	380	2850	80	58
WQ30-26-4.0	30	26	4.0	380	2850	80	60
WQ45-22-7.5	30	30	5.5	380	2850	80	63
WQ45-22-7.5	45	22	7.5	380	2850	80	65
WQ30-45-11	30	45	11	380	2850	80	67
WQ30-60-11	30	60	15	380	2850	80	71
WQ60-10-1.0	60	7	3.0	380	2850	100	58	GAK-100
WQ60-10-4.0	60	10	4.0	380	2850	100	60
WQ65-18-5.5	65	18	5.5	380	2850	100	63
WQ100-15-7.5	100	15	7.5	380	2850	100	65
WQ100-25-11	100	25	11	380	2850	100	67
WQ100-30-15	100	30	15	380	2850	100	71
WQ100-35-18.5	100	35	18.5	380	2850	100	73
WQ100-40-22	100	40	22	380	2850	100	75
WQ100-7-5.5	100	7	5.5	380	2850	150	63	GAK-150
WQ120-10-7.5	120	10	7.5	380	2850	150	65
WQ130-15-11	130	15	11	380	2850	150	67
WQ180-15-15	180	15	15	380	2850	150	71
WQ180-20-18.5	180	20	18.5	380	2850	150	75
WQ180-25-22	180	25	22	380	2850	150	76
WQ180-30-30	180	30	30	380	2850	150	78
WQ180-37-37	180	37	37	380	2850	150	79
WQ180-45-45	180	45	45	380	2850	150	81
WQ300-7-11	300	7	11	380	2850	200	67	GAK-200
WQ400-7-15	400	7	15	380	2850	200	71
WQ250-13-18.5	250	13	18.5	380	2850	200	75
WQ400-10-22	400	10	22	380	2850	200	W76
WQ250-22-30	250	22	30	380	2850	200	78
WQ350-25-37	350	25	37	380	2850	200	79
WQ400-30-45	400	30	45	380	2850	200	81
WQ300-40-55	300	40	55	380	2850	200	83

2. Performance Chart
