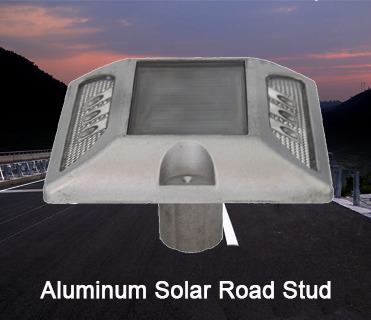

Solar Road Stud

Min. Order: 10 PIECES
Product Parameters

Serial No. : SRS-AL004

Size(mm):125*105*25

Material:Al frame+Mix epoxy filler

Color:SILIVER

TAIZHOU AMBUND INDUSTRY CO.,LTD

Support level: A

575 JINGYI ROAD TAIZHOU ZHEJIANG

Registered capital:200

Founded:2010

Number of companies:1-50人

Export scale:

Contact: 曹**

E-Mail:Sign In

Tel:Sign In

The detailed information
Specification
Solar cat eye/road stud
Material
Mix epoxy filler & Aluminum frame
Power supply
high efficient solar panel 3V/90MA
Battery
1.2V/1200MA NI-MH battery
Visibility distance
>1000 meters (dark environment)
Operating temperature
-20°C ~70°C
working hours
flash mode 200hours with fully charged
Water proof
IP68
Resistance
>30T

What is Stars Plastic brand solar reflective road stud?

●SUPER DURABLE:
1.Using the aluminum material to make frame which has better intensity.
2.The mixed epoxy filler(Optional) makes the compression resistance degree be over 30t.
3.The embedded reflectors design can reduce abrasion.

●HIGH BRIGHT:
1.Our road stud using the great acrylic reflector,its reflection is stronger than other materials.
2.Our road stud uses great acrylic reflectors which have better reflection.
3.We use the bright LED bulb which is provided by Taiwan well-known brand. It has long using lifespan that is more than 100000 hours.

●EXTERNAL MAGNET SWITCH(OPTIONAL):Special design of the internal circuit to make MAGA to be turned ON/OFF by an external mini-Magnet, good for long time storing.

●WATERPROOF:Reach to IP68 waterproof level.


CUSTOM(OPTIONAL):①Synchronous flash road stud, which is also called co-frequency road stud.
                                           ②Sequential flash road stud.

Product Description

●COLOR OPTIONAL:red/yellow/white/green/blue

①Synchronous flash

②Sequential flash

CUSTOM OPTIONAL:Synchronous flash/Sequential flash

Aluminum frame.


●Fixed screw holes.

●Load-bearing more than 30T.

●Long life.

Solar panels.

●Solar panels 3V/90mA, 1.2v 1200mA NI-MH battery.


●Protect Level: IP68.


●Anti-corrosive sealed coating.


●Super charge rate, absorb solar energy even in dim light

Smooth surface.


●Sand-blasted and curve smooth of edges can better buffer tire's compression.



Highlight reflector.

●Visual Distance: > 1000 meter in dark.


●High quality reflector meets Euro reflective road stud standard.


●Work mode:flashing/steady

●Lighting Time:200h after fully charged in flashing mode.

Patented glue formula.

●Anti-corrosion.


●Sealed waterproof design. Totally waterproof IP68.


●Interlock system.


●8 screws.

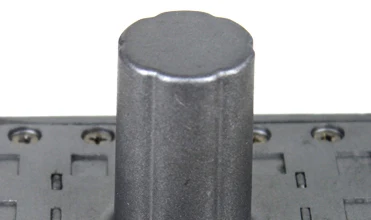

Strong Aluminum leg.


●Load-bearing more than 30T.


●Cambered surface design. Dispersing weight pressure.

External magnet switch(Optional).


●Special design of the internal circuit to make MAGA to be turned ON/OFF by an external mini-Magnet, good for long time storing.



              ☞CLICK FOR MORE INFORMATION!☜

Installation:

Before installation: Placing security isolation facilities for installation work is most important and must not be ignored.

1.Locate the installing position and ensure it is flat. For curving, cracked or uneven pavement, straighten it prior to installation.
2.Clean the installation location with a brush, meanwhile ensure the location is dry.
3.Firmly mount the stud on the fixing location & ensure the reflective part is facing the right traffic direction.Glue the road stud thoroughly with proper amount of epoxy glue.
4.Inspect the installed studs within 2 hours after installation, ensuring that all the studs are fixed in correct direction or not crooked.
5.Remove the isolation facilities in 4 hours after the stud's installing glue is thoroughly cured.

Applications

●Make road line and the guardrail clearly. Use in rural roads or special regional road (Like swimming pool ,bridge etc).

●Public outdoor spaces like street, parking lot, park, lawn, squares.
