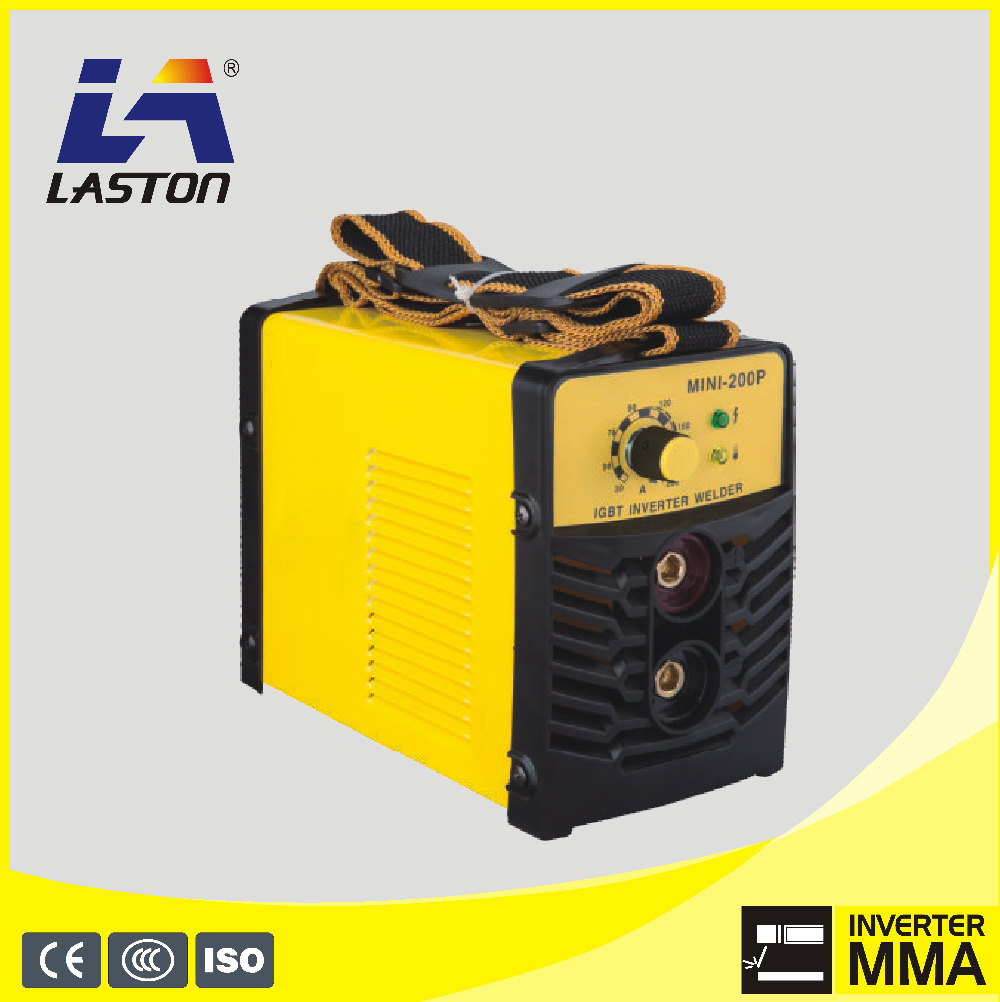

Serial No. : inverter mma welding machine mma 250 MINI-160HP
Material:PCB BOARD.IRON.PLASTIC
Place of origin:Zhejiang China
Color:blue（ can be customize）
Support level: A
Registered capital:1000
Founded:2005
Number of companies:200-500人
Export scale:
Contact: 张**
E-Mail：Sign In
Tel:Sign In
Feature:
1.Advanced (IGBT)inverter technology.
2.Compacy,portable,highly effective and low consumption,energy saving.
3.Anti-stick,thermostatic control,fan cooled,carrying strap and handle.
4.Hot starts ,arc force,overload protection.
5.Supplied complete with electrode holder and earth clamp,face mask and welding brush.
6.Applicable for welding of all kinds of ferrous metals such as low carbon steel,medium carbon
steel and alloy steel,etc.
| ITEM | MINI-125 | MINI-140 | MINI-160 | MINI-200 |
| POWER VOLTAGE(V) | AC220V±15%50HZ | AC220V±15%50HZ | AC220V±15%50HZ | AC220V±15%50HZ |
| RATED input capacity(KVA) | 5.3 | 6.1 | 7.2 | 9.6 |
| RATED INPUT CURRENT(A) | 24 | 27.8 | 32.8 | 43.5 |
| RATED OUTPUT(A) | 125A/25V | 140A/25.6V | 160A/26.4V | 200A/28V |
| OUTPUT CURRENT RANGE(A) | 30-125 | 30-140 | 30-160 | 30-200 |
| NO-LOAD VOLTAGE(V) | 56 | 56 | 56 | 56 |
| DUTY CYCLE(%) | 60 | 60 | 60 | 60 |
| EFFICENCY(%) | 80 | 80 | 80 | 80 |
| POWER FACTOR | 0.73 | 0.73 | 0.73 | 0.73 |
| INSULATION CLASS | F | F | F | F |
| PROTECT CALSS | IP21S | IP21S | IP21S | IP21S |
| USABLE ELECTRODE(MM) | 1.6-2.5 | 1.6-3.2 | 1.6-4.0 | 1.6-5.0 |
| DIMENSION(mm) | 228*98*150 | 228*98*150 | 228*98*150 | 240*110*185 |
| WEIGHT(kg) | 3 | 3 | 3 | 3.6 |

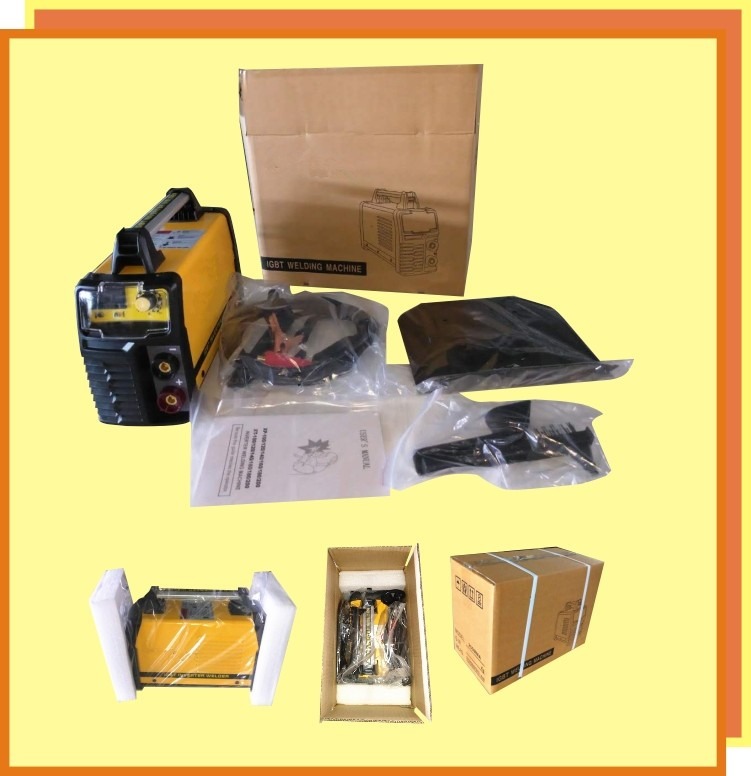

Factory standard packing is kraft box with left and right foam,and if your quantity is enough to 100 pcs then we can make your brand on the package(OEM design package),and also you can choose the other package which like: honeycomb box,plastic box,aluminum box,colour box(MOQ is 500 pcs) and so on.
Payment: T/T 30%in advance ,70% after got the copy of the BL or LC at sight

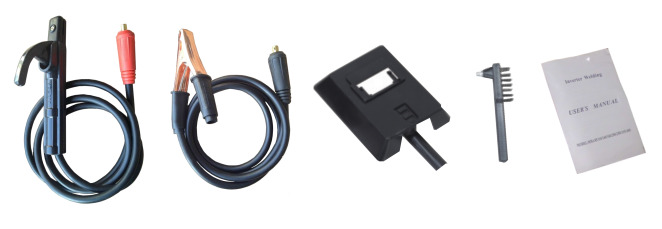

All the accessories are following:
Q: Are you a factory or trading company?

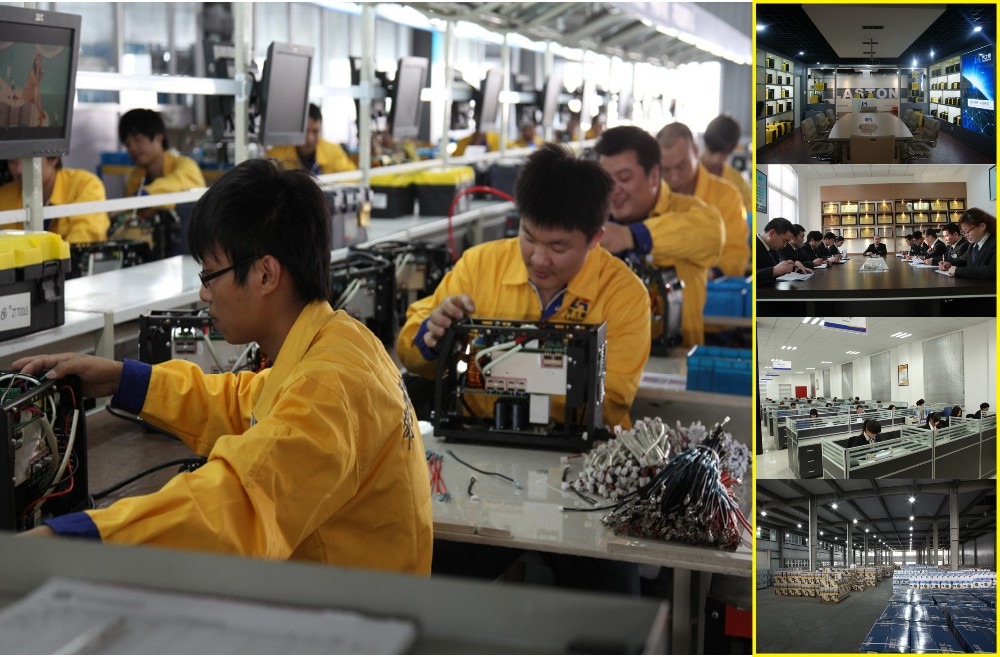

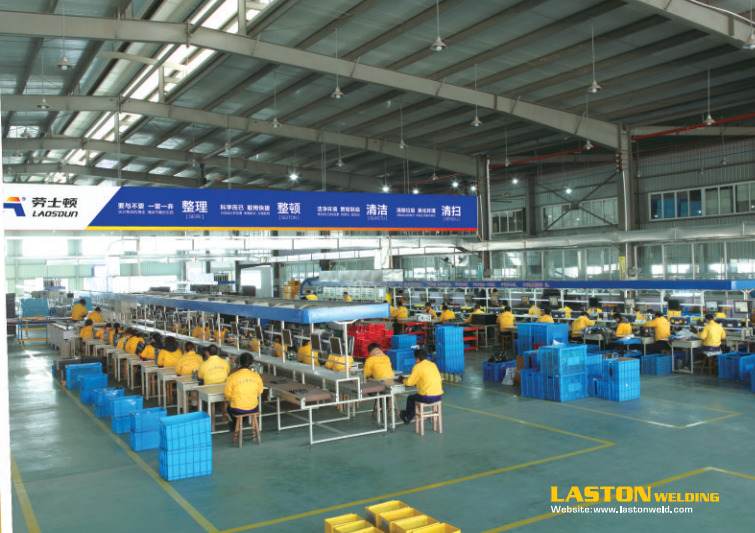

A: We are manufacturing factory.

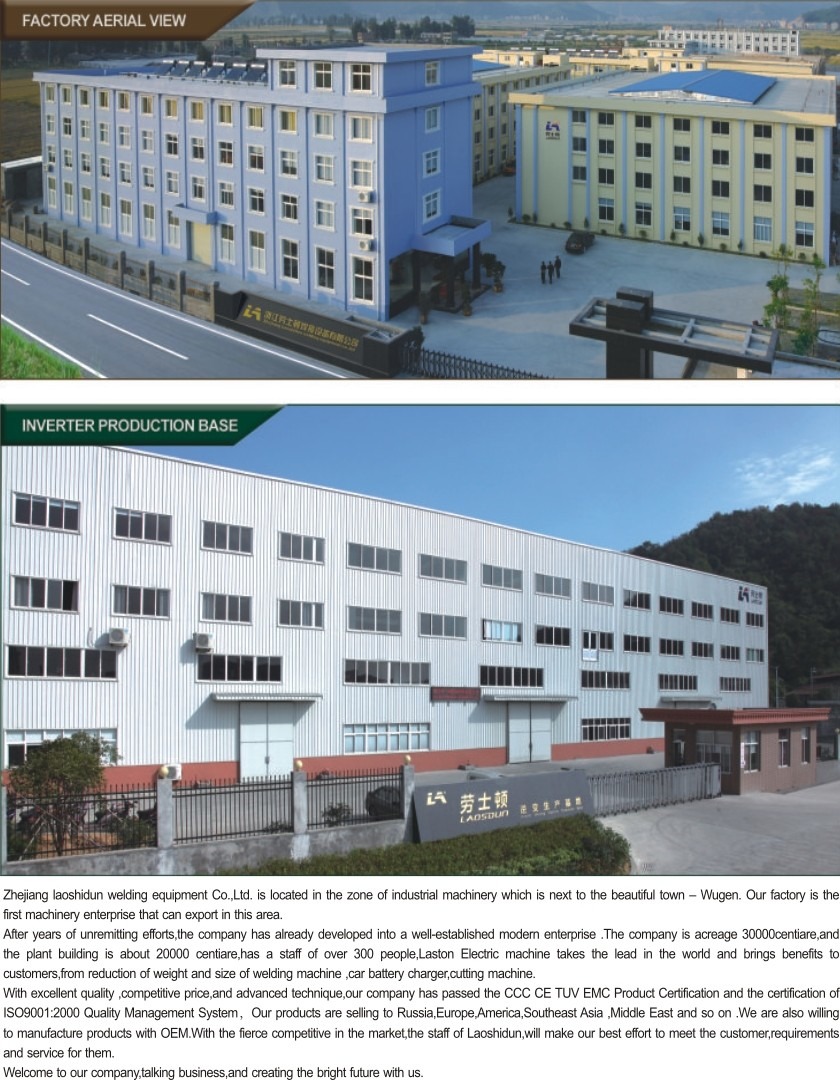

Q: Where is your factory located?
A: Our factory is located in Xiacheng Mechaical Industrial Area,Wugen Town,
Wenling City, Zhejiang Province, China.
