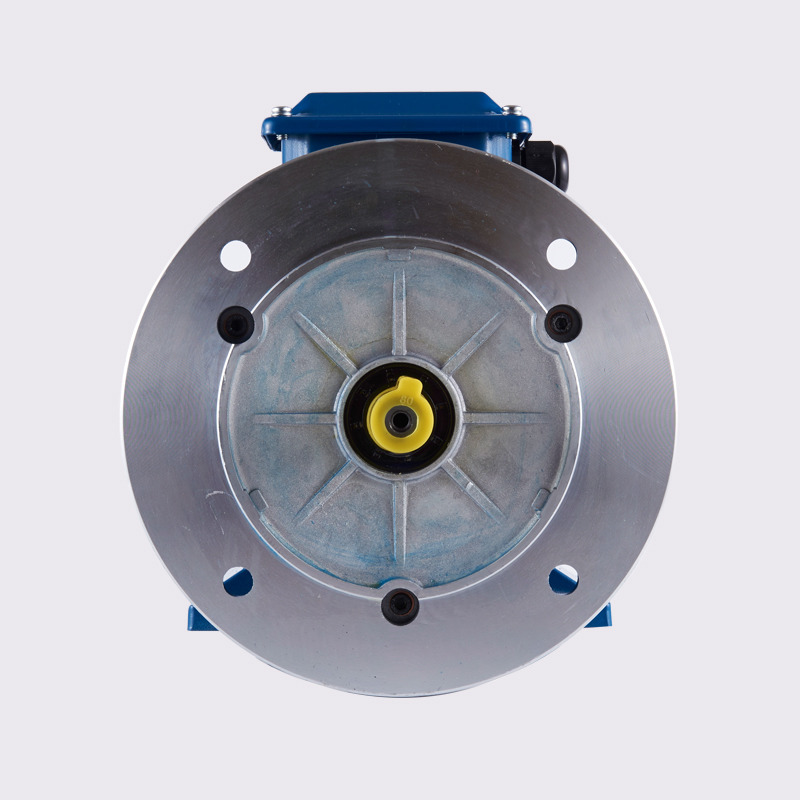

Serial No. : YD132-8/4
Size（mm）：235*120*160
Material:Aluminum
Place of origin:Zhejiang China
Color:Blue
Support level: A
Registered capital:210
Founded:1995
Number of companies:101-500人
Export scale:
Contact: 赵**
E-Mail：Sign In
Tel:Sign In
Model | Rated power (kW) | Rated power (HP) | Rated voltage (V) | Rated current (A) | Frequency (Hz) | Speed(r/min) | Eff(n%) | Power Factor | IS | TS | Tmax | |
50Hz | 60Hz | IN | TN | TN | ||||||||
YD80M1-4/2 | 0.45/0.55 | 0.6/0.75 | 380 | 1.4/1.5 | 50/60 | 1420/2820 | 1700/3380 | 66/65 | 0.74/0.85 | 6.5/7.0 | 1.5/1.7 | 1.8 |
YD80M2-4/2 | 0.55/0.75 | 0.75/1 | 380 | 1.7/2.0 | 50/60 | 1420/2820 | 1700/3380 | 68/66 | 0.74/0.85 | 6.5/7.0 | 1.6/1.8 | 1.8 |
YD90S-4/2 | 0.85/1.1 | 1.2/1.5 | 380 | 2.3/2.8 | 50/60 | 1420/2820 | 1700/3380 | 74/72 | 0.77/0.85 | 6.5/7.0 | 1.8/1.9 | 1.8 |
YD90L-4/2 | 1.3/1.8 | 1.8/2.5 | 380 | 3.3/4.3 | 50/60 | 1420/2820 | 1700/3380 | 73/74 | 0.78/0.85 | 6.5/7.0 | 1.8/2.0 | 1.8 |
YD100L1-4/2 | 2.0/2.4 | 3.2/3.3 | 380 | 4.8/5.6 | 50/60 | 1440/2840 | 1730/3410 | 78/76 | 0.81/0.86 | 6.5/7.0 | 1.7/1.9 | 1.8 |
YD100L2-4/2 | 2.4/3.0 | 3.3/4 | 380 | 5.6/6.7 | 50/60 | 1440/2840 | 1730/3410 | 79/77 | 0.83/0.89 | 6.5/7.0 | 1.6/1.7 | 1.8 |
YD112M-4/2 | 3.3/4.0 | 4.5/5.5 | 380 | 7.4/8.6 | 50/60 | 1440/2840 | 1730/3410 | 82/79 | 0.83/0.89 | 6.5/7.0 | 1.9/2.0 | 1.8 |
YD132S-4/2 | 4.5/5.5 | 6/7.5 | 380 | 9.8/11.9 | 50/60 | 1450/2890 | 1740/3470 | 83/79 | 0.84/0.89 | 6.5/7.0 | 1.7/1.8 | 1.8 |
YD132M-4/2 | 6.5/8.0 | 8.8/11 | 380 | 13.8/17.1 | 50/60 | 1450/2890 | 1740/3470 | 84/80 | 0.85/0.89 | 6.5/7.0 | 1.7/1.8 | 1.8 |
YD160M-4/2 | 9.0/11.0 | 12/15 | 380 | 18.5/22.9 | 50/60 | 1460/2920 | 1750/3500 | 87/82 | 0.85/0.89 | 6.5/7.0 | 1.6/1.8 | 1.8 |
YD160L-4/2 | 11.0/14.0 | 15/19 | 380 | 22.3/28.8 | 50/60 | 1460/2920 | 1750/3500 | 87/82 | 0.86/0.90 | 6.5/7.0 | 1.7/1.9 | 1.8 |
YD180M-4/2 | 15.0/18.5 | 20/25 | 380 | 29.4/36.7 | 50/60 | 1470/2940 | 1760/3530 | 89/85 | 0.87/0.90 | 6.5/7.0 | 1.8/1.9 | 1.8 |
YD180L-4/2 | 18.5/22 | 25/30 | 380 | 35.9/42.7 | 50/60 | 1470/2940 | 1760/3530 | 89/86 | 0.88/0.91 | 6.5/7.0 | 1.6/1.8 | 1.8 |
YD90S-6/4 | 0.65/0.85 | 0.9/1.2 | 380 | 2.2/2.3 | 50/60 | 920/1420 | 1100/1700 | 64/70 | 0.68/0.79 | 6.0/6.5 | 1.6/1.4 | 1.8 |
YD90L-6/4 | 0.85/1.1 | 1.2/1.5 | 380 | 2.8/3.0 | 50/60 | 920/1420 | 1100/1700 | 66/71 | 0.70/0.79 | 6.0/6.5 | 1.6/1.5 | 1.8 |
YD100L1-6/4 | 1.3/1.8 | 1.8/2.5 | 380 | 3.8/4.4 | 50/60 | 940/1440 | 1130/1730 | 74/77 | 0.70/0.80 | 6.0/6.5 | 1.7/1.4 | 1.8 |
YD100L2-6/4 | 1.5/2.2 | 2/3 | 380 | 4.3/5.4 | 50/60 | 940/1440 | 1130/1730 | 75/77 | 0.70/0.80 | 6.0/6.5 | 1.6/1.4 | 1.8 |
YD112M-6/4 | 2.2/2.8 | 3/3.8 | 380 | 5.7/6.7 | 50/60 | 940/1440 | 1130/1730 | 78/77 | 0.75/0.82 | 6.0/6.5 | 1.8/1.5 | 1.8 |
YD132S-6/4 | 3.0/4.0 | 4/5.5 | 380 | 7.7/9.5 | 50/60 | 960/1440 | 1150/1730 | 79/78 | 0.75/0.82 | 6.0/6.5 | 1.8/1.7 | 1.8 |
YD132M-6/4 | 4.0/5.5 | 5.5/7.5 | 380 | 9.8/12.3 | 50/60 | 960/1440 | 1150/1730 | 82/80 | 0.76/0.85 | 6.0/6.5 | 1.6/1.4 | 1.8 |
YD160M-6/4 | 6.5/8.0 | 8.8/11 | 380 | 15.1/17.4 | 50/60 | 970/1460 | 1160/1750 | 84/83 | 0.78/0.84 | 6.0/6.5 | 1.5/1.5 | 1.8 |
YD160L-6/4 | 9.0/11.0 | 12/15 | 380 | 20.6/23.4 | 50/60 | 970/1460 | 1160/1750 | 85/84 | 0.78/0.85 | 6.0/6.5 | 1.6/1.7 | 1.8 |
YD180M-6/4 | 11.0/14.0 | 15/19 | 380 | 25.9/29.8 | 50/60 | 970/1460 | 1160/1750 | 85/84 | 0.76/0.85 | 6.0/6.5 | 1.6/1.7 | 1.8 |
YD180L-6/4 | 13.6/16.0 | 18/22 | 380 | 29.4/33.6 | 50/60 | 970/1460 | 1160/1750 | 86/85 | 0.78/0.85 | 6.0/6.5 | 1.7/1.7 | 1.8 |
YD90L-8/4 | 0.45/0.75 | 0.6/1 | 380 | 1.9/1.8 | 50/60 | 660/1420 | 790/1700 | 58/72 | 0.63/0.87 | 5.5/6.5 | 1.6/1.4 | 1.8 |
YD100L-8/4 | 0.85/1.5 | 1.2/2 | 380 | 3.1/3.5 | 50/60 | 690/1420 | 830/1700 | 67/74 | 0.63/0.88 | 5.5/6.5 | 1.6/1.4 | 1.8 |
YD112M-8/4 | 1.5/2.4 | 2/3.3 | 380 | 5.0/5.3 | 50/60 | 690/1420 | 830/1700 | 72/73 | 0.63/0.88 | 5.5/6.5 | 1.7/1.7 | 1.8 |
YD132S-8/4 | 2.2/3.3 | 3/4.5 | 380 | 7.0/7.1 | 50/60 | 720/1440 | 860/1730 | 75/80 | 0.64/0.88 | 5.5/6.5 | 1.5/1.7 | 1.8 |
YD132M-8/4 | 3.0/4.5 | 4/6 | 380 | 9.0/9.4 | 50/60 | 720/1440 | 860/1730 | 78/82 | 0.65/0.89 | 5.5/6.5 | 1.5/1.6 | 1.8 |
YD160M-8/4 | 5.0/7.5 | 6.8/10 | 380 | 13.9/15.2 | 50/60 | 720/1440 | 860/1730 | 83/84 | 0.66/0.89 | 5.5/6.5 | 1.5/1.6 | 1.8 |
YD160L-8/4 | 7.0/11.0 | 9.5/15 | 380 | 19/21.8 | 50/60 | 720/1440 | 860/1730 | 85/86 | 0.66/0.89 | 5.5/6.5 | 1.5/1.6 | 1.8 |
YD180M-8/4 | 11.0/17.0 | 15/23 | 380 | 26.7/32.6 | 50/60 | 730/1460 | 880/1750 | 87/88 | 0.72/0.91 | 6.0/7.0 | 1.5/1.5 | 1.8 |
YD90S-8/6 | 0.35/0.45 | 0.5/0.6 | 380 | 1.6/1.4 | 50/60 | 660/920 | 790/1100 | 56/70 | 0.60/0.72 | 5.0/6.0 | 1.8/2.0 | 1.8 |
YD90L-8/6 | 0.45/0.65 | 0.6/0.9 | 380 | 1.9/1.9 | 50/60 | 660/920 | 790/1100 | 59/71 | 0.60/0.73 | 5.0/6.0 | 1.7/1.8 | 1.8 |
YD100L-8/6 | 0.75/1.1 | 1/1.5 | 380 | 2.9/3.1 | 50/60 | 690/920 | 790/1100 | 65/75 | 0.60/0.73 | 5.0/6.0 | 1.8/1.9 | 1.8 |
YD112M-8/6 | 1.3/1.8 | 1.8/2.4 | 380 | 4.5/4.8 | 50/60 | 690/920 | 790/1100 | 72/78 | 0.60/0.73 | 5.0/6.0 | 1.7/1.9 | 1.8 |
YD132S-8/6 | 1.8/2.4 | 2.4/3.3 | 380 | 5.8/6.2 | 50/60 | 720/960 | 860/1150 | 76/80 | 0.61/0.73 | 5.0/6.0 | 1.6/1.9 | 1.8 |
YD132M-8/6 | 2.6/3.7 | 3.5/5 | 380 | 8.2/9.4 | 50/60 | 720/960 | 860/1150 | 78/82 | 0.62/0.73 | 5.0/6.0 | 1.9/1.9 | 1.8 |
YD160M-8/6 | 4.5/6.0 | 6/8.2 | 380 | 13.3/14.7 | 50/60 | 720/970 | 860/1160 | 83/85 | 0.62/0.73 | 5.0/6.0 | 1.6/1.9 | 1.8 |
YD160L-8/6 | 6.0/8.0 | 8.2/11 | 380 | 17.5/19.4 | 50/60 | 720/970 | 860/1160 | 84/86 | 0.62/0.73 | 5.0/6.0 | 1.6/1.9 | 1.8 |
YD180M-8/6 | 7.5/10.0 | 10/14.0 | 380 | 21.9/24.2 | 50/60 | 730/970 | 880/1160 | 84/86 | 0.62/0.73 | 5.0/6.0 | 1.9/1.9 | 1.8 |
YD180L-8/6 | 9.0/12.0 | 12/16.0 | 380 | 24.7/28.3 | 50/60 | 730/970 | 880/1160 | 85/86 | 0.65/0.75 | 5.0/6.0 | 1.8/1.8 | 1. |

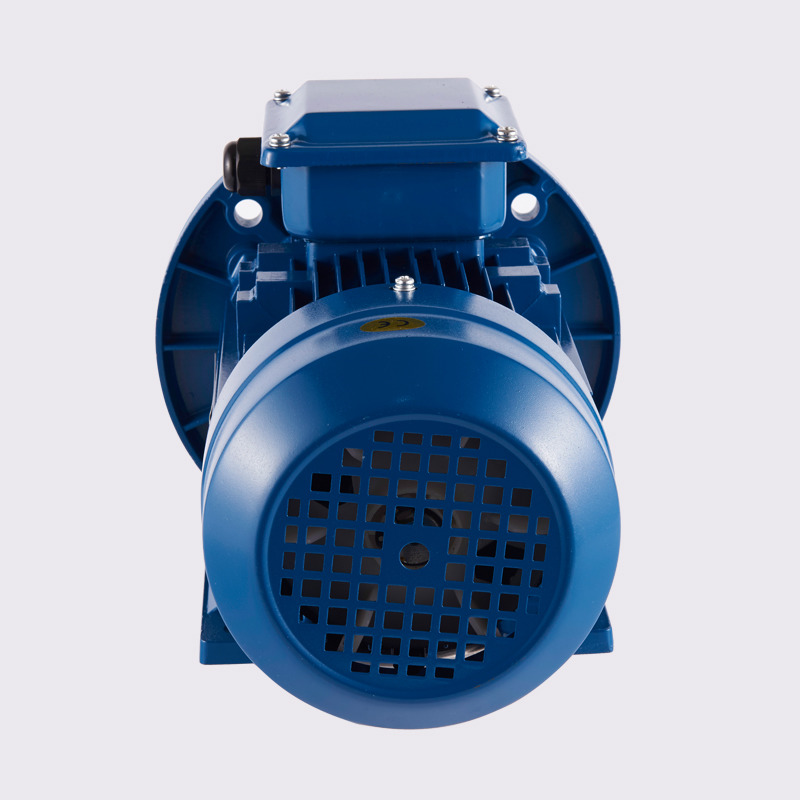

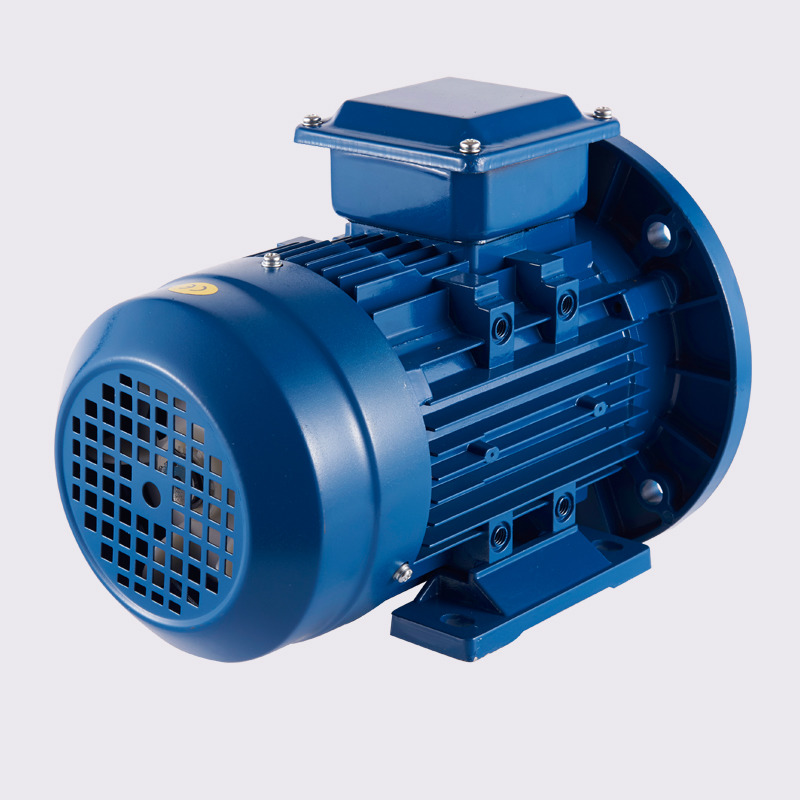

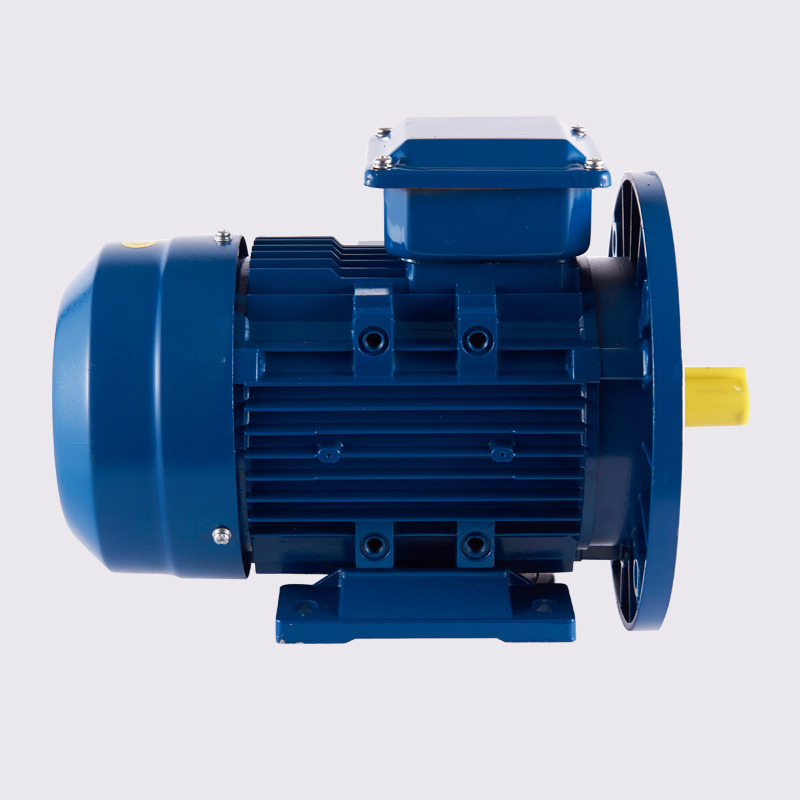

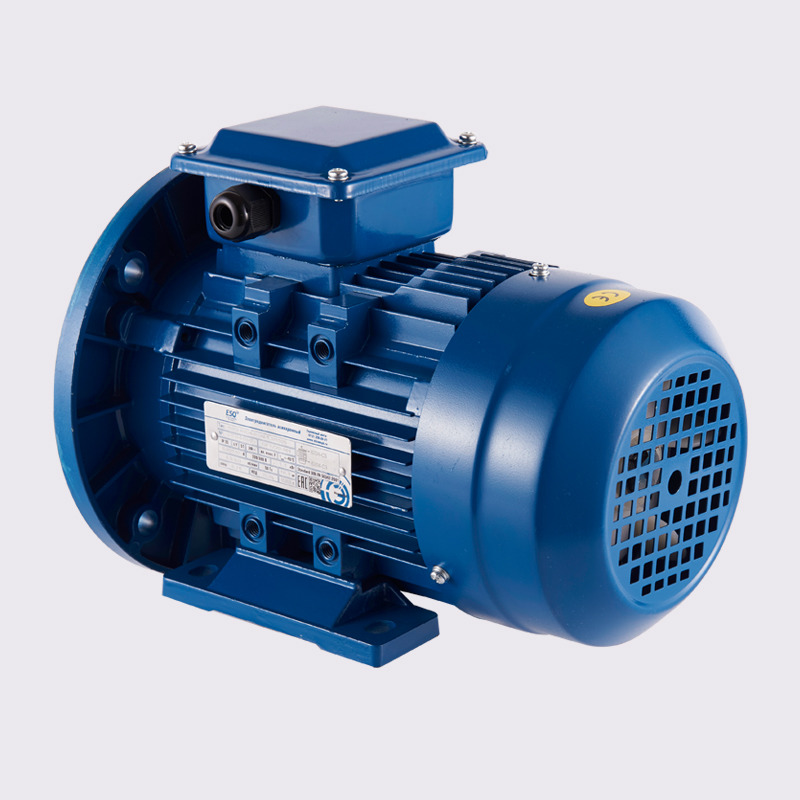

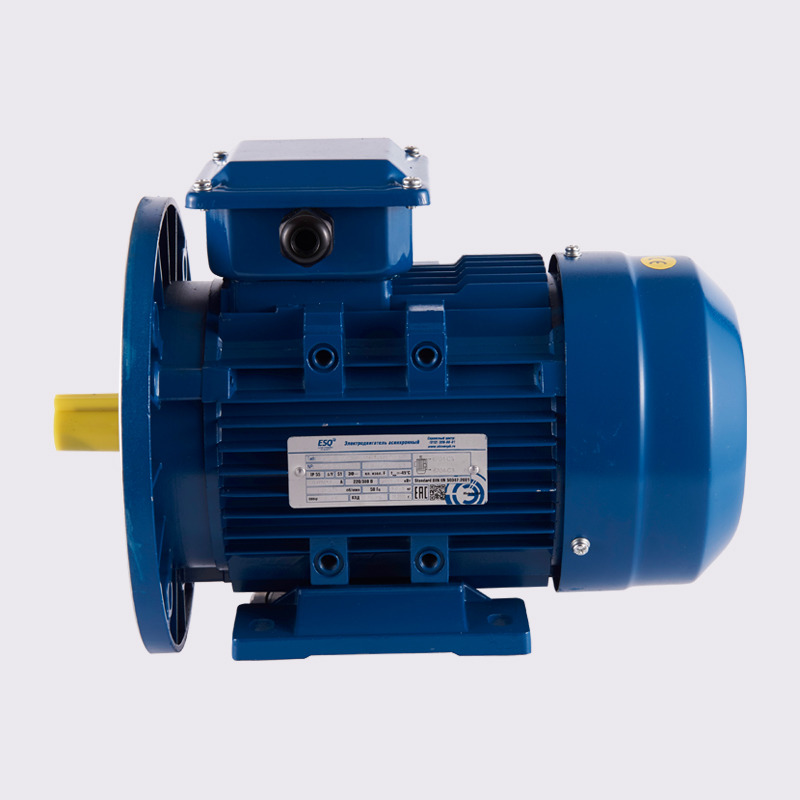

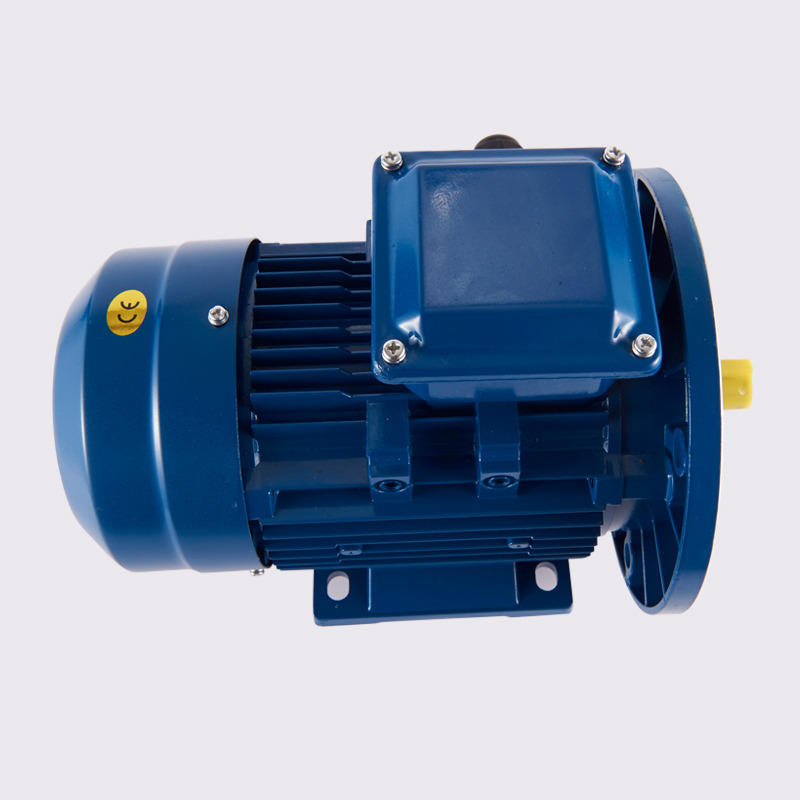

YD series three phase asynchronous motor
YD Series three phase pole-changing two speed asynchronous motor involves some features of Y series motor, which including little volumes, light weights, reliable running, stable structure, good looking and etc., as well as fits the standard of IEC in the noise ,start torque and the vibration value. We have been keeping a steady running station for few decades, as well as known on worldwide for the competitive price and excellent quality.
Certification
YD series three phase asynchronous motor has acquired CCC certification from China Quality Certification Center, as well as the CE certification, meet the standards of GB/T19001-2006 and ISO9001:2015. This series motors are commonly used in many fields, you may choose our products without any concern.
Product technical data

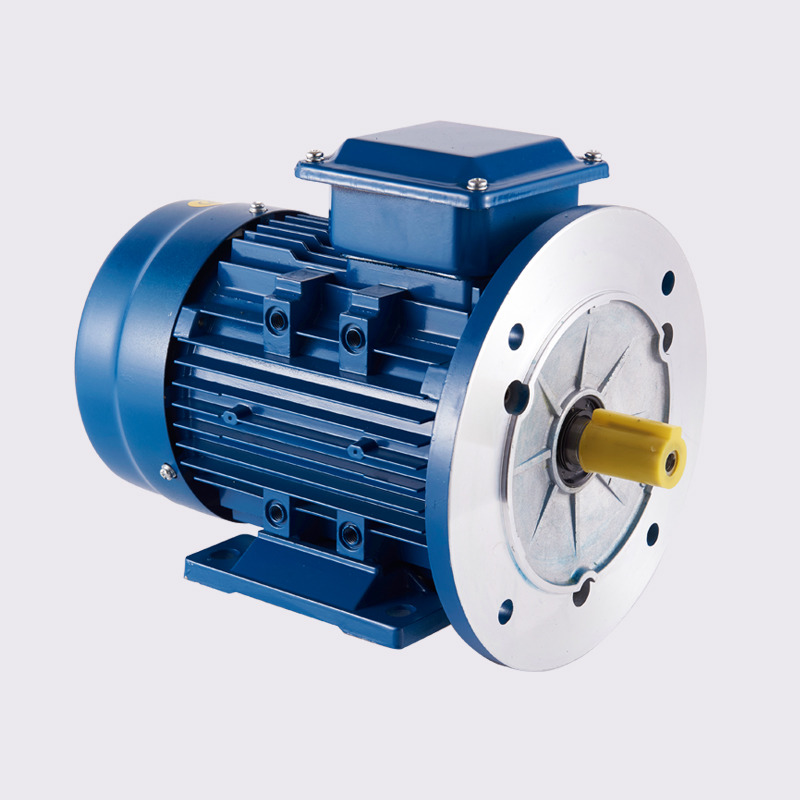

YD series three phase pole changing two speed asynchronous motor is the same as Y series(IP44) in the motor VOLTAGE, DUTY, PROTECT CLASS, MOUNTING TYPE, DIAMETERS. And we manufacture 4/2、6/4、8/4、8/6 motor, there’s a much improvement compared with the old generation. The frame size is from 80 to 180, the rated power covers from 0.45 to 22kw. We support B3 B5 B35 B14 B34 mounting type. And the motor efficiency fits IE1 IE2 standard.

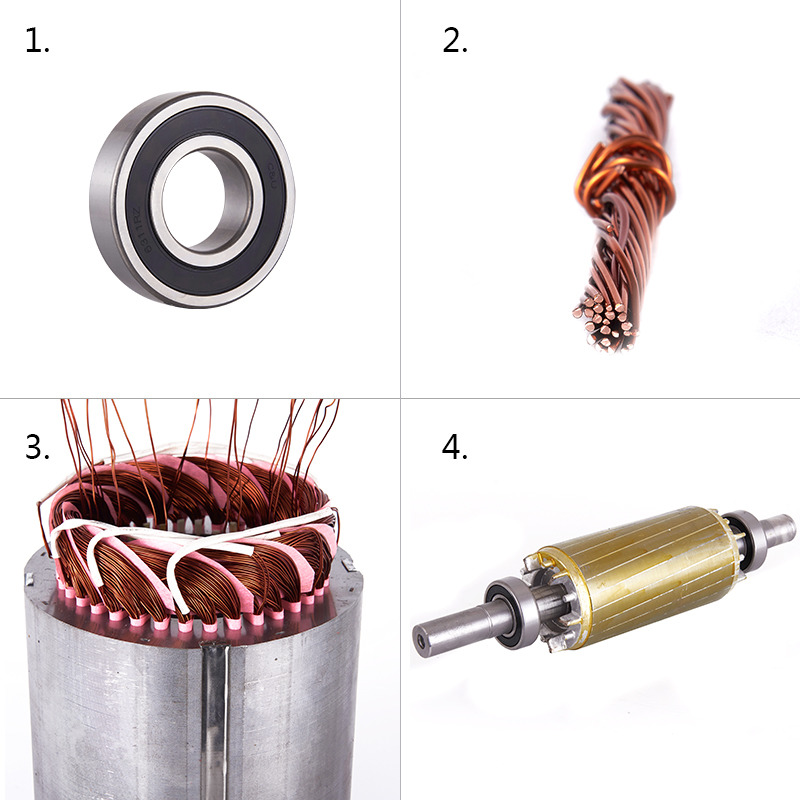

Our supplier
All of our supplier come from the local factory, our motors use 100% copper wire. We will never use shoddy raw materials instead.
Delivery
Our factory locates in Taizhou, Zhejiang, we support express and shipping and etc.,
