Serial No. : 2DK-20
Size（mm）：360*190*210
Material:Iron Cast、aluminum
Place of origin:Zhejiang China
Color:Green
Support level: A
Registered capital:1000
Founded:2014
Number of companies:101-500人
Export scale:
Contact: ***
E-Mail：Sign In
Tel:Sign In
| Model | P2 | DN1 | DN2 | DIMESIONS | ||||
1~ 220V/240V | 3~ 380V/415V | KW | HP | n | h | f | ||
| 1DK-15 | - | 0.37 | 0.5 | 1" | 1" | 148 | 172 | 260 |
| 1DK-20 | - | 0.55 | 0.75 | 1" | 1" | 168 | 190 | 298 |
| 1.5DK-20 | 1.5DK-20 | 0.75 | 1 | 1.5" | 1.5" | 168 | 190 | 298 |
| 2DK-16 | 2DK-16 | 1.1 | 1.5 | 2" | 2" | 185 | 200 | 360 |
| 2DK-20 | 2DK-20 | 1.5 | 2.2 | 2" | 2" | 185 | 207 | 360 |
ApplicationsFor water supply from wells or reservoirs. For domestic use,for civil and industrial applications. For garden use and irrigation.
Operating conditionsMaximum fluid temperature up to +40℃. Maximum sand content:0.25%.
Motor and PumpRewindable motor Three-phase:380V-415V/50Hz Single-phase:220V-240V/50Hz
Options on requestSpecial mechanical seal Other voltages or frequency 60 Hz Warranty:1 year(according to our general sales conditions). |

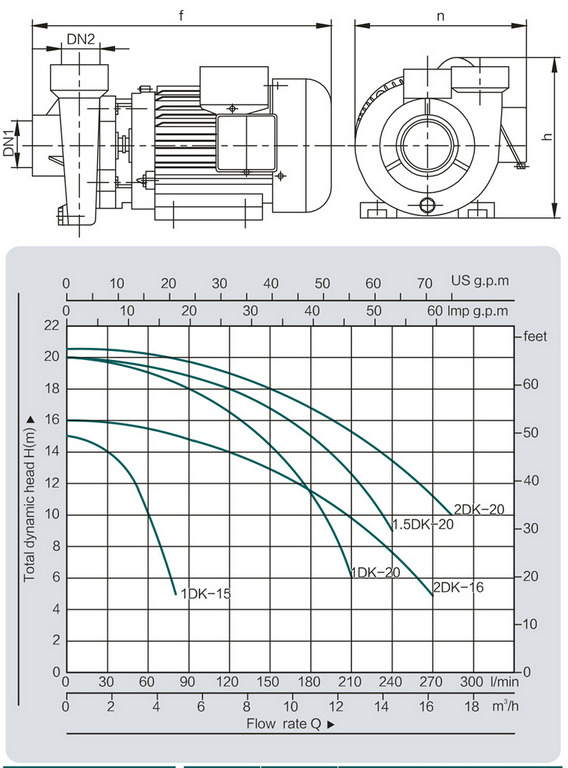

Performance Chart
|
