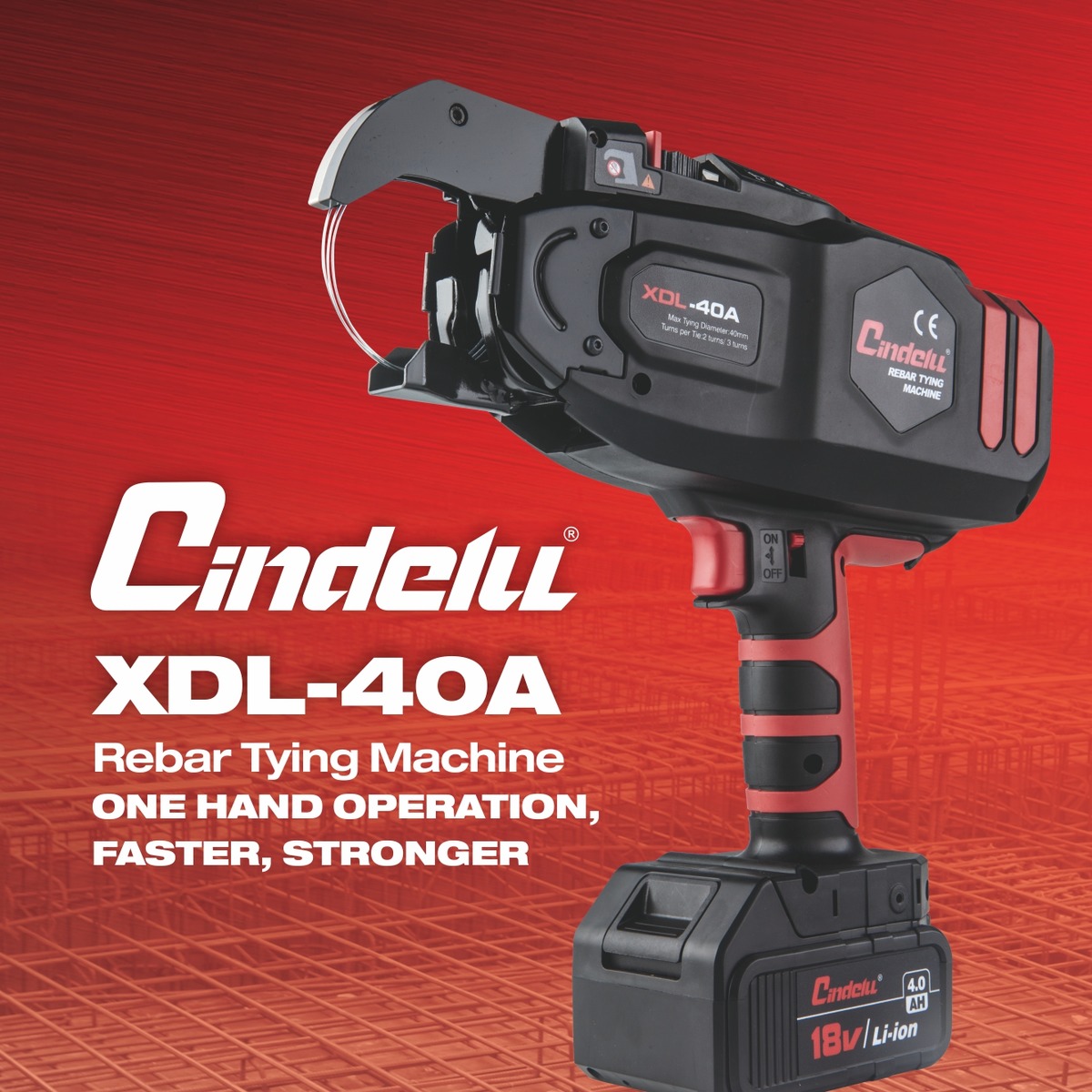

REBAR TYING MACHINE XDL-40A

Min. Order: 10 SET

Product Parameters

Serial No. : XDL-40A

Size（mm）：297*109*300

Material:NYLON, PLASTIC, CAST STEEL

Place of origin:Zhejiang China

Color:RED & BLACK

Schedule an Appointment

Support level: A

#167, NANHUAN ROAD, WENLING, ZHEJIANG, CHINA

Registered capital:180

Founded:2008

Number of companies:51-100人

Export scale:

Contact: 郑**

E-Mail：Sign In

The detailed information

XDL-40A

l Rebar tying machine XDL-40A one hand operation, faster, stronger

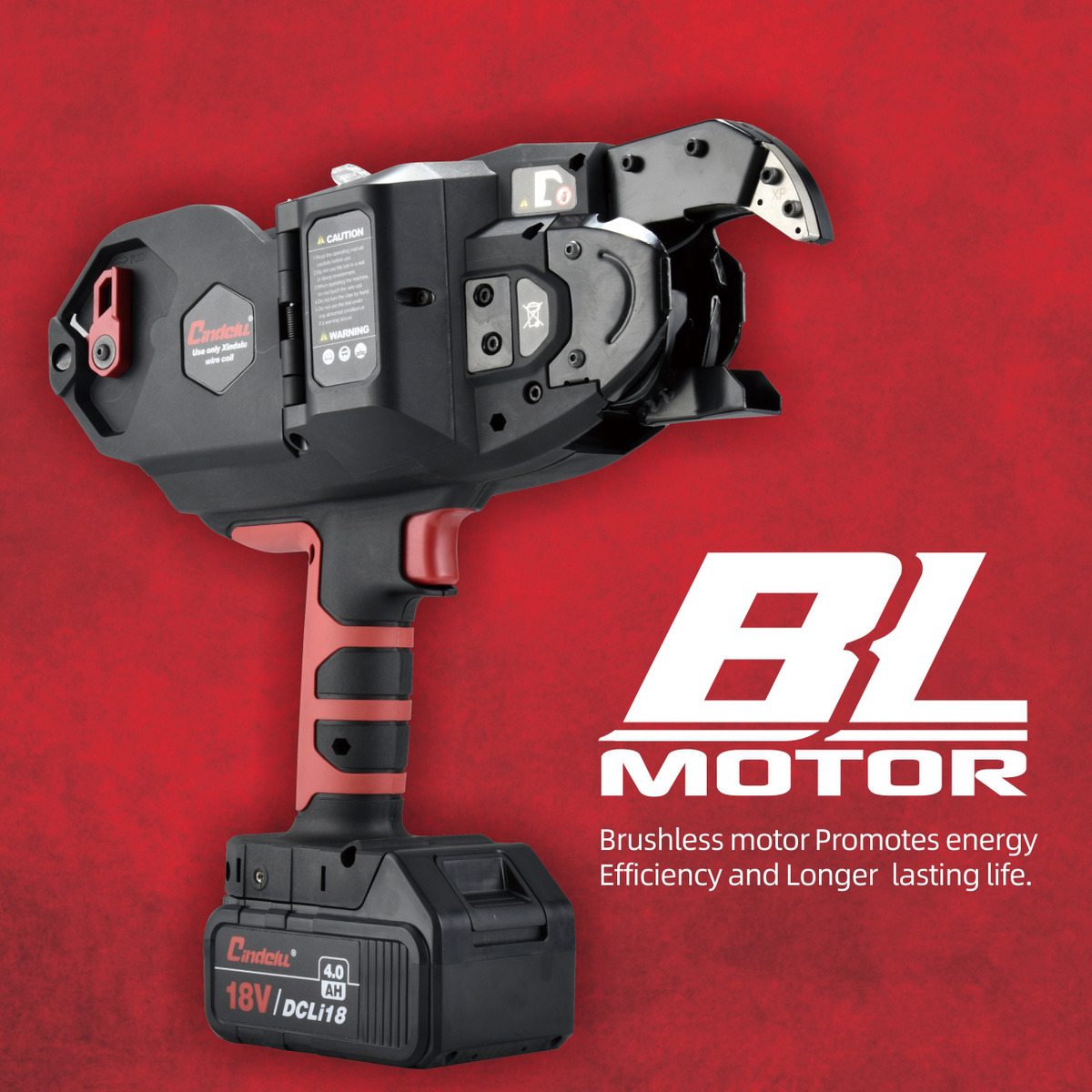

l Brushless motor promotes energy efficiency and longer lasting life.

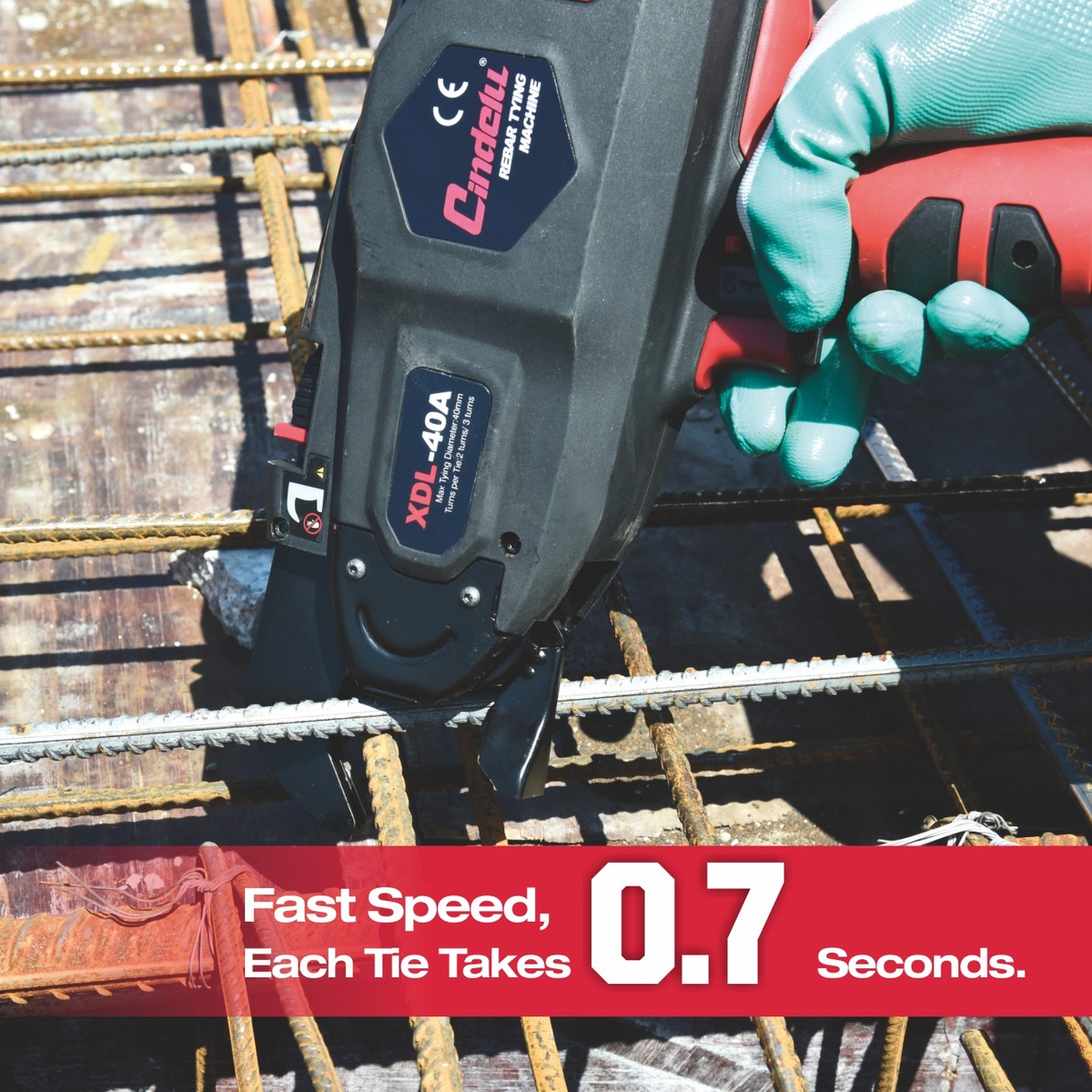

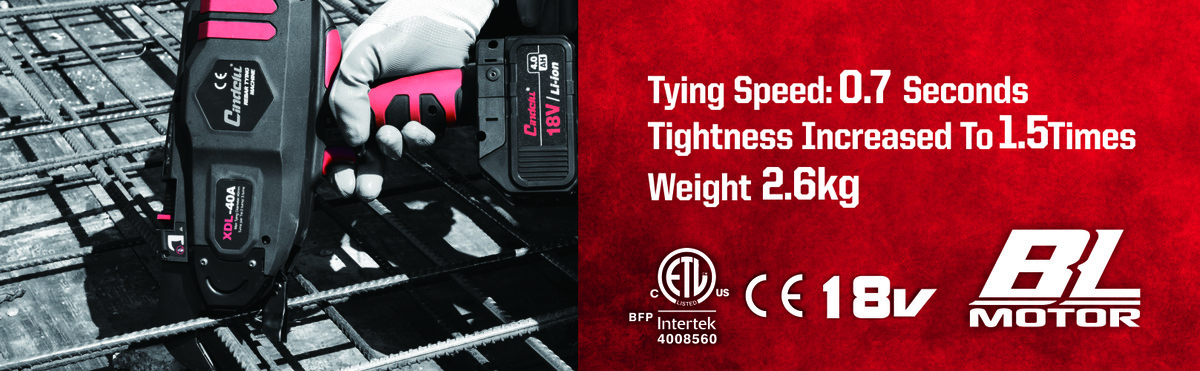

l Fast speed, each tie only takes 0.7 seconds.

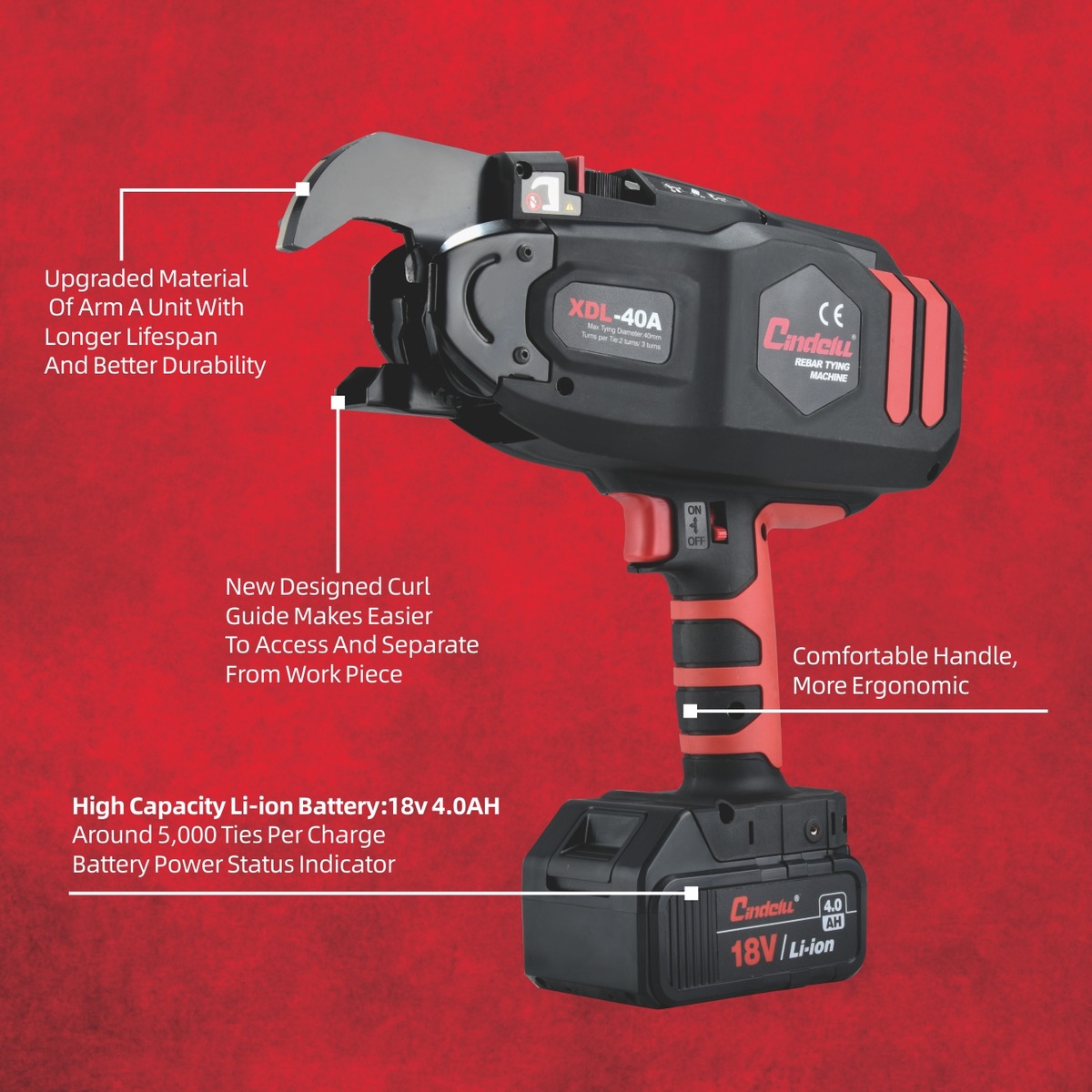

l Upgraded material of arm a unit with longer lifespan and better durability
l New designed curl guide makes easier to access and separate from work piece
l Comfortable handle, more ergonomic
l 18v 4.0Ah high capacity Li-ion battery:
l Around 5,000 ties per charge(2 wraps)

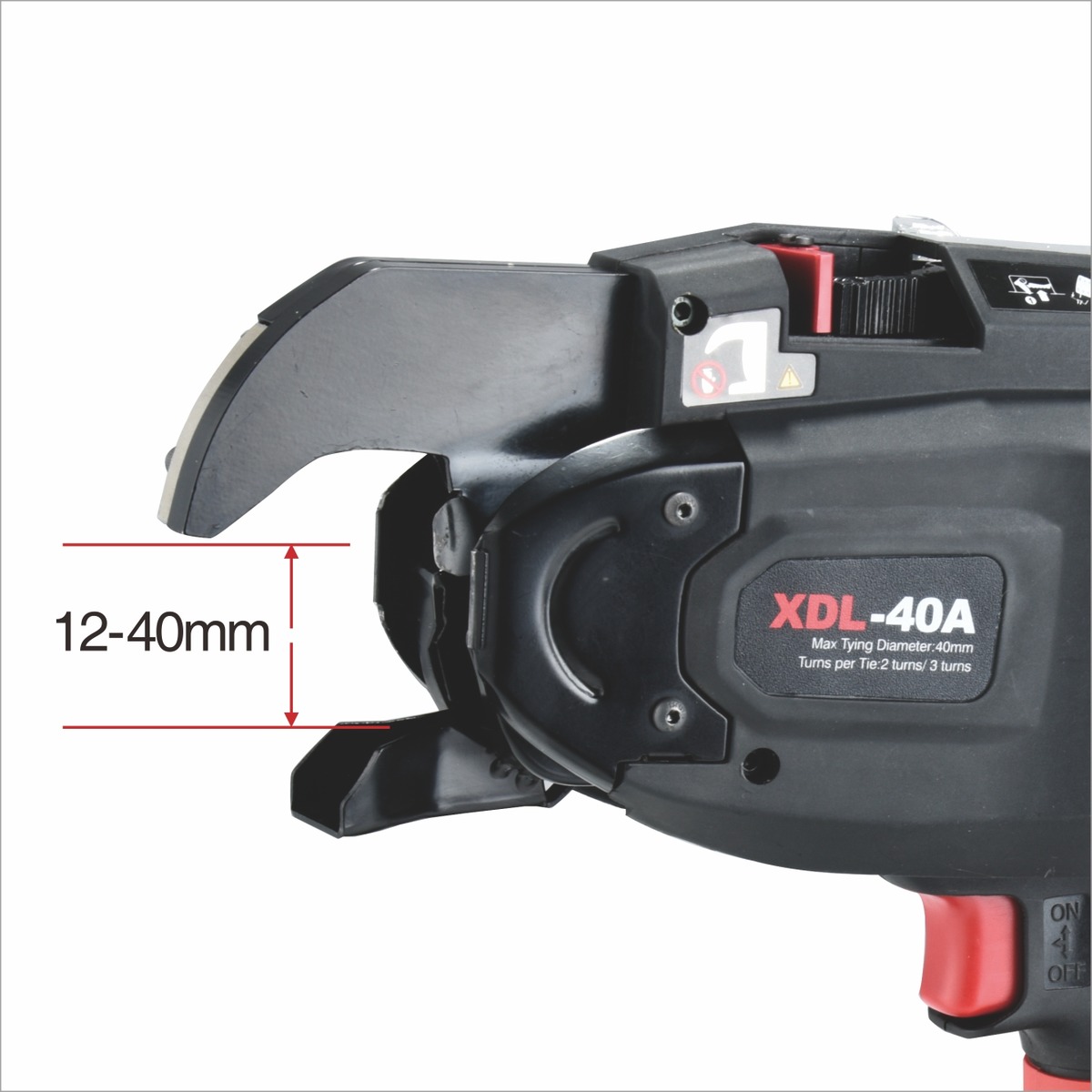

l Tying capacity: 12-40mm

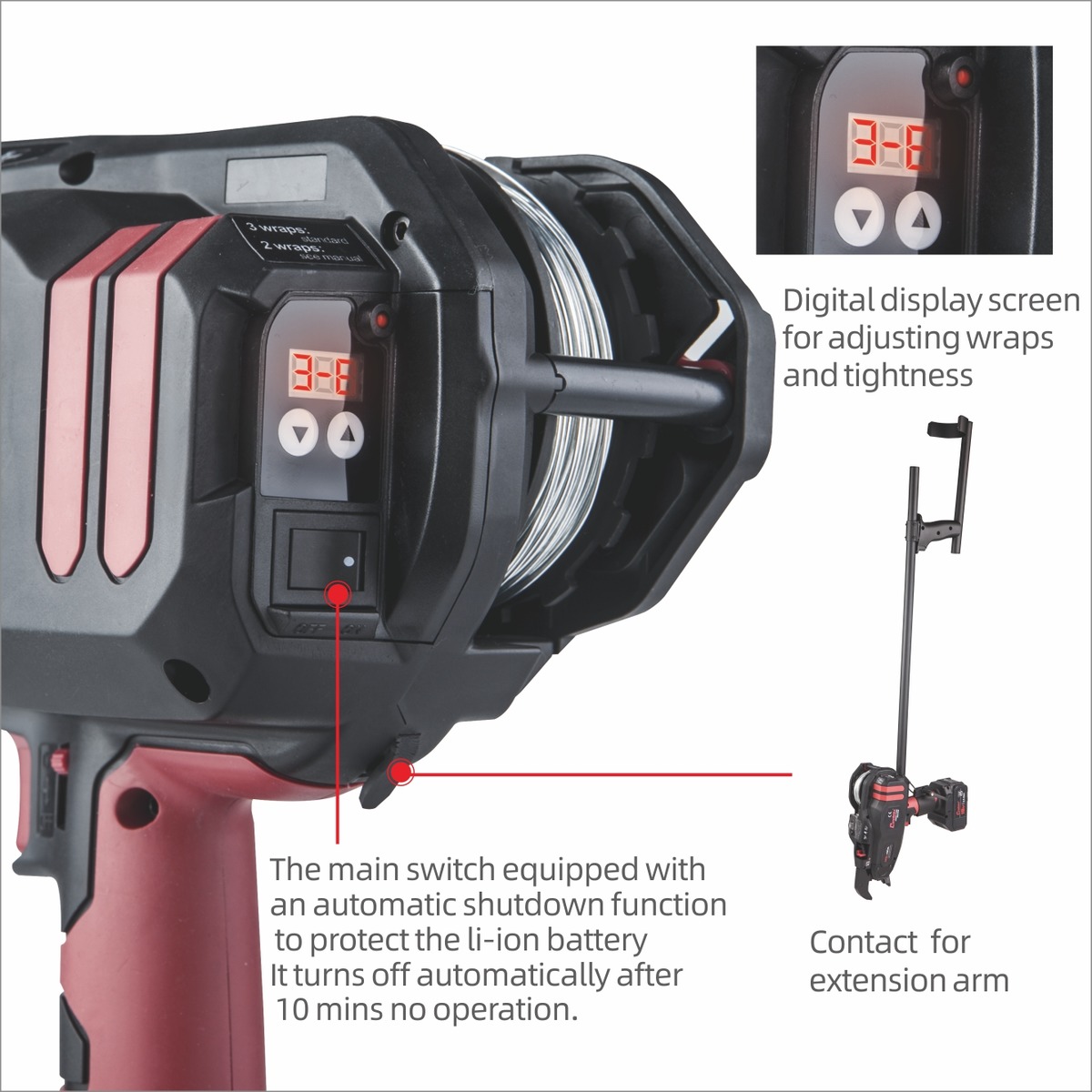

l The main switch equipped with an automatic shutdown function to protect the Li-ion battery

It turns off automatically after 10 mins no operation.

DATA
Weight(incl.battery)	2.6kg
Dimension(LxWxH)	297x109x300mm
Rebar Size	12-40mm
Tying Speed	0. 7 seconds
Wraps per tie	2 or 3 wraps
Ties per coil	Approx.160 ties (2 wraps) Approx. 120 ties (3 wraps)
Ties Per Charge	Over 5000 ties/2 wraps Over 4500 ties/3 wraps

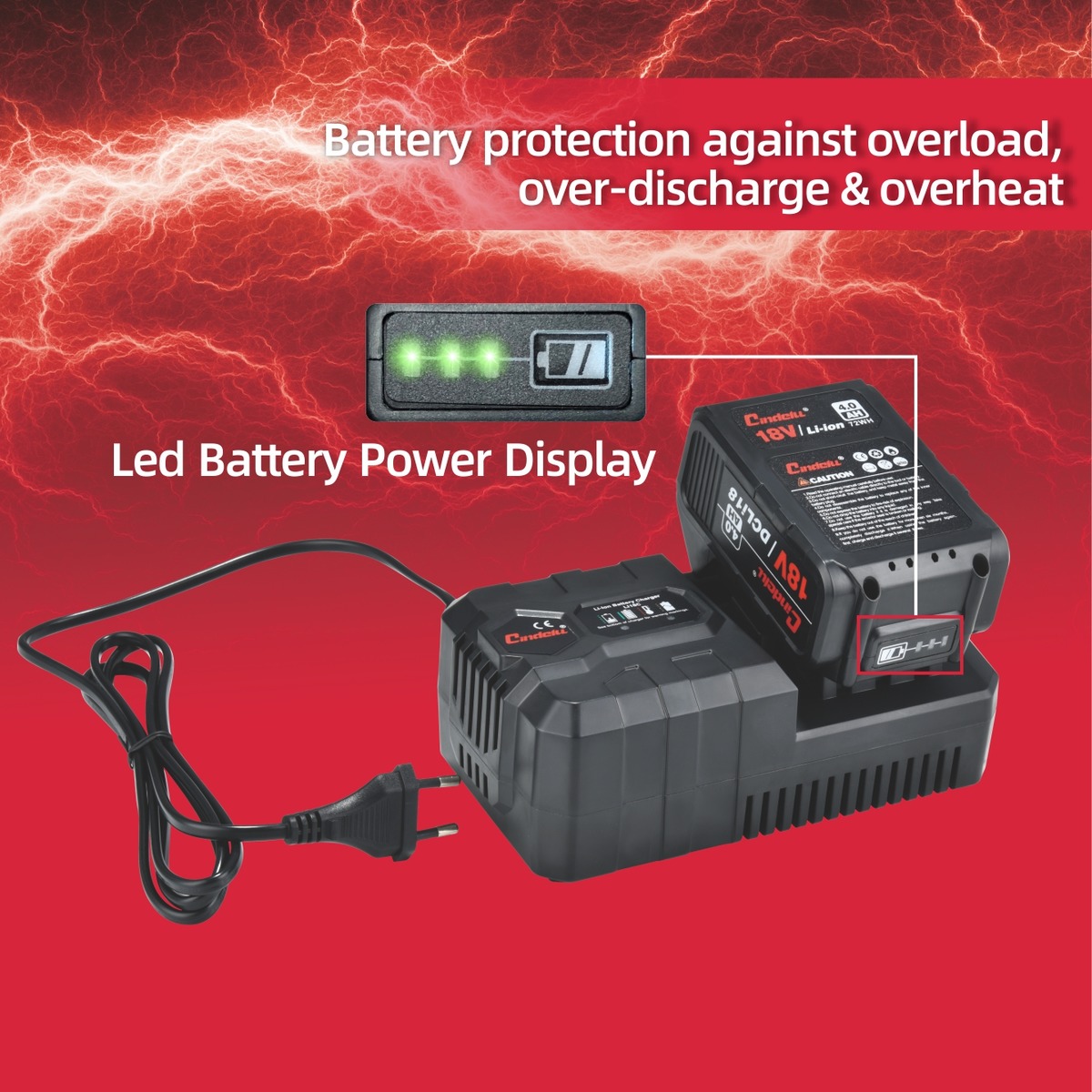

Battery	18V 4Ah Li-ion
Charging Time	90 minutes

Product exhibition plan
