Assemble Surface LED panel

Assemble Type SurfaceLED PANEL LIGHT

• · 1、 Product has lighter design,easy installation.The lamp body is made by high thermal conductivity,which has good heat resistance,the panel is made of high quality and high efficiency of high guide siffuser.Though advanced optical design,good light yield,creat a better.more comfortable light environment.
• · 2、 Light Source：LED
• · 3、 Drive：Diming/Standard(External type constant curent power supply)
• · 4、 Voltage：AC185-265V，50/60Hz
• · 5、 Working life：50,000h
  • · 6、 Application：Office,Library,school,hospital,supermarket,hotel,shopping mall,and also suit for home lighting.

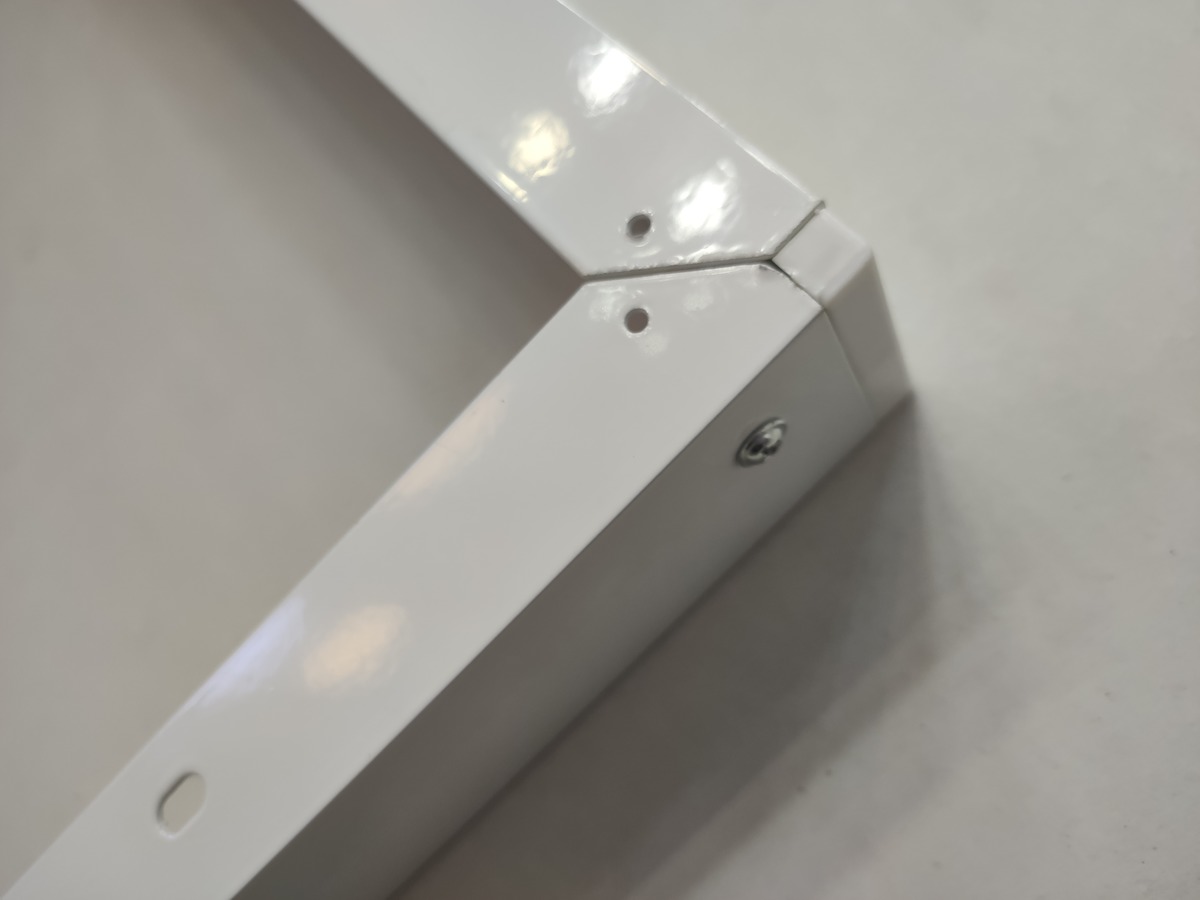

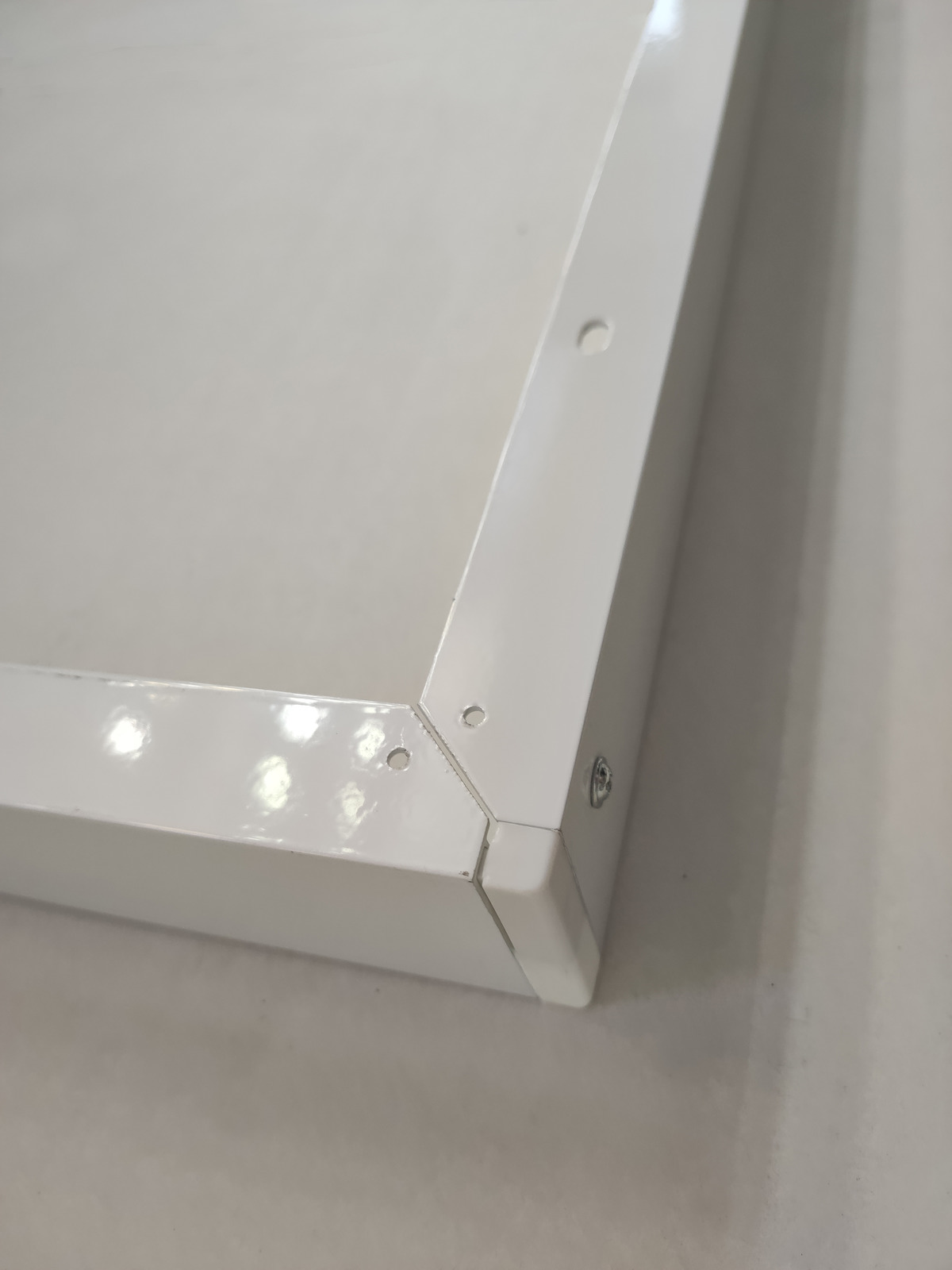

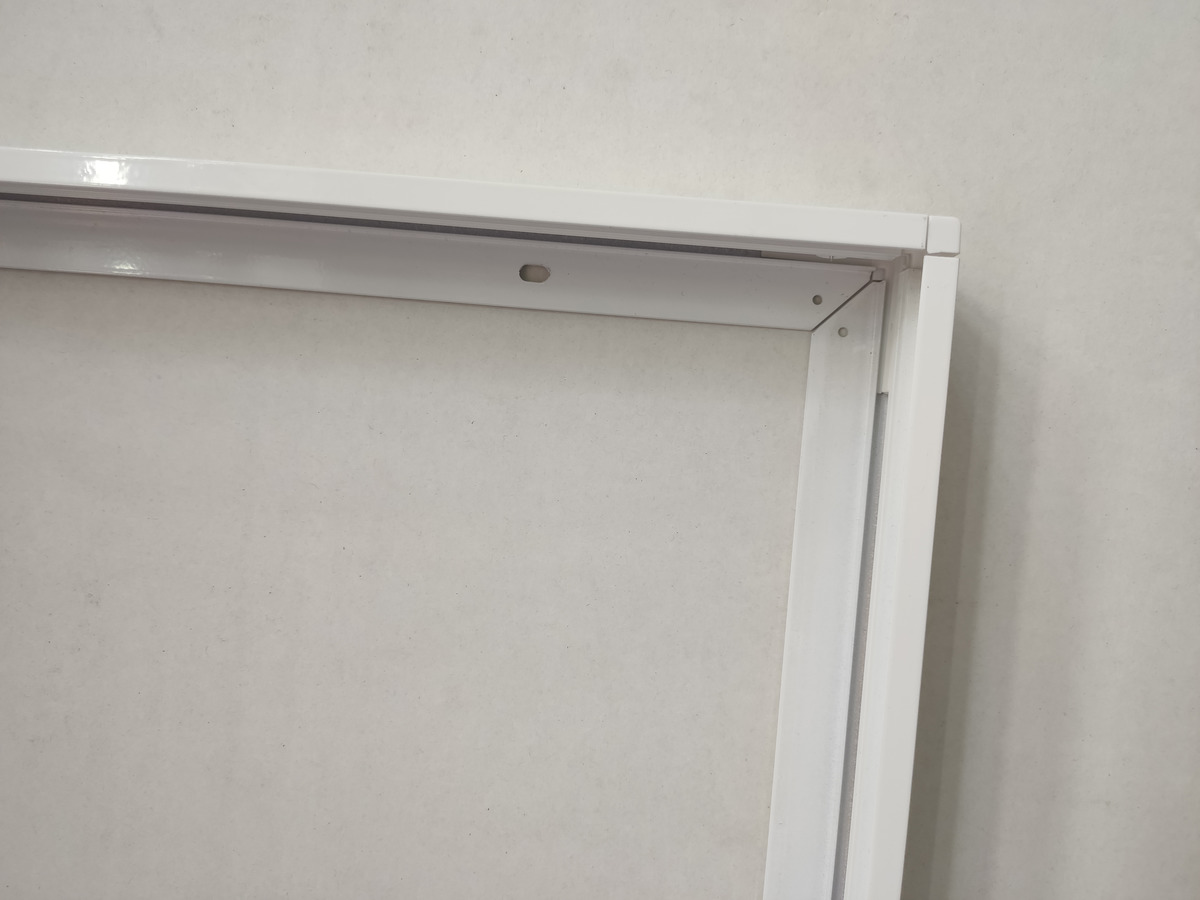

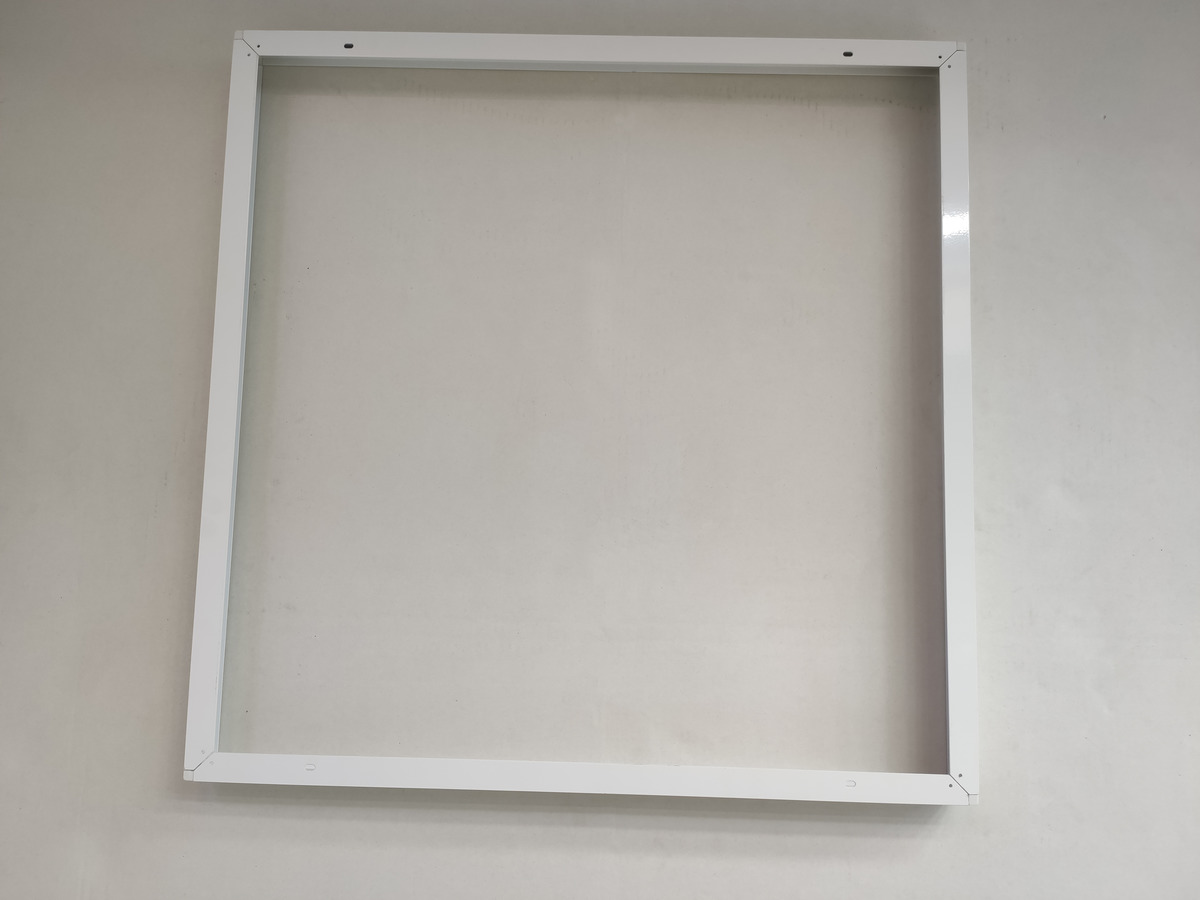

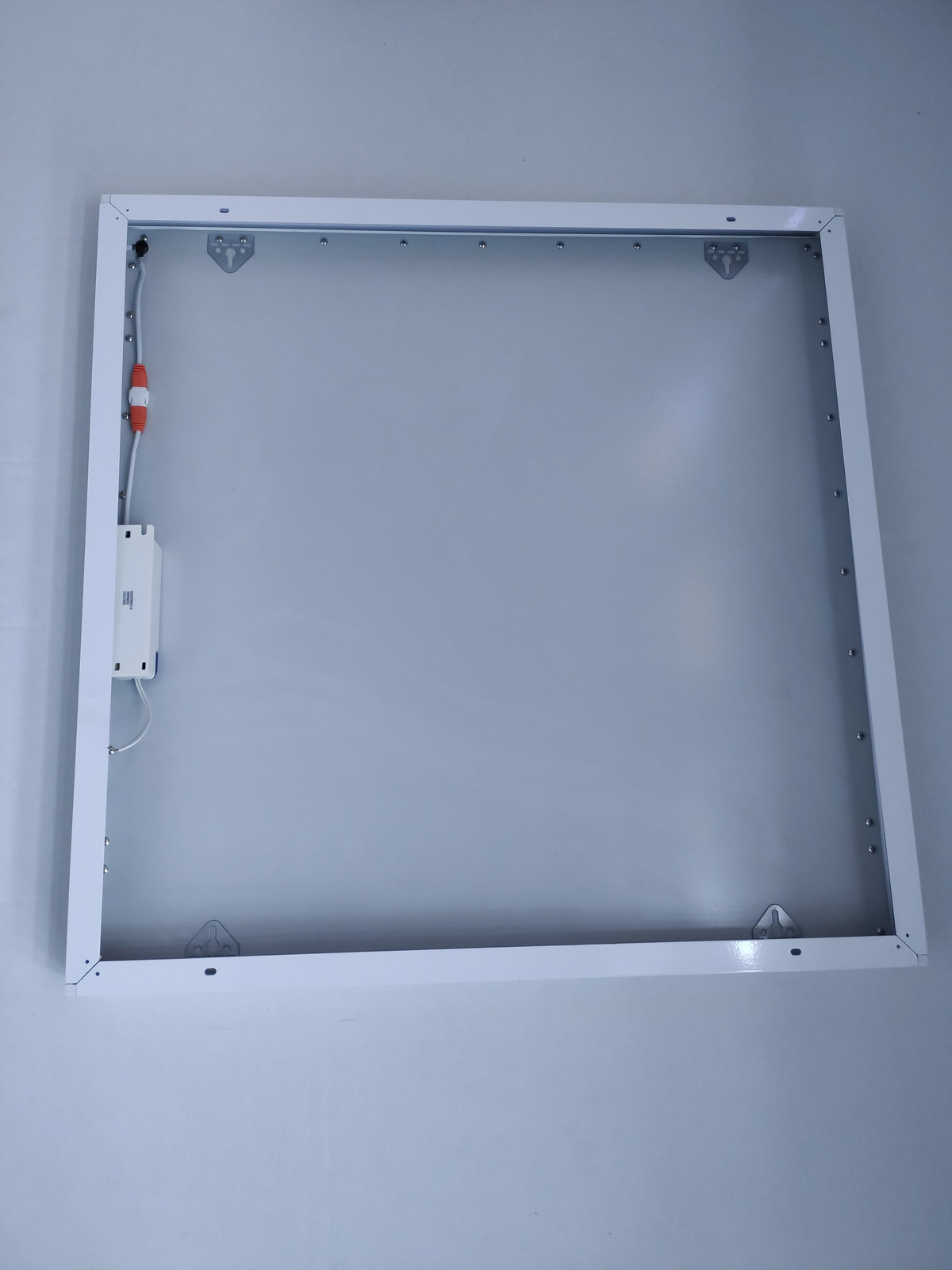

  • · 7、Surface frame separate withe light body,Can assemble as surface LED panel as requirement.
  •



• Item NO.	Power(W)	Item Size(mm)	Output Lumens	Color Temperature	CRI
  YLA428PS-M	60W	1200*600*38	80~100lumens/W	3000-6500K	≥80
  YLA228PS-M	40W	1200*300*38	80~100lumens/W	3000-6500K	≥80
  YLA414PS-M	40W	600*600*38	80~100lumens/W	3000-6500K	≥80
  YLA214S-SM	24W	600*300*38	80~100lumens/W	3000-6500K	≥80
  YLA209PS-M	12W	300*300*38	80~100lumens/W	3000-6500K	≥80
