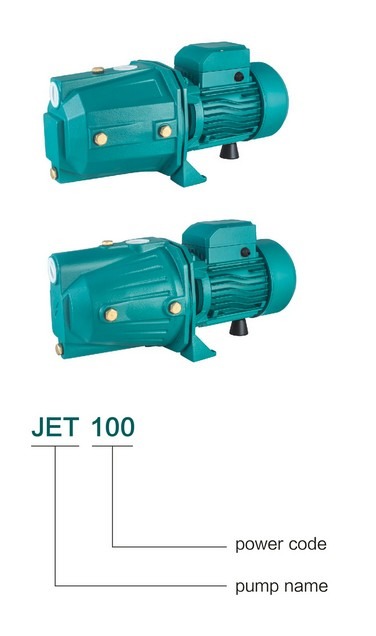

Serial No. : JET80
Size（mm）：420*180*200
Material:Iron Cast
Place of origin:Zhejiang China
Color:Green
Support level: A
Registered capital:1000
Founded:2014
Number of companies:101-500人
Export scale:
Contact: ***
E-Mail：Sign In
Tel:Sign In
ApplicationsFor water supply from wells or reservoirs. For domestic use,for civil and industrial applications. For garden use and irrigation. | |
Operating ConditionsMaximum fluid temperature up to +40℃. Maximum sand content:0.25%. | |
Motor and PumpRewindable motor Three-phase:380V-415V/50Hz Single-phase:220V-240V/50Hz | |
Options on requestSpecial mechanical seal Other voltages or frequency 60 Hz | |
Warranty:1 Year (according to our general sales conditions). |
| Model | P2 | DN1 | DN2 | DIMENSIONS(mm) | |||
1~ 220V/240V | KW | HP | n | h | f | ||
| JET60 | 0.37 | 0.5 | 1" | 1" | 173 | 198 | 402 |
| JET80 | 0.55 | 0.75 | 1" | 1" | 180 | 203 | 420 |
| JET100 | 0.75 | 1.0 | 1" | 1" | 180 | 203 | 420 |
| JET150 | 1.1 | 1.5 | 1.25" | 1" | 216 | 215 | 440 |
