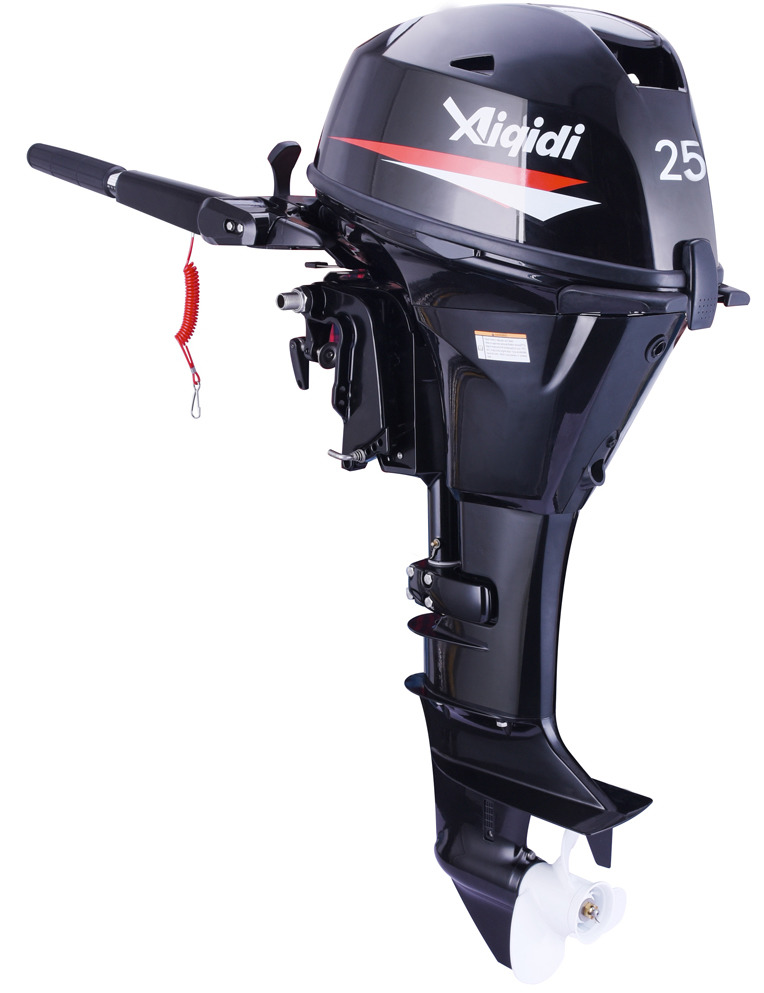

Serial No. : F25
Size（mm）：1260*765*525
Material:Aluminum products
Place of origin:Zhejiang China
Color:black color
Support level: A
Registered capital:500
Founded:2006
Number of companies:51-100人
Export scale:
Contact: 何**
E-Mail：Sign In
Tel:Sign In
| Product model | F25 |
| Engine Model | 4 STROKE ,2 Cylinder |
| Full Throttle Operating Range | 5000-6000 r/m |
| Idling Speed | 1050±50r/m |
| Engine Displacement(cc) | 362 |
| Bore×Stroke(mm) | 63×58.1 |
| Ignition System | CDI |
| Spark Plug | NGK DPR6ED-9 |
| Spark Plug Gap | 0.8-0.9mm |
| Control System | Tiller Handle |
| Starting System | Manual |
| Starting Carburation System | Choke Valve |
| Max. Power Output[kw(ps)/r/min] | 18.4(25)@6000 |
| Gear Position | Forward-Neutral-Reverse |
| Gear Ratio | 2.08(27/13) |
| Recommended Fuel | Unleaded Gasoline |
| Gear Oil | 0.250L |
| Transom Height(mm) | 438/565 |
| Fuel Capacity | 24L(extraposition) |
| G.W/N.Weight(kgs) | L:67.5/53 S:65.5/51 |
| Propeller Options(in) | 3-9 1/4×11 |
| Packing Size(mm) | L：1420×770×525 S：1293×770×525 |
Specifications and requirements
Specifications
TIP:
“AL” stated in the specification data below represents the numerical value for the aluminum propeller installed.
Dimension and weight:
Overall length:
FE 663 mm (26.1 in)
BM 1048 mm (41.3 in)
Overall width:
FE 373 mm (14.7 in)
BM 386 mm (15.2 in)
Overall height S:
BM 1078mm (42.4in)
Overall height L:
1205mm (47.4 in)
Motor transom height S:
BM 438mm (17.2 in)
Motor transom height L:
565 mm (22.2 in)
Dry weight (AL) S:
BM 51 KG (112 lb)
Dry weight (AL) L:
FE54KG (119lb)
BM 53KG (117 lb)
Performance:
Full throttle operating range:
5000-6000 r/min
Rate power:
14.7 KW
Idle speed (in neutral):
1000-1100 r/min

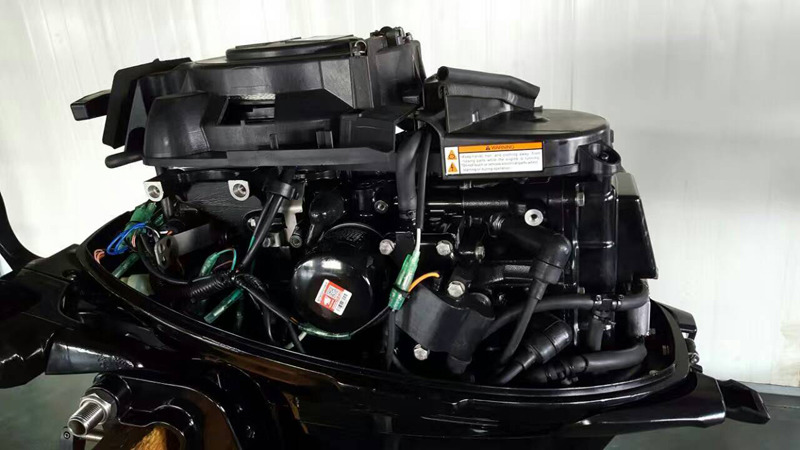

Power unit:
Type:
4-stroke SOHC 2L 4 valves
Total displacement:
362 cm3 (22.1 c.i. )
Bore×stroke:
63.0×58.1 mm (2.48×2.29 in)
Ignition system:
CDI
Spark plug (NGJ):
DPR6EB-9
Spark plug gap:
0.8-0.9 mm (0.031-0.035 in)
Steering system:
Remote steering
Tiller handle
Starting system:
Electric starter
Manual starter
Starting carburetion system:
Prime start
Valve clearance IN (cold engine):
0.15-0.25 mm (0.0059-0.0098 in)
Valve clearance EX (cold engine):
0.25-0.35 mm (0.0098-0.0138 in)
Battery rating (CCA/EN):
347-411 A
Battery rating (20HR/1EC):
40 Ah
Maximum generator output:
10 A
Lower unit
Gear shift positions:
Forward-neutral-reverse
Gear ratio:
2.08 (27/13)
Trim and tilt system:
Manual tilt
Fuel and oil:
Recommended fuel:
Regular unleaded gasoline
Min. research octane number (RON):
90
Fuel tank capacity:
24 L (6.34 US gal. 5.28 Imp. gal)
Recommended engine oil:
4-stroke outboard motor oil
Recommended engine oil grade 1:
SAE 10W-30/10W-40/5W-30
API SE/SF/SG/SH/SJ/SL
Engine oil quantity (without oil filter replacement):
1.6 L (1.69 US qt, 1.41 lmp. qt)
Engine oil quantity (with oil filter replacement):
1.8 L (1.90 US qt, 1.58 Imp. qt)
Lubrication system:
Wet sump
Recommended gear oil:
Hypoid gear oil
Recommended gear oil grade:
SAE 90 API GL-4
Gear oil quantity:
0.250 L (0.264 US qt, 0.220 Imp. qt)
Tightening torque:
Spark plug:
17 Nm (1.73 kgf-m, 12.5 ft-lb)
Propeller nut:
17 Nm (1.73 kgf-m, 12.5 ft-lb)
Engine oil drain bolt:
27 Nm (2.75 kgf-m, 19.9 ft-lb)
Engine oil filter:
18 Nm (1.84 kgf-m, 13.3 ft-lb)
