Pipe-Mount Float Valve with Threaded Outlet

Ideal for air conditioning, refirgeration and irrigation systems, the Float Valve is an excellent choice for flow control. Built from bronze to provide standard mechanical action, this valve is a reliable choice and comes with fine threads for specific applications. This series is a high-capacity float valve with male NPT inlet and outlet connections. This model features an adjustable short arm for customizing water level. Applications include cooling towers, livestock waterers, car washes, high-pressure washes, swimming pools and many other agricultural and industrial applications.

Features

• Pipe-threaded for pipe connections and straight-pipe threaded for locknut

• All bronze bodies

• Serrated arms for quick easy adjustment of water level

• High tensile manganese bronze long and short arms

• Copper or polypropylene floats

• Plunger, arm & seal replacement kits are also available

• For a complete assembly you need a valve, float & stem (sold separately)

Pressure

Maximum Working Pressure: 165psi (11.4 bar)

Maximum Working Temperature: 180°F (82°C)

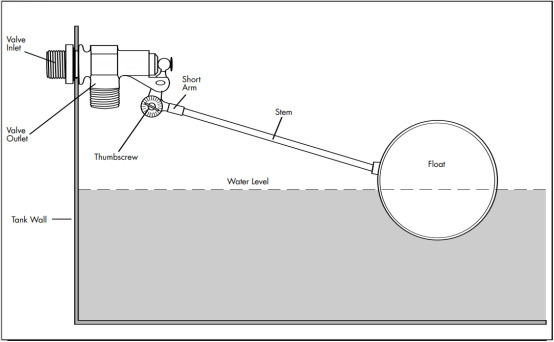

Installation Instruction

1. Attach valve to tank wall and connect valve inlet to water supply.

2. Valve outlet must be 90° to water level for bind-free operation.

3. Screw stem and float to short arm.

4. Rotate arm and stem for desired water level, tighten short arm thumbscrew.

About us:

Taizhou Bada Valve Co.,Ltd is considered as one of the leading supplier of brass fittings & valves and faucets in China. Since 1980’s, we insist to supply superior products and excellent service, which distinguish us from other competitors.

With the basis of rigid quality control, Bada Valve sets up the mass production system to manufacture brass fittings and valves. It is able to supply most sizes of brass fittings in various standards of industrial applications, such as water supply, gas, sanitation, cooling/heating.

As well as the China market, Bada Valve currently supplies it's quality products to the USA, UK, France, Italy etc with the required certification for each country. Bada Valve continues to develop its business partnerships throughout Asia, Europe and South America.
