Lead-free Brass, Press Union, Press x FPT Mechanical Connection

Lead-free Brass, Press Union, Press x FPT Mechanical Connection

● Lead Free Brass

● Flameless, Mechanical Press Joining.

● User-friendly, Easy to install

● NSF/ANSI 61 and NSF/ANSI 372 Approved

● UPC Certificated

• Product Introduction:

    The press-to-connect method offer a quick and easy, flameless connection to copper pipes.

  Simply applying Pressure from a Press tool tightens the O-ring onto the tube, ensuring a clean, watertight seal in seconds with no flame, solder or flux.

    And also allows installers to join wet connections, making it the fastest solution for maintenance and repair.

Adaptable for any commercial, industrial or residential application, whether new or retrofit.

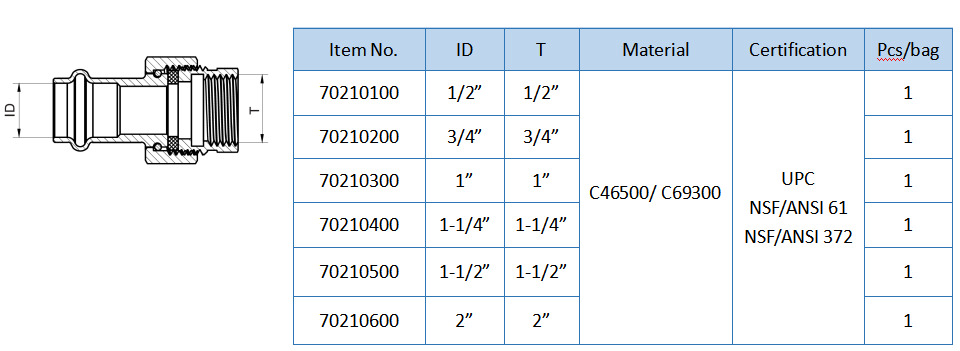

•  Product Specification:

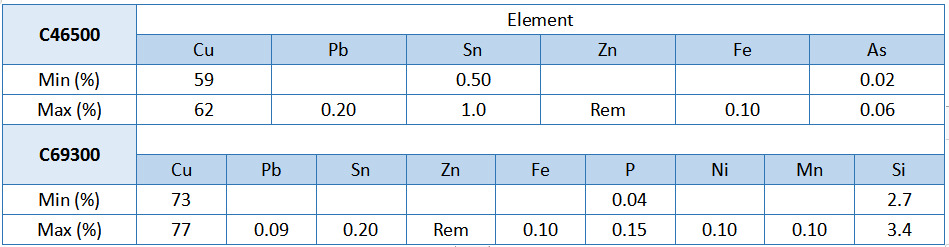

•  Material Chemical Composition

• Accessory:

  Leak detect EPDM O-ring

• Applications:

 Including hot & cold water plumbing, hydronic heating (incl. ethylene, propylene and butylene glycol mixes), compress air (oil-free), low pressure steam, vacuum, grey water and others.

 Installation Instruction:

• 1. Cuter tube square using a tube cutter on fine tooth saw.

2. Deburring tube ID and OD with file.

3. Check seal for correct fit. Do not use oils or lubricants.

4. Mark proper insertion depth for well sealed.

5. While turning slightly, slide press fitting onto tubing to the marked depth. Note: End of tubing must contact stop.

6. Open the jaw and place at right angles on the fitting.

7. Start pressing process and hold the trigger until the jaw has engaged the fittings.

9.  Frequently Asked Questions:

 Q: What is NSF/ANSI 372, Drinking Water System Components?

 A: The Standard establishes procedures for the determination of lead content based on the wetted surface area of products. This standard applies to any drinking water system component that conveys or dispenses water for human consumption through drinking or cooking. The NSF/ANSI 372 standard is consistent with requirements of the Reduction of Lead in Drinking Water Act.

Q: What does Lead free mean?

A: The Federal Safe Drinking Water Act, redefining “lead-free” as a maximum weighted lead content of 0.25% on the wetted surface of plumbing products. Before that 2011 amendment, the legal limit was 8%. In other words, leaded pipes, fittings and valves can only be used in process that don’t involve contact with food, drink or any other form of bodily intake.

About us:

Taizhou Bada Valve Co.,Ltd is considered as one of the leading supplier of brass fittings & valves and faucets in China. Since 1980’s, we insist to supply superior products and excellent service, which distinguish us from other competitors.

With the basis of rigid quality control, Bada Valve sets up the mass production system to manufacture brass fittings and valves. It is able to supply most sizes of brass fittings in various standards of industrial applications, such as water supply, gas, sanitation, cooling/heating.

As well as the China market, Bada Valve currently supplies it's quality products to the USA, UK, France, Italy etc with the required certification for each country. Bada Valve continues to develop its business partnerships throughout Asia, Europe and South America.
