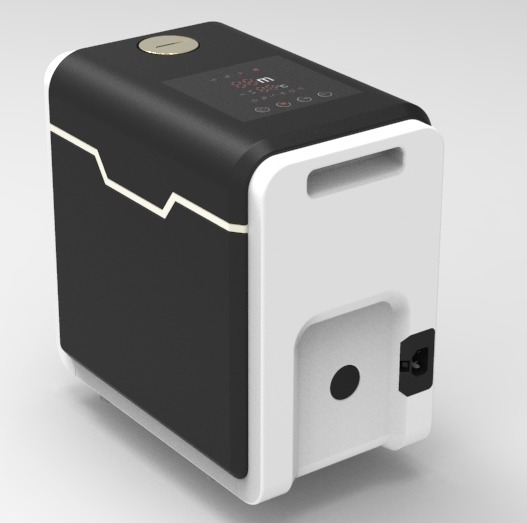

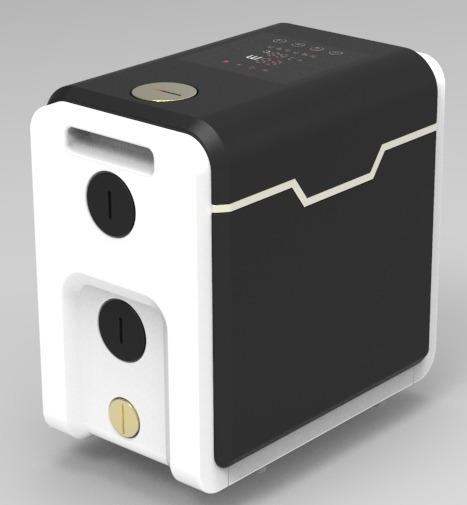

WGZ15/45 INTELLIGENT SELF-PRIMING PUMP,AUTOMATIC BOOSTER PUMP,VARIABLE FREQUENCY BOOSTER PUMP

Applications

The permanent magnet intelligent booster pump is a multi-functional water supply system for household daily water supply, equipment OEM, pipeline pressurization, garden watering,High-rise building water supply and drainage and central heating circulation systems.

Advantages:

The permanent magnet intelligent booster pump is new design, high efficiency booster pump:

Canned motor structure, extremely silent

Permanent magnet synchronous motor, adjustment of speed with frequency control and energy saving

Touch screen , simple setting and operation

Intelligent control system, highly flexible for diversified application

One pump for diversified functions---boosting and circulating together benefits cost reductions

Operation condition:

1. Max. System Pressure:10bar

2. Max. Suction Head:8m

2. Operation condition:

 Ambient Temperature:0℃~40℃

 Ambient Humidity:95%

 Liquid Tempreture:<85℃

 Ambient temperature must be lower than liquid temperature,

 in order to avoid condensate water produced in the interior of stator.

3. Liquid : Clean, non-coorosive and non-explosive liquids, without any particle ,fiber or mineral oil.

 Water/glycol mixtures max. mixing ratio:1:1
