OUTBOARD MOTOR

Min. Order: 1 UNIT

Product Parameters

Serial No. : F4/F6/F8

Size（mm）：1060*655*430

Material:aluminium parts

Place of origin:Zhejiang China

Color:BLACK COLOR

Add to Favorites

Schedule an Appointment

Zhejiang anqidi power machinery co.,ltd

Support level: A

TENGDA ROAD,LUQIAO DISTRICT,TAIZHOU CITY,ZHEJIANG,CHINA

Registered capital:500

Founded:2006

Number of companies:51-100人

Export scale:

Contact: 何**

E-Mail：Sign In

Tel:Sign In

The detailed information

Product Description

Product model	F8
Engine Type	4 Stroke
Idle Speed r/min	1800
Displacement(cm³）	139
Bore×Stroke(mm)	62.0×46.0
Max. Power Output[kw(ps)/r/min]	5.9(8.0)@5000
Gear Ratio	2.08(27/13)
Transom Height(mm)	440/568
Fuel Tank(L)	1.8
Propeller Size(in)	3-7 1/2×8
Packing Size(mm)	1060657460

Specifications and requirements

Specifications

TIP:

“AL” stated in the specification data below represents the numerical value for the aluminum propeller installed.

Dimension:

Overall length:750mm(29.5 inch)

Overall width:403mm(15.9 inch)

Overall height S:1040mm(40.9 inch)

Overall height L:1168mm(46.0 inch)

Motor transom height S:440MM(17.3 inch)

Motor transom height L:568mm(22.4 inch)

Dry weight(AL) S:27.0kgs(60 lb)

Dry weight(AL) L:28.0kgs(62 lb)

Performance:

Full throttle operating range:4000-5000r/min

Rated power:4.4kw@5000r/min(6hp@5000r/min)

Idle speed(in neutral):1450-1550 r/min

Engine/Power unit:

Type:4 stroke S

Displacement:139.0 cm³

Bore x Stroke:62.0x46.0mm(2.44x1.81 in)

Ignition system:CDI

Spark plug(NGK):CR6HSB

Spark plug gap:0.6-0.7mm(0.024-0.028 in)

Control system:Tiller handle

Starting system:Manual starter

Starting carburetor system:Choke valve

Valve clearance IN(cold engine):0.08-0.12mm(0.0032-0.0047 in)

Valve clearance EX(cold engine):0.08-0.12mm(0.0032-0.0047 in)

Lower unit:

Gear shift positions:Forward-neutral-reverse

Gear ratio:2.08(27/13)

Trim and tilt system:Manual tilt

Propeller mark:A

Trim and tilt system:Manual tilt

Propeller mark:7-1/2x8

Fuel and oil:

Recommended fuel:Regular unleaded gasoline

Fuel tank capacity(built in type):1.1L(0.29 US gal,0.24 Imp.gal)

Recommended engine oil:4 stroke outboard motor oil

Recommended engine oil grade 1:

SAE 10W-30/10W-40/5W-30

API SE/SF/SG/SH/SJ/SL

Engine oil quantity:0.6L(0.63 US qt,0.53 Imp.qt)

Lubrication system :Wet sump

Recommended gear oil: Hypoid gear oil SAE#90

Gear oil quantity:0.100L(0.106 US qt.0.088 Imp.qt)

Tightening torque :

Spark plug:13Nm(1.33kgf-m,9.6ft-lb)

Engine oil dram bolt:18Nm (1.84kfg-m,13.3ft-lb)

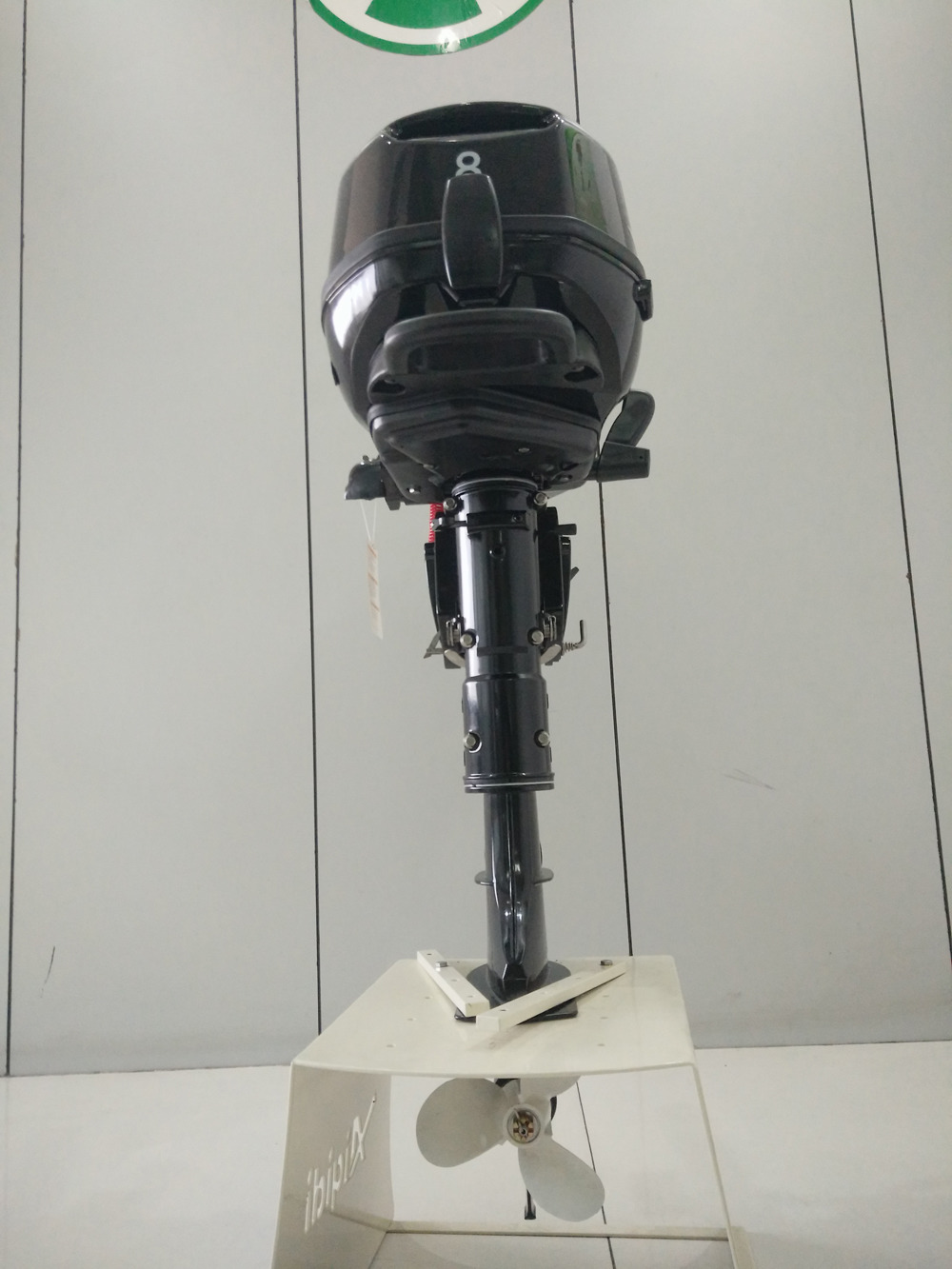

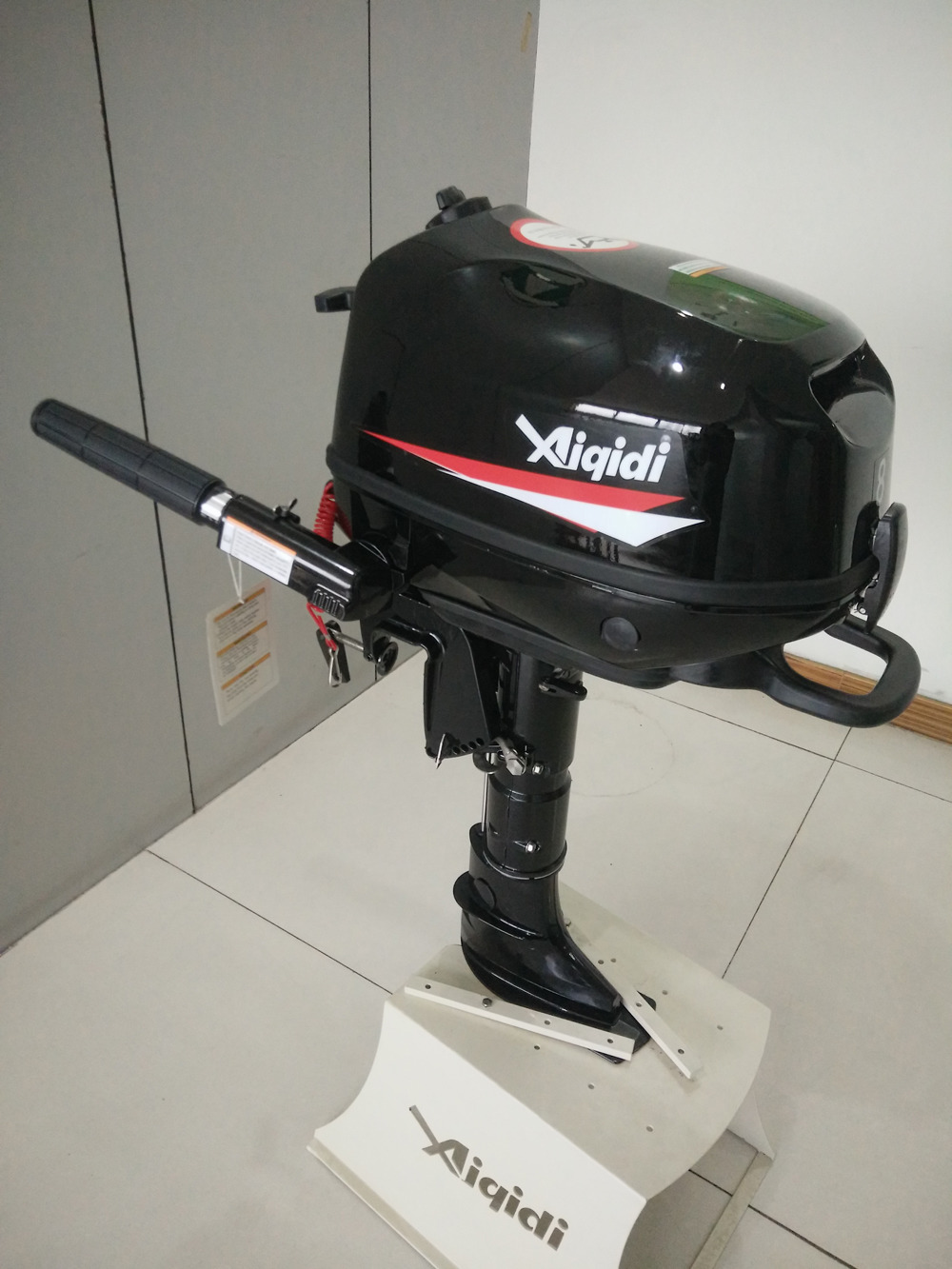

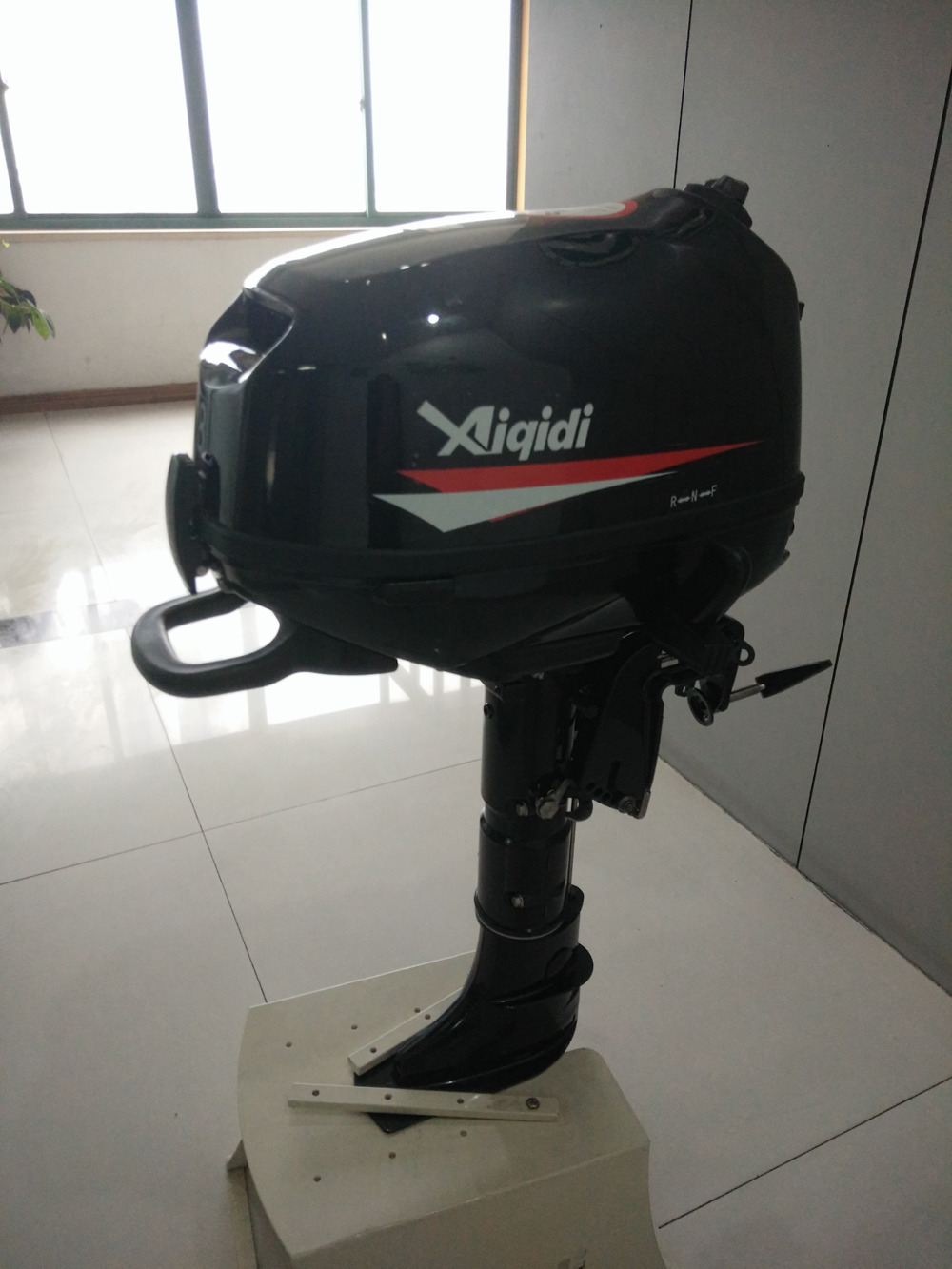

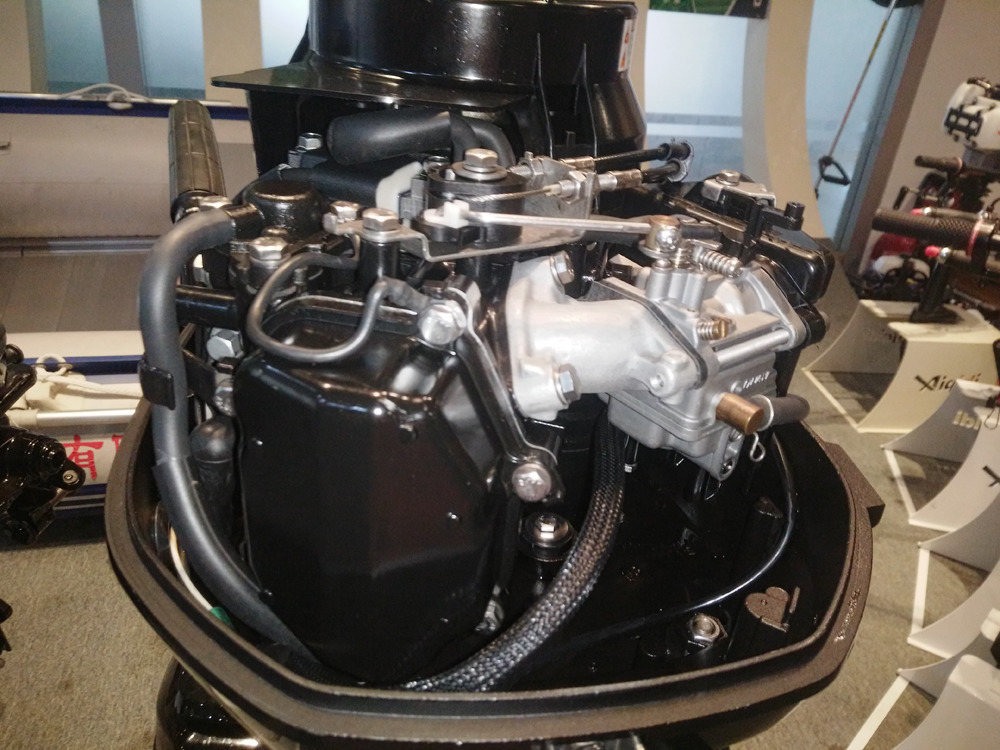

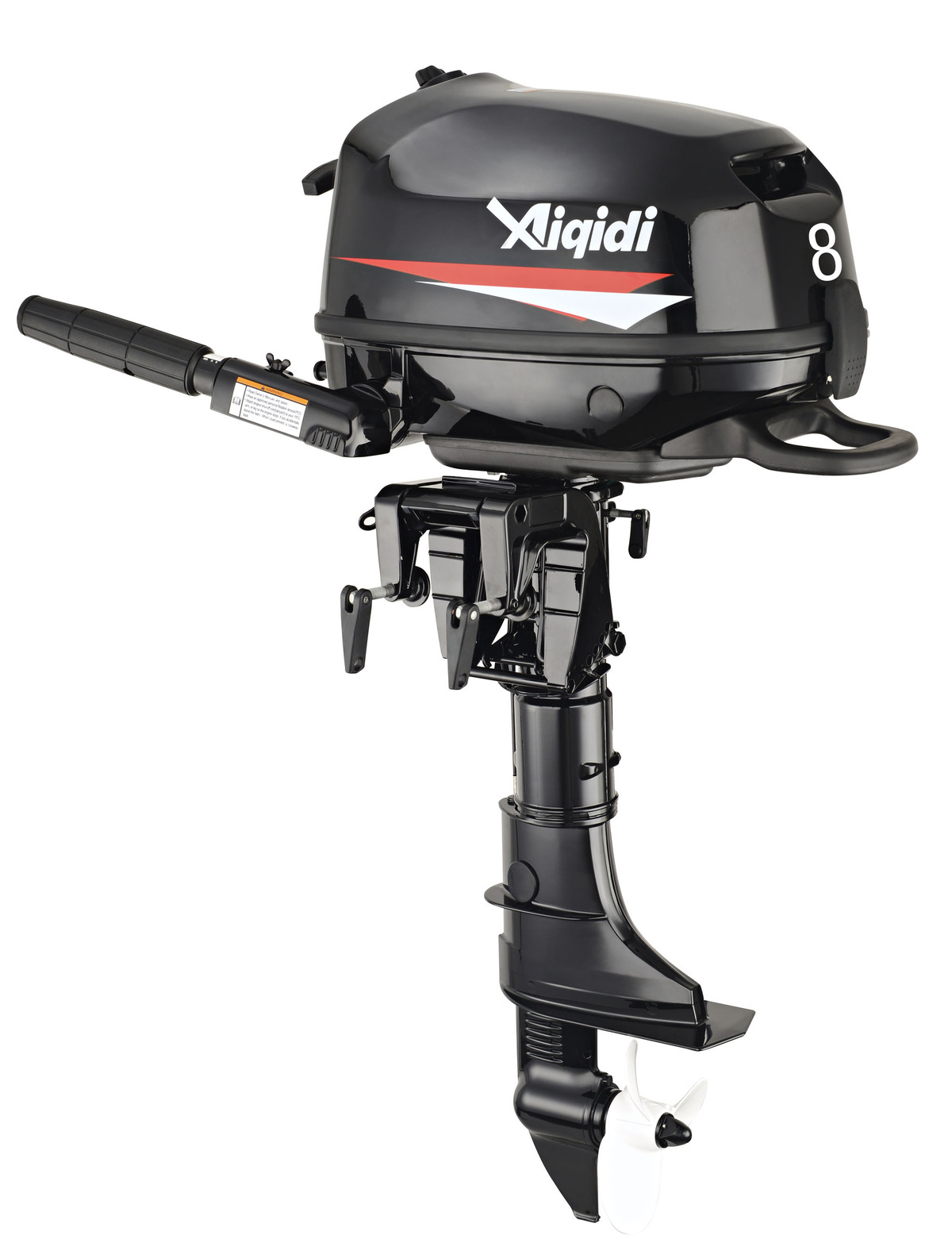

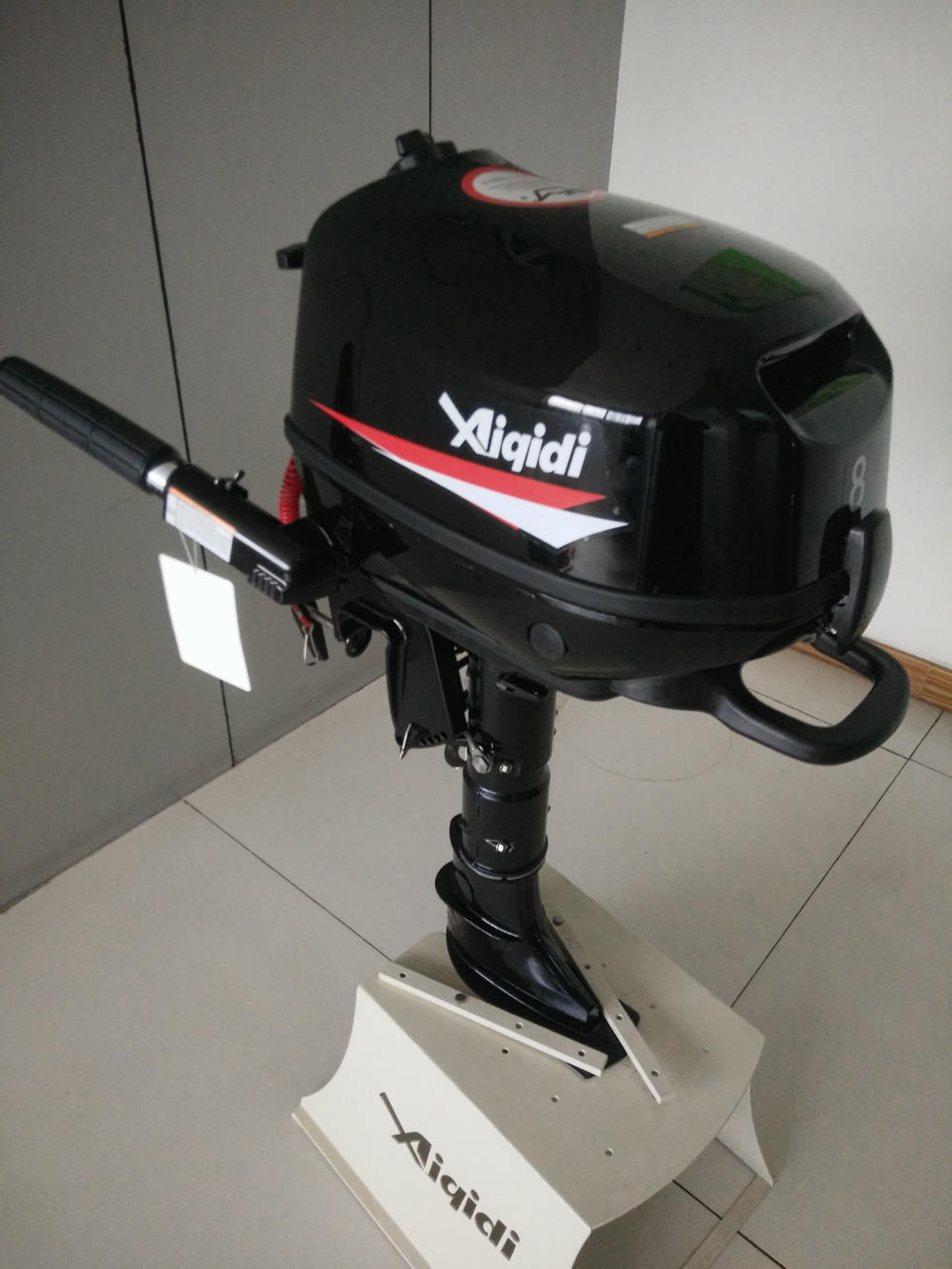

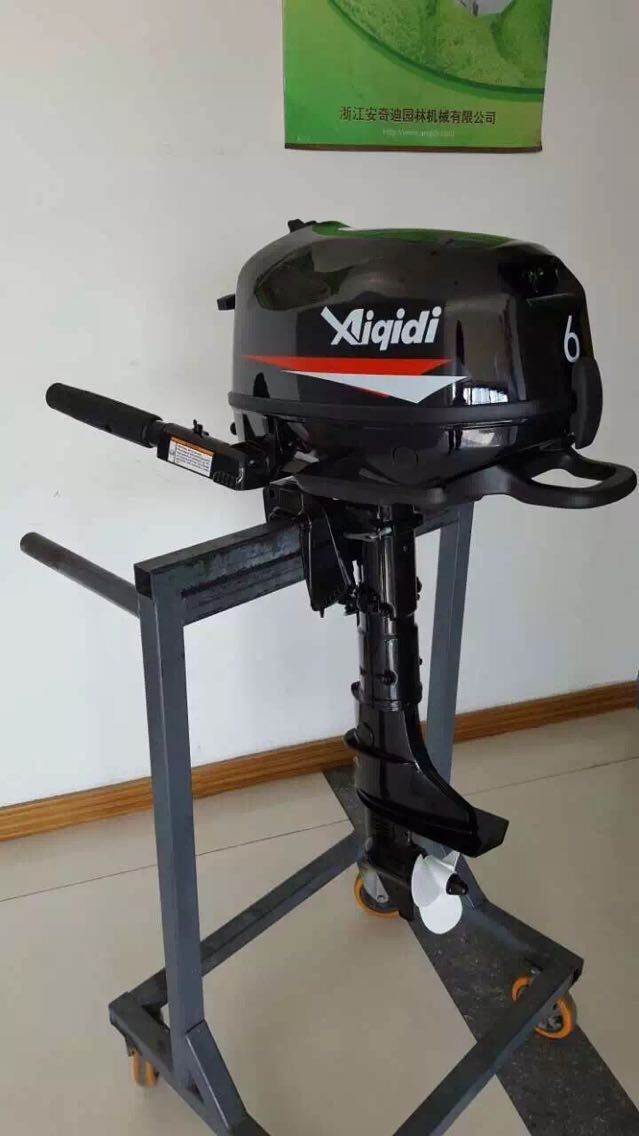

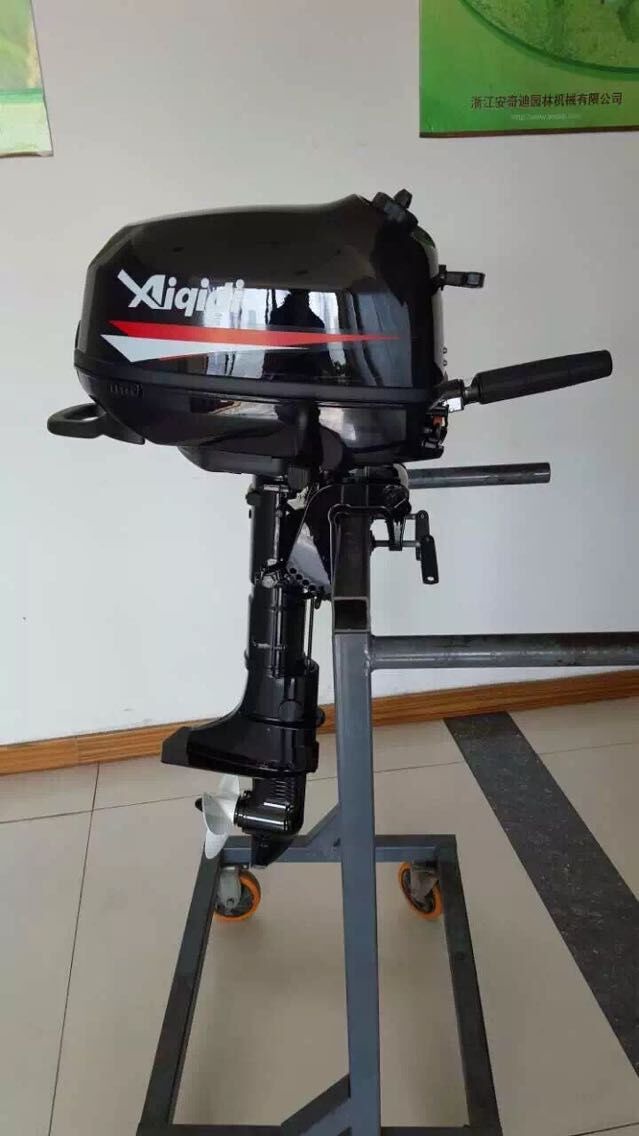

Product exhibition plan
