Serial No. : ZN50QT-69
Size(mm):1900*705*1135mm
Material:PP、ABS
Place of origin:Zhejiang China
Color:white、red、custom color
Support level: A
Registered capital:5300
Founded:1996
Number of companies:101-500人
Export scale:
Contact: 杨**
E-Mail:Sign In
Tel:Sign In

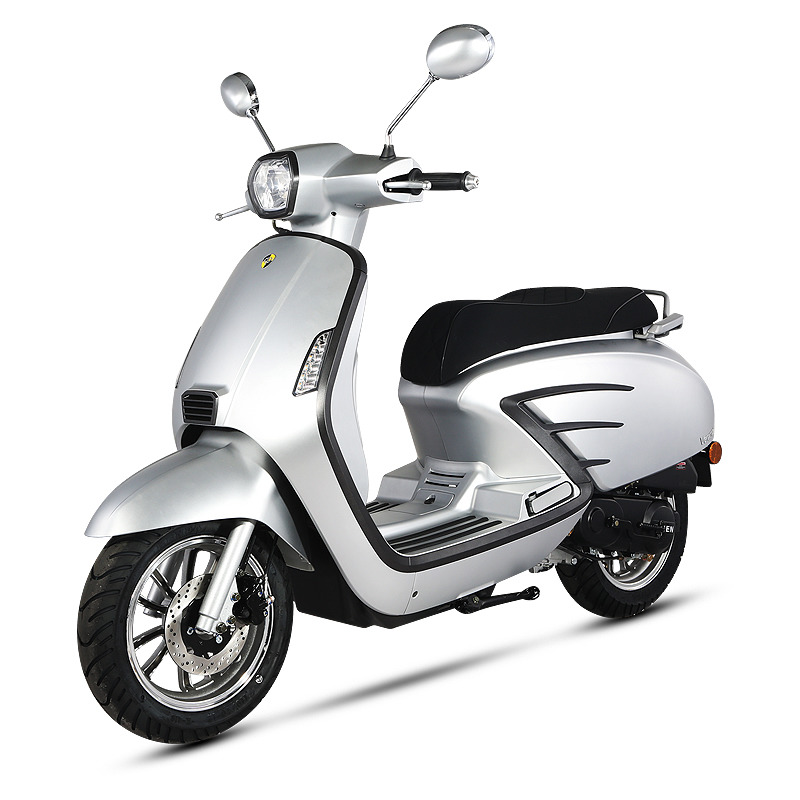

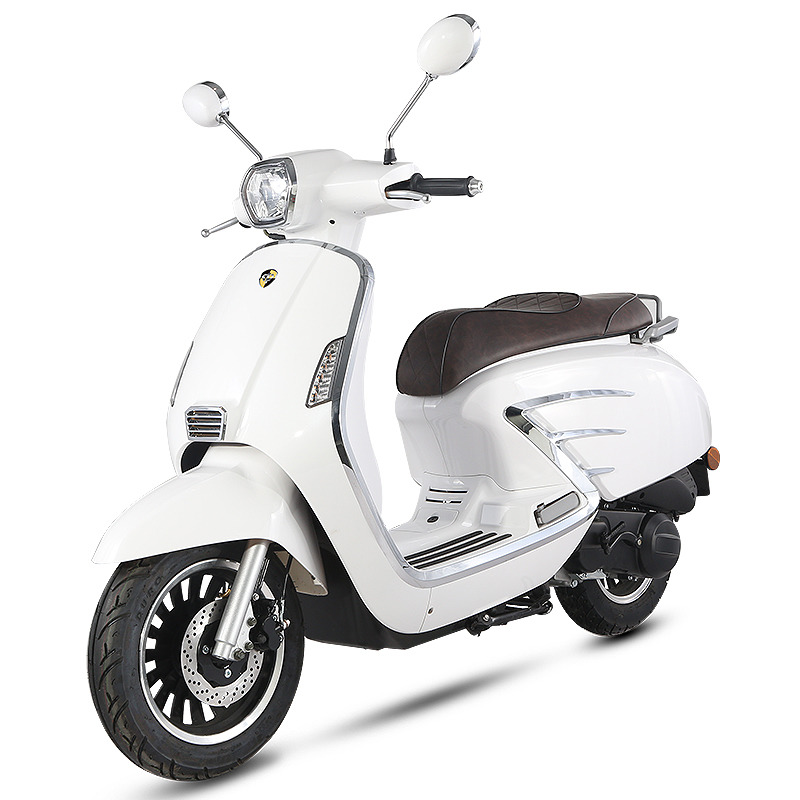

1. Appearance

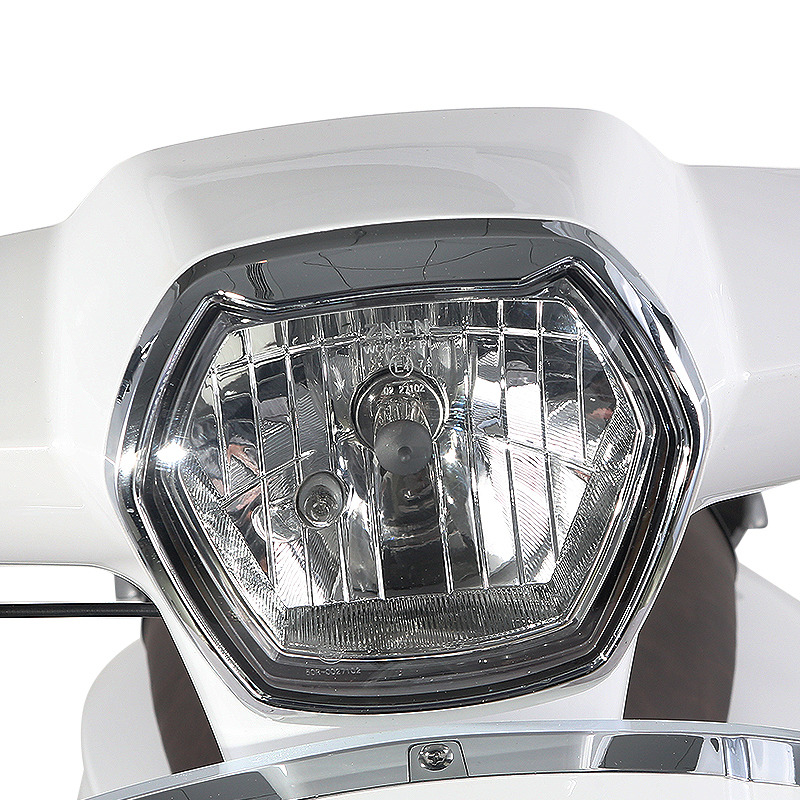

1.1 lamps: all lamps are LED, fashionable design and good visual.

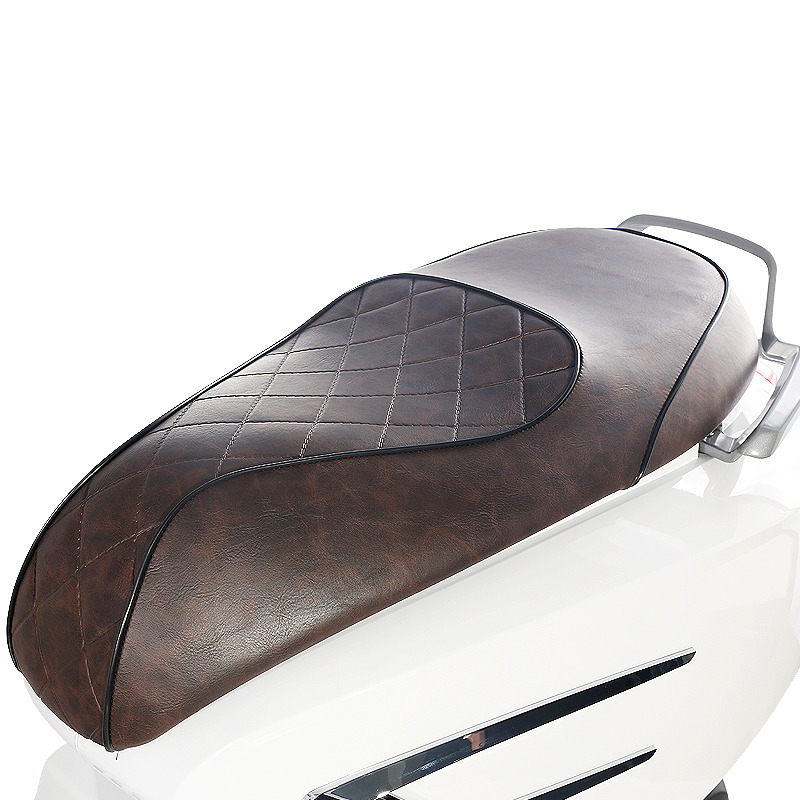

1.2 seat: is fashionable, and high and low drop design can bring excellent driving experience.

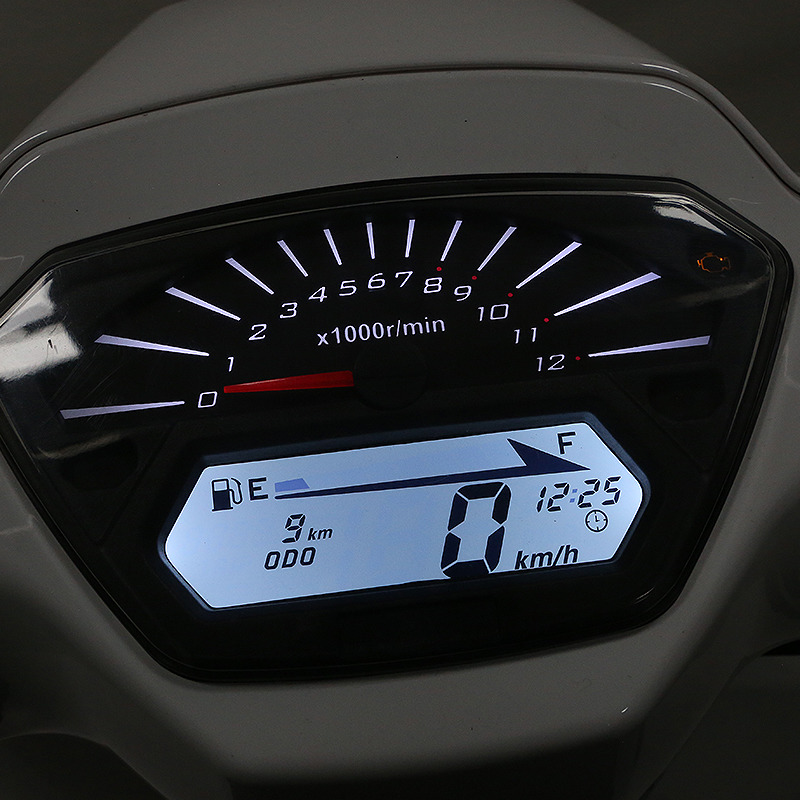

1.3 instrument: it uses mechanical combinate with digital instrument, which is rich in strong movement atmosphere.

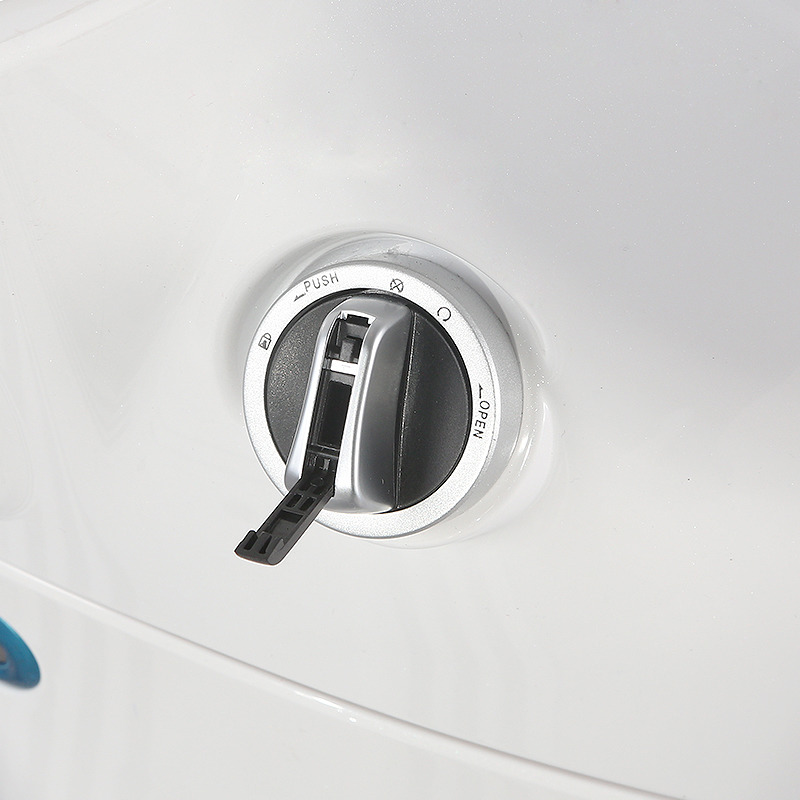

1.4 lock: anti-theft central control lock, more safe and convenient.
1.5 braking: equipped with high-performance CBS braking system, good braking performance, stable and reliable.
1.6 tyre: 110 / 70-16 vacuum tires are equipped at the front and rear to improve the driving stability and trafficability.
1.7 fuel tank: 7-Liter fuel tank, which can meet the long-distance riding.
1.8 air intake: air filter and engine side cover adopt high-level air intake at the same time, which can effectively improve the pollution of engine air intake and extend the service life of engine.
1.9 muffler: aluminum decorative cover, full of sense of movement.
1.10 storage: a full helmet can be placed. The front part of the storage box is designed with a 5v2a quick charging USB interface
1.11 rear carrier: aluminum alloy rear carrier is adopted, which can be equipped with more than 25L rear box.
2. Engine
2.1 it is equipped with a newly independently developed high-power engine, which adopts integrated cylinder head design, high-strength forged cam, roller type valve rocker arm and lightweight piston to make the engine run more smoothly and keep a strong heart at all times.
Model | ZN50QT-69 | ZN125T-69(KVJ) | ZN125T-69(GY7) |
Top Speed(km/h) | 25,45 | 80 | 80 |
L×W×H(mm) | 1900*705*1135 | 1900*705*1135 | 1900*705*1135 |
Wheelbase(mm) | 1340 | 1340 | 1340 |
N.W/G.W(kg) | 90/96 | 108/112 | 108/112 |
Displacement(cc) | 49.6 | 124.6 | 124.6 |
Max.Output kw(r/min) | 1.80/6500 | 6.50/7000 | 6.0/7500 |
| 2.10/7500 |
|
|
Max.torque.N.m(r/min) | 2.50/6500 | 9.50/6000 | 8.0/6000 |
| 2.80/6500 |
|
|
Brake Mode | Disc/Drum | Disc/Disc(CBS) | Disc/Disc(CBS) |
Tank Capacity(L) | 6.6 | 6.6 | 6.6 |
Front Tire | 110/70-12 | 110/70-12 | 110/70-12 |
Rear Tire | 120/70-12 | 120/70-12 | 120/70-12 |
