Buried Road Stud

Min. Order: 10 PIECES

Product Parameters

Serial No. : BL-004CA

Size（mm）：170*98.2

Material:Aluminum + PC window

Color:SILIVER

Add to Favorites

Schedule an Appointment

TAIZHOU AMBUND INDUSTRY CO.,LTD

Support level: A

575 JINGYI ROAD TAIZHOU ZHEJIANG

Registered capital:200

Founded:2010

Number of companies:1-50人

Export scale:

Contact: 曹**

E-Mail：Sign In

Tel:Sign In

The detailed information

Product Description

Body material: Aluminum + PC window

Product Weight: 1430g

Protection Index: IP68

Operation Mode: Always on, Flashing, Sequential (Customization).

Power Supply: DC12V

Power Consumption: 432mw

Current Consumption: 36mA

Mechanical Resistance: Static 30 Tons

What is stars plastic brand solar reflective road stud?

●SUPER DURABLE:
1.Using the aluminum material to make frame which has better intensity.
2.The mixed epoxy filler(Optional) makes the compression resistance degree be over 30t.
3.The embedded reflectors design can reduce abrasion.

●HIGH BRIGHT:
1.Our road stud using the great acrylic reflector,its reflection is stronger than other materials.
2.Our road stud uses great acrylic reflectors which have better reflection.
3.We use the bright LED bulb which is provided by Taiwan well-known brand. It has long using lifespan that is more than 100000 hours.

●EXTERNAL MAGNET SWITCH(OPTIONAL):Special design of the internal circuit to make MAGA to be turned ON/OFF by an external mini-Magnet, good for long time storing.

●WATERPROOF:Reach to IP68 waterproof level.

●CUSTOM(OPTIONAL):①Synchronous flash road stud, which is also called co-frequency road stud.
②Sequential flash road stud.

Installation:

Before installation: Placing security isolation facilities for installation work is most important and must not be ignored.

1.Locate the installing position and ensure it is flat. For curving, cracked or uneven pavement, straighten it prior to installation.
2.Clean the installation location with a brush, meanwhile ensure the location is dry.
3.Firmly mount the stud on the fixing location & ensure the reflective part is facing the right traffic direction.Glue the road stud thoroughly with proper amount of epoxy glue.
4.Inspect the installed studs within 2 hours after installation, ensuring that all the studs are fixed in correct direction or not crooked.
5.Remove the isolation facilities in 4 hours after the stud's installing glue is thoroughly cured.

Applications

●Make road line and the guardrail clearly. Use in rural roads or special regional road (Like swimming pool ,bridge etc).

●Public outdoor spaces like street, parking lot, park, lawn, squares.

ROAD STUD USE IN SMART PEDESTRIAN CROSSING SYSTEM :

INTRODUCTION.
Smart Pedestrian Crossing System, detect the pedestrian when crossing the road, Day-Night dual mode Fully Lit Sign and Embedded Road Stud quick flash to warning coming vehicles to reduce the driving speed to giving ways to pedestrians, it has full-dimensional warning effect.

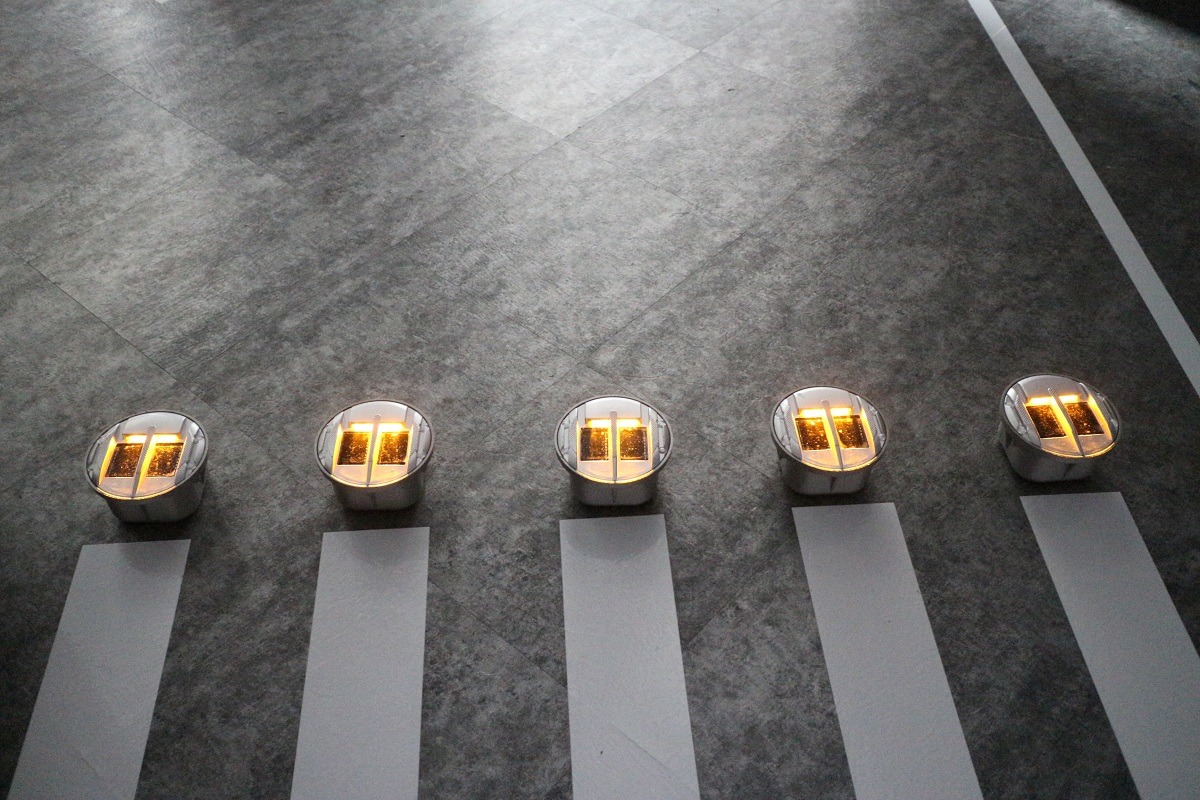

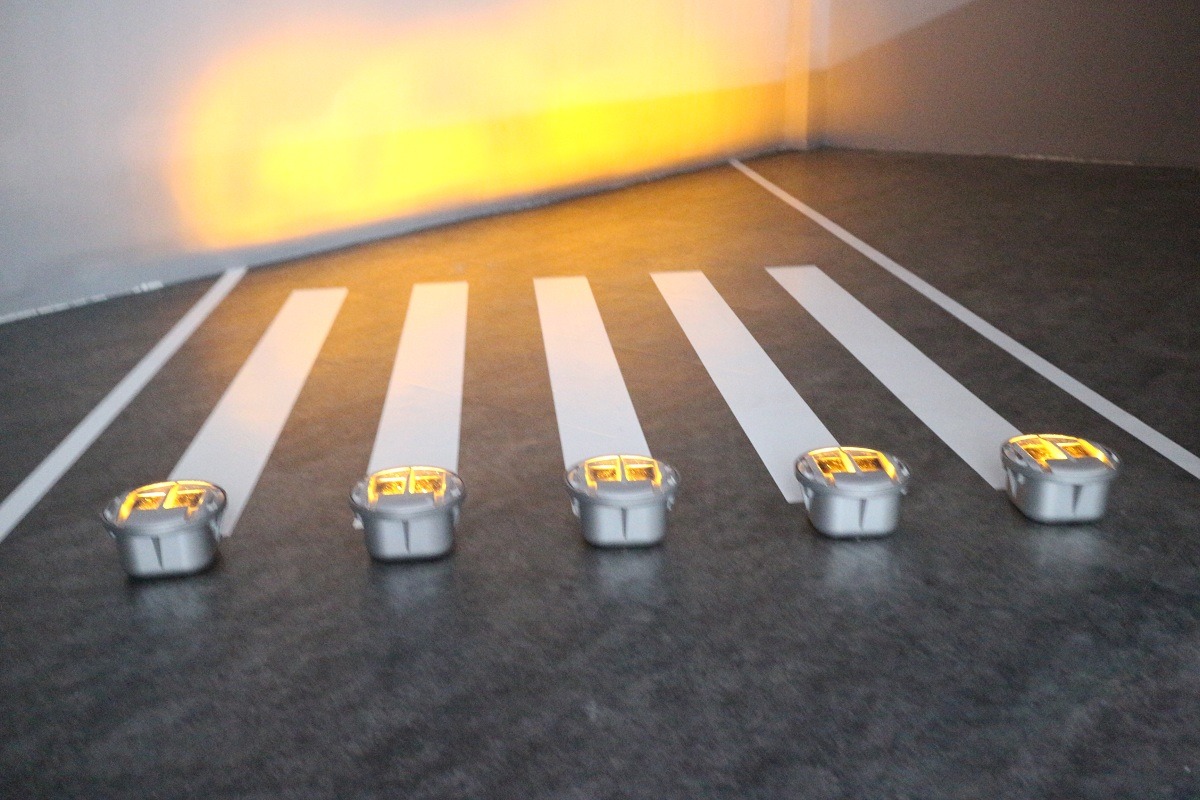

Product exhibition plan
