Serial No. : welding machine cutter CUT 100
Size（mm）：625350*520
Material:PCB BOARD
Place of origin:Zhejiang China
Color:Blue（can be customized）
Support level: A
Registered capital:1000
Founded:2005
Number of companies:200-500人
Export scale:
Contact: 张**
E-Mail：Sign In
Tel:Sign In
Portable ARC WELDER MACHINE
Model | CUT-100 | CUT-120 |
| Power voltage(V) | 3 phase AC 380V | 3 phase AC 380V |
| Rated input capacity(KVA) | 17 | 20 |
| Rated output voltage(V) | 120 | 128 |
| Rated output(A) | 20-100 | 20-120 |
| No-load voltage(V) | 270 | 270 |
| Duty cycle(%) | 60 | 60 |
| Efficiency(%) | 85 | 80 |
| Power factor | 0.73 | 0.73 |
| Insolation class | F | F |
| Protect class | IP21S | IP21S |
| Max cutting thickness(mm) | 30 | 35 |
| N.W.(KG) | 27 | 30 |
| Dimension(mm) | 645*370*540 | 645*370*540 |

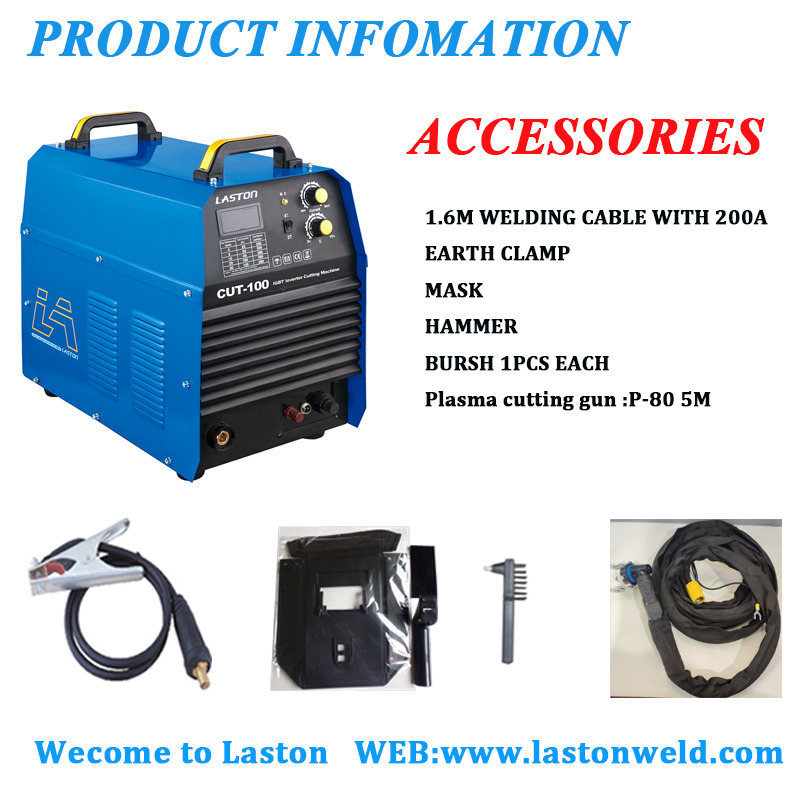

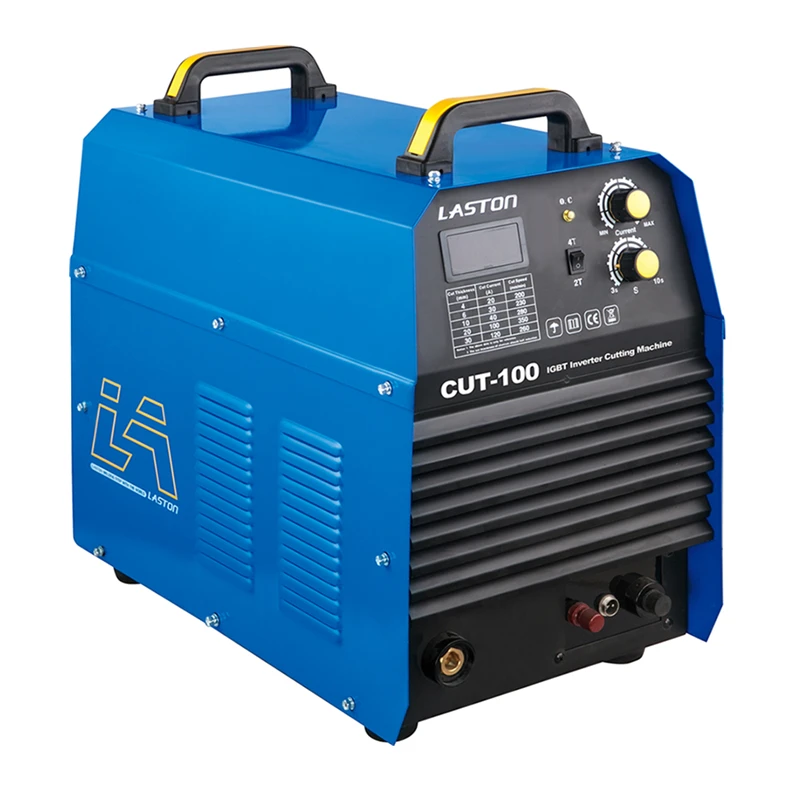

Product Picture
Packing
