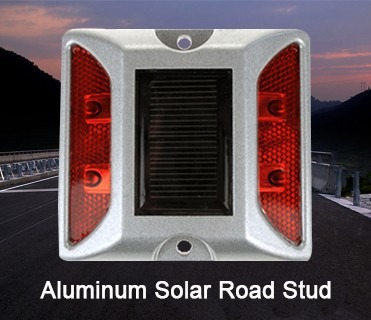

Solar Road Stud

Product Description

Specification

Solar cat eye/road stud
Material	Mix epoxy filler & Aluminum frame
Power supply	high efficient solar panel 3V/90MA
Battery	1.2V/1200MA NI-MH battery
Visibility distance	>1000 meters (dark environment)
Operating temperature	-20°C ~70°C
working hours	flash mode 200 hours with fully charged
Water proof	IP68
Resistance	>30T

What is stars plastic brand solar reflective road stud?

●SUPER DURABLE:

1.Using the aluminum material to make frame which has better intensity.

2.The mixed epoxy filler(Optional) makes the compression resistance degree be over 30t.

3.The embedded reflectors design can reduce abrasion.

●HIGH BRIGHT:

1.Our road stud using the great acrylic reflector,its reflection is stronger than other materials.

2.Our road stud uses great acrylic reflectors which have better reflection.

3.We use the bright LED bulb which is provided by Taiwan well-known brand. It has long using lifespan that is more than 100000 hours.

●EXTERNAL MAGNET SWITCH(OPTIONAL):Special design of the internal circuit to make MAGA to be turned ON/OFF by an external mini-Magnet, good for long time storing.

●WATERPROOF:Reach to IP68 waterproof level.

●CUSTOM(OPTIONAL):①Synchronous flash road stud, which is also called co-frequency road stud.

②Sequential flash road stud.

Product Description

●COLOR OPTIONAL:red/yellow/white/green/blue

●LED NUMBER OPTIONAL: 4/6 pcs

①Synchronous flash

②Sequential flash

●CUSTOM OPTIONAL:Synchronous flash/Sequential flash

Aluminum frame.

●Fixed screw holes.

●Load-bearing more than 30T.

●Long life.

Solar panels.

●Solar panels 3V/90mA, 1.2v 1200mA NI-MH battery.

●Protect Level: IP68.

●Anti-corrosive sealed coating.

●Fast charge rate.

Smooth surface.

●Brushed aluminum frame with thickened smooth edges reduces the impact to car wheels.

Highlight reflector.

●Visual Distance: > 1000 meter in dark.

●High quality reflector meets Euro reflective road stud standard.

●Work mode:flashing/steady

●Lighting Time:200h after fully charged in flashing mode.

Patented glue formula.

●Weight Resistance in static:>30 Tons

●Totally waterproof IP68.

External magnet switch(Optional).

●Special design of the internal circuit to make MAGA to be turned ON/OFF by an external mini-Magnet, good for long time storing.

☞CLICK FOR MORE INFORMATION!☜

Installation:

Before installation: Placing security isolation facilities for installation work is most important and must not be ignored.

1.Locate the installing position and ensure it is flat. For curving, cracked or uneven pavement, straighten it prior to installation.
2.Clean the installation location with a brush, meanwhile ensure the location is dry.
3.Firmly mount the stud on the fixing location & ensure the reflective part is facing the right traffic direction.Glue the road stud thoroughly with proper amount of epoxy glue.
4.Inspect the installed studs within 2 hours after installation, ensuring that all the studs are fixed in correct direction or not crooked.
5.Remove the isolation facilities in 4 hours after the stud's installing glue is thoroughly cured.

Product exhibition plan
