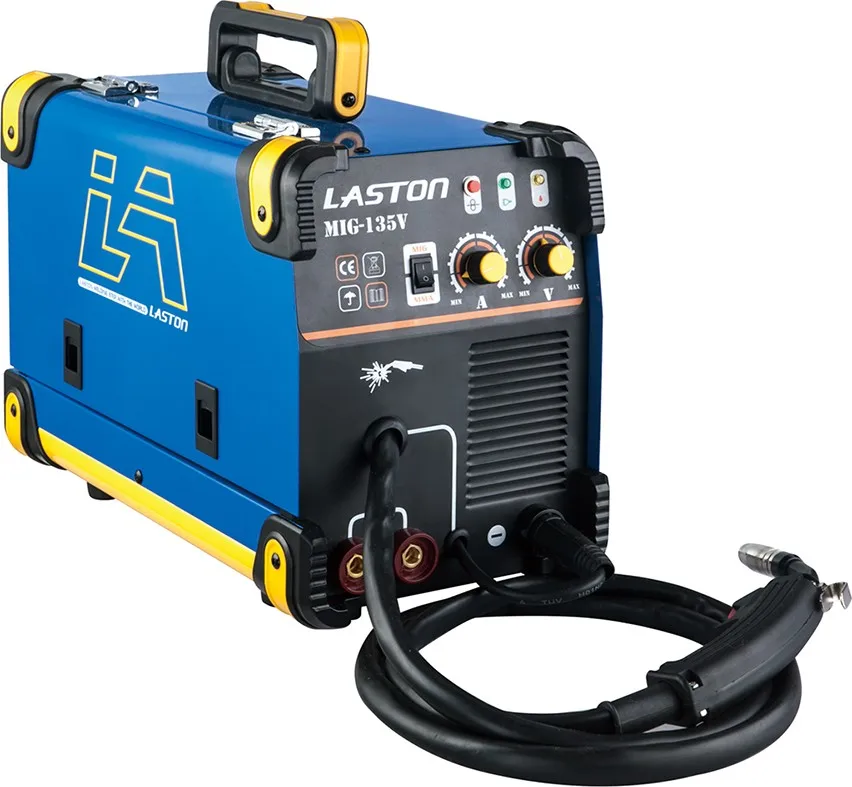

MIG-135P INVERTER WELIDNG MACHINE MIG WELDER

Min. Order: 100 pcs

Product Parameters

Add to Favorites

Schedule an Appointment

ZHEJIANG LAOSHIDUN TECHNOLOGY CO.,LTD

Support level: A

XIACHENG MECHANICAL INDUSTRIAL AREA, WUGEN TOWN, WENLING CITY, ZHEJIANG PROVINCE, CHINA

Registered capital:1000

Founded:2005

Number of companies:200-500人

Export scale:

Contact: 张**

E-Mail：Sign In

Tel:Sign In

The detailed information

Product Description

Product Description

MIG Welding Machine

Featuer

IGBT inverter technology,energy saving.

PWM pulse width control,technology,special performance,accurate current

control,stable arc passing.

Slow wire feeding,arc end with small balls clean,electronic and inductance

regulating,shielding gas post flow functions:

well spatter control,good depth of fusion ,good welding effect.

Over current,over heat,over load,over voltage protection.Special apperance wire

feeder integrated,portable.

*Suitable for welding mild steel,low alloy steel metal,low alloy steel metal sheet .

Detaile Information

ITEM	MIG-100	MIG-135
Power voltage (V)	AC220V 50HZ	AC220V 50HZ
Rated input capacity(KVA)	3.25	4.79
Rated input current(A)	19	20.75
Actual output current(A)	100	135
No-load voltage\|(V)	55	55
Duty cycle (%)	60	60
Efficiency(%)	80	80
Power factor	0.73	0.73
Insulation class	F	F
Protect class	IP21S	IP21S
Usable wire(mm)	0.6-0.8	0.6-0.8
Dimension(mm)	480220340	480220340
Weight(kg)	10.75	10.95

Certifications

Detailed Images

Packing & Delivery

My company has ordinary carton and color box for customers to choose, can according to the requirements of customers design the carton design, also can print your company's brand or customer requirements of the relevant text
