Serial No. : HEPT13
Size（mm）：1600*560*970MM
Material:steel,iron, rubber, plastic and etc.
Place of origin:Zhejiang China
Color:Orange
Support level: A
Registered capital:5056
Founded:2005
Number of companies:101-500人
Export scale:
Contact: 施**
E-Mail：Sign In
Tel:Sign In

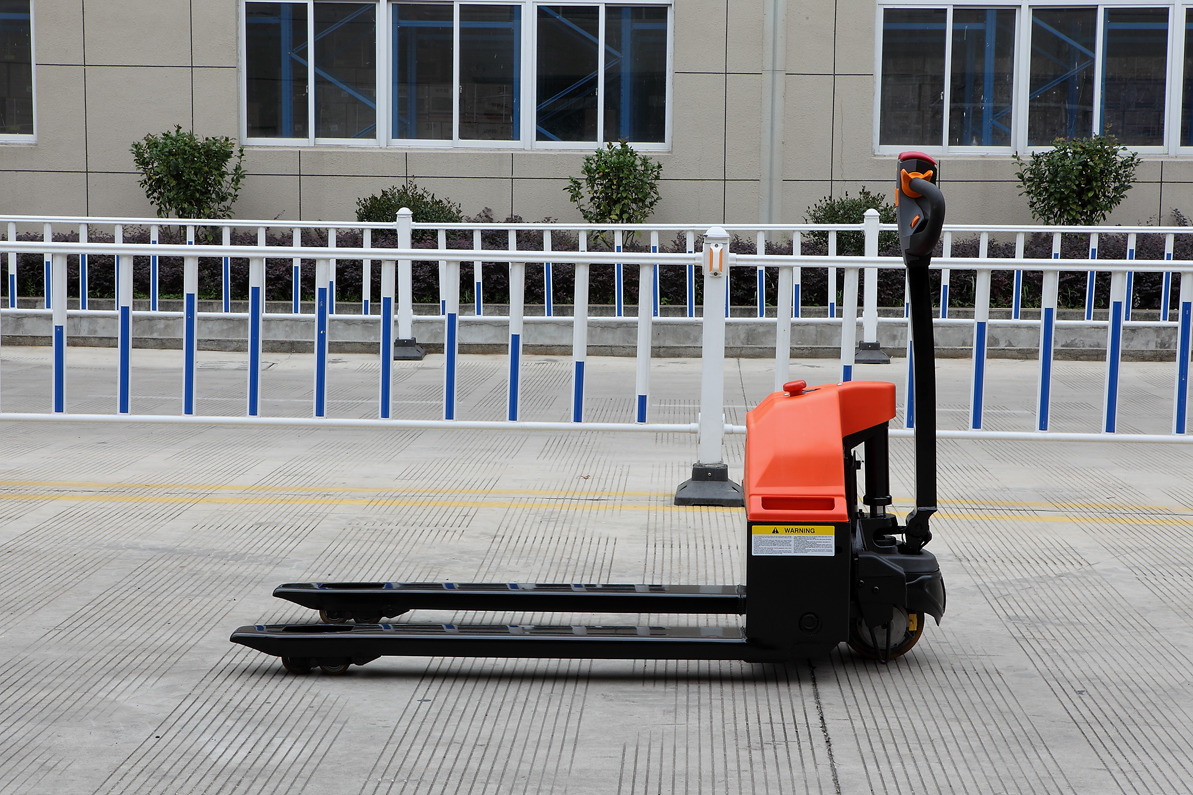

DESCRIPTION: 1.3Ton Smart Truck
FEATURE: Smart/Economical/Fashion/Perfect
Model: HEPT13
HS CODE: 8427109000
| 1 | Model型号 | HEPT13 | |
| 2 | Load capacity 额定载荷 | kg | 1300 |
| 3 | Service weight(with battery) 带电瓶自重 | kg | 225 |
| 4 | Min. Lowered fork height 最小离地间隙 | mm | 85 |
| 5 | Overall length with forks 总长 | mm | 1600/1670 |
| 6 | Overall forks width 总宽 | mm | 560/685 |
| 7 | Fork length×width×height 货叉长×宽×高 | mm | 1150×150×50 |
| 8 | Aisle width for pallet 1000×1200 crossways 直角通道宽度，托盘1000×1200 | mm | 1930 |
| 9 | Aisle width for pallet 800×1200 crossways 直角通道宽度，托盘800×1200 | mm | 1780 |
| 10 | Turning radius 转弯半径 | mm | 1480 |
| 11 | Travel speed(laden/unladen) 行驶速度（承载/空载） | km/h | 3.5/4 |
| 12 | Maximum gradeability(laden/unladen) 最大爬坡度（承载/空载） | % | 3/10 |
| 13 | Battery voltage/capacity 电瓶电压/容量 | v/AH | 24/80 |
