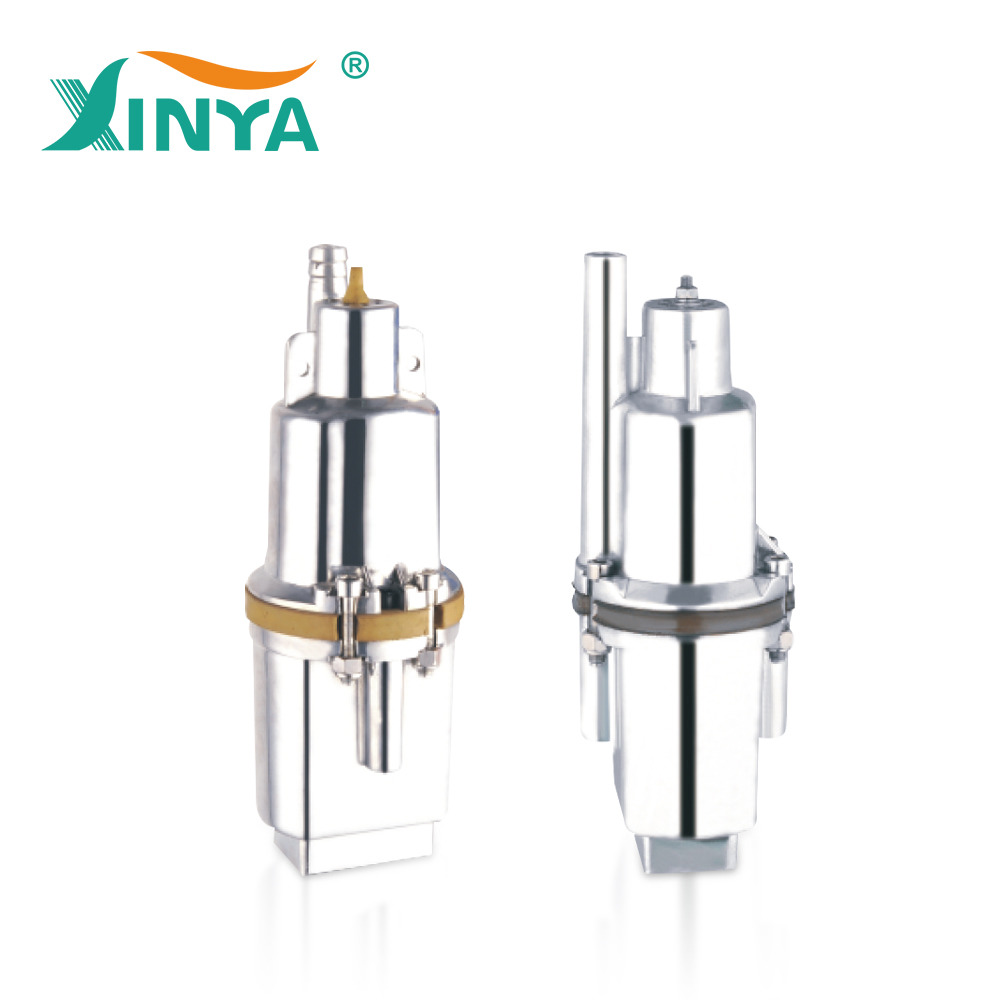

Serial No. : VMP60B
Size（mm）：150*100*280
Material:aluminum pump body
Place of origin:Zhejiang China
Color:plain or customized
Support level: A
Registered capital:1008
Founded:2001
Number of companies:50-200人
Export scale:
Contact: 施**
E-Mail：Sign In
Tel:Sign In

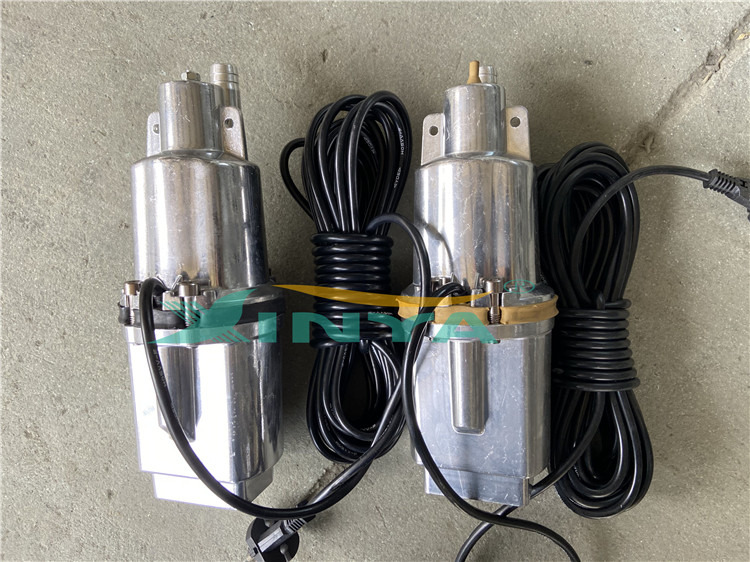

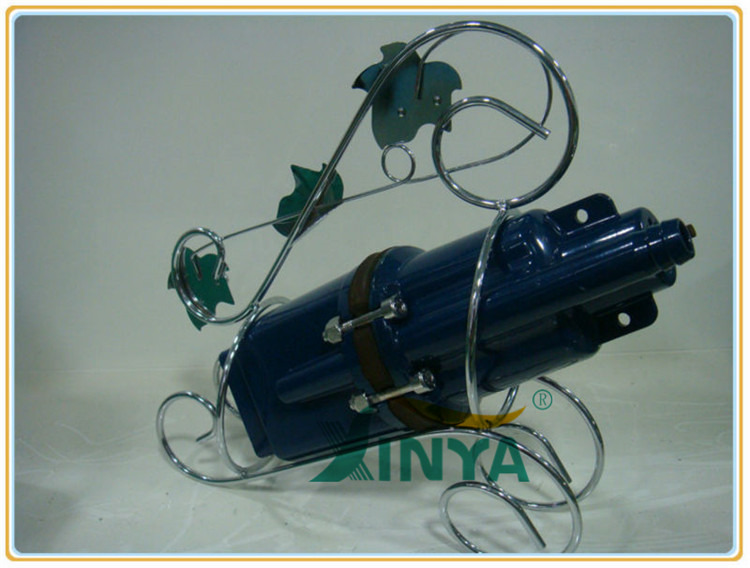

Production Photo

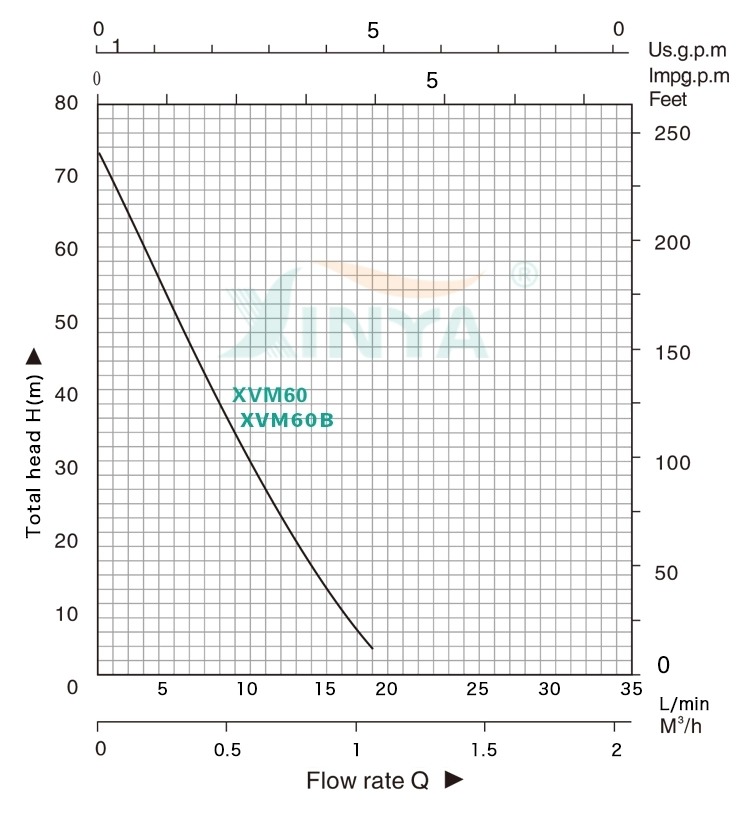

Technical Date
TECHNICAL DATA | |
| Model | VMP60 / XVM60 |
| Voltage/Frequency | 230V/50HZ (110/60HZ can be chosen) |
| Power | 0.25 KW/ 0.33 HP |
| Max flow | 18 L/MIN |
| Max head | 60-70 M |
| Outlet | 1/2” |
| Gross.weight | 3.5 kg |
| Max working pressure | 8 bar |
| Free accessories | 1 rope; 1 impeller ; 1 clap |
| Packing size | 15*10*28 CM |
| Quantity | 5000 PCS/20GP |
| Degree of protection | IP 68 |
| Insulation class | B |
| Warranty | One year |
USE SITUATION | |
| Fluid temperature range | 1-40 °C |
| Suitable water | Clean water |
MATERIALS | |
| Pump body | Aluminum |
| Motor body | Aluminum |
| Shaft | # 45 Steel |
| Impeller | Rubber |
Structure

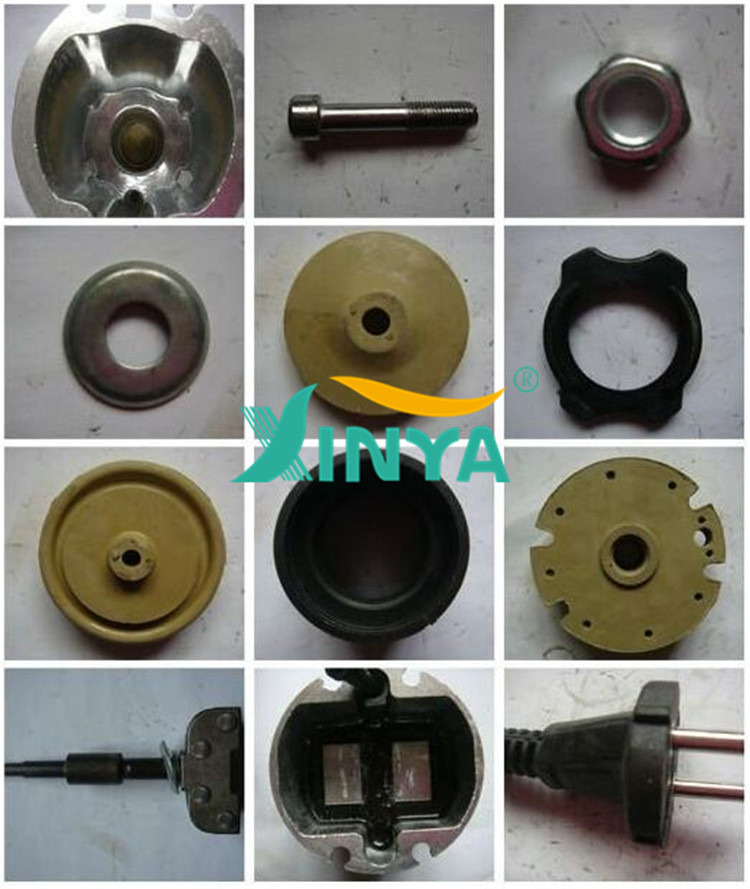

Set Accessories
Workshop
Advantage
Certification
Company
Workshop
Sample Room
Exhibition
