5.0Ton Diesel Forklift

Min. Order: 1 UNIT

Product Parameters

Serial No. : HH50Z-N6-D

Size（mm）：3440*2000*2520MM

Material:steel,iron, rubber, plastic and etc.3340*

Place of origin:Zhejiang China

Color:Orange

Add to Favorites

Schedule an Appointment

HUAHE HEAVY INDUSTRIES CO.,LTD

Support level: A

LIBEI VILLAGE,LUQIAO DISTRICT,TAIZHOU CITY,ZHEJIANG PROVINCE

Registered capital:5056

Founded:2005

Number of companies:101-500人

Export scale:

Contact: 施**

E-Mail：Sign In

Tel:Sign In

The detailed information

Product Description

DESCRIPTION: 5Ton Diesel Forklift

HS CODE: 8427209000

Model: HH50Z-N6-D

SPECIFICATION: 1, 5Ton rated capacity, Load center 600MM

2, With Chinese CHAOYANG diesel engine,

3, with Chinese hydraulic transmission, 3.0meter lift height, Duplex mast, with sideshifter

4，2pcs rear mirror, Seat with safety belt and handles, with strobe light

5, Chaoyang brand pneumatic tires(can choose solid tires), 1.22meter length forks, Orange body color

6, Dimension length*width*height 3440*2000*2520MM, Self-weight 8850KGS

Generals	1	Model 型号			UNIT	HH50Z-N6-D
	2	Power type 动力形式				柴油/Diesel
	3	Rated capacity 额定载荷			kg	5000
	4	Load center 载荷中心距			mm	600
Dimensions	5	Lift height 起升高度			mm	3000
	6	Free lift height 自由起升高度			mm	190
	7	Fork size(LWT)货叉尺寸			mm	1220×150×70
	8	Fork outside spread(Min./Max.)货叉间距（外侧）			mm	300/1830
	9	Mast tilt range(F/R)门架倾角（前/后）			deg	6/12
	10	Front overhang 前悬距			mm	590
	11	Overall dimensions	Length to face of fork 总长	Without of fork 不带货叉	mm	3440
	12			With fork 带货叉	mm	3500
	13			Wheel width 车轮宽	mm	2000
	14		Mast lowered height 门架不起升高度		mm	2520
	15		Mast extended height 门架起升高度		mm	4360
	16		Overhead guard height 安全架高度		mm	2490
	17	Turning radius 最小转弯半径			mm	3370
Performance	18	Travel speed (unload/full load) 行驶速度（空载/满载）			km/h	30/28
	19	Lift speed (unload/ full load) 起升速度（空载/满载）			mm/s	600/400
	20	Max. gradeability 最大爬坡度			%	20
Wheel & Tires Drive units	21	Tires 轮胎		Front 前轮		8.25-15-14PR
	22	Tires 轮胎		Rear 后轮		8.25-15-14PR
	23	Tread 轮距		Front 前轮	mm	1470
	24	Tread 轮距		Rear 后轮	mm	1700
	25	Wheelbase 轴距			mm	2250
	26	Min. ground clearance 最小离地间隙（unload/ full load）（空载/满载）		Mast 门架	mm	190/160
	27	Min. ground clearance 最小离地间隙（unload/ full load）（空载/满载）		Frame 车架	mm	260/250
	28	Battery 蓄电池			v/ah	2×12/90
	29	Engine 发动机		Model 型号		CY6BG332
	30			Rated output 额定功率	kw/r.p.m	81/2500
	31			Rated torque 额定扭矩	n.m/r.p.m	411/1600
	32			Displacement 排量	cc	5785
	33			No. of cylinder 缸数		6
	34			Bore×stroke 缸径×行程	mm	105×125
	35	Transmission 双变		Model 型号		Hydraulic
	36	Transmission 双变		Shift (FWD/RVS) 档位（前/后）		2/1
	37	Operating pressure 工作压力			mpa	18

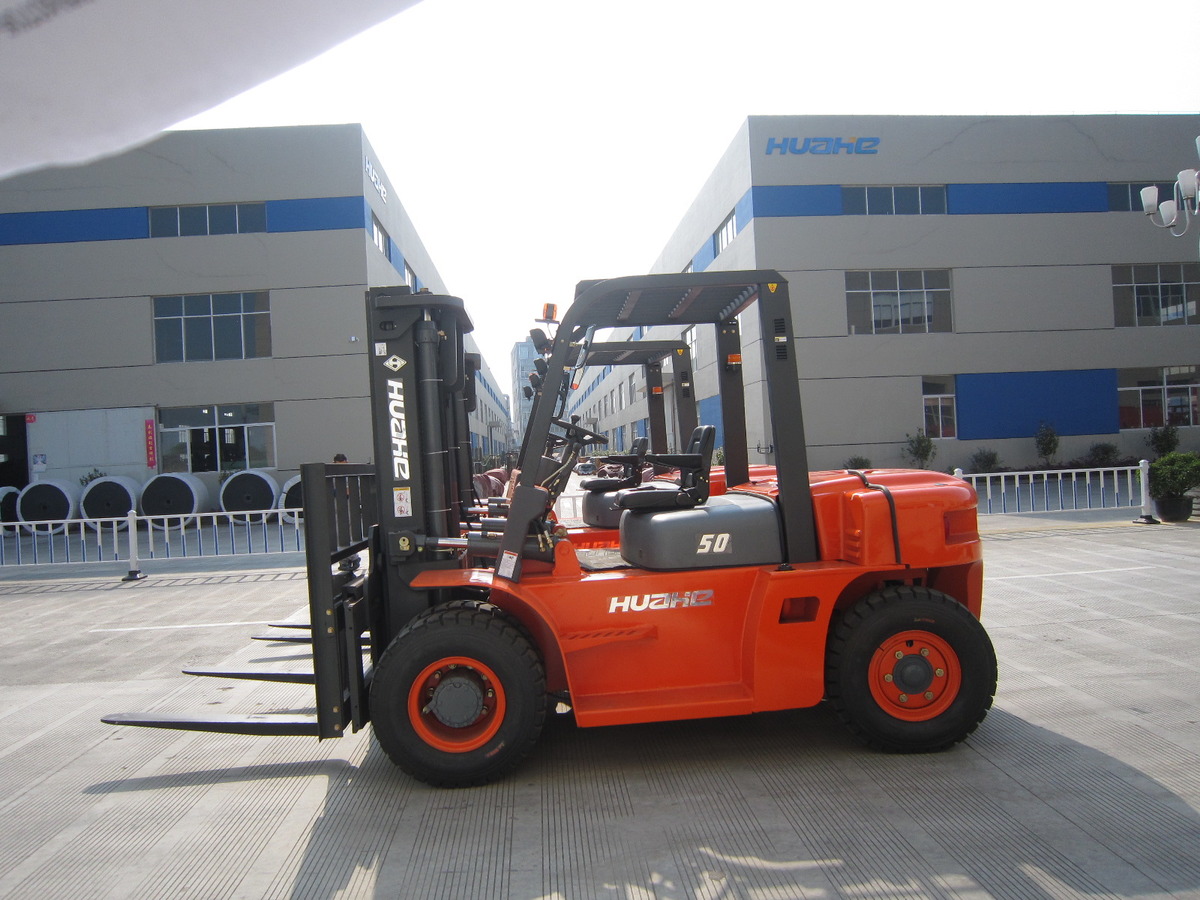

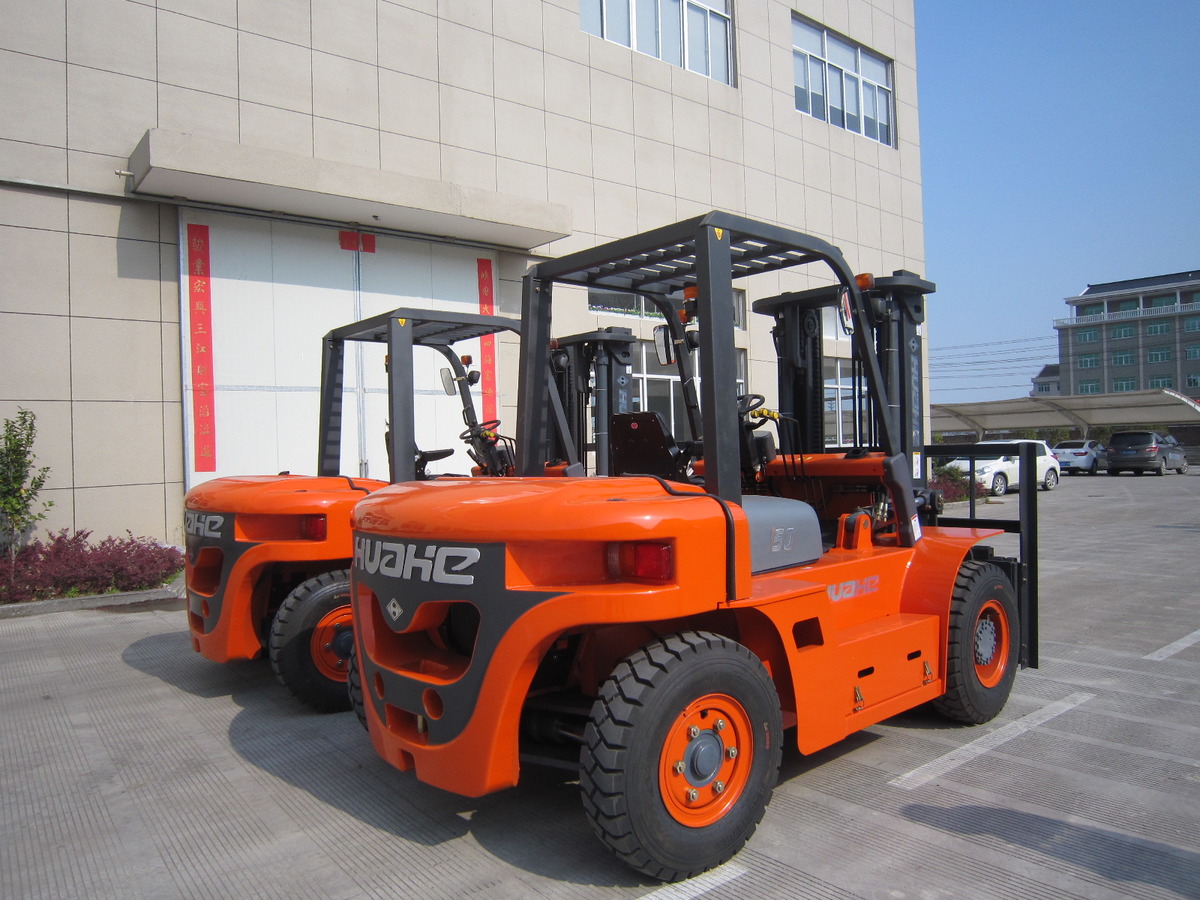

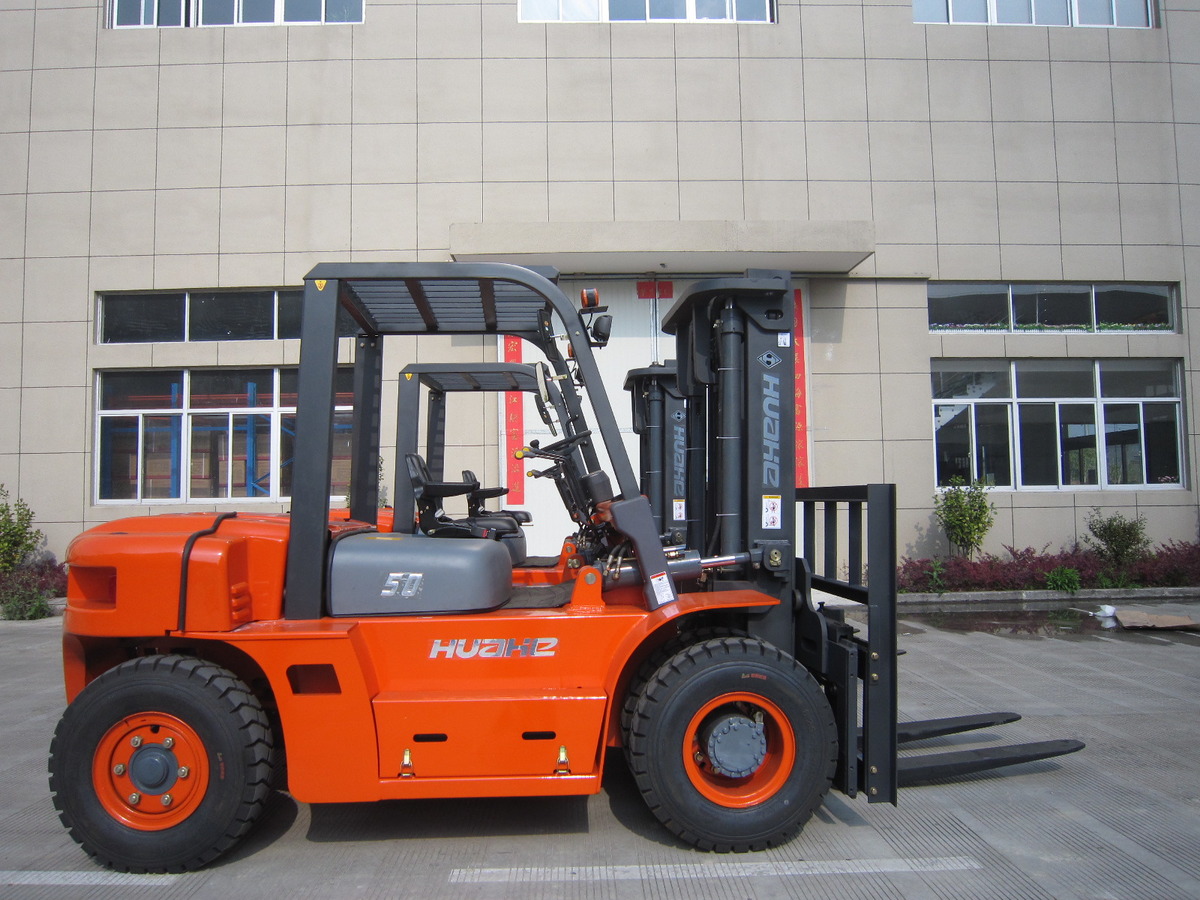

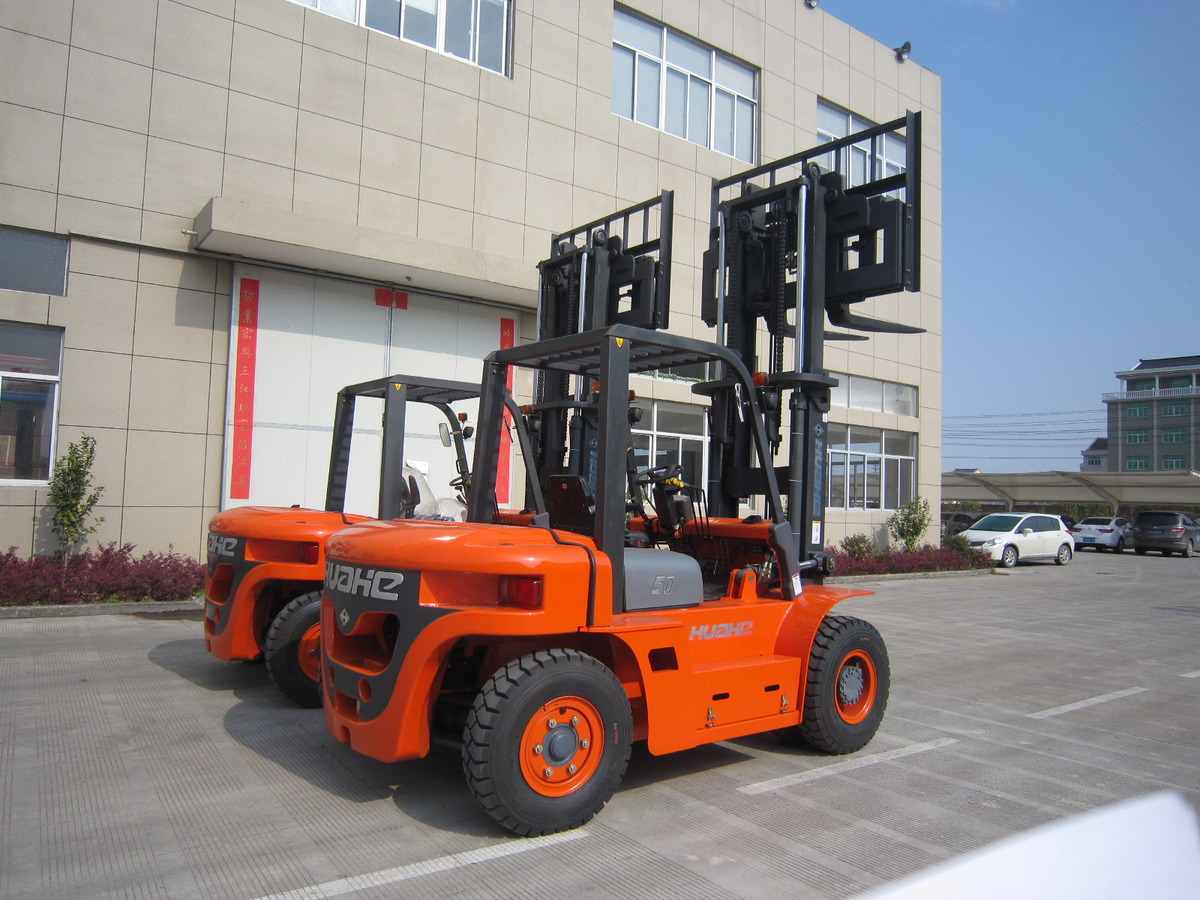

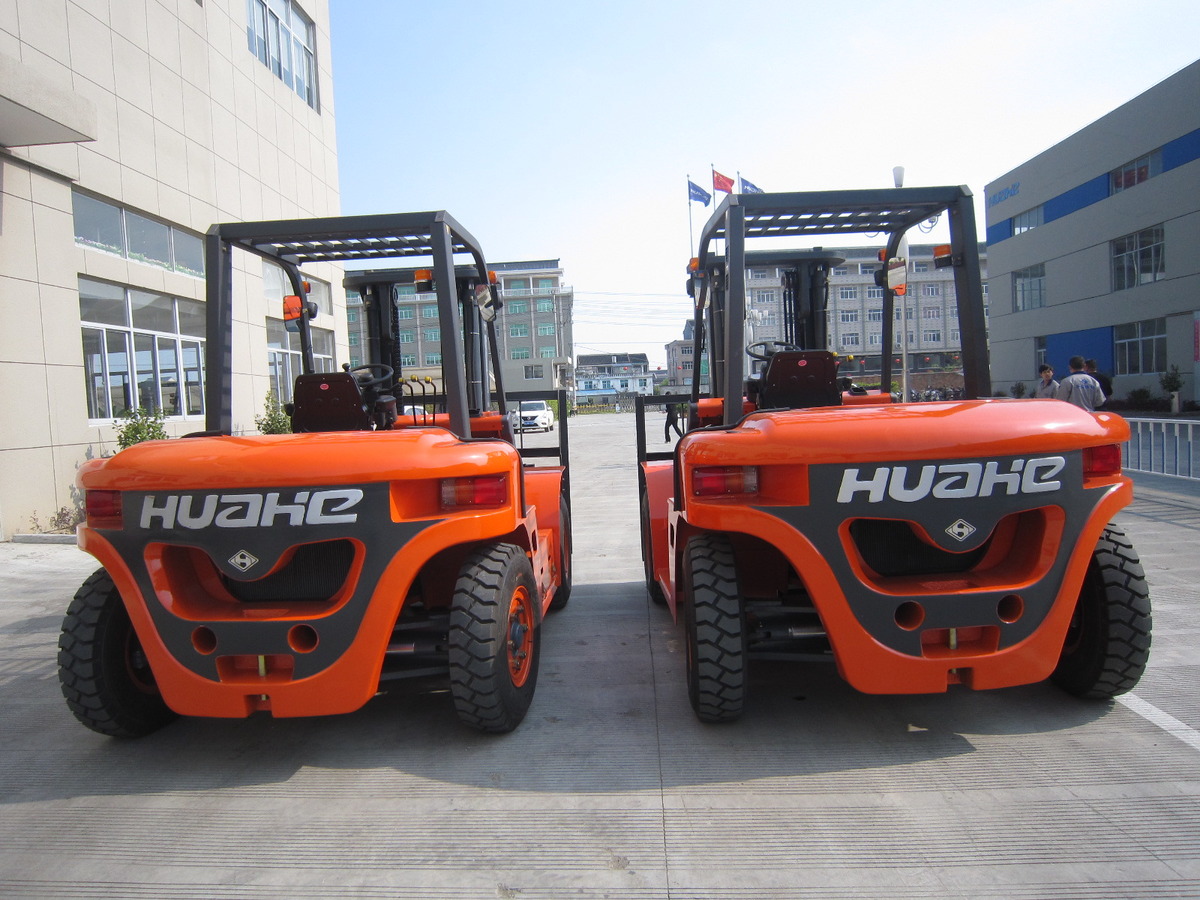

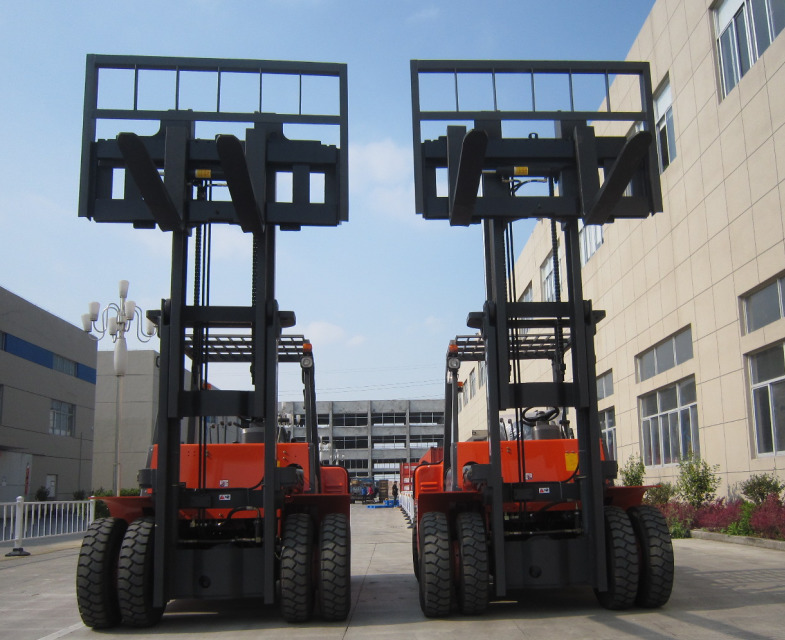

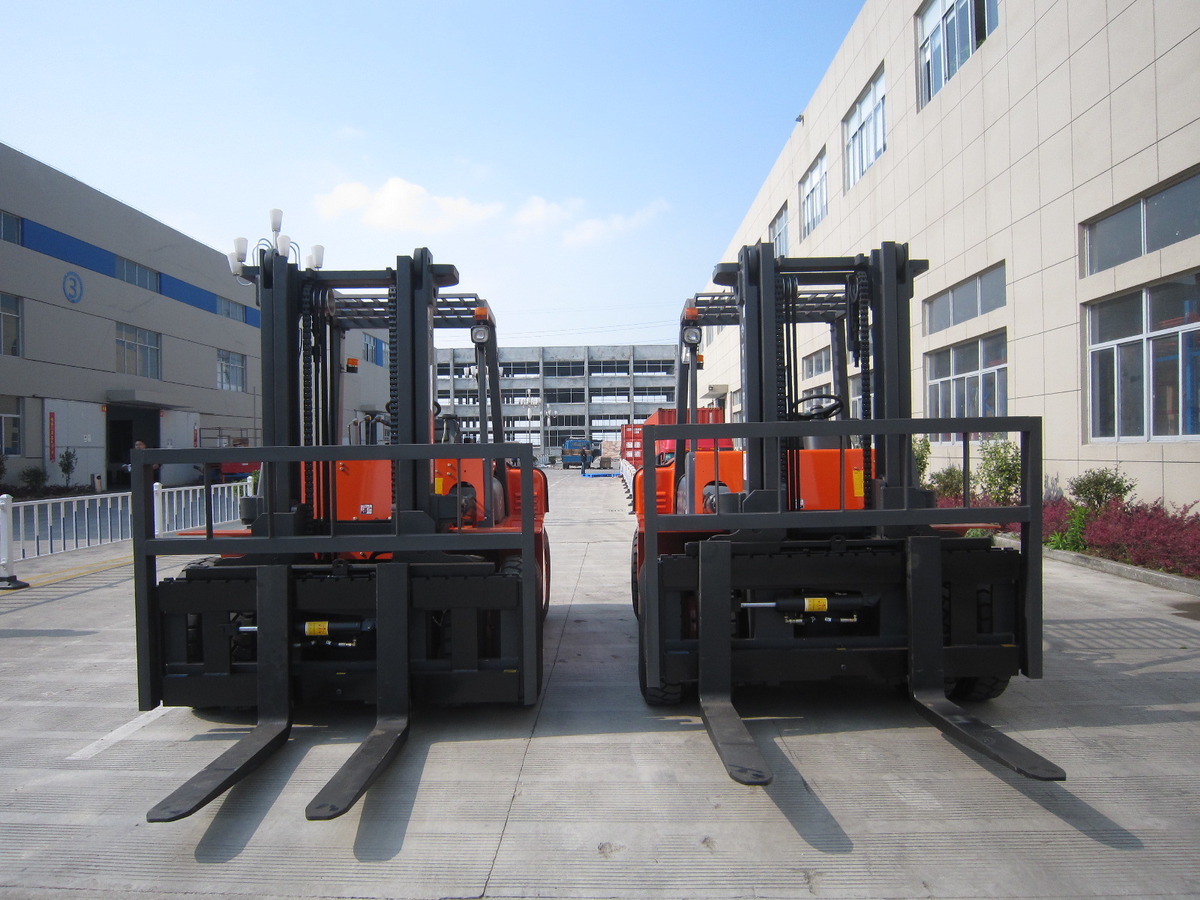

Product exhibition plan
