Serial No. : JN50QT-36
Size（mm）：1850(L)*670(W)*1120(H)
Material:Plastic Parts, Iron Parts, Electronic parts
Place of origin:Zhejiang China
Color:Optional
Support level: A
Registered capital:8018
Founded:2008
Number of companies:500人以上
Export scale:
Contact: 邱**
E-Mail：Sign In
Tel:Sign In
Patent model with high power engine
12 inch wheel
LCD Speedometer, painting Aluminum Wheels
Euro 4 EEC cetificate (Euro 5 EEC certificate will come soon)

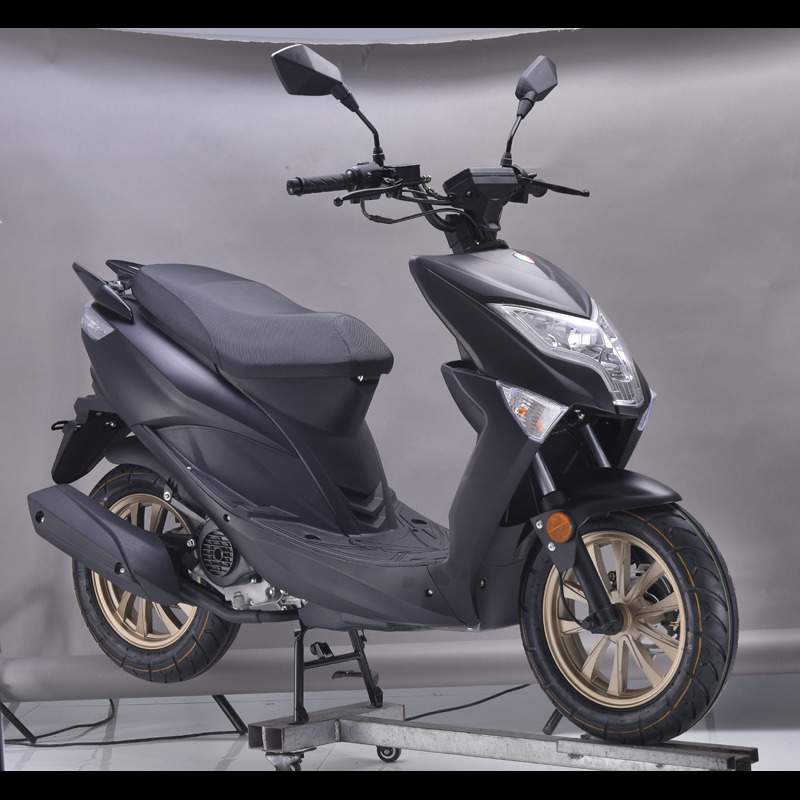

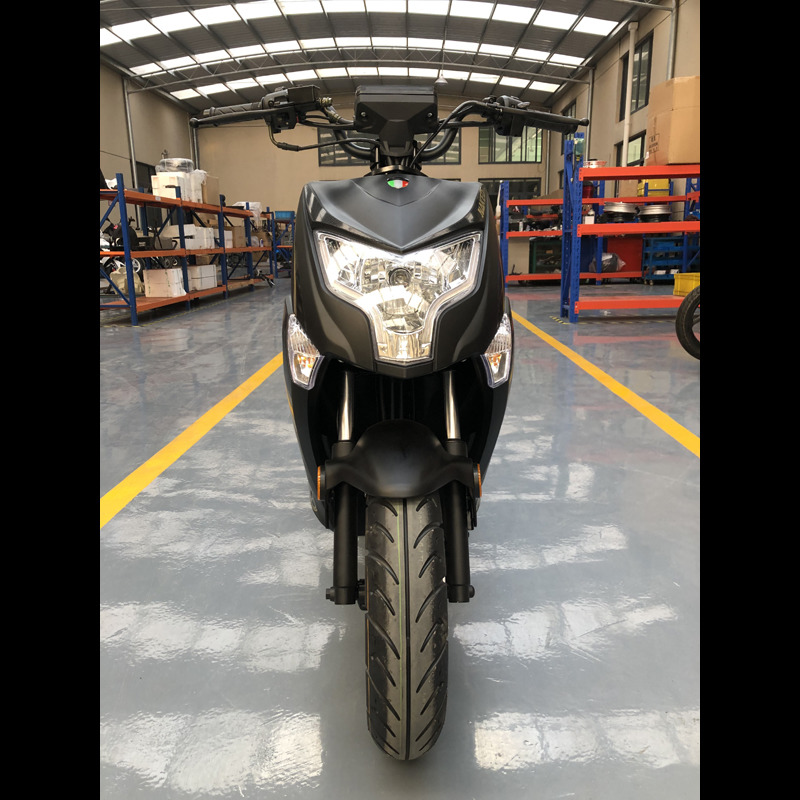

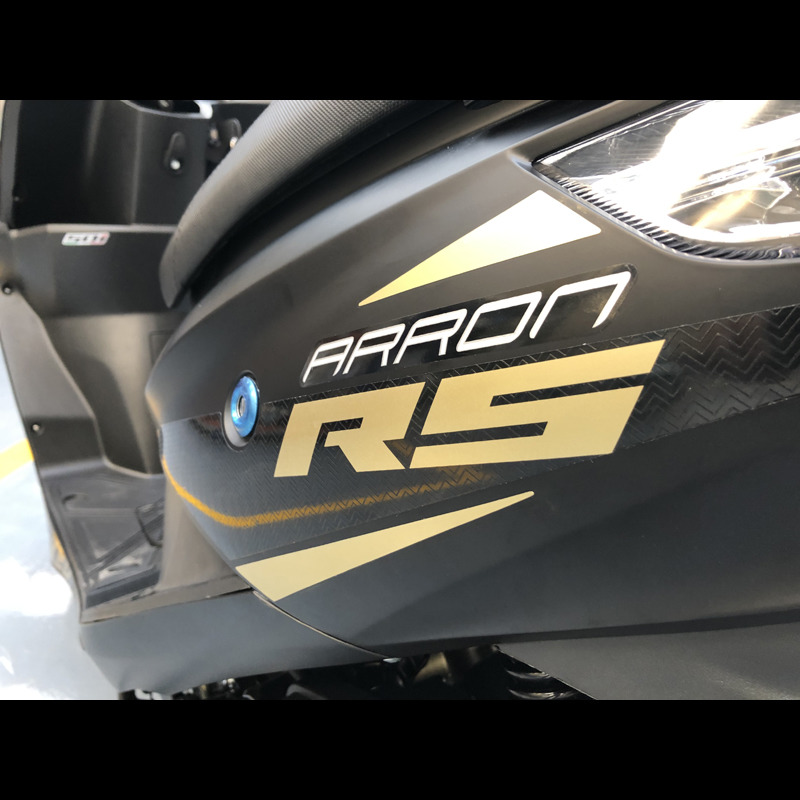

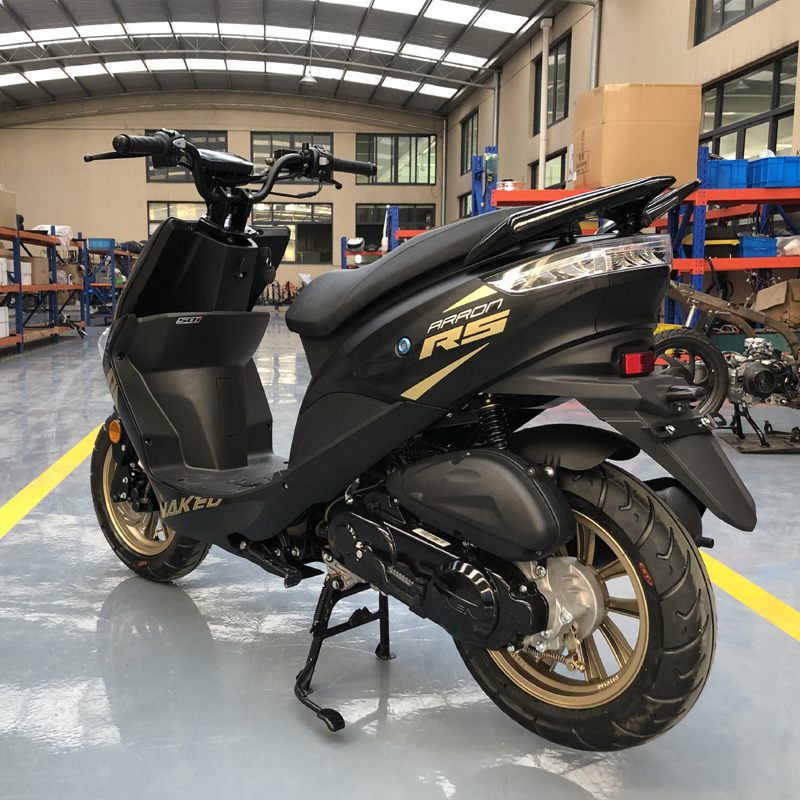

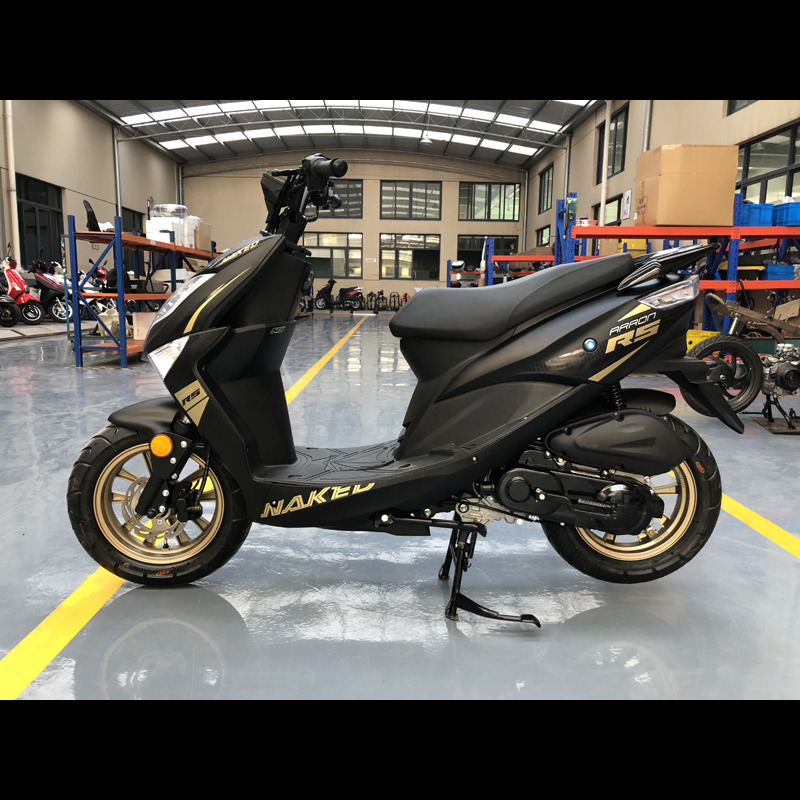

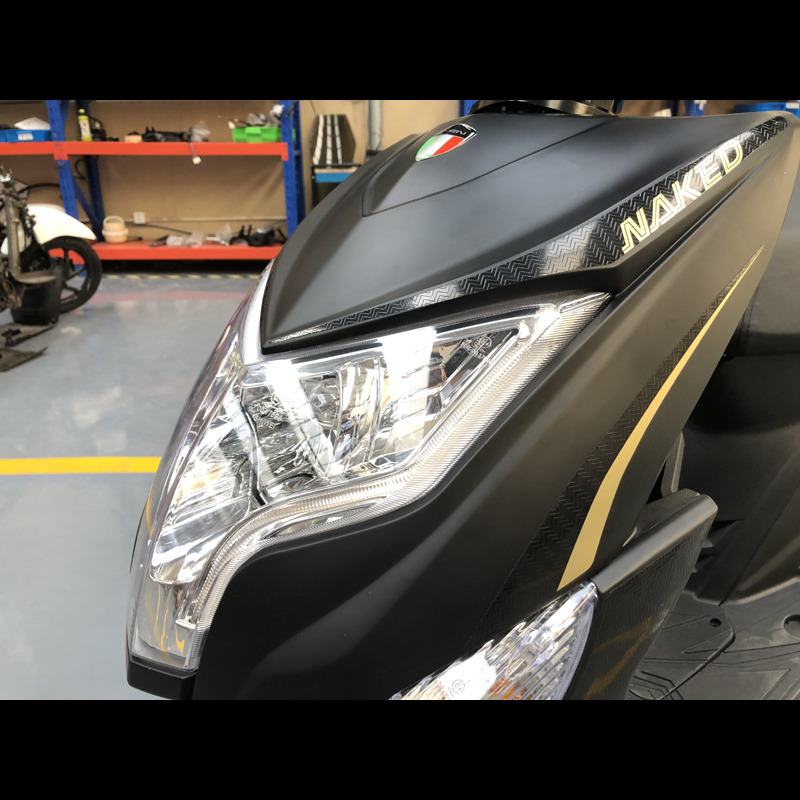

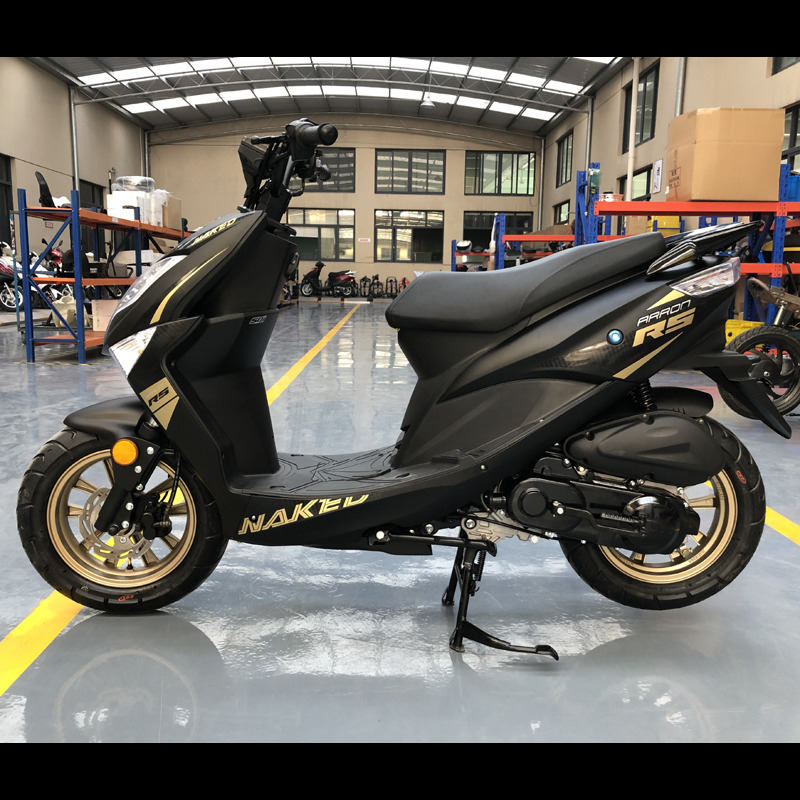

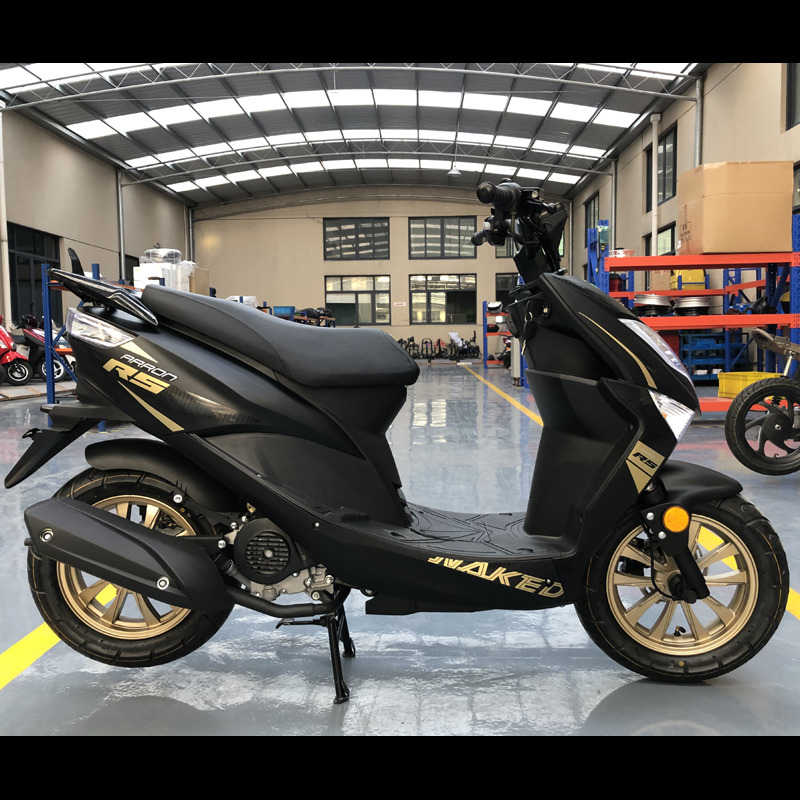

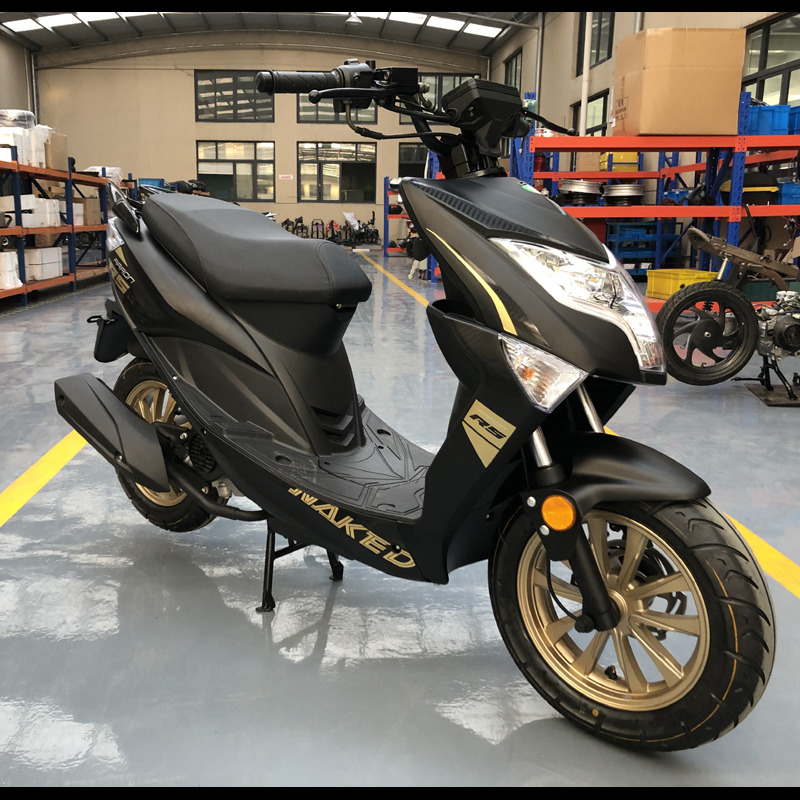

| Commercial Name | ARRON Naked 50CC |
| Model | JN50QT-32 |
| Dimensions(L*W*Hmm) | 1750(L)*607(W )*1040(H) |
| Wheel Base(mm) | 1240 |
| Net Weight (kg) | 87 |
| Ground Clearance(mm) | 120 |
| Engine Type | 1P39QMB |
| Engine Style | 50CC,4 stroke, air-cooling |
| Bore * Stroke | 39.0*41.5mm |
| Compression Ratio | 10.4:1 |
| Max Power | 2.3 kw /7500 r/min |
| Max Torque | 3.0 Nm /6500 r/min |
| Starter | Electric and kick starter |
| Brakes, Front/rear | Disc/drum |
| Brake Operation | Hand |
| Front/Rear Tire | 120/70-12 |
| Wheel | Front:MT2.50×12 Rear:MT2.15×12 |
| Battery | 12V 7Ah |
| Max Speed(km/h) | 45 |
| Economic Fuel Consumption | 2.1L/100km |
| Max Load(kg) | 150 |
| Fuel Tank | 5±0.5L |
| Packed in SKD (Unit) | 84/40HQ |
